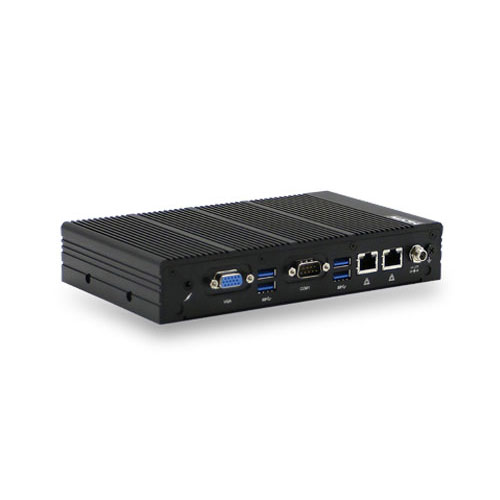

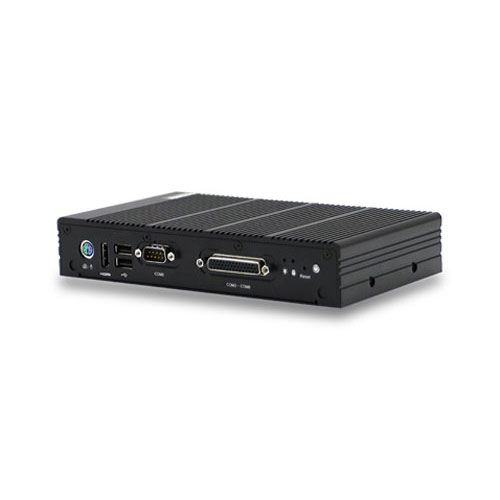

Fanless Box system with Intel® ApolloLake SoC
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc.
| Main System | |
|---|---|
| Chipset | Intel Celeron Processor 3955U |
| Expansion Slots |
1x mini-PCIe Slot (with mSATA, USB2.0) 2x M.2 Slots (1x 2230 E Key, 1x 2242 B Key) 1x Micro SIM Card Slot |
| CPU | Onboard SoC Max. CPU TDP 15W (Configurable TDP-up 25W) |
| Memory | 4GB (Onboard Memory Support DDR4 2133) |
| ROM | 64GB SSD |
| Graphic Support | 1x VGA (1920x1200 Full HD) 1x HDMI (Full HD) |
| Audio Controller | Realtek ALC269 |
| Super I/O | ITE IT8786 |
| Ethernet |
Support 10/100/1000mbps 2x Intel i211 2x RJ-45 Connectors |
| Storage | 1x SATA III (6Gb/s, Support SATADOM, Colay with M2DOM) |
| Front I/O |
1x VGA 1x HDMI 2x RJ-45 2x USB 2.0 Ports 4x USB 3.0 Ports 6x COM Ports (2x DB-9, 1x DB-44) COM 1 Support RS232 or DIO 8bit, Switch by Jumper COM 2 Support RS232/422/485, Switch by BIOS COM 3~6 Support RS232/485, Switch by BIOS 1x PS/2 Combo Connector 1x DC-IN (12V~28V) |
| Connectors & Headers |
1x Buzzer 1x CLR_CMOS Header (1x3 pins) 1x GPIO Header (3x8 pins, with 2x1 Jumper, Support by COM2) 1x HDD LEN (2 sets, Blue & Red) 1x SATA III (6Gb/s) 1x SATA Power (1x 4pins) 1x USB 2.0 Header (for USB Type A by Cable) 1x AT/ATX Mode (3x1 pins with Jumper) 2x USB 3.0 Power (3x1 pins with Jumper) 1x USB 2.0 Power (3x1 pins with Jumper) 1x Power On Button with LED 1x Reset Button |
| Environment | |
| IP Level | N/A |
| Operation temperature | -0°C ~ 40°C |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 60°C @ 90% (non-condensing) |
| Dimensions | 209.8mm x 120mm x 38.2mm | Weight | 0.6 kg | Warranty | 2 year |
