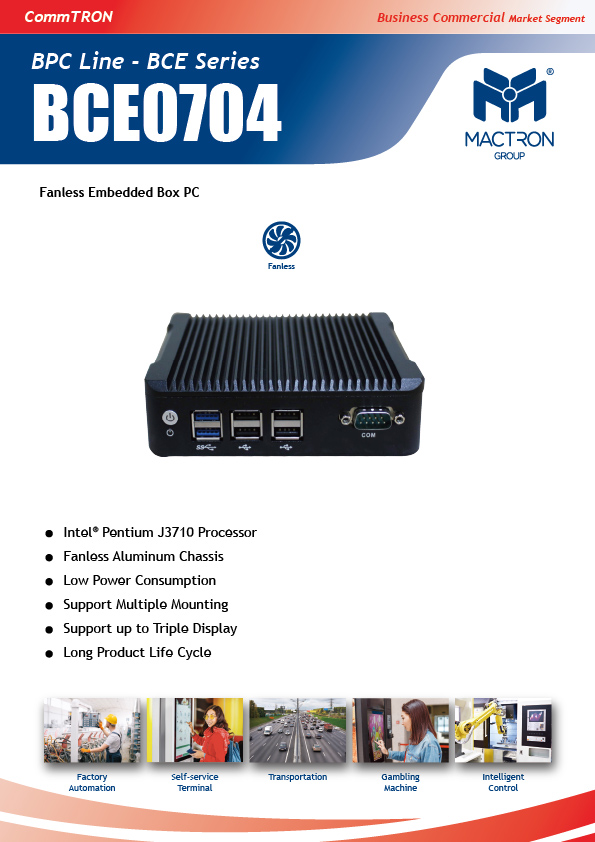

Intel® Pentium® Processor J3710
Fanless Aluminum Chassis
Low Power Consumption
Support Multiple Mounting

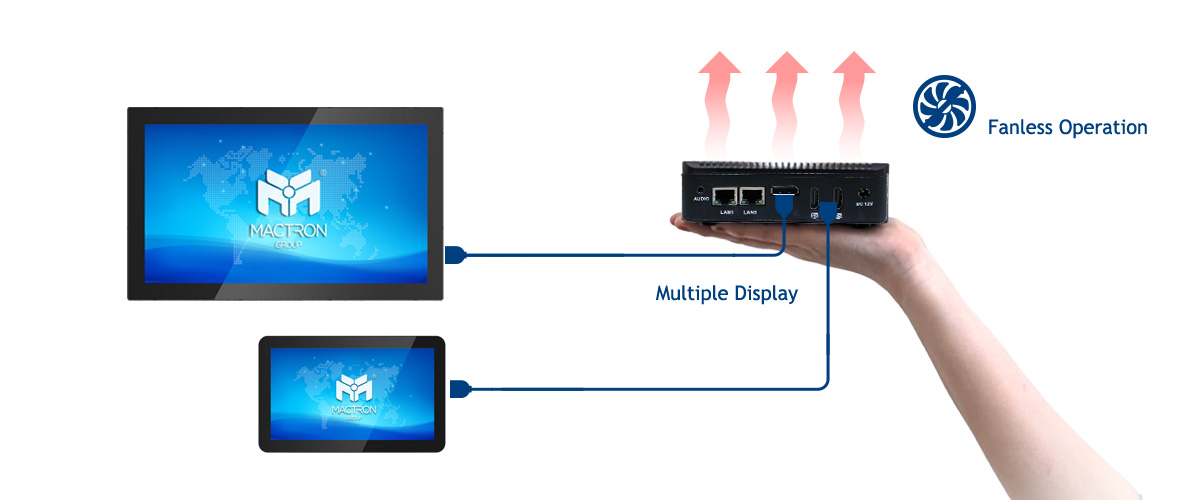

Support up to Triple Display
Long Product Life Cycle
Factory Automation, Self-service Terminal, Transportation, Gambling Machine, Intelligent Control
| Main System | |
|---|---|
| Processor | Intel® Pentium® Processor J3710 Quad Core |
| GPU | Intel® HD Graphics |
| Memory | 1 x SO-DIMM, DDR3 4GB |
| Storage |
1 x 2.5" SATA SSD 64GB 1 x M.2 Mini-PCIe, mSATA Slot (Optional) |
| Expansion |
1 x Mini-PCIe (Full Size for mSATA) 1 x Mini-PCIe (Half Size for WiFi) 1 x SIM Card Slot |

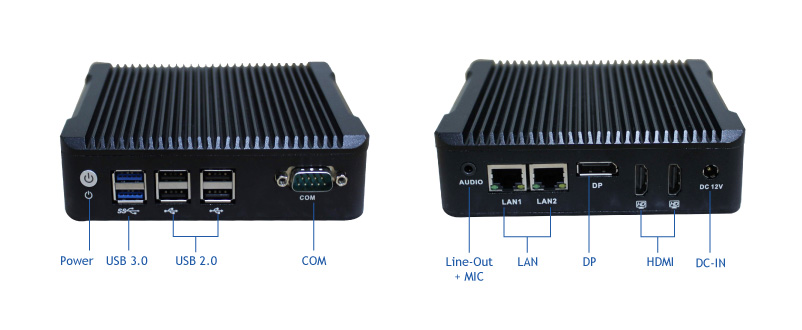

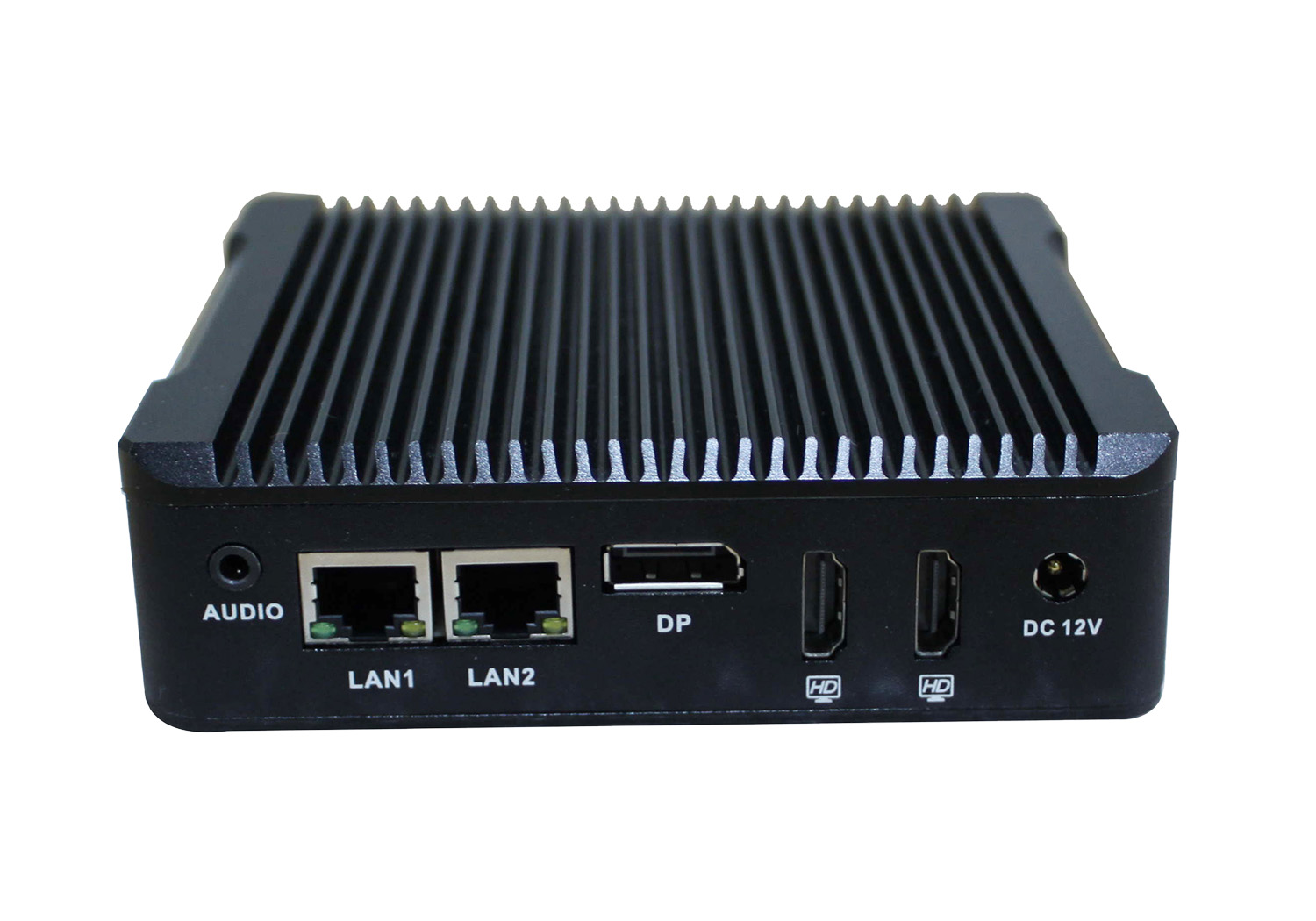

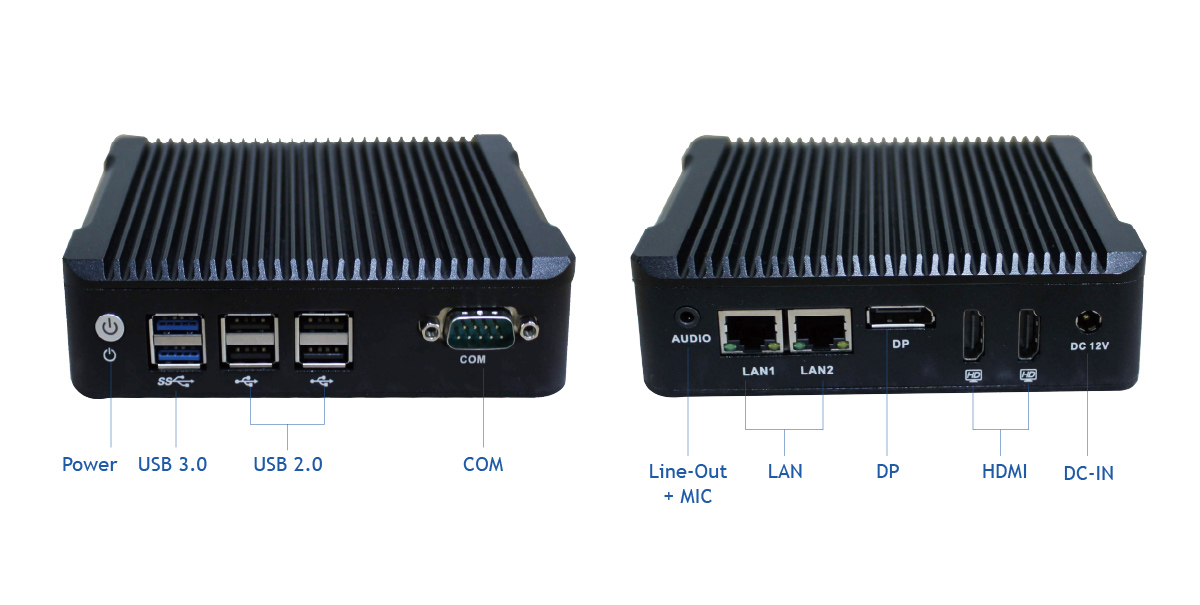

| Rear I/O Ports |
1 x DP 2 x HDMI 2 x LAN 1 x Audio Jack 1 x DC-In |

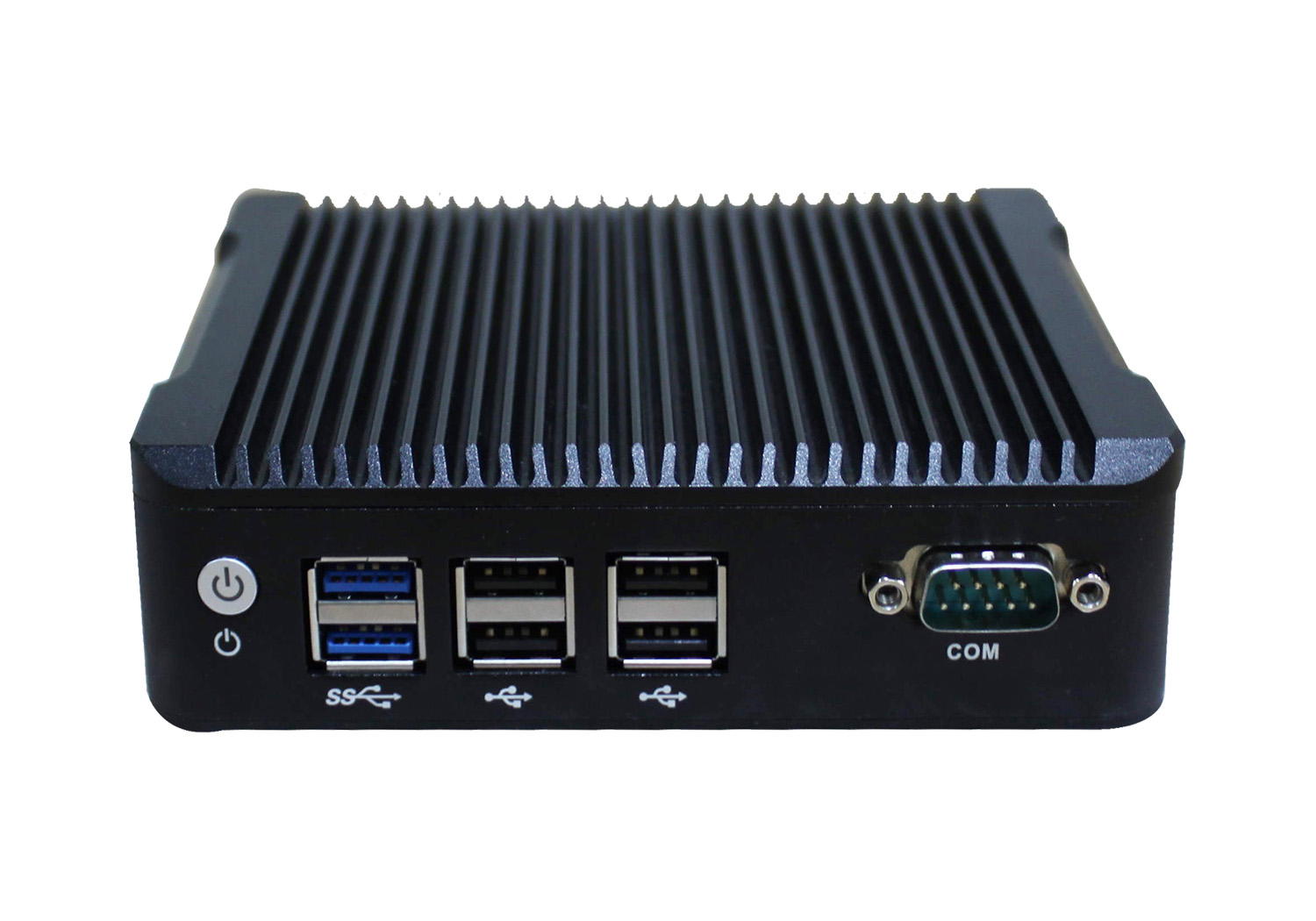

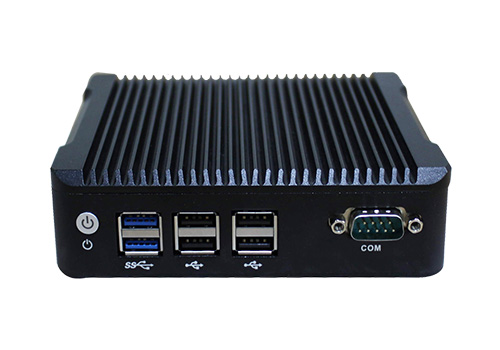

| Front I/O Ports |
2 x USB 3.0 4 x USB 2.0 1 x COM (RS232) |

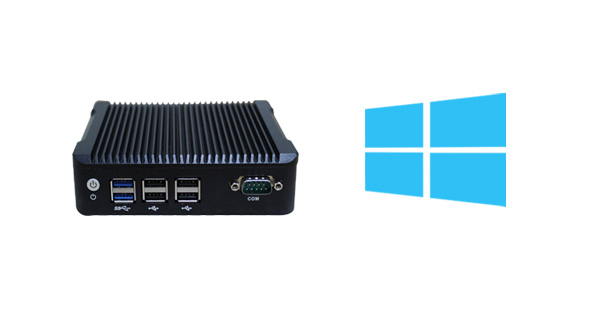

| Operating System | Windows 10 IoT, Win 11, Linux |
| Physical | |
| Mounting | VESA Mount |
| Color | Black |
| Dimensions (WxDxH) | 134 x 126 x 38 mm |
| Weight | 1.2 kg |
| Enclosure | Rugged Aluminum |
| Button | 1 x Power On/Off |
| Power Input | DC 9-36V |
| Power Adapter | DC 12V/5A, 60W |
| Communication |
WLAN - IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz(Optional) WWAN - 3G, 4G LTE (Optional) |
| Security |
Wake-on-LAN Watchdog |

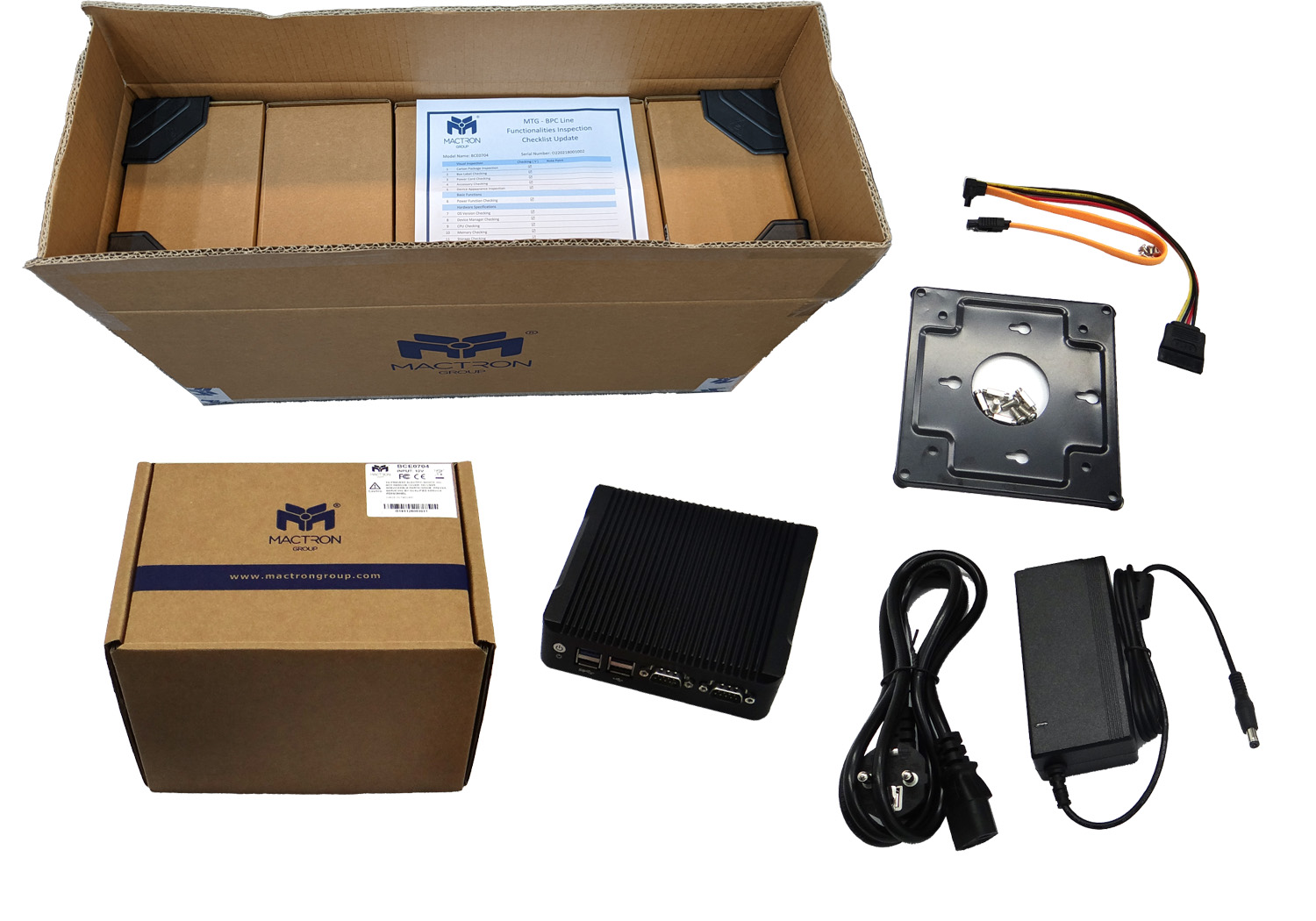

| Standard Accessory |

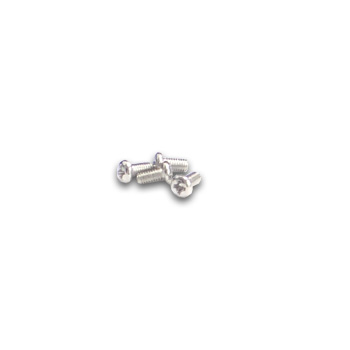

1 x Power Adapter 1 x VESA Mount Kits |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 85°C |
| Warranty | 2 Years |
