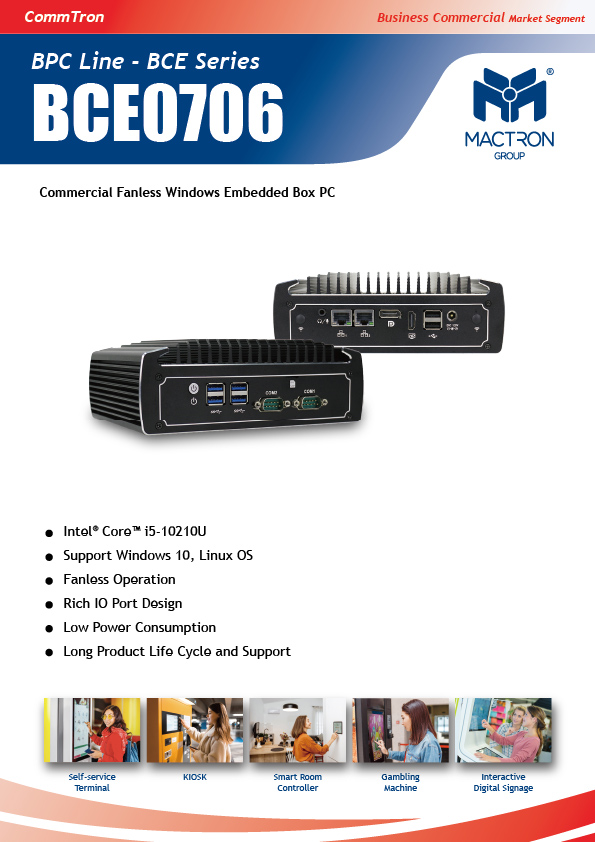

Intel® Core™ i5-10210U
Support Windows 10, Linux OS
Fanless Operation
Rich IO Port Design
Low Power Consumption
Long Product Life Cycle and Support
KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, Smart Room Controller
| Main System | |
|---|---|
| CPU |
Intel® Core™ i5-10210U Intel® Core™ i3-10110U (Optional) Intel® Core™ i7-10810U (Optional) |
| Memory | 4GB DDR4 |
| Storage | 64GB SSD |
| BIOS | AMI 64M DPI Flash ROM |
| OS Support | Windows 7 /8 /10, Linux |
| Ethernet | 2 x Intel i211-AT Gigabit LAN |
| Communication |
WWAN: 3G, 4G LTE (Optional) WLAN: IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz (Optional) |
| Expansion | 1 x Mini-PCle, 1 x SIM Card Slot |
| Watchdog Timer | Output & Interval; Support Hardware Reset (256 level , 0~255 sec) |
| Rear I/O |
1 x DC-In Jack 1 x DP 1 x HDMI 1 x Line-Out + MIC (2 In 1) 2 x USB 2.0 |
| Front I/O |
2 x LAN 2 x Antenna Holes 1 x Power Button 1 x SIM Card Slot 4 x USB 3.0 2 x COM (RS232), COM2 Support RS232/485 (Optional) |
| Physical | |
| Power Input | DC 9-36V |
| Power Adapter | DC 12V/5A, 60W |
| Standard Accessory |
Power Adapter VESA Mount Kits |

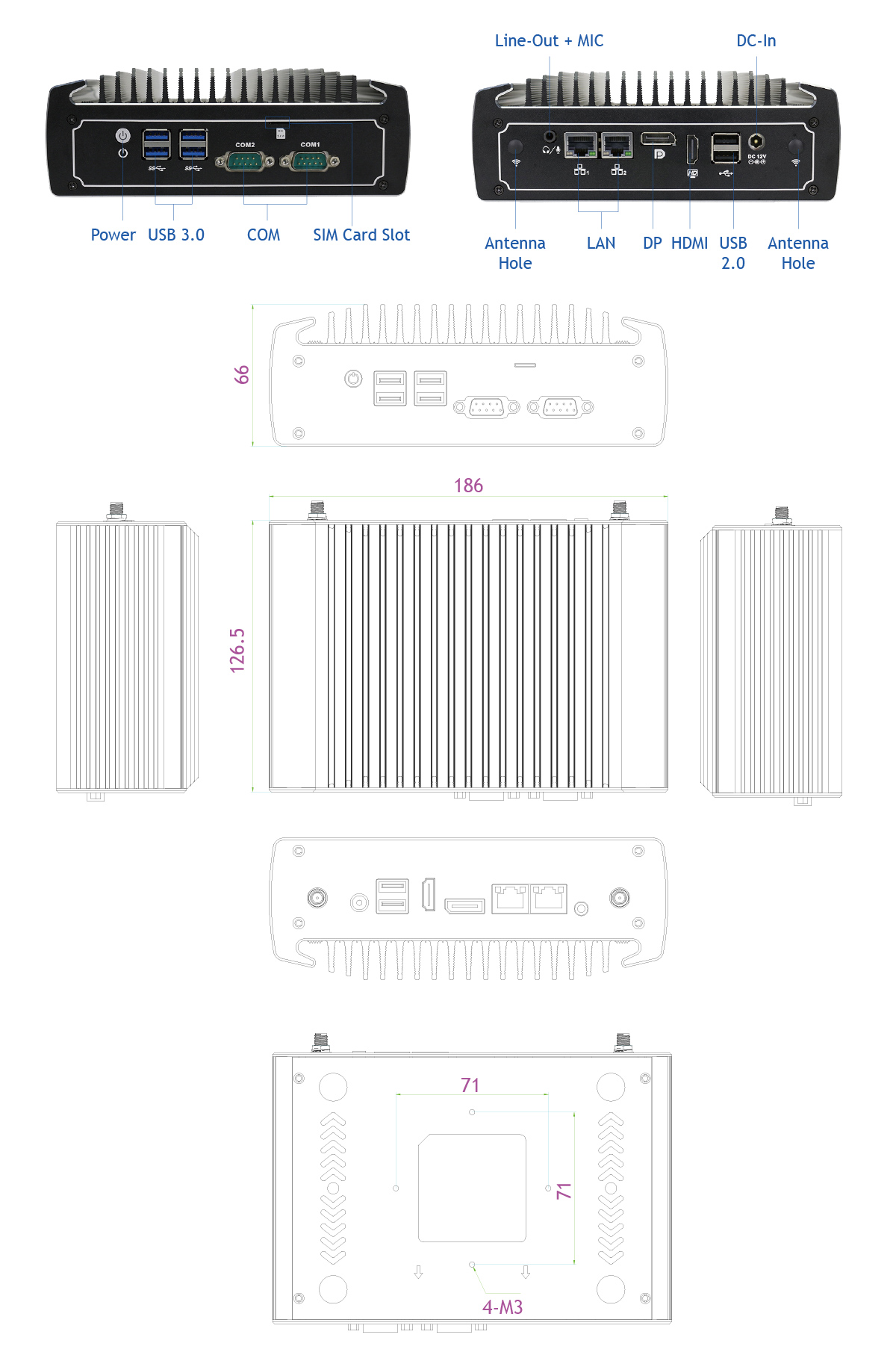

| Product Dimension | 186 x 126.5 x 66 mm |
| Product Weight | 1390g |
| Box Dimension | 260 x 200 x 135 mm |
| Box Weight | 2120g |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 85°C |
