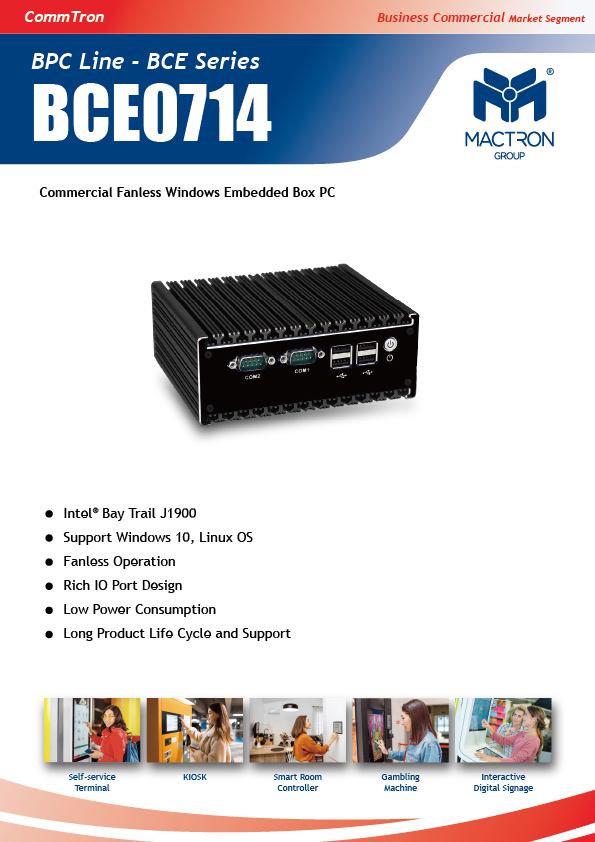

Intel® Bay Trail J1900
Support Windows 10, Linux OS

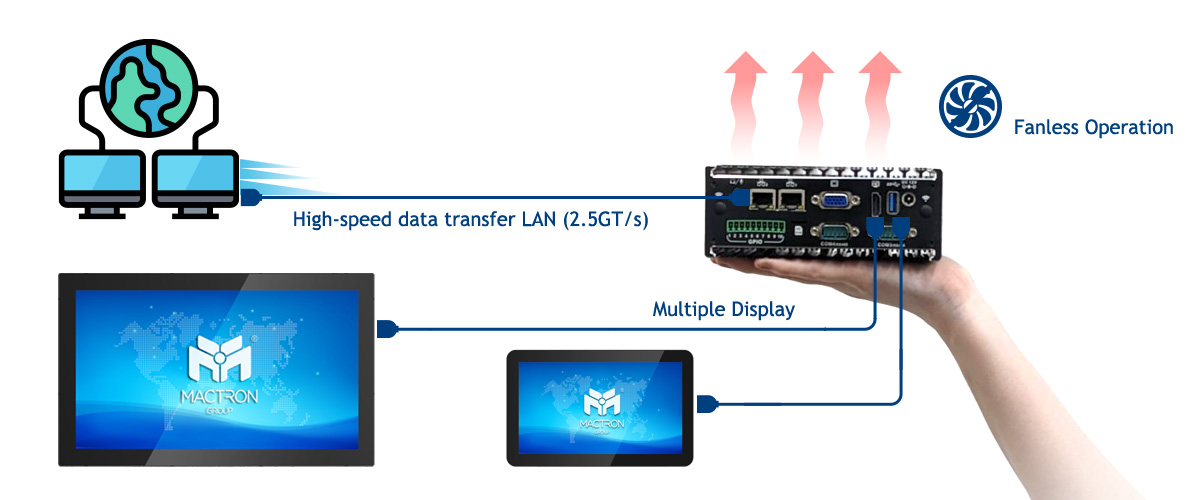

Fanless Operation
Rich IO Port Design
Low Power Consumption
Long Product Life Cycle and Support
Factory Automation, Self-service Terminal, Transportation, Gambling Machine, Intelligent Control
| Main System | |
|---|---|
| CPU | Intel® Bay Trail J1900 |
| Memory | 4GB DDR4 |
| Storage | 64GB SSD |
| BIOS | AMI 64M DPI Flash ROM |
| OS Support | Windows 7 /8 /10, Linux |
| Ethernet | 2 x Intel i211-AT Gigabit LAN |
| Communication |
WWAN: 3G, 4G LTE (Optional) WLAN: IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz (Optional) |
| Expansion |
1 x Mini-PCIe, (WiFi / BT / 3G / 4G Options) 1 x Mini-PCIe (Support mSATA) |

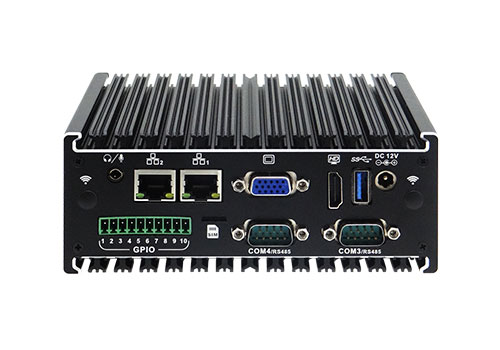

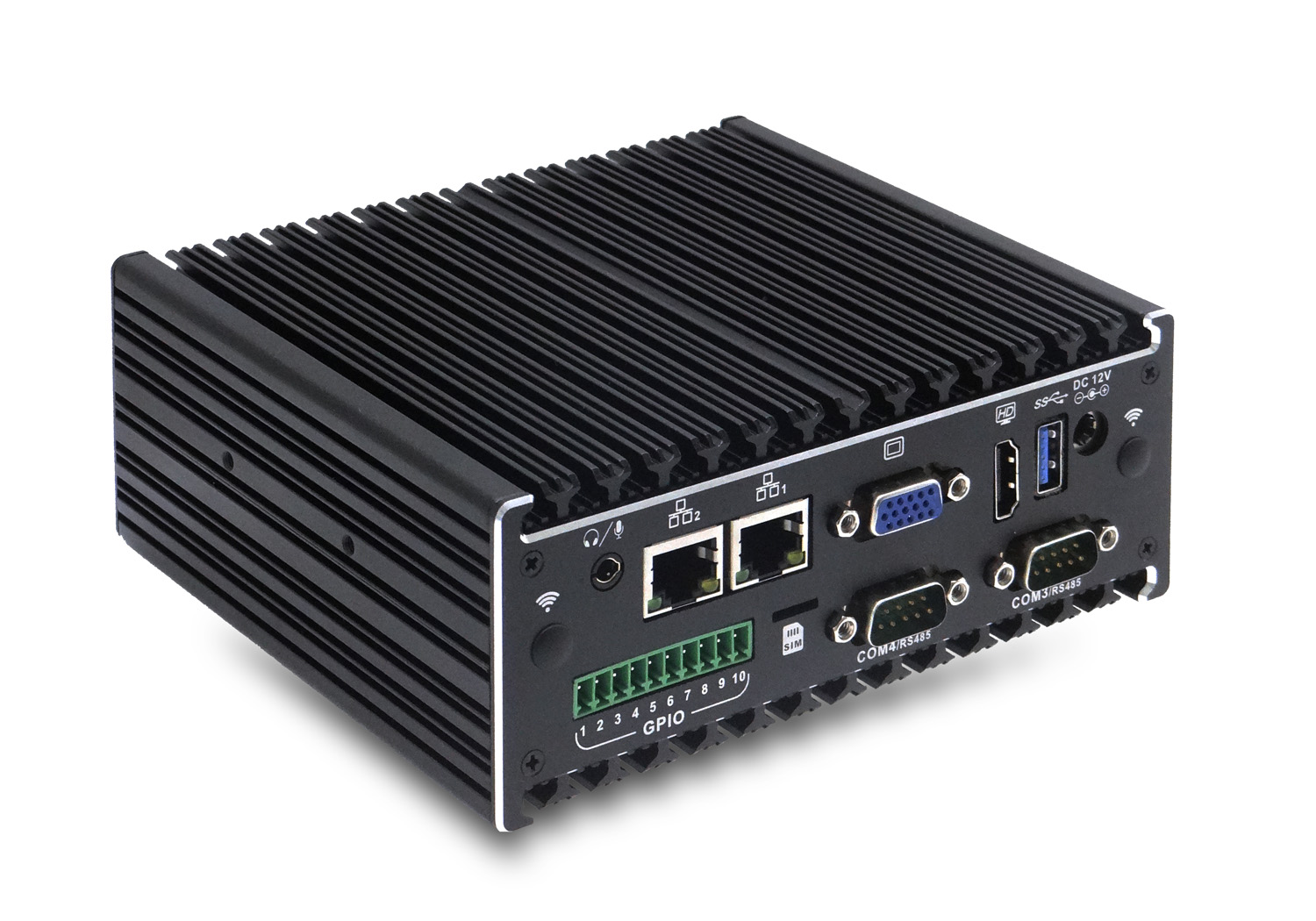

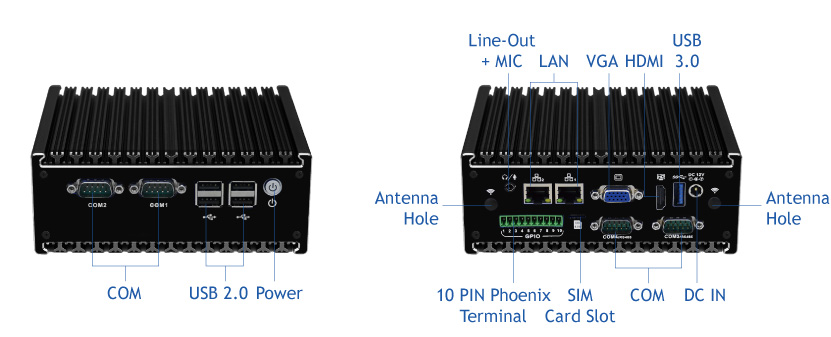

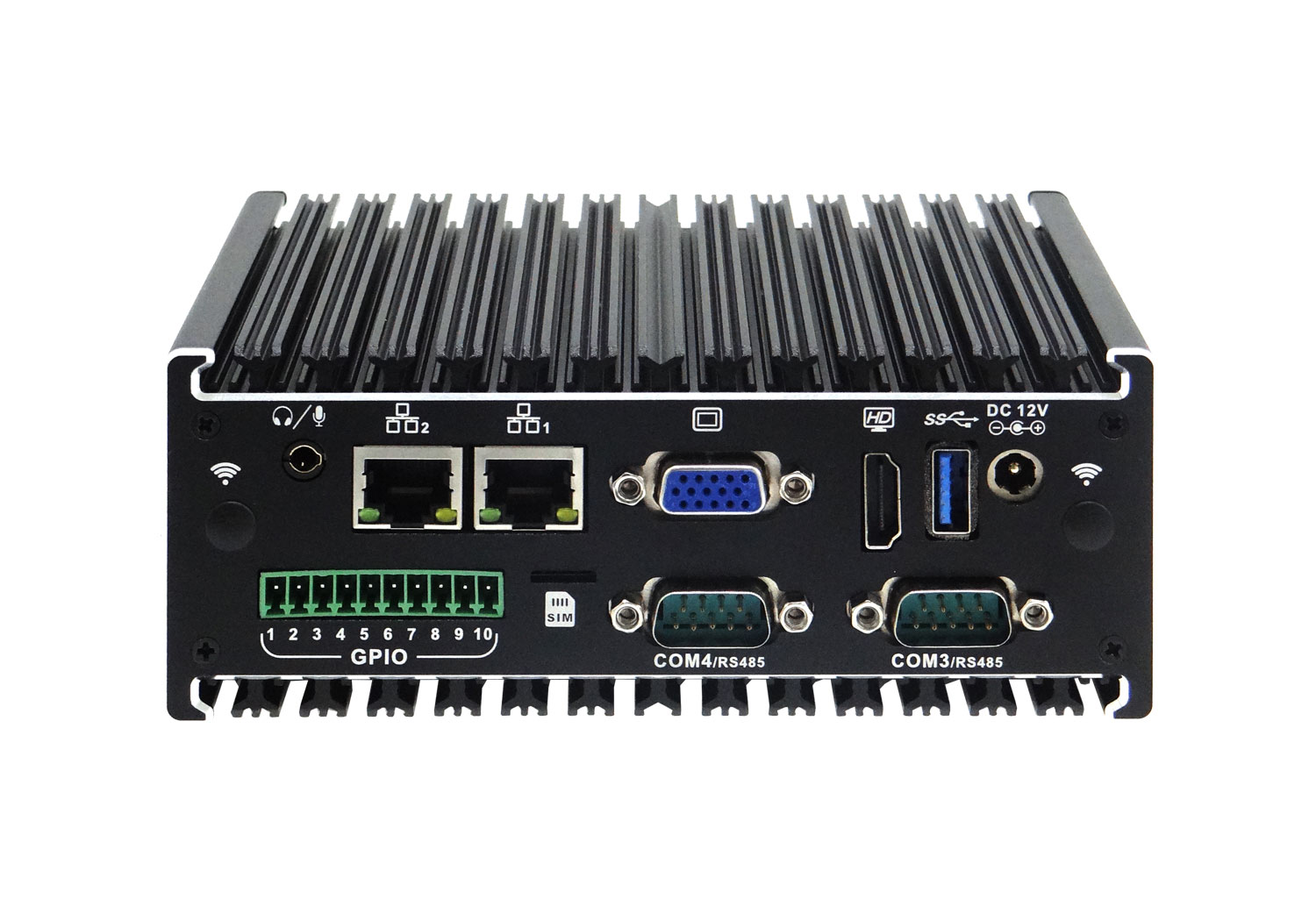

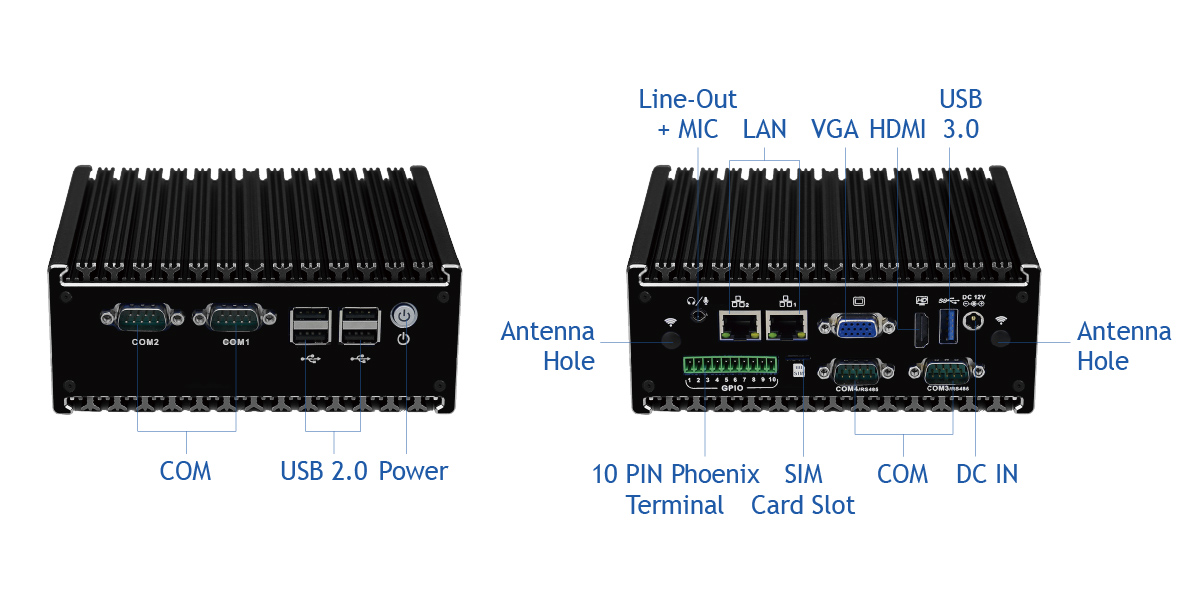

| Rear I/O |

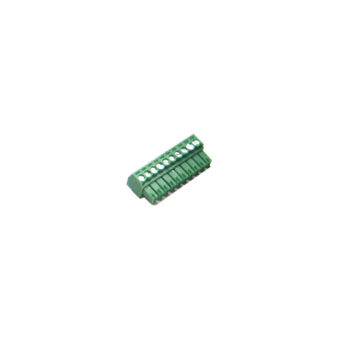

1 x DC-In Jack 1 x VGA 1 x HDMI 1 x Line-Out + MIC (2 In 1) 1 x USB 3.0 2 x LAN 2 x COM (RS232/485 Optional) 1 x 10PIN Phoenix Terminal (4 in 4 out GPIO) 1 x SIM Card Slot 2 x Antenna Holes |

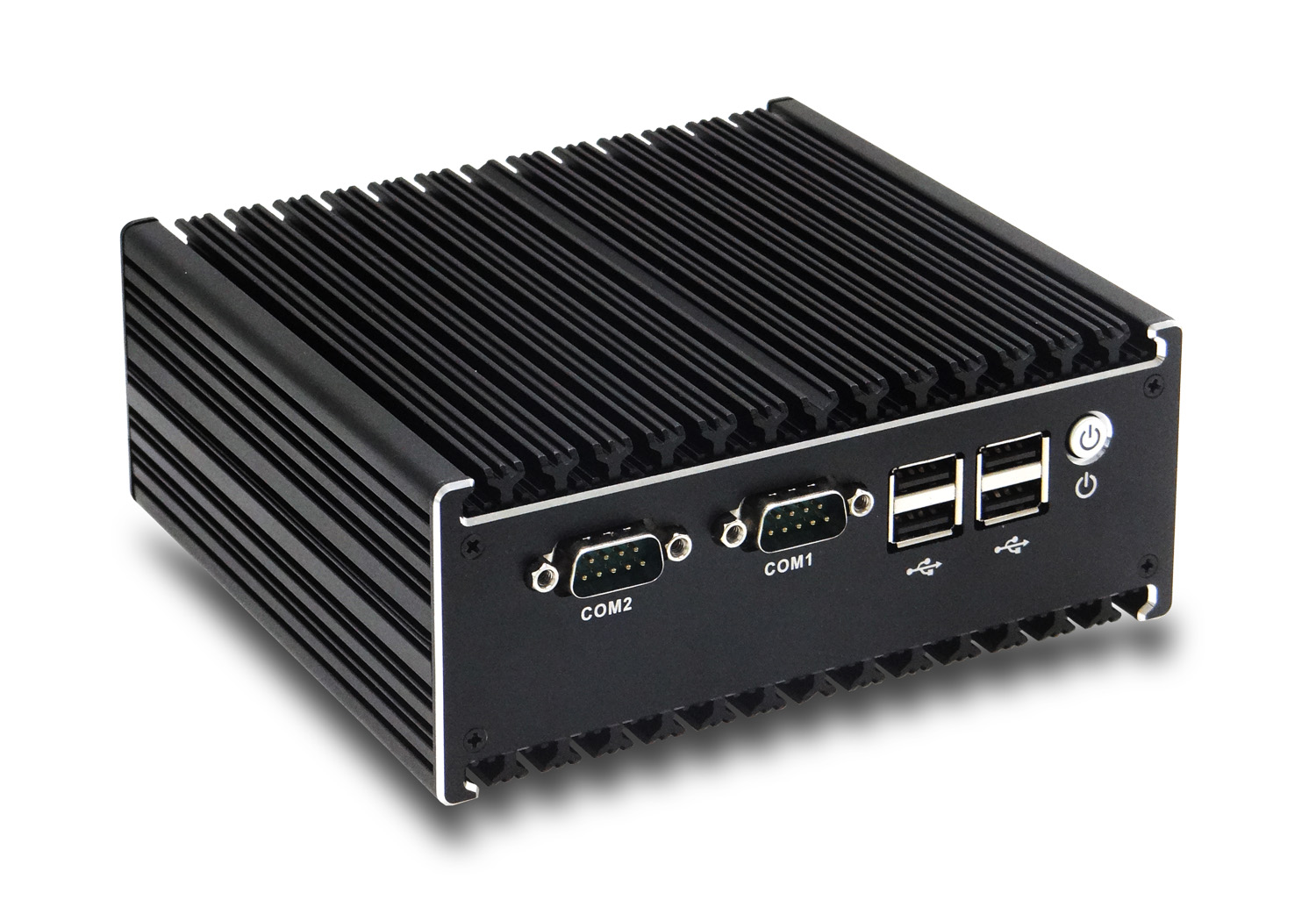

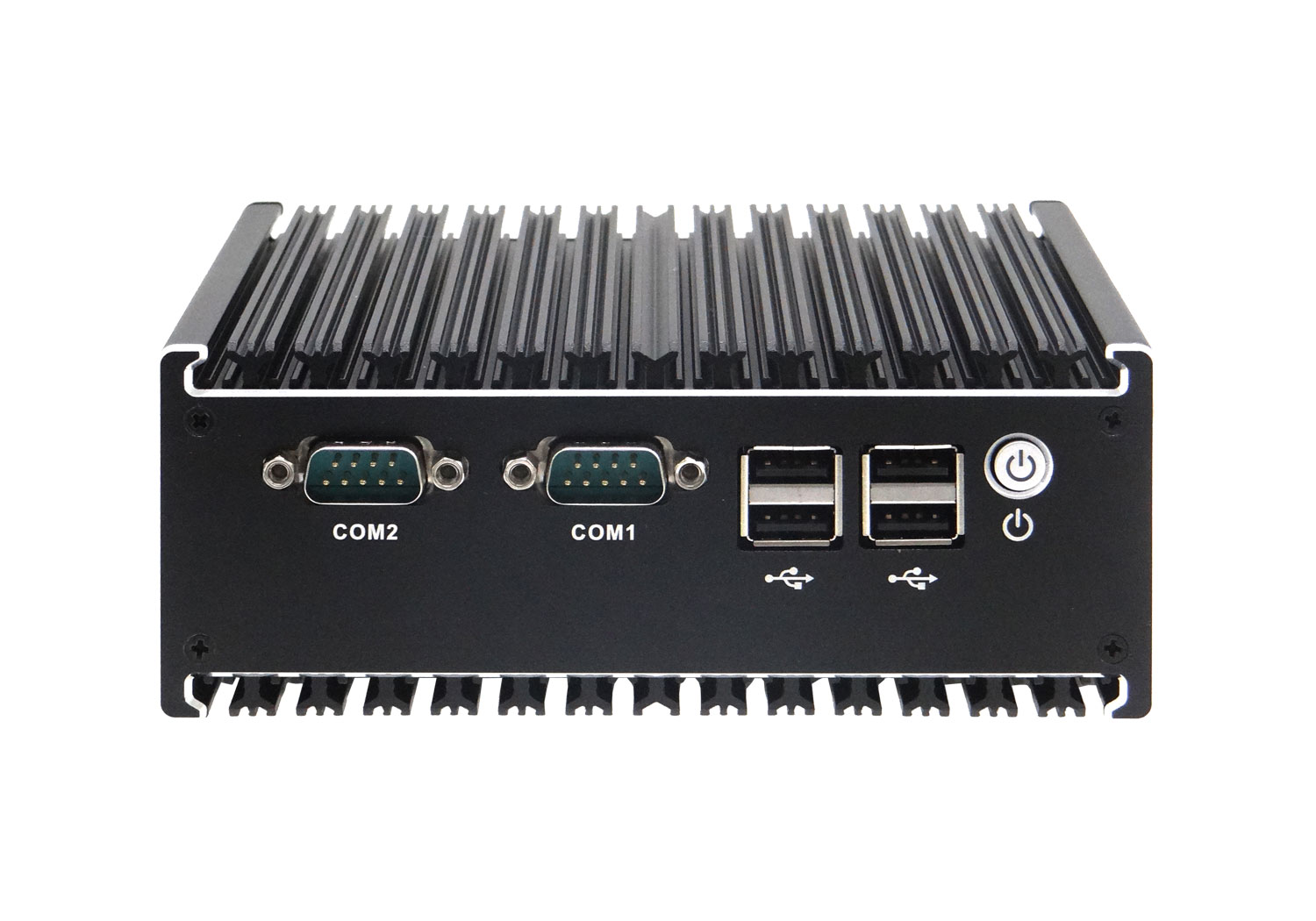

| Front I/O |
1 x Power Button 4 x USB 2.0 2 x COM (RS232) |
| Physical | |
| Power Input | DC 9-36V |
| Power Adapter | DC 12V/5A, 60W |

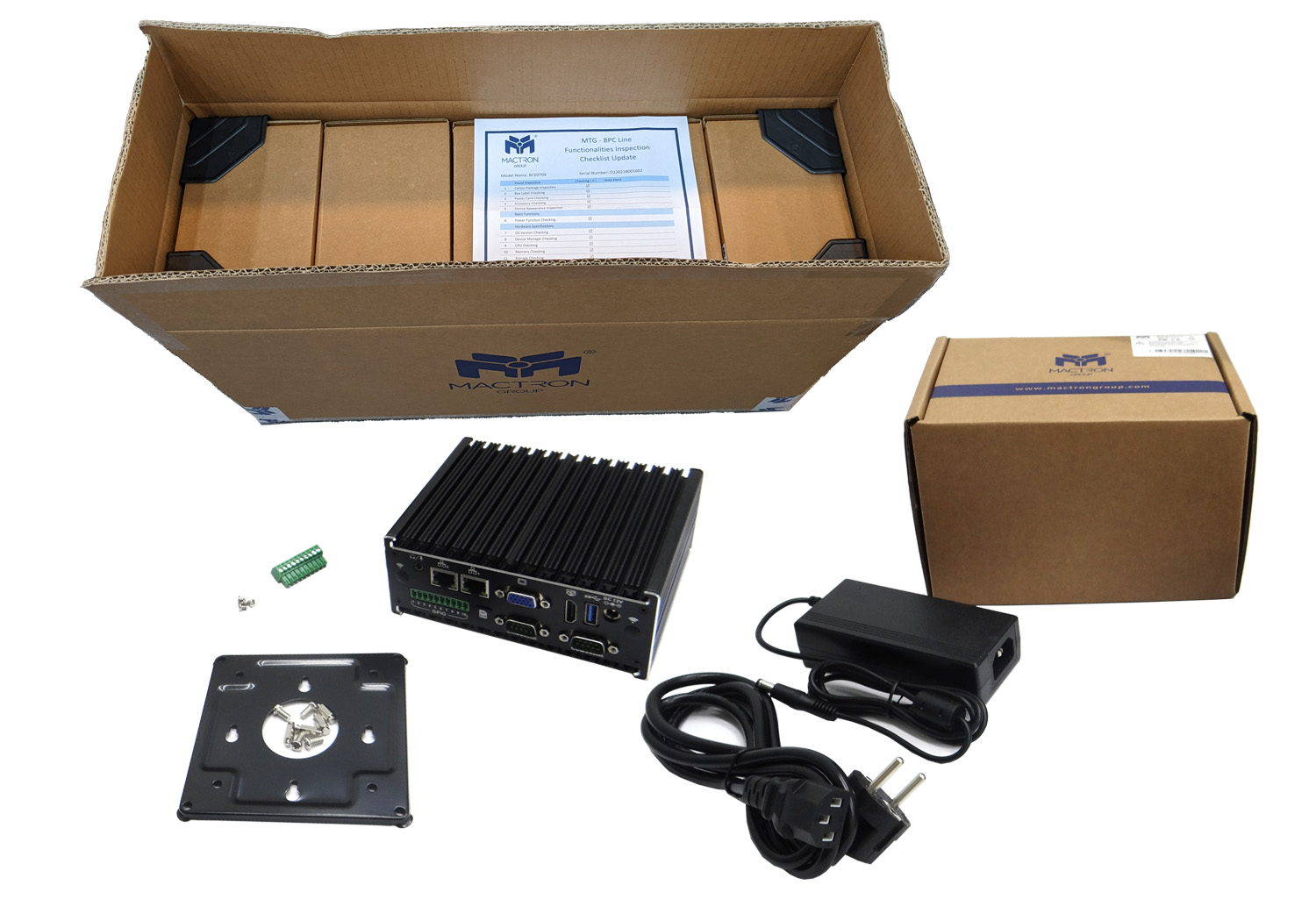

| Standard Accessory |
Power Adapter VESA Mount Kits |
| Product Dimension | 148 x 125 x 58 mm |
| Product Weight | 940g |
| Box Dimension | 200 x 155 x 120 mm |
| Box Weight | 1610g |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 85°C |
