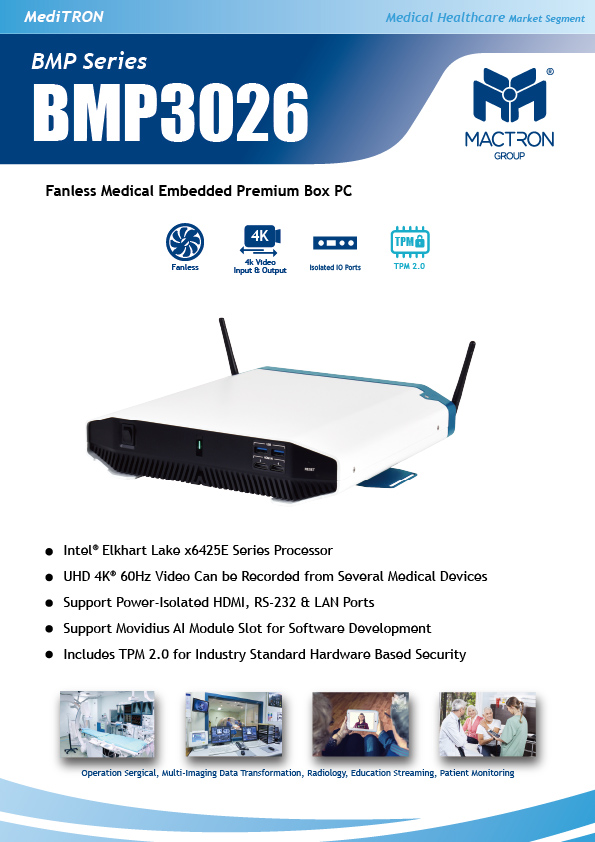

Intel® Elkhart Lake x6425E Series Processor
UHD 4K@60Hz Video Can be Recorded from Several Medical Devices
Support Power-Isolated HDMI, RS-232 & LAN Ports
Support Movidius AI Module Slot for Software Development
Includes TPM 2.0 for Industry Standard Hardware Based Security
Operation Sergical, Multi-Imaging Data Transformation, Radiology, Education Streaming, Patient Monitoring
| Main System | |
|---|---|
| CPU | Intel® Atom® Elkhart Lake x6425E Quad Core |
| GPU | Intel® UHD Graphics with FPGA 4K Video Processing |
| Memory | 1 x SO-DIMM, DDR4 16GB (Soldered) |
| Storage | 1 x 2.5" SATA SSD 1TB |
| OS Support | Windows 10 |
| Ethernet | AX88179QF (ASIX Electronics) |
| Expansion | 1 x M.2 SATA SSD (Expandable) |
| WiFi | WIFI 802.11 abgn/ac + BT 5.0 LE (Optional) |
| Rear I/O Ports |
3 x USB 2.0 Type A 1 x USB 2.0 Type A (4KV Isolation) 4 x HDMI Type A 1 x HDBT (RJ-45) 2 x LAN ( 1 x 4KV Isolation) 1 x COM (RS-232 with 4KV Isolation) 8 x Trigger (10-Pin Terminal Block) 3 x Analog Stereo (3.5mm) 1 x Control UART (RX/TX Only 3.5mm) 1 x DC-In |
| Front I/O Ports |
2 x USB 3.0 Type A 2 x HDMI Type A 1 x Power Switch |
| Video |
HDMI 2.0 (DVI 1.0) Input: 2.0b / Output: 2.2 Input Signal: 4096 x 2160p@60 8-bit YUV 4:4:4 Output Signal: 4096 x 2160p@60 8-bit YUV 4:4:4 Maximum Input: HDMI 4096 x 2160p@60 Maximum Output: HDMI 4096 x 2160p@60 HDBT 4096 x 2160p@60 Recording 1920 x 1080p@60 HDMI 1080p@60 |
| Audio |
HDMI: LPCM (8 Channels) Line In: 2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS) Mic In: 2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS) Line out: 2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS) |
| Physical | |
| Color | White |
| Dimensions (WxDxH) | 296 x 296 x 67 mm |
| Weight | 4.3 kg |
| Enclosure | Metal Aluminum |

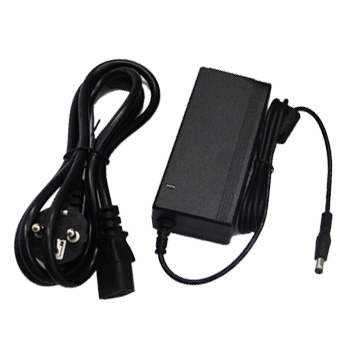

| Power Adapter | DC 24V/4.17A, 100W |
| Security | TMP2.0 |
| Environment | |
| Certification | CE, FCC, EN 60601-1, EN 60601-1-2 |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 60°C |
| Warranty | 2 Years |
