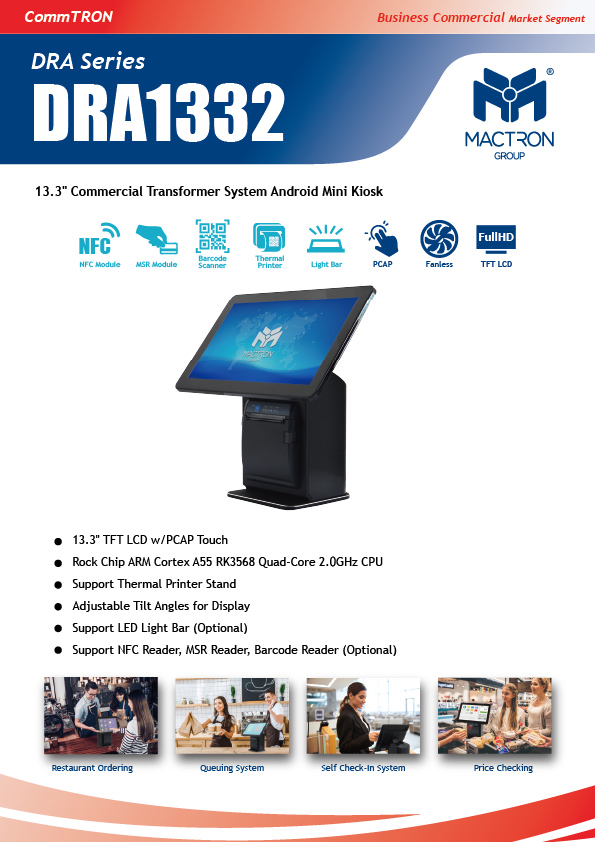

13.3" TFT LCD w/PCAP Touch
Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU
Support Thermal Printer Stand
Adjustable Tilt Angles for Display
Support LED Light Bar (Optional)
Support NFC Reader, MSR Reader, Barcode Reader (Optional)
Restaurant Ordering, Queuing System, Self Checkin System, Price Check, Self Ticketing
Restaurant Ordering
Queuing System
Self Check-In System
Price Checking
| Display | |
|---|---|
| Display Type | 13.3" TFT LCD |
| Resolution | 1920x1080 |
| Brightness | 250 nits |
| Touch Panel | 10 Points Projected Capacitive Touch Panel |
| Main System | |
| CPU | Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU (Optional: RK3399) |
| Memory | 4GB LPDDR4 |
| Storage | 16GB eMMC |
| GPU | Mali-G52 |
| Expansion | 1 x SD Card (SDHC Class10 Compatible) |
| OS Support | Android 13 (Optional Android 14) |
| Function Support |
WLAN: 802.11 b/g/n Module Bluetooth 4.2 |
| I/O Ports |

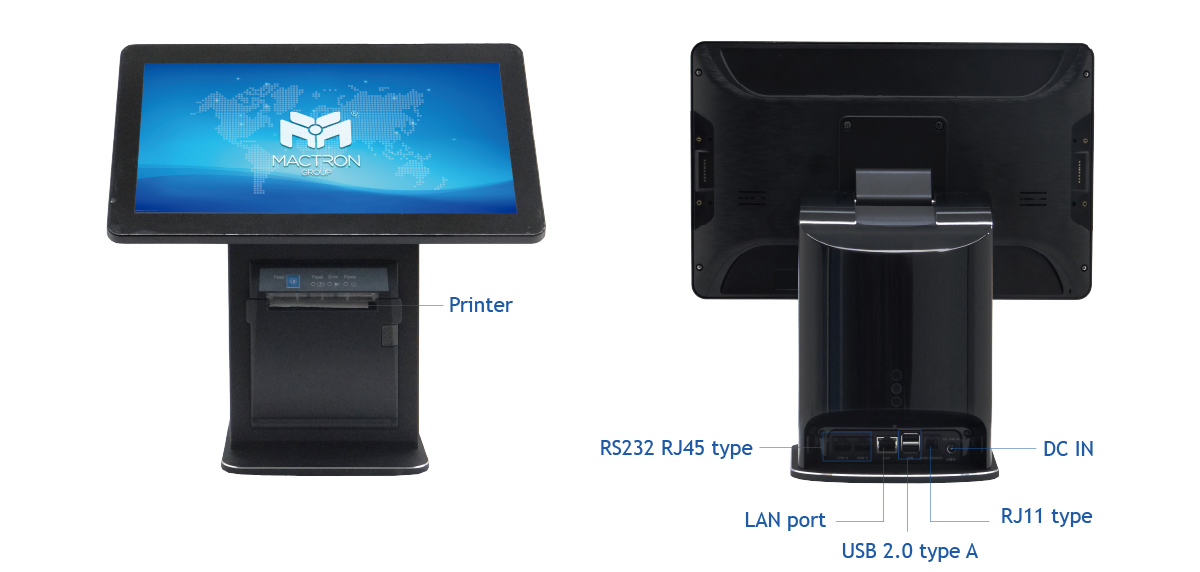

1 x USB 3.0 1 x USB 2.0 1 x Micro SD Card Slot 1 x Micro USB 2.0 1 x LAN Port (Optional PoE Function) 1 x Mini HDMI 3 x Pogo Pin (Left, Right, Bottom) |
| Stand I/O Ports |
2 x RS232 RJ45 Type 1 x LAN Port 2 x USB Type A 2.0 1 x RJ11 (Support 12V/24V) 1 x 24V DC-In |
| Physical | |
| Housing | ABS+PC |
| System indicators | 1 x Power LED |
| Physical Button | 1 x Power Button, 5 x Function Key |
| Speaker | 2 x 2W |
| Power Adapter | DC 24V/5A |
| Power Input | AC 100-240 Vac |
| Ventilation | Fanless |
| Camera | Front: 2M WebCam (Optional) |
| Thermal Printer |
Method: Thermal Line Speed: Approx. 170 mm/s Paper: Singly-ply Thermal Paper Roll Roll Size: 79.5±0.5 (W) x 70 mm (Diameter Max.) Thickness 0.05~0.06 mm Roll Size: 57.5±0.5 (W) x 70 mm (Diameter Max.) Thickness 0.05~0.06 mm (Optional) |
| Data Collection |
NFC Reader (Optional) MRS Reader (Optional) Barcode Scanner Module (Optional) |
| Packing List | |
| Standard Accessory |
Power Adapter Paper Roll Guide |
| Product Dimension | 335 x 150 x 330 mm |
| Product Weight | 3.5kg |
| Box Dimension | 410 x 300 x 450 mm |
| Box Weight | 5.7kg |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0° ~ 40°C |
| Storage Temperature | -10°C ~ 55°C |
| Relative humidity | 10% - 70% RH (Non-Condensing) |
