6" Android 12 Rugged Handheld System
MTK MT6833 Processor
Support GPS, Wi-Fi 6 , Bluetooth 5.1, 5G
Suitable for Real-time data collection
IP65 Protection level
1.2m drop resistant & MIL-STD-810G certified
Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring
| Display | |
|---|---|
| Display Type | 5.99" IPS TFT LCD |
| Resolution | 720 x 1440 |
| Brightness | 380 nits |
| Touch Panel | 5 points Capacitive touch screen |
| System | |
| CPU | MTK MT6833 8core |
| GPU | ARM NATT MC2 |
| Memory | 4GB |
| Storage | 64GB eMMC |
| Operating System | Andriod 12, optional GMS |
| I/O Ports |
TYPE-C 2.0 x 1 OTG (Data transmission) TYPE-C (Audio output) TF card x 1 Pogo Pin x 1 |
| WiFi | 802.11(a/b/g/n/ac), 2.4G+5G |
| 4G | 5G |
| Bluetooth | Bluetooth 5.1 |
| GPS | GPS, GLONASS, Beidou, Galileo |
| Physical | |
| Camera |
Front Camera 5M Rear Camera 13M |
| Speaker | 1 x 1W speaker |
| Color | Black |

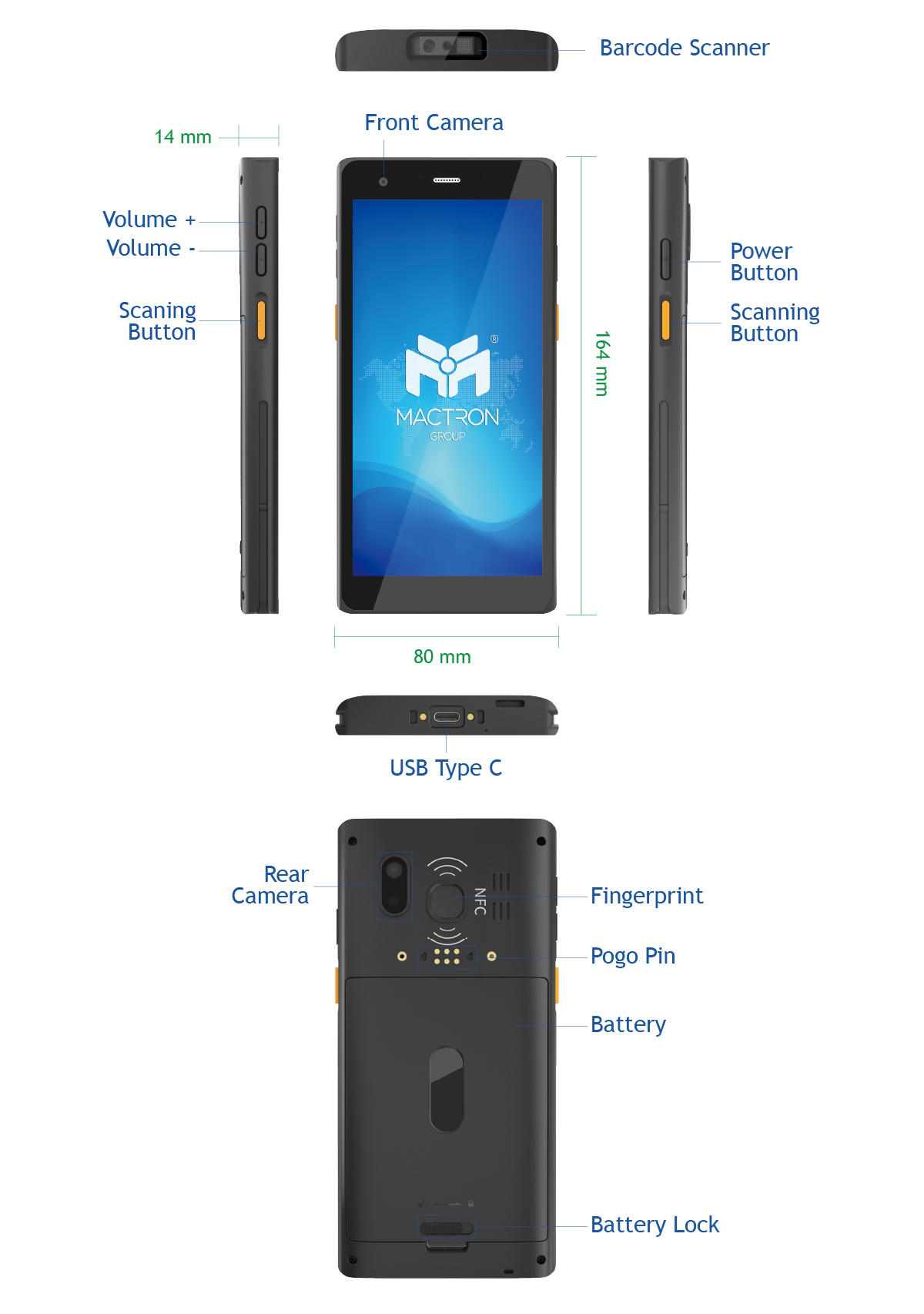

| Dimension (WxHxD) | 80 x 164 x 14 mm |
| Weight | 255g |
| Buttons |
1 x Power 1 x Volume Key + 1 x Volume Key - 2 x Bar code scanning |
| Sensors |
1 x G_sensor 1 x Geomagnetic sensor 1 x Ggyroscope 1 x Light Sensor |
| Data Collection |
NFC Module Barcode Scanner Module Fingerprint Module |
| Battery | 3.8V/4500mAh |
| Using Time | 11 hours (50% volume sounds, 50% screen brightness, 1080P HD video display by default) |
| Power Adapter | DC 5V/2A |
| Standard Accessory |
1 x Lanyard 1 x Power Adapter |
| Environment | |
| IP Rating | IP65 |
| Drop Test | 1.2m Composite wood floor working |
| Certification | CE/ FCC/ MIL-STD-810H |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 131°F) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
ADOCK06

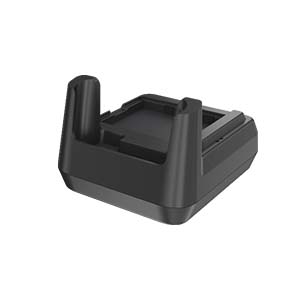

Dockong Station
Scan Trigger
ADA05C0
Adapter 5V/2A
