MAA0800

8″ Automation Rugged Android Mobile Tablet PC

8″ Android Rugged Mobile Tablet PC System
MediaTek MT6769 Processor
Advanced Wireless Solution for 4G/ WiFi/ BT/GNSS
IP67 Protection Level
1.22m Drop Resistant & MIL-STD-810H Certified

Applications:

Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

MAA0800 8” Rugged Tablet

Android 16, MT6769

8” FHD Sunlight-Readable Tablet PC

1920 × 1080 FHD | 700 nits | AF Coating | 10-Point Multi-Touch

IP67 Rated Dust & Water Protection

Built to withstand harsh environments, MAA0800 is dust-tight and protected against temporary water immersion.

Seamless Wired & Wireless Connectivity

RJ45 Ethernet • Wi-Fi • Bluetooth • 4G LTE

Versatile Data Collection

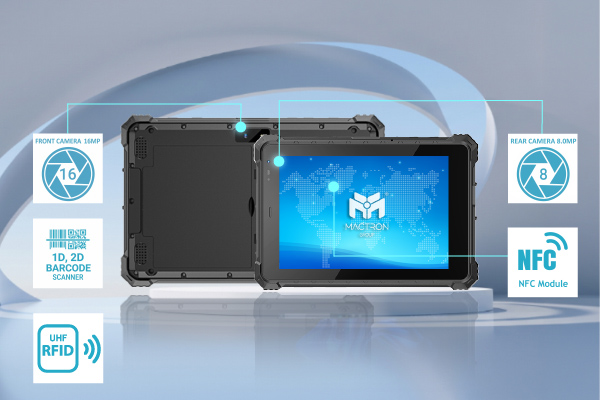

NFC / 1D, 2D Barcode Scanner / Camera / UHF RFID/ LF RFID

Display
Display Type	8" IPS TFT LCD
Resolution	1920 x 1200
Aspect Ratio	16:10
Brightness	700 nits (Optional 1000 nits)
Touch Panel	Anti-fingerprint (AF) Coating, 5-point touch G+G, Hardness 7H, Support for Medical Rubber Gloves Touch Screen (Can be Customised Wet Hand Touch Screen)
System
CPU	Mediatek MT6769, 8 core, 2x Cortex-A75 (2.0GHz) + 6x Cortex-A55 (1.7GHz)
GPU	ARM Mali-G52 MC2
Memory	8GB LPDDR4
Storage	128GB
OS	Android 16
I/O Ports	USB Type C x1 (USB2.0, PD33W 11V/3A fast charging, adapt OTG) USB2.0 Type A x1 3.5mm Standard Headphone Jack x1 RJ45 x1 Micro SIM Card x1 TF Card x1 Micro HDMI x1 DC Piug (5V/3A_3.5mm/1.35mm) x1 Pogo Pin (12Pin USB+Charging) x1
WiFi	WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Wi-Fi 5 (Optional Wi-Fi 6)
4G	4G/LTE
Bluetooth	Bluetooth 5.0 (BLE) class1 transmit distance：10m
GPS	GPS、 Beidou, Galileo GLONASS , (Optional single Beidou positioning)
Data Collection	NFC Module Barcode Scanner Module (Optional) UHF RFID Module (Optional) LF RFID Module (Optional)
Physical
Camera	Front Camera: 8MP Fixed Focus Rear Camera: 16MP Auto Focus 1A True Flash
Audio	Waterproof Speaker 1.2W x2
Color	Black
Dimension (WxHxD)	232.2 x 151.3 x 30.4mm (WxHxD)
Weight	850g

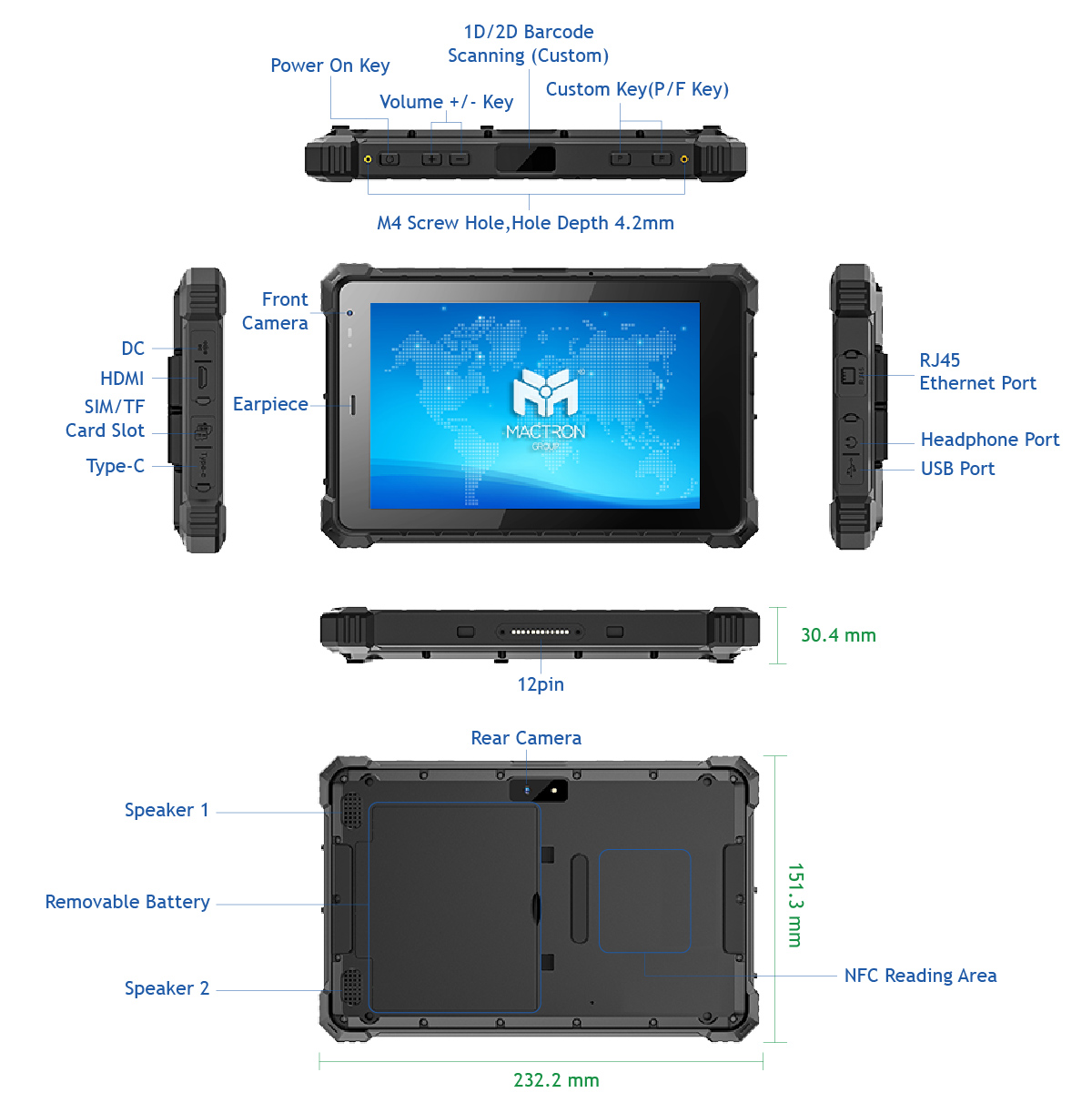

Buttons	Power Button x1 Volume +/- Key x2 Custom keys x2 (P key & F Key)
Sensors	Gravity Sensor, Compass, Gyro,Light-Sensitive, Distance Sensing, FM Radio
Battery	9400mAh，3.8V Removable Battery

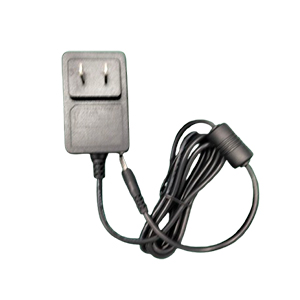

Power Adapter	Type-C 30W Rapid Power Adapter/5V-3A，DC interface adapter(Optional)
Optional Accessory	Docking Station Removable Battery USB Type-C Adapter Carry Strap DC Power Adapter, 5V/3A
Packing List
Standard Accessory	30W Fast Charge Adapter x 1 Hand Strap
Product Dimension	232.2 x 151.3 x 30.4mm (WxHxD)
Product Weight	850g
Packaging Box Dimension	335 x 175 x 68 mm (WxHxD)
Packaging Box Weight	1381g
Environment
IP Rating	IP67
Drop Test	1.22m Drop Resistance
Certification	CE/MIL-STD-810H
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 60°C
Relative Humidity	95% Non-Condensing
Warranty	2 Years
