MAA0801(Original: MAA0803)

8″ Automation Rugged Android Mobile Tablet PC

  • Datasheet

    • 8″ Android System

    • MTK MT6789 Processor

    • 550 nits High Brightness Sunlight Readable

    • Support 4G LTE, NFC Module

    • Support Optional Barcode Scanner

    • Support GNSS, Wi-Fi, Bluetooth 5.2

    Applications:

    Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

    MAA0801 8" Rugged Tablet

    Android 12/14, MT6789

    550 nits Brightness &
    IP65 Dust & Water Proof

    This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

    10,000mAh Large Capacity Battery

    You don’t have to worry your business would be interrupted by power off anymore * 7hrs  (Default 50% volume, default 200nit, play 1080HD video)

    Full Range of Data Collection Functions

    NXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0MP

    Multiple Accessories Can Be Adapted To Virtually Any Job And Environment

    Docking Station / Vehicle Mount / Holder / Hand Strap
    Display
    Display Type 8" TFT
    Resolution 1920 x 1200
    Brightness 550 nits
    Touch Panel 5 Points PCAP Touch, G+G
    System
    CPU MediaTek MT6789
    GPU ARM G57 MC2
    Memory 8GB LPDDR4
    Storage 128GB eMMC
    OS Android 14 (Default) / Android 12 (Optional)
    Support 4G/LTE
    Bluetooth 5.2
    WLAN: 802.11 a/b/g/n/ac
    GNSS: GPS, GLONASS, Beidou
    Barcode Scanner Module
    NFC Module
    I/O Ports 1 x USB 2.0 Type A
    1 x USB Type C
    1 x 3.5mm Earphone Jack
    2 x SIM Card slot
    1 x TF slot (Max.512GB)
    1 x 12pin Pogo pin
    Physical
    Camera Rear: 13MP Front: 5MP
    Power Adapter DC 5V/3A
    Battery 10000mAh/3.8V (Removable)
    Button 1 x Power On/Off
    1 x Volume +
    1 x Volume -
    1 x Home
    1 x Custom
    Standard Accessory 1 x Hand Strap
    1 x Power Adapter

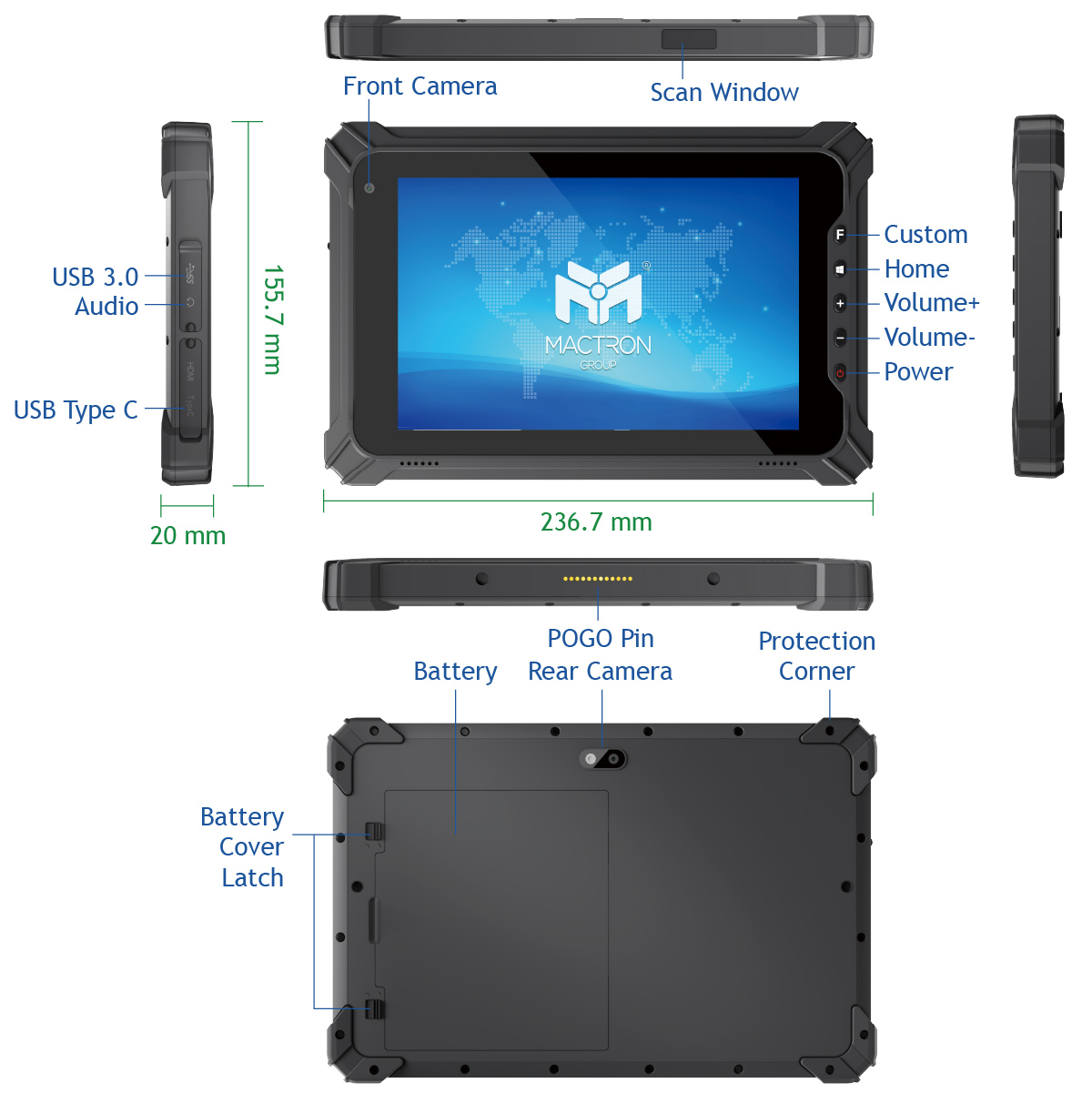

    Dimensions 236.7 x155.7 x 20mm
    Weight 910g
    Data Collection NFC Module
    Barcode Scanner Module (Optional)
    Environment
    Rugged Feature IP65, 1.22m drop test
    Certification MIL-STD-810H, CE, FCC, RoHS
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Relative Humidity 95% (non-condensing)
    Warranty 2 Years

    Optional Accessory

    Docking Station

    ADOCKN2
    Docking Station
    1 x LAN, 1 x COM, 1 x USB Type A, 1 x USB Type C, 1 x DC Jack

    Removable Battery For MAA1013

    ABATN52
    Removable Battery

    Mounting Holder

    ACARMN4
    Mounting Holder
    1 x LAN, 1 x COM, 2x USB Type A, 1 x DC Jack

    Adapter 5V/3A

    ADA19C1
    Adapter 5V/3A
    Type C

    ACARC01
    Vehicle Charger (5V/3A)
    Type C

    ACHD114
    Quad Charging Dock
