MAA0805

8″ Automation Rugged Android Mobile Tablet PC

8" Android 14 Rugged Mobile Tablet PC System
Qualcomm^® Kryo™ 670 CPU with the 6th gen Qualcomm^® AI Engine
Advanced Wirelss solution for 4G/ WiFi 6E/ BT 5.2
Removable Battery Design with high-capacity 10000mAh
1.22m drop resistant & MIL-STD-810H certified
Certified with IP65 dust and water resistance

Applications:

Warehouse Management, Storage Material Management, Retail, Market, finance, Outdoor Exploration, Military Equipment, Animal Husbandry

MAA0805 8" Rugged Tablet

Android 14, Qualcomm^® QCM6490 Processor

AI-Powered Rugged Tablet

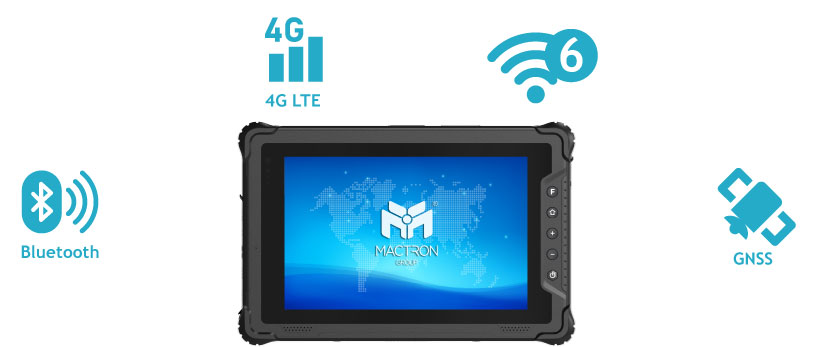

Advanced Wireless

Support 4G/LTE, Wi-Fi, BT, GNSS

1200×1920 16:10 High Resolution Panel

High Brightness Sunlight Readable

10000mAh Large Capacity Battery

You don’t have to worry your business would be interrupted by power off anymore * 8 hrs (Default 50% volume, Connected to WiFi, Default 200 nits brightness, Playing 1080P HD video)

Display
Display Type	8 inch IPS TFT LCD
Resolution	1920 x 1200
Aspect Ratio	16:10
Brightness	550 nits
Touch Panel	5-point Capacitive Touchscreen, Tempered Glass, Hardness 7H
System
CPU	Qualcomm^® QCM6490 Processor, Octa-core 2.7GHz
GPU	Adreno™ GPU 643
Memory	8GB LPDDR4x
Storage	128GB eMMC
Operating System	Android 14/ GMS

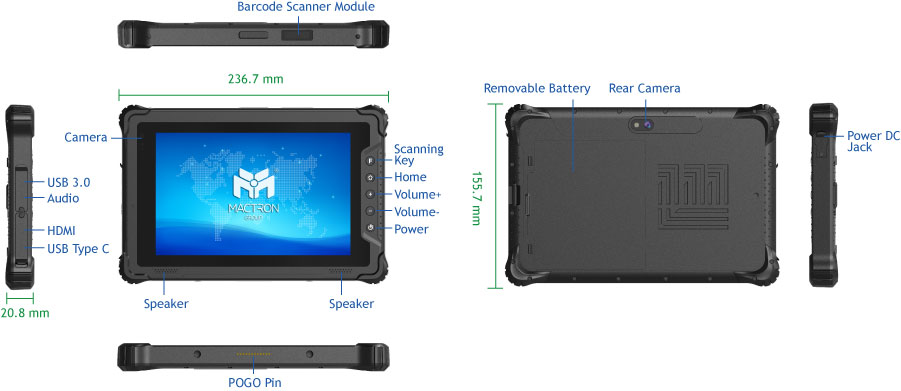

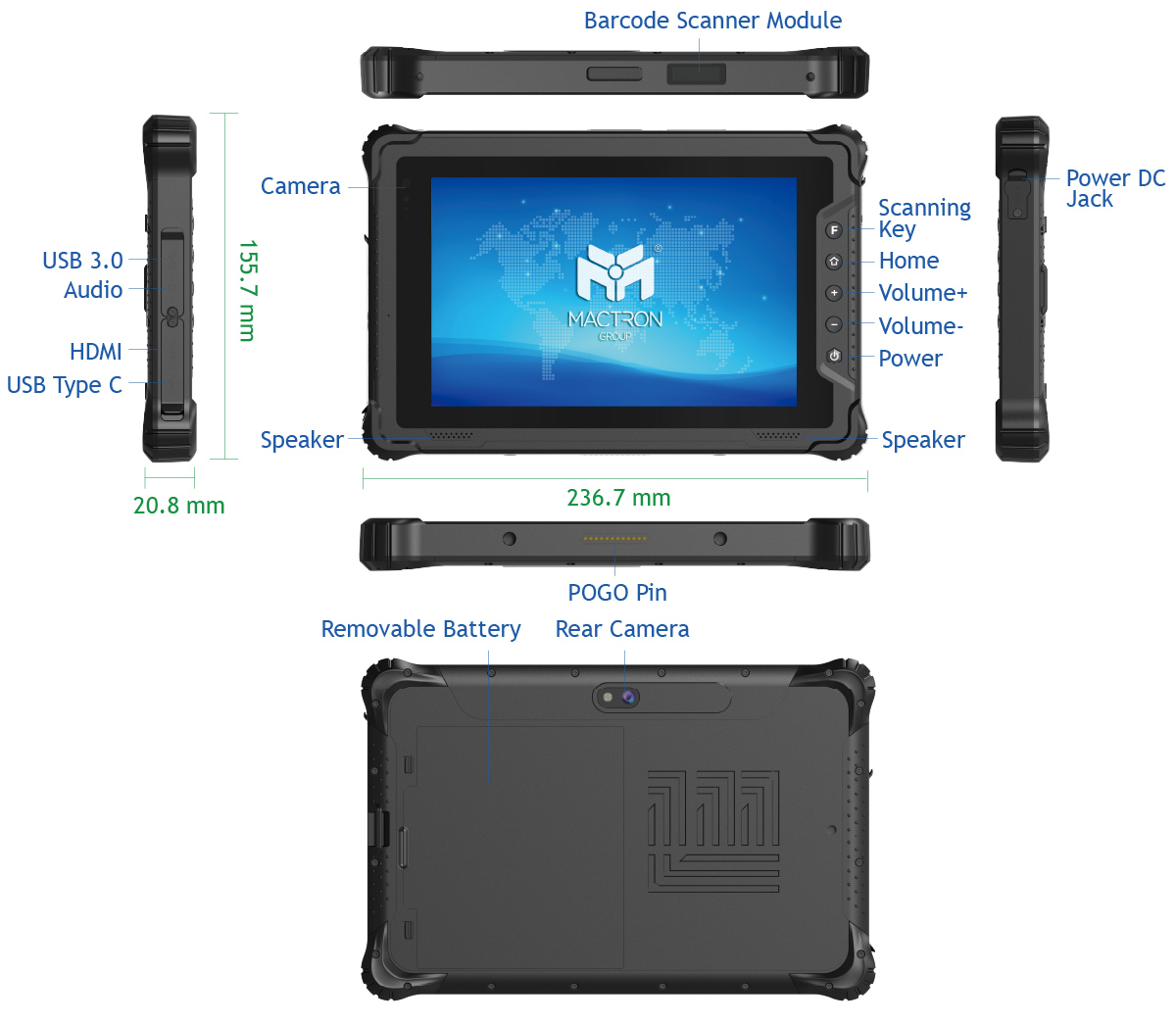

I/O Ports	1 x USB 3.0 Type-A 1 x USB 3.0 Type-C (Data & Charging) 1 x φ 3.5mm Standard Earphone Jack 1 x Micro SD (Max. 512GB) + 1 x Nano-SIM (three-in-one card slot) 1 x DC-IN Supports 5V/4A Charging 1 x HDMI 1 x 12PIN Pogo Pin
WiFi	Wi-Fi 6E & DBS, IEEE 802.11a/ b/ g/ n/ ac/ ax, Wi-Fi 2 × 2 MU-MIMO
4G	4G
Bluetooth	Bluetooth 5.2
GPS	GPS/GLONASS/BDS; Dual-frequency L1 + L5
Physical
Camera	Front 5MP; Rear 13.0MP, Supports autofocus, with flashlight
Speaker	2 x 1W speaker
Color	Grey
Buttons	1 x Power (Yellow) 1x Volume + Key 1 x Volume - Key 1 x P1 Key (HOME Key) 1 x F Key (This button can be customized when the scanner is not equipped.)
Sensors	G-sensor, Light sensor, Gyroscope, Compass
Data Collection	NFC Module Barcode Scanner Module (Optional)
Battery	3.8V/10000mAh
Using Time	Above 8 hrs (Default 50% volume, Connected to WiFi,Default 200 nits brightness, Playing 1080P HD video)
Power Adapter	DC 5V/4A
Standard Accessory	1 x Power Adapter 1 x Hand Strap
Product Dimension	236.7 x 155.7 x 20.8mm (WxHxD)
Product Weight	820g
Box Dimension	323 x 173 x 62mm (WxHxD)
Box Weight	1580g
Environment
IP Rating	IP65
Drop Test	1.22m drop resistance
Certification	CE/ MIL-STD-810H/ CEC
Operating Temperature	-20°C to 60°C (-4°F ~ 140°F)
Storage Temperature	-30°C to 70°C (-22°F ~ 158°F)
Relative Humidity	95% Non-Condensing
Warranty	2 Years
