MAA1011(Original: MAA1013)

10.1″ Automation Rugged Android Mobile Tablet PC

Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

Android 12/14, MT6789

This rugged tablet is sunlight readable and IP65 Dust & Water proof, so you can use it anywhere.

You don’t have to worry your business would be interrupted by power off anymore * 9hrs (Default 50% volume, default 200nit, play 1080HD video)

NXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0MP

Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/ Car Charger

Display
Display Type	10.1" IPS TFT LCD
Resolution	1280 x 800 1920 x 1200 (Optional with MOQ)
Aspect Ratio	16:10
Brightness	700 nit
Touch Panel	10 Points Projected Capacitive Touch
System
Processor	MTK MT6789 Processor
GPU	ARM G57 MC2
Memory	8 GB
Storage	128 GB eMMC
I/O Ports	1 x USB 3.0 Type A 1 x USB Type C 1 x 3.5mm standard earphone jack 1 x TF slot (Max.128GB) (SDHC/SDXC) 1 x SIM slot 1 x DC jack 1 x 12pin POGO pin 1 x LAN Port (Optional COM (RS232) or USB2.0 Type A with MOQ)
Operating System	Android 14 (Default)/ Android 12(Optional)
Physical
Camera	Front Camera : 5.0 MP Rear Camera : 13.0 MP
Speaker	2 x 0.8W
Color	Black

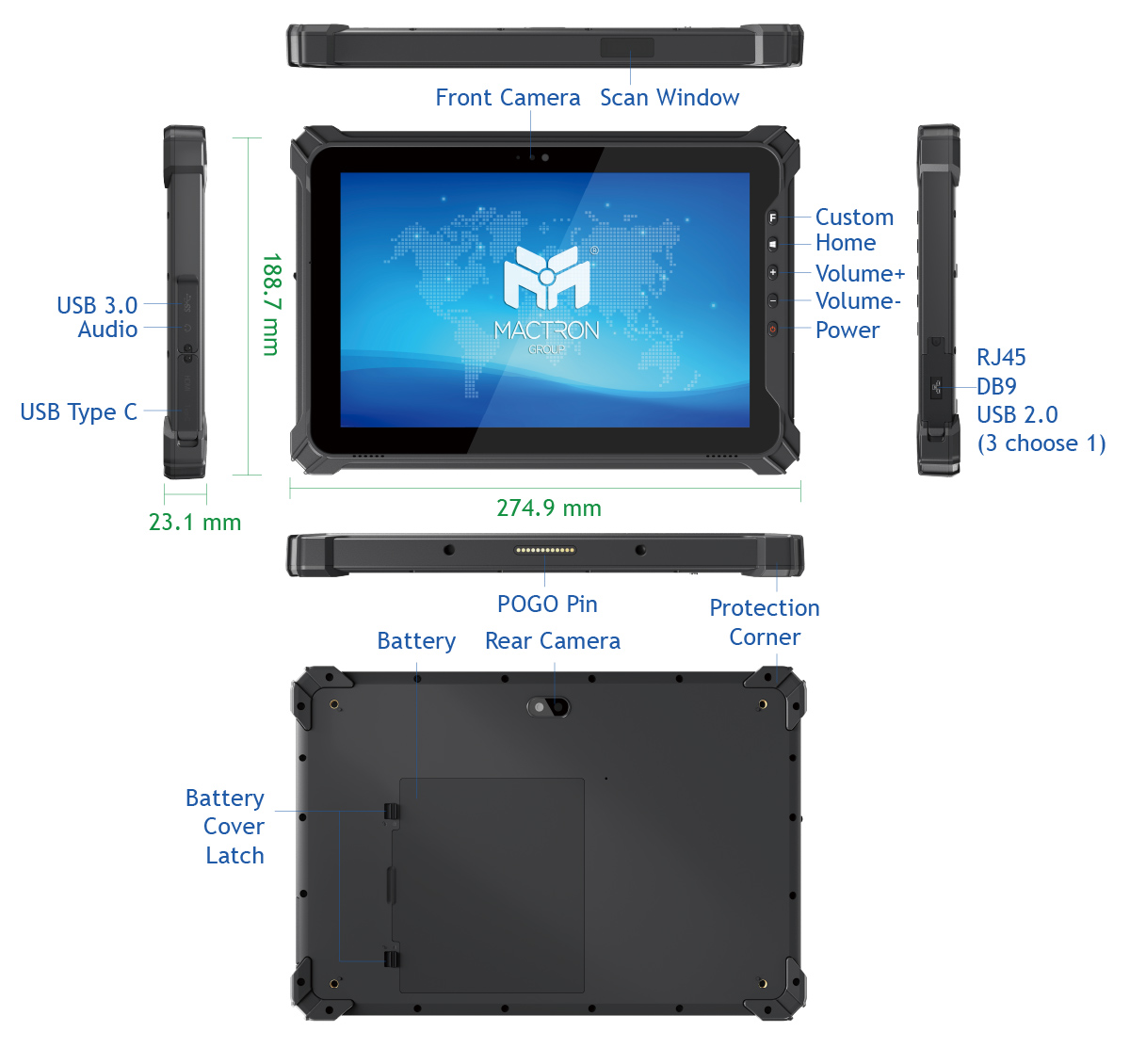

Dimensions (WxHxD)	274.9 x 188.7 x 23.1 mm
Weight	1140 g
Button	1 x Power On/Off 1 x Volume + 1 x Volume - 1 x Home 1 x Custom
Sensor	G-sensor
Battery	10,000 mAh/3.8 V (Removable)
Using Time	9 hrs (Default 50% Volume, 200 nits, Play 1080 HD Video)
Power Adapter	5V/3A
Communication	WLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz WWAN - 4G Bluetooth 5.2 GNSS - GPS, GLONASS
Security	TPM 2.0
Data Collection	NFC Module Barcode Scanner Module (Optional)
Standard Accessory	1 x Hand Strap 1 x Power Cable
Environment
IP Rating	IP65
Drop Test	1.22 m
Certification	MIL-STD-810H, CE, FCC, RoHS
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 70°C
Relative Humidity	95% (non-condensing)
Warranty	2 Years
