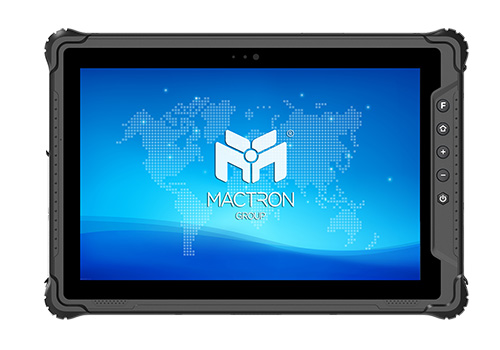

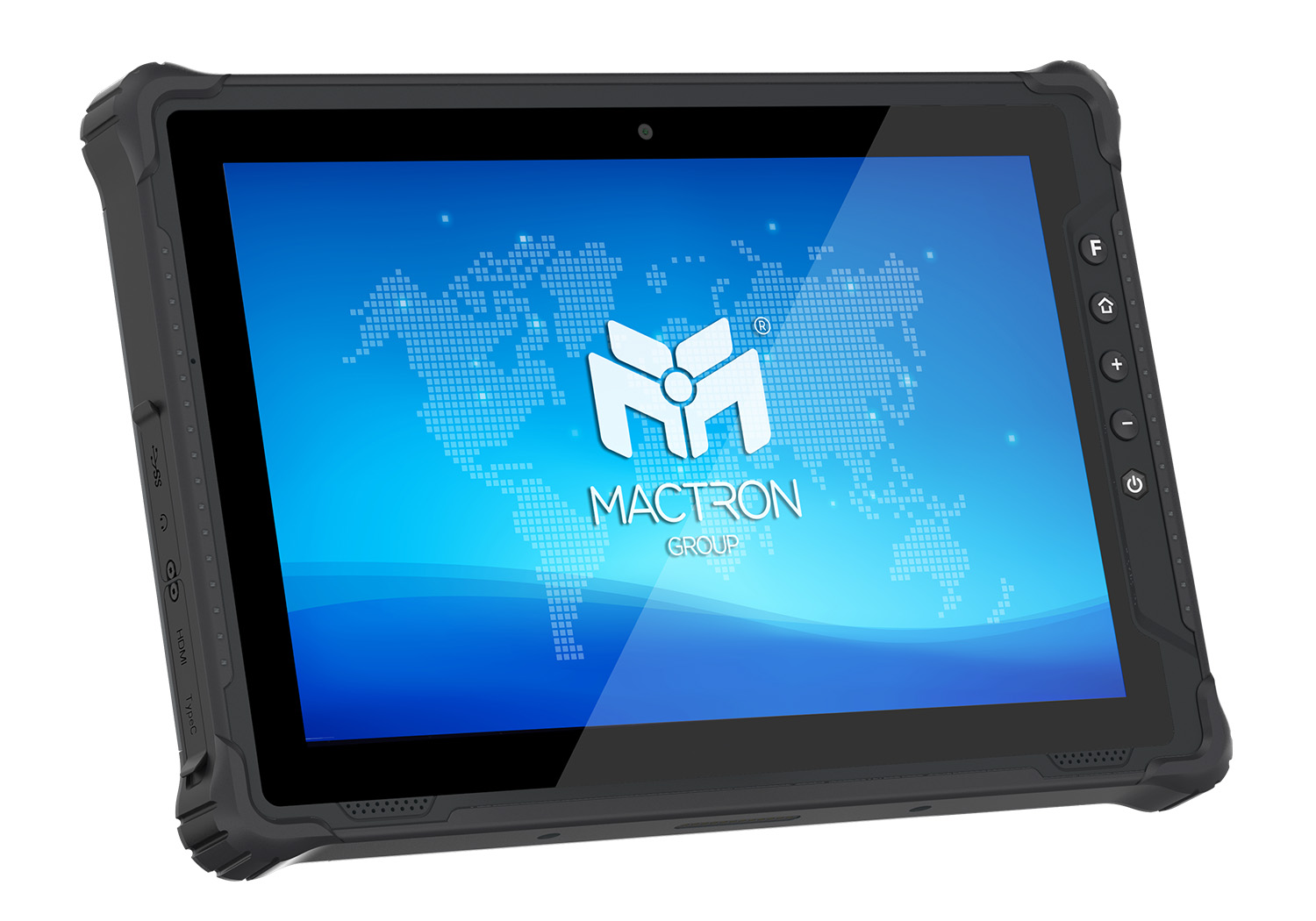

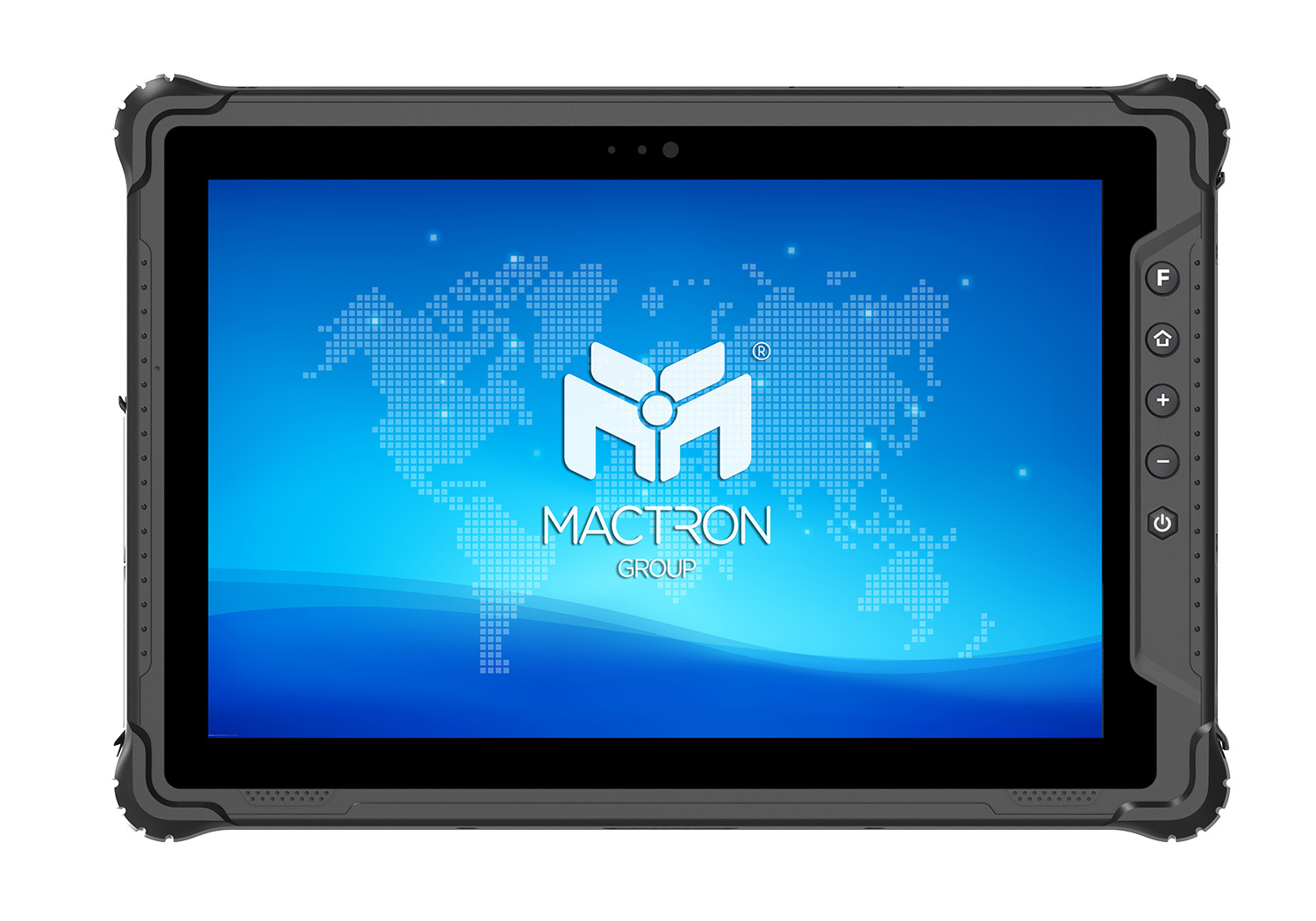

MAA1015

10.1″ Automation Rugged Android Mobile Tablet PC

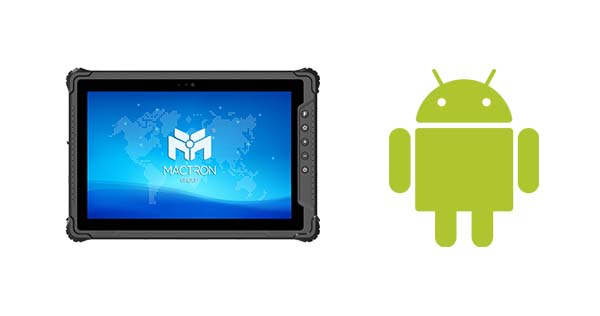

10.1" Android 14 Rugged Mobile Tablet PC System
Qualcomm^® Kryo™ 670 CPU with the 6th gen Qualcomm^® AI Engine
Advanced Wirelss solution for 4G/ WiFi 6E/ BT5.2
Removable Battery Design with high-capacity 10000mAh
1.22m drop resistant & MIL-STD-810H certified
Certified with IP65 dust and water resistance

Applications:

Warehouse Management, Storage Material Management, Retail, Market, finance, Outdoor Exploration, Military Equipment, Animal Husbandry

MAA1015 10.1" Rugged Tablet

Android 14, Qualcomm^® QCM6490 Processor

AI-Powered Rugged Tablet

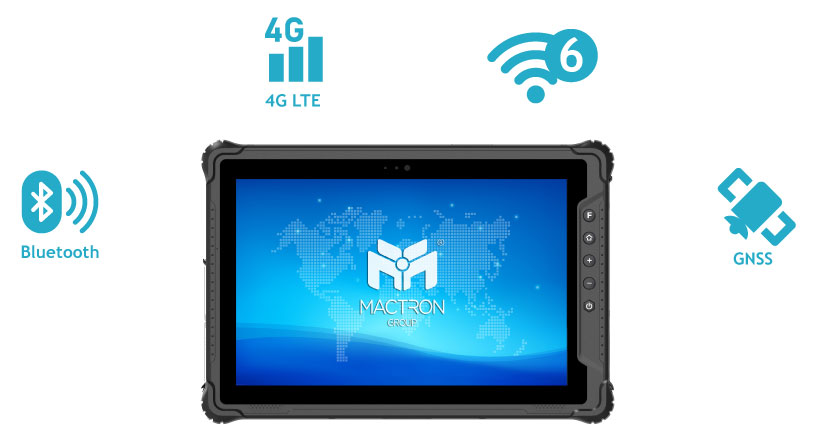

Advanced Wireless

Support 4G/LTE, Wi-Fi, BT, GNSS

1000 nits

High Brightness Sunlight Readable

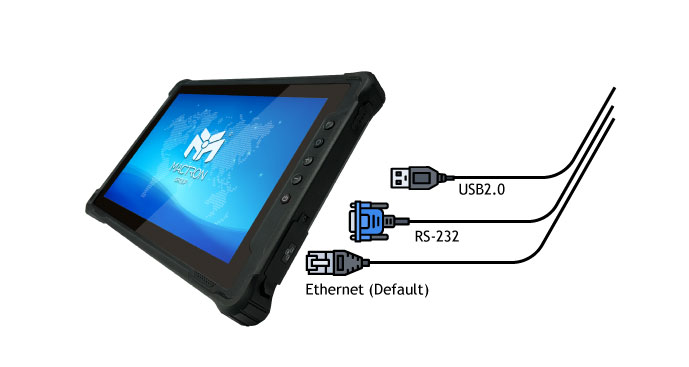

Expansion IO Module

USB 2.0, Gigabit Ethernet, RS232 Serial Port

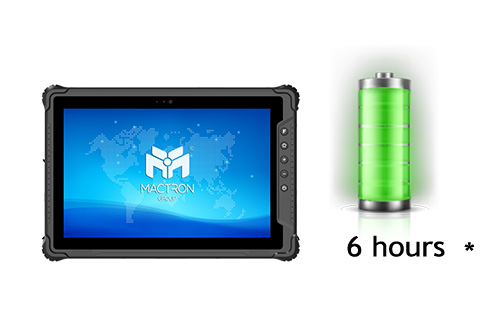

10000mAh Large Capacity Battery

You don’t have to worry your business would be interrupted by power off anymore * 6 hrs (Default 50% volume, Connected to WiFi, Default 200 nits brightness, Playing 1080P HD video)

Display
Display Type	10.1 inch IPS TFT LCD
Resolution	1920 x 1200
Aspect Ratio	16:10
Brightness	1000 nits
Touch Panel	10-point Capacitive Touchscreen, Tempered Glass, Hardness 7H
System
CPU	Qualcomm^® QCM6490 Processor, Octa-core 2.7GHz
GPU	Adreno™ GPU 643
Memory	8GB LPDDR4x
Storage	128GB eMMC
Operating System	Android 14/ GMS

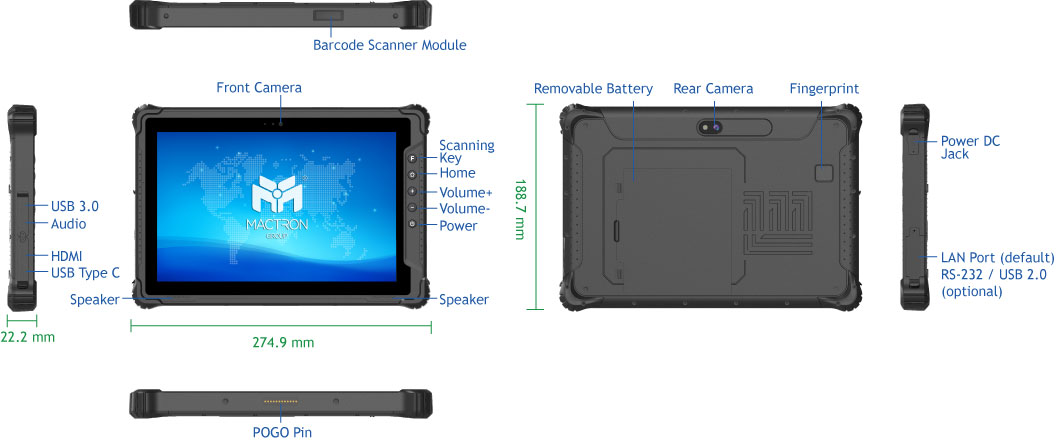

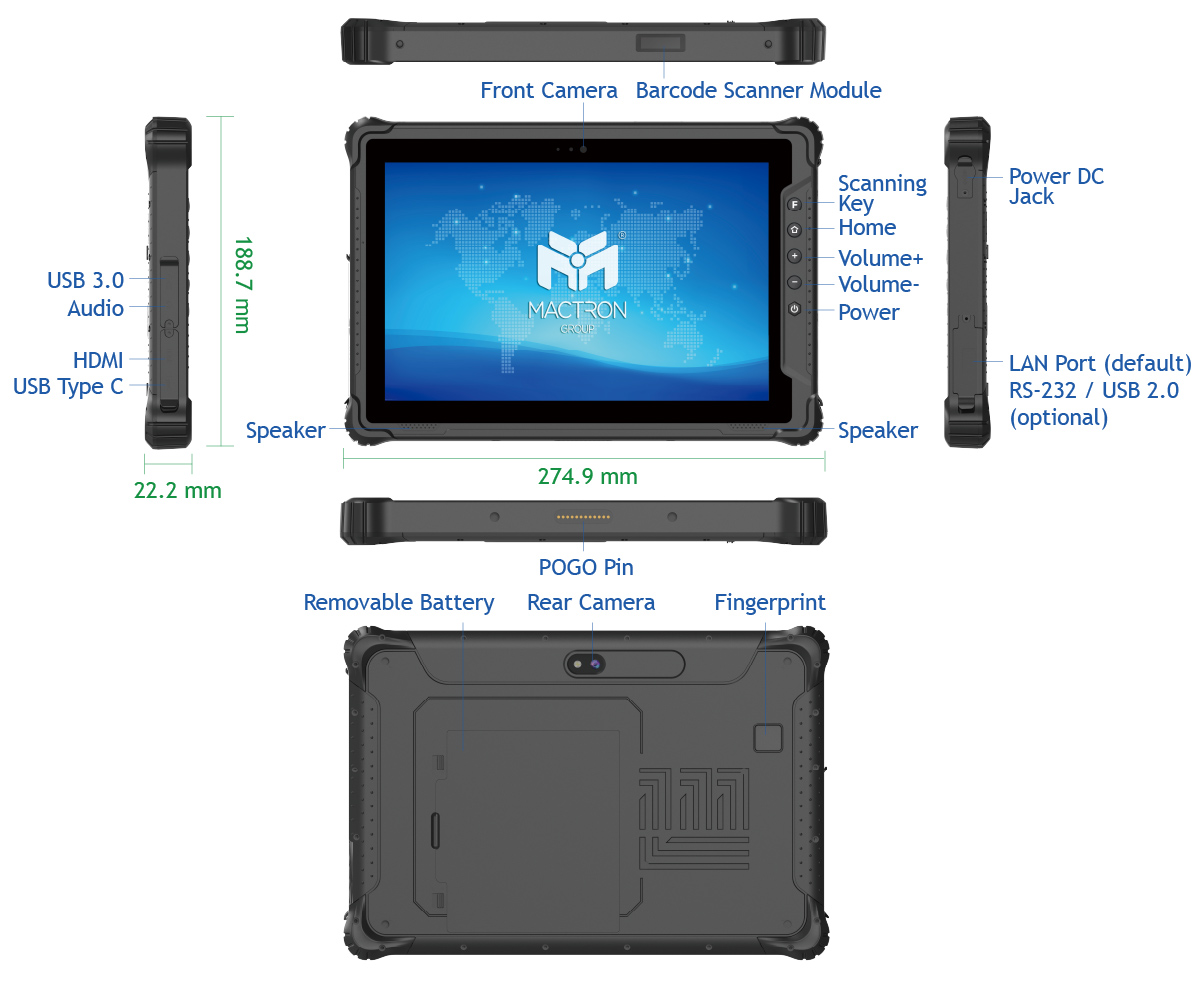

I/O Ports	1 x USB 3.0 Type-A 1 x USB 3.0 Type-C (Data & Charging) 1 x φ 3.5mm Standard Earphone Jack 1 x Micro SD (Max. 512GB) + 1 x Nano-SIM (three-in-one card slot) 1 x DC-IN Supports 5V/4A Charging 1 x HDMI 1 x 12PIN Pogo Pin
WiFi	Wi-Fi 6E & DBS, IEEE 802.11a/ b/ g/ n/ ac/ ax, Wi-Fi 2 × 2 MU-MIMO
4G	4G
Bluetooth	Bluetooth 5.2
GPS	GPS/GLONASS/BDS; Dual-frequency L1 + L5
Physical
Camera	Front 5MP; Rear 13.0MP, automatic focusing with astigmatism
Speaker	1 x 1W speaker
Color	Grey
Buttons	1 x Power (Yellow) 1x Volume + Key 1 x Volume - Key 1 x P1 Key (HOME Key) 1 x F Key (This button can be customized when the scanner is not equipped.)
Sensors	G-sensor, Light sensor, Gyroscope, Compass
Data Collection	NFC Module Fingerprint Module Barcode Scanner Module (Optional)
Battery	3.8V/10000mAh
Using Time	6 hrs (Default 50% volume, Connected to WiFi,Default 200 nits brightness, Playing 1080P HD video)
Power Adapter	DC 5V/4A
Standard Accessory	1 x Power Adapter 1 x Hand Strap
Product Dimension	274.9 x 188.7 x 22.2mm (WxHxD)
Product Weight	1028g
Box Dimension	369 x 205 x 60mm (WxHxD)
Box Weight	1750g
Environment
IP Rating	IP65
Drop Test	1.22m drop resistance
Certification	CE/ MIL-STD-810H/ CEC
Operating Temperature	-20°C to 60°C (-4°F ~ 140°F)
Storage Temperature	-30°C to 70°C (-22°F ~ 158°F)
Relative Humidity	95% Non-Condensing
Warranty	2 Years
