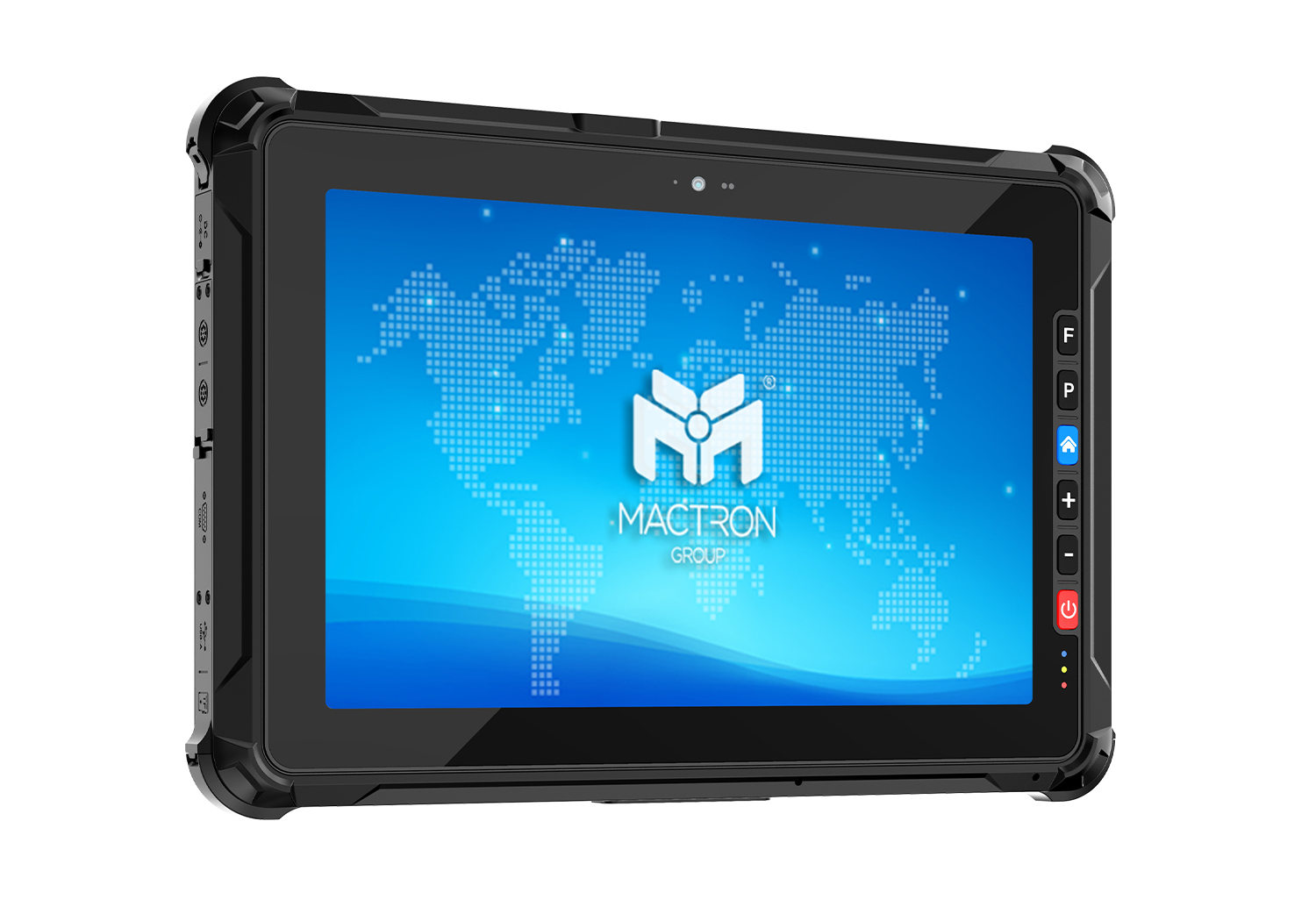

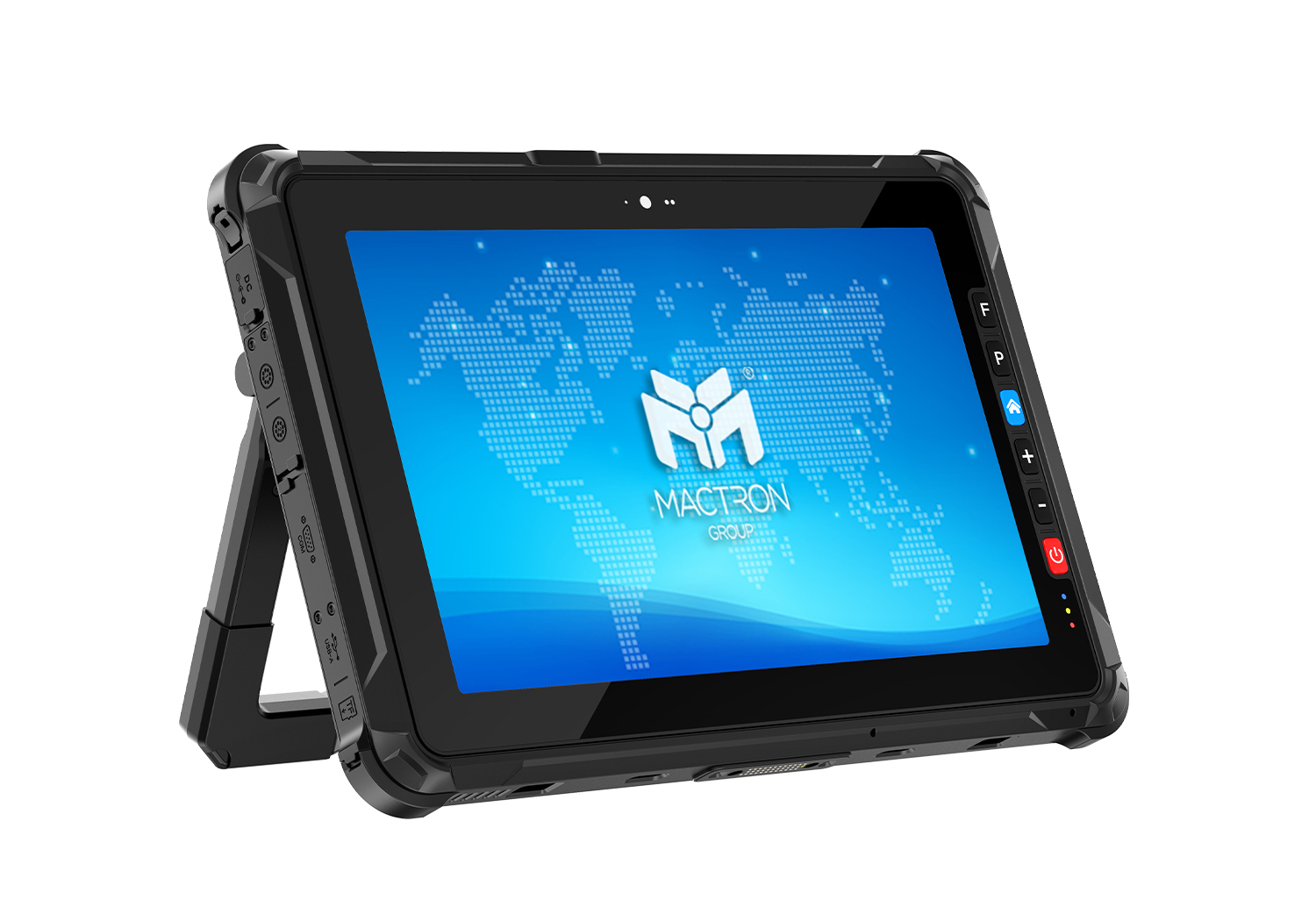

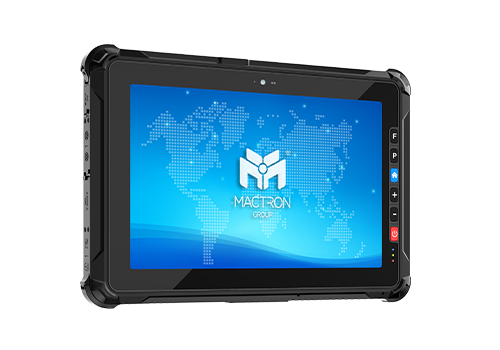

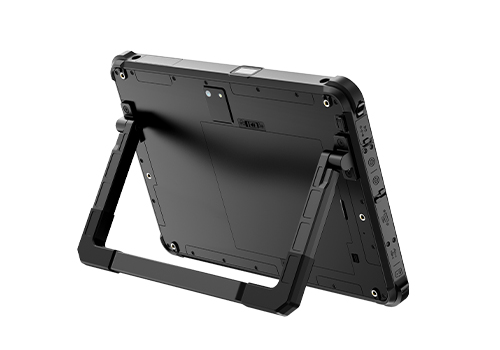

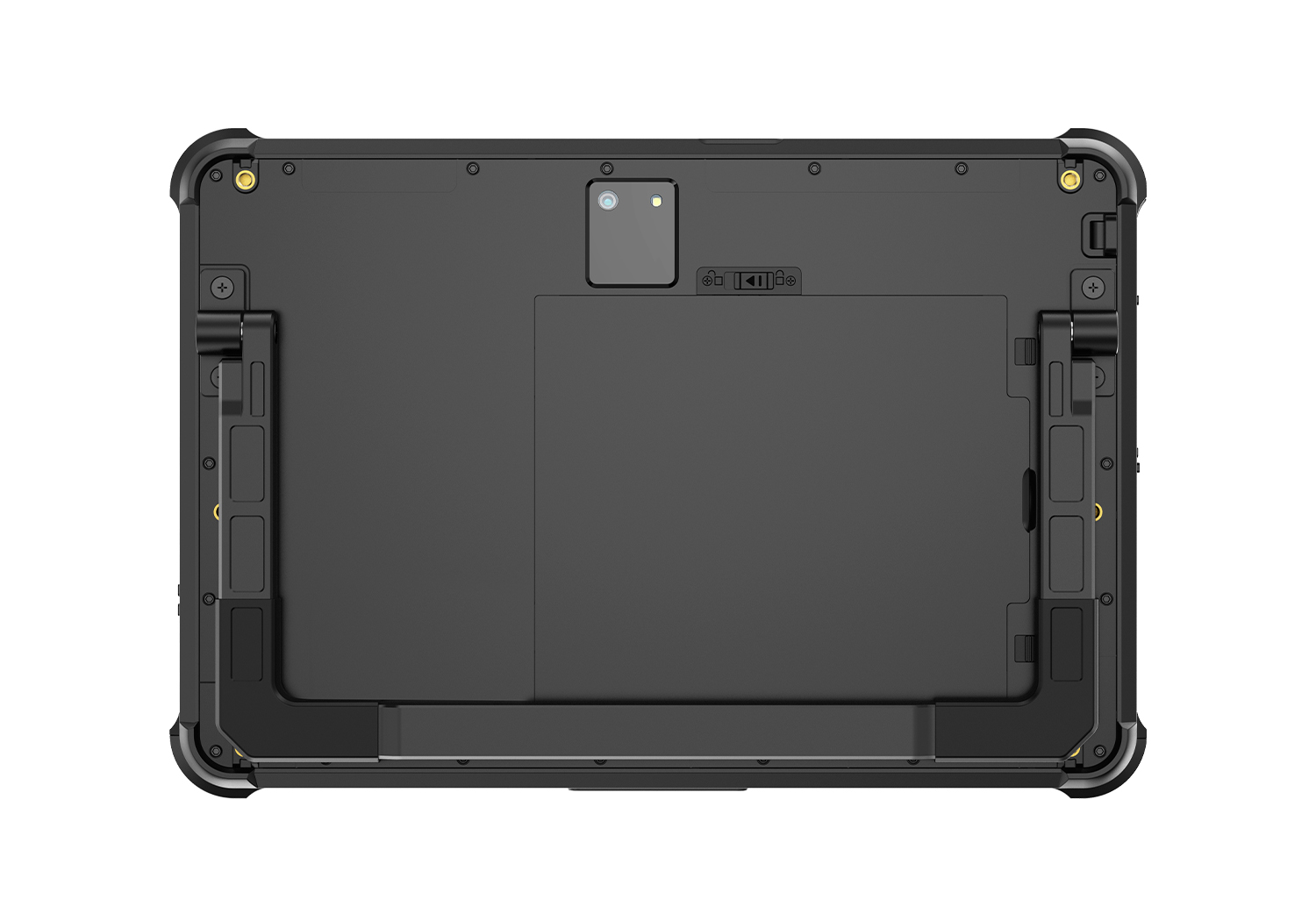

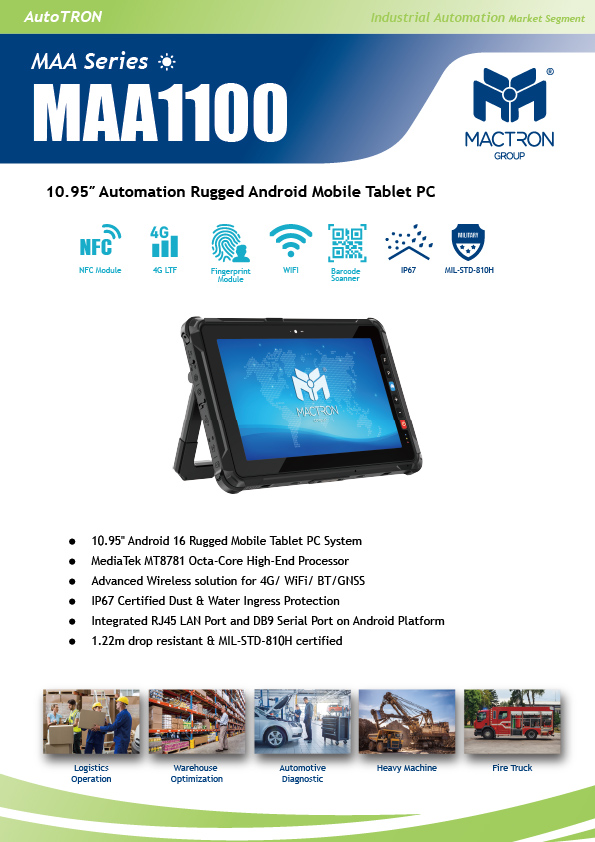

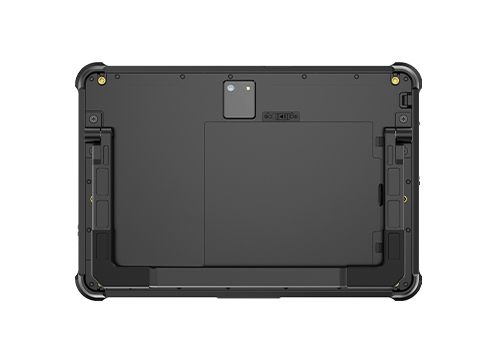

10.95″ Android 16 Rugged Mobile Tablet PC System

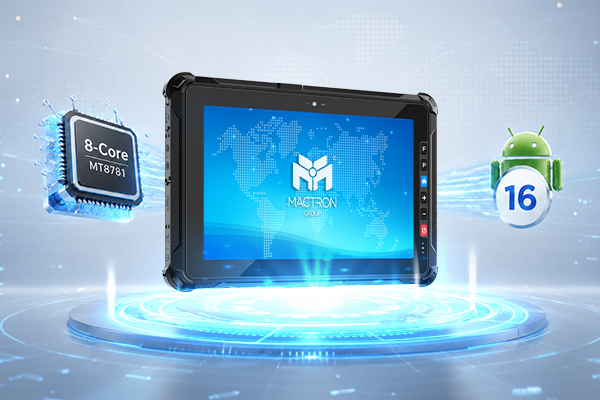

MediaTek MT8781 Octa-Core High-End Processor
Advanced Wireless solution for 4G/ WiFi/ BT/GNSS
IP67 Certified Dust & Water Ingress Protection
Integrated RJ45 LAN Port and DB9 Serial Port on Android Platform
1.22m drop resistant & MIL-STD-810H certified
Logistics Operation, Warehouse Optimization, Automotive Diagnostic, Heavy Machine, Fire Truck
| Display | |
|---|---|
| Display Type | 10.95" IPS TFT LCD |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Brightness | 550 nits |
| Touch Panel | 10-point touch G+FF, hardness ≥7H, supports touch screen with wet hands, touch screen with gloves |
| System | |
| CPU | MediaTek MT8781, 2xCortex-A76 2.2GHz,6xCortex-A55 2.0GHz |
| GPU | Arm Mali-G57 |
| Memory | 8GB (Optional 12GB) |
| Storage | 128GB (Optional 256GB) |
| Operating System | Android 16 |
| I/O Ports |

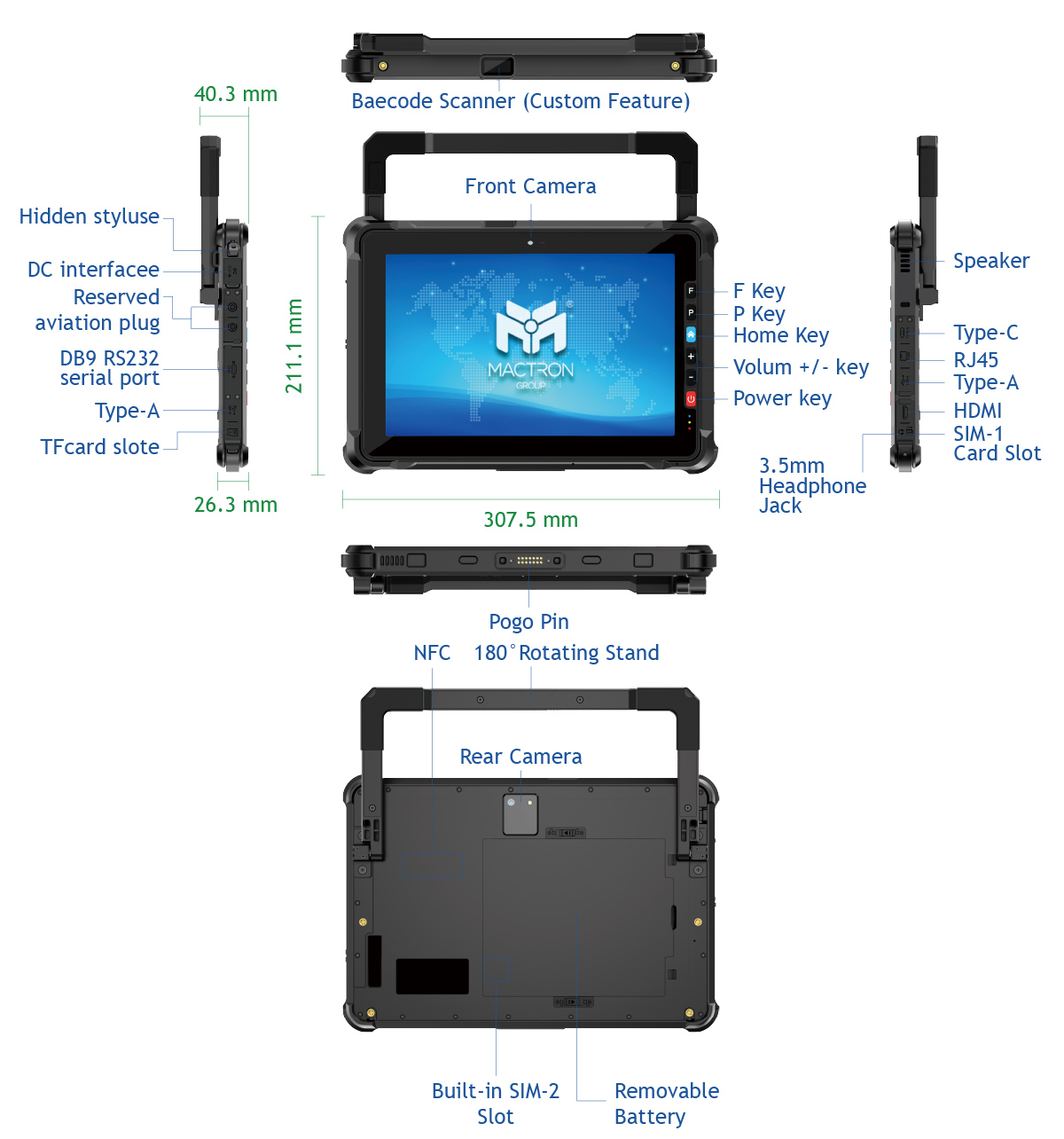

Type-C x 1 with Full USB 2.0 functionality and fast charging protocols USB 2.0 Type A x 2 RS232 Serial Port x 1 (Optional 232/422/485 protocol) 3.5mm Standard Headphone Jack x 1 TF Card x 1 Micro SIM Card Slot x 2 HDMI x 1 DC Port x 1 (19V-1.2A) 5.5mm / 2.1mm RJ45 x 1 Locking Holes x 1 Pogo Pin (Charging + USB) x 1 |
| Extensions | Reserve aviation plugs sockets: 1*power input air-plug interface, 1*USB2.0 air-plug interface |
| Integratability | Expandable, the motherboard built-in to reserve a variety of signals (SATA interface, PCIE interface, 3-way USB2.0) |
| WiFi | WIFI 802.11(a/b/g/n/ac) Wi-Fi 5 (Optional for Wi-Fi 6) |
| 4G | 4G LTE |
| Bluetooth | Bluetooth 5.2 Transmit Distance：10m |
| GPS | GPS、Beidou, Galileo、GLONASS |
| Physical | |
| Camera |
Front Camera: 24.0MP Fixed Focus Camera Rear Camera: 48.0MP Autofocus Camera with Flash Optional: 2000W Night Vision/Scan Head (choose one) |
| Audio | Speaker 2W/4Ω x 2 / MIC x 2 |
| Color | Black |
| Dimension (WxHxD) | 307.5 x 211.1 x 26.3 mm |
| Weight | 1500 g |
| Buttons |
Power Button x 1 Volume +/- Key x 2 Custom keys x 2, P key, F key Home Button x 1 |
| Sensors | Light Sensor,Proximity Sensor, Gravity sensor, Compass, Gyroscope |
| Data Collection |

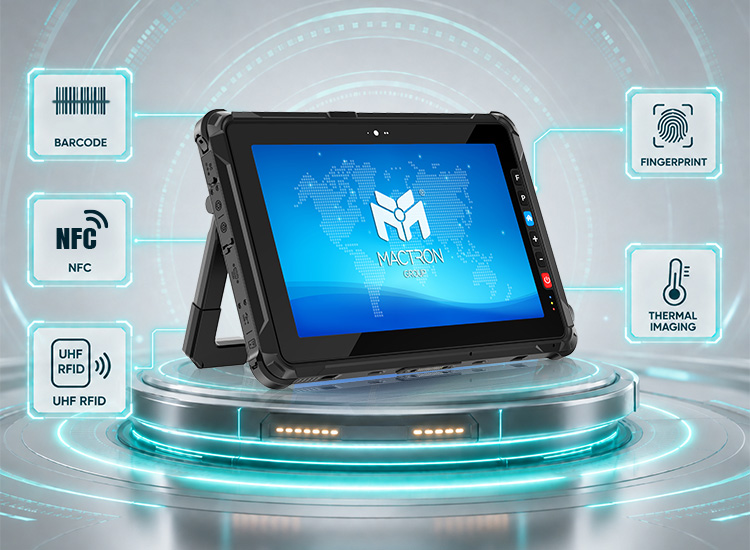

1D/2D Scanner (Optional) NFC Module Tiantong Module (Optional) UHF (Optional) Thermal imaging (Optional) Low-light night Vision(Optional) Fingerprint (Optional) |
| Battery | 3.8V 20000mAh High-Voltage Lithium Battery, Removable, Battery life ≥8h (1080P+50% Brightness) |
| Power Adapter | Type-C 30W Fast Charge Adapter |
| Optional Accessory |
Power Adapter Removable Battery Handle Strap Shoulder Strap |
| Packing List | |
| Product Dimension | 307.5 x 211.1 x 26.3 mm |
| Product Weight | 1500g |
| Accessories |

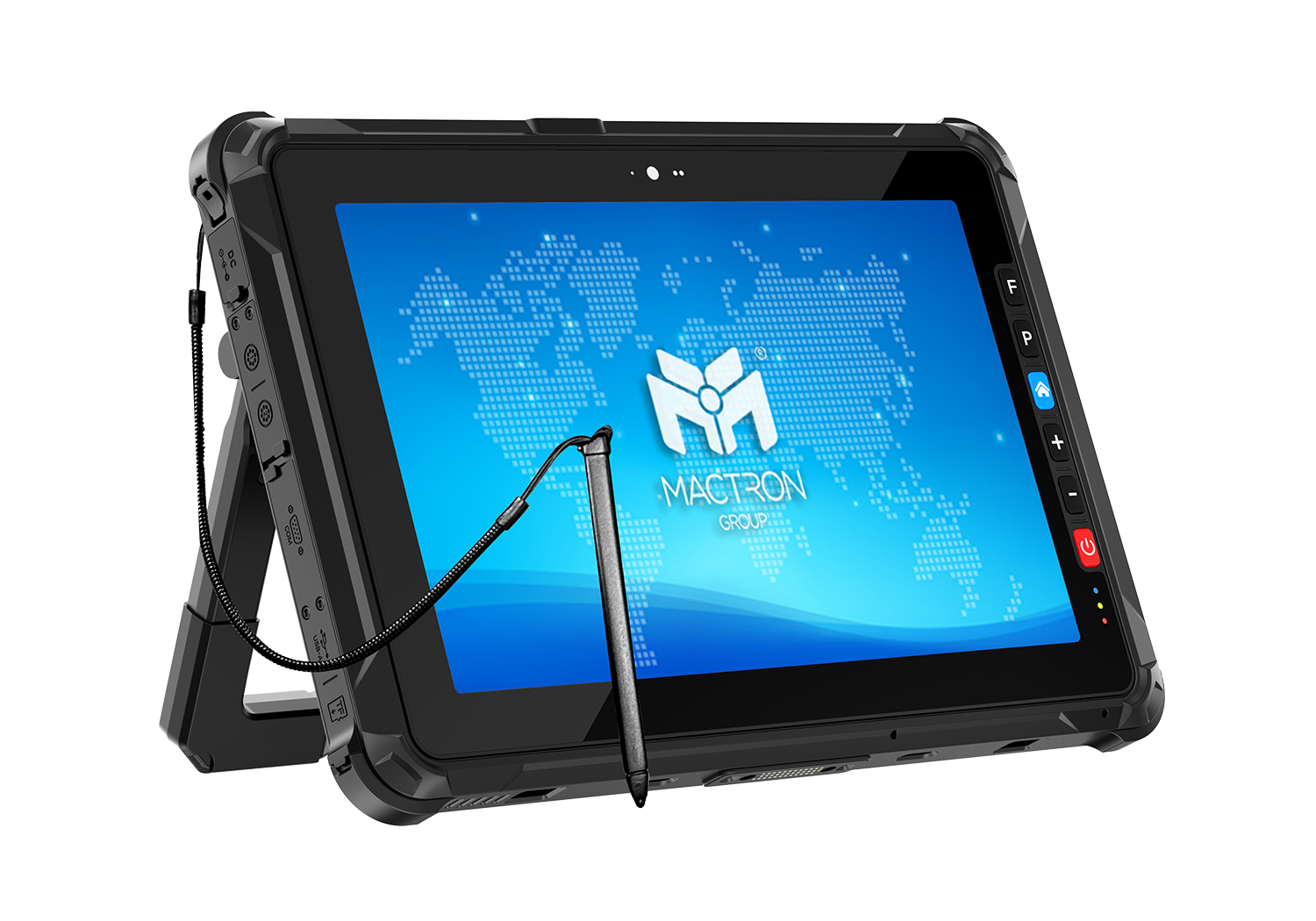

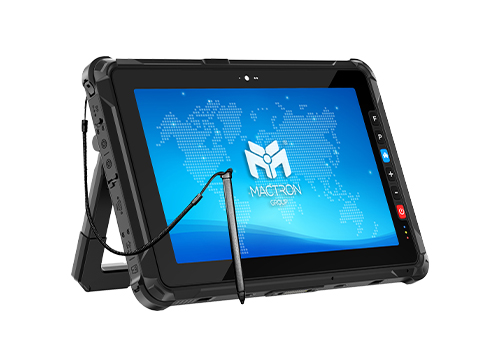

Type-C 30W Fast Charge Adapter x 1 Adjustable stand x 1 Stylus x 1 |
| Environment | |
| IP Rating | IP67 |
| Drop Test | 1.22m Drop Resistance |
| Certification | CE/ MIL-STD-810H |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |

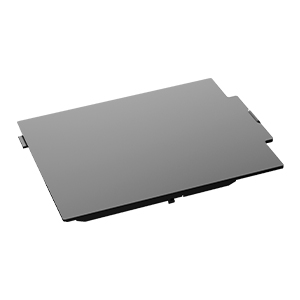

ABATM01
3.8V/ 20000mAh Removable Battery
ADA30C1
Type-C 30W Rapid Power Adapter
ASTRAC0

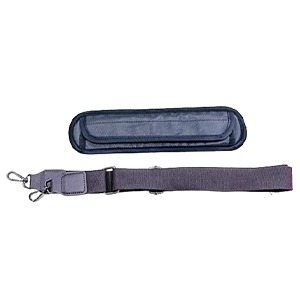

Shoulder Strap
ACRHDM1

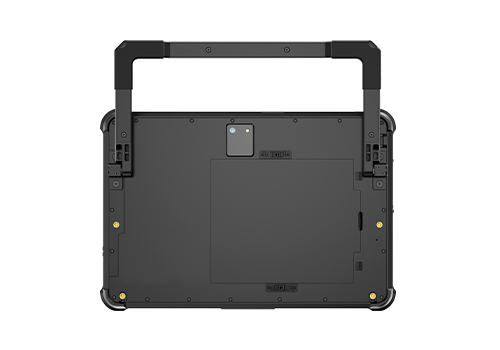

Carry Handle
ACARC03

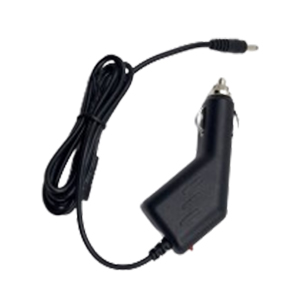

Vehicle Charger
