MAA1221

12.2″ Automation Rugged Android Mobile Tablet PC

12.2-inch Android System with Qualcomm QCM6490 Processor
10-point capacitive multi-touch panel with FHD Display
Advanced Wireless Solution Support 5G, WiFi 6E, BT 5.2 and GNSS
1.2m drop resistant & MIL-STD-810H certified Built-in Multiple Sensors such as Light Sensor, G-Senser..etc.
IP65 Protection level

Applications:

Logistics Operation, Warehouse Optimization, Automotive Diagnostic, Heavy Machine, Fire Truck

MAA1221 12.2"
Automation Rugged Android Mobile Tablet PC

Android 14, Qualcomm^® QCM6490 Processor

IP65 Dust & Water Proof

This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

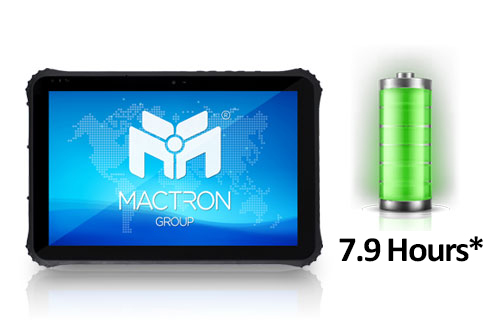

12600mAh Large Capacity Battery

You don’t have to worry your business would be interrupted by power off anymore *8hrs (default 50% volume，default200nit，play 1080P HD video)

Full Range of Data Collection Functions

NXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 13.0 MP

Multiple Accessories Can Be Adapted To Virtually Any Job And Environment

Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/Back Strap/ Car Charger /Hand Writing Pen/ Keyboard/ Metal Stand

Display
Display Type	12.2" LCD
Resolution	1920 x1200 FHD
Brightness	700 nits
Touch Panel	10 Points, Capacitive Multi-Touch Screen Support Active Stylus
System
CPU	Qualcomm^® QCM6490 Processor(up to 2.7GHz，8cores)
GPU	Qualcomm^® Adreno™ 643L
Memory	8GB LPDDR4
Storage	128GB UFS
OS	Android 14

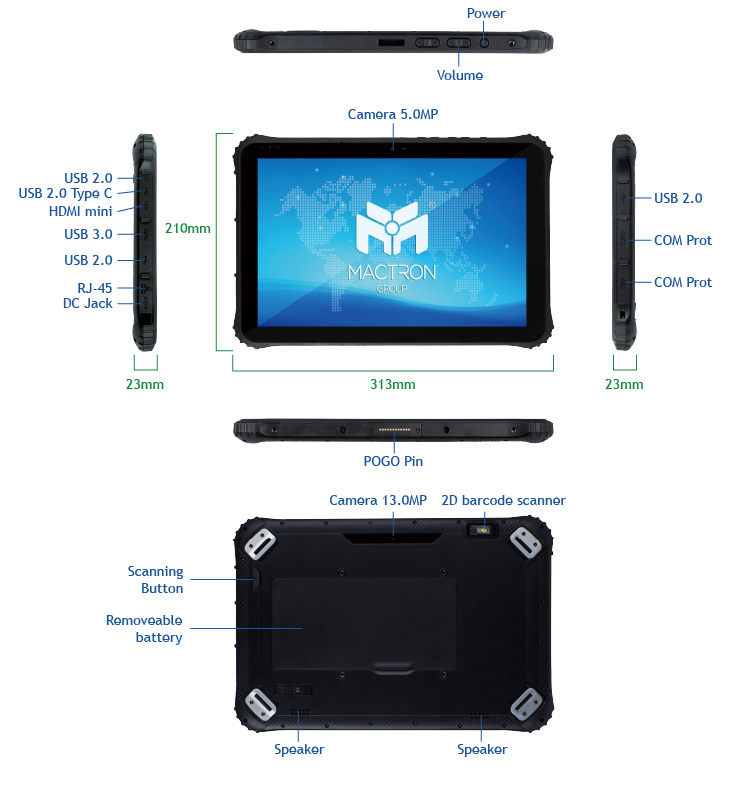

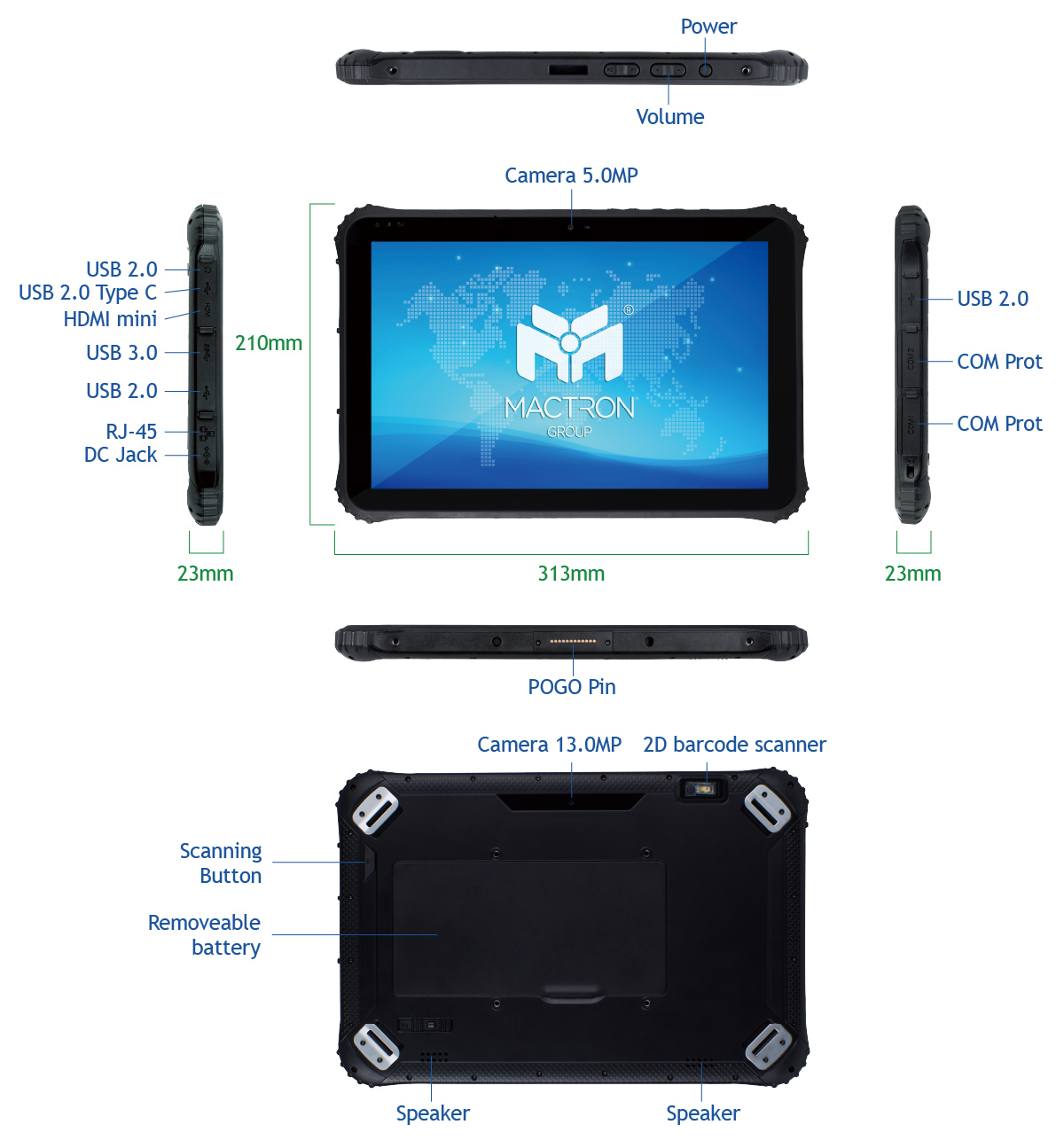

I/O Ports	USB 2.0 Type-A x 2 USB3.0 Type-A x 1 USB 2.0 Type-C x 1 3.5mm AudioJack x 1 HDMI 1.4 mini x1 10/100M/1000M Ethernet (RJ45) x1 Serial port (RS232: D-sub, 9-pin) x1 Serial port (RS485: D-sub, 9-pin) x1 DC-In 3.5mm jack x 1 Micro SD card x1 SIM Card x1 12pin POGOPin x1(Charge&USB)
WiFi	Wi-Fi 6E
Bluetooth	Bluetooth^® 5.2
4G/5G	5G
GPS	GPS/GLONASS/BEIDOU/Galileo/QZSS(L1+L5)
Data Collection	NFC Module Barcode Scanner Module (Optional)
Physical
Camera	FF 5.0 MP front camera AF 13.0 MP rear camera
Audio	Speaker 1W x2
Color	Black
Buttons	P1 Key (User-definable keys（Default Home key）)x1 P2 Key (User-definable keys（Default return key）)x1 Scan Key (User-definable keys（Default Scan key）)x1 Power On/Off x1 Volume + Key x1 Volume - Keyx1 Home Keyx1
Indicator LED	Charge LED indicator x1 Power LED indicator x1 4G/5G LED indicator x1
Sensors	Hall sensor, G-sensor, Light Sensor, Geomagnetic sensor
Battery	Battery Li-Ion, 3.7V, 12600mAh, 7.9h
RTC Battery	RTC 3V/1mAh on board
Power Adapter	AC adapter: 100-240V, 5V/4A/20W USB-Type-C Adapter: 5V/4A/20W (Optional)
Standard Accessory	Power Adapter x1 Hand Strap x1
Optional Accessory	Removable Battery Power Adapter Docking Station Mounting Holder Vehicle Charger Detachable Keyboard Shoulder Strap Back Strap
Packing List
Accessories	Power Adapter x1 Hand-strap x 1 Carry handle x 1 Bracket x 1
Product Dimension	319.621624.3 mm
Product Weight	1500g
Box Dimension	TBD
Box Weight	TBD
Environment
IP Rating	IP65
Drop Test	1.22m drop resistance
Certification	CE,CCC / MIL-STD-810H
Operating Temperature	-20°C ~ 60°C （-4°F~140°F）
Storage Temperature	-30°C ~ 70°C（-22°F~158°F）
Relative Humidity	95% Non-Condensing
Warranty	2 Years
