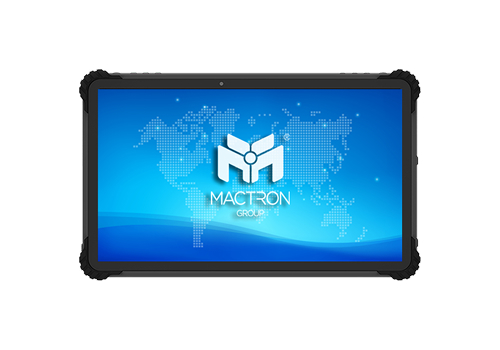

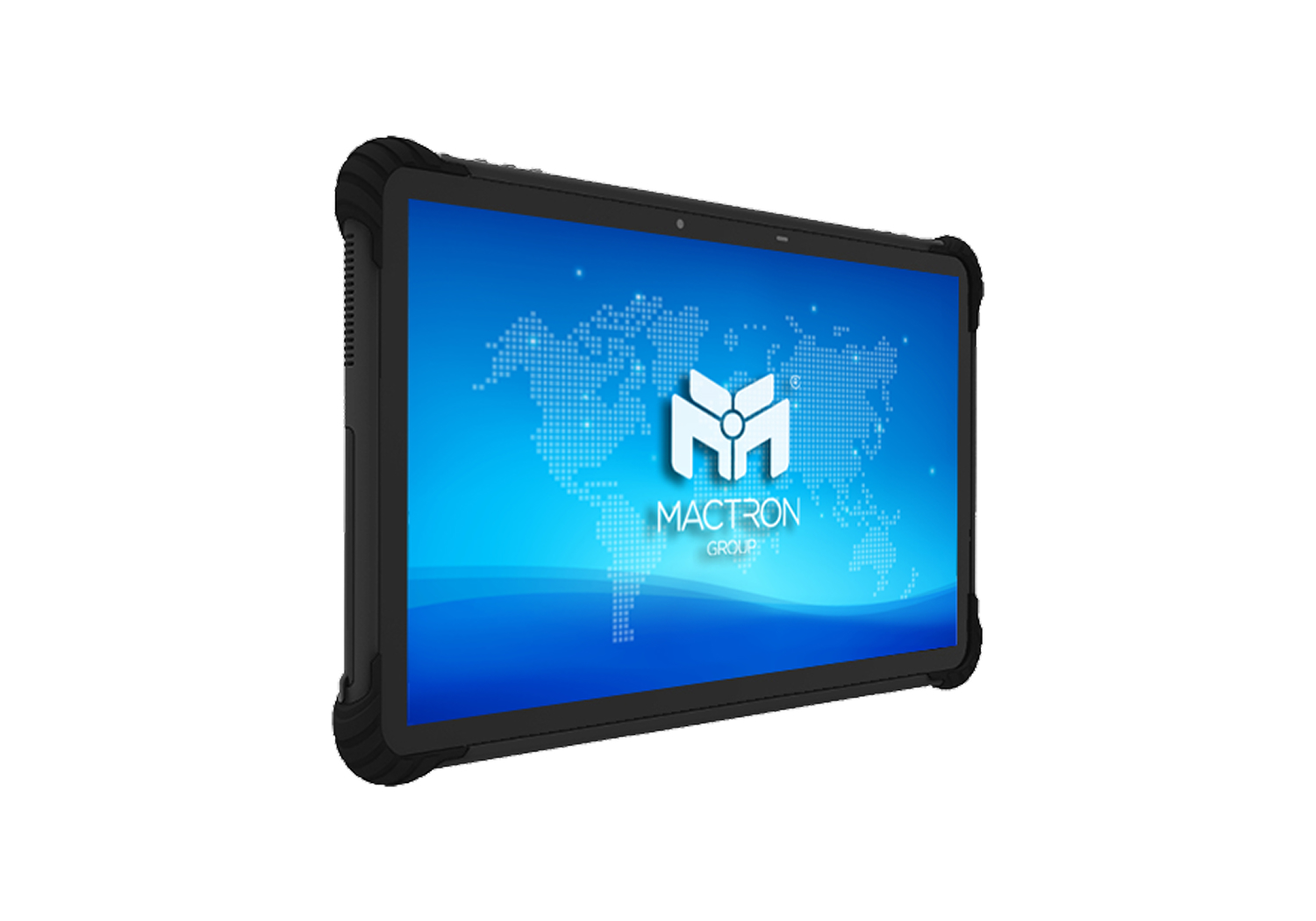

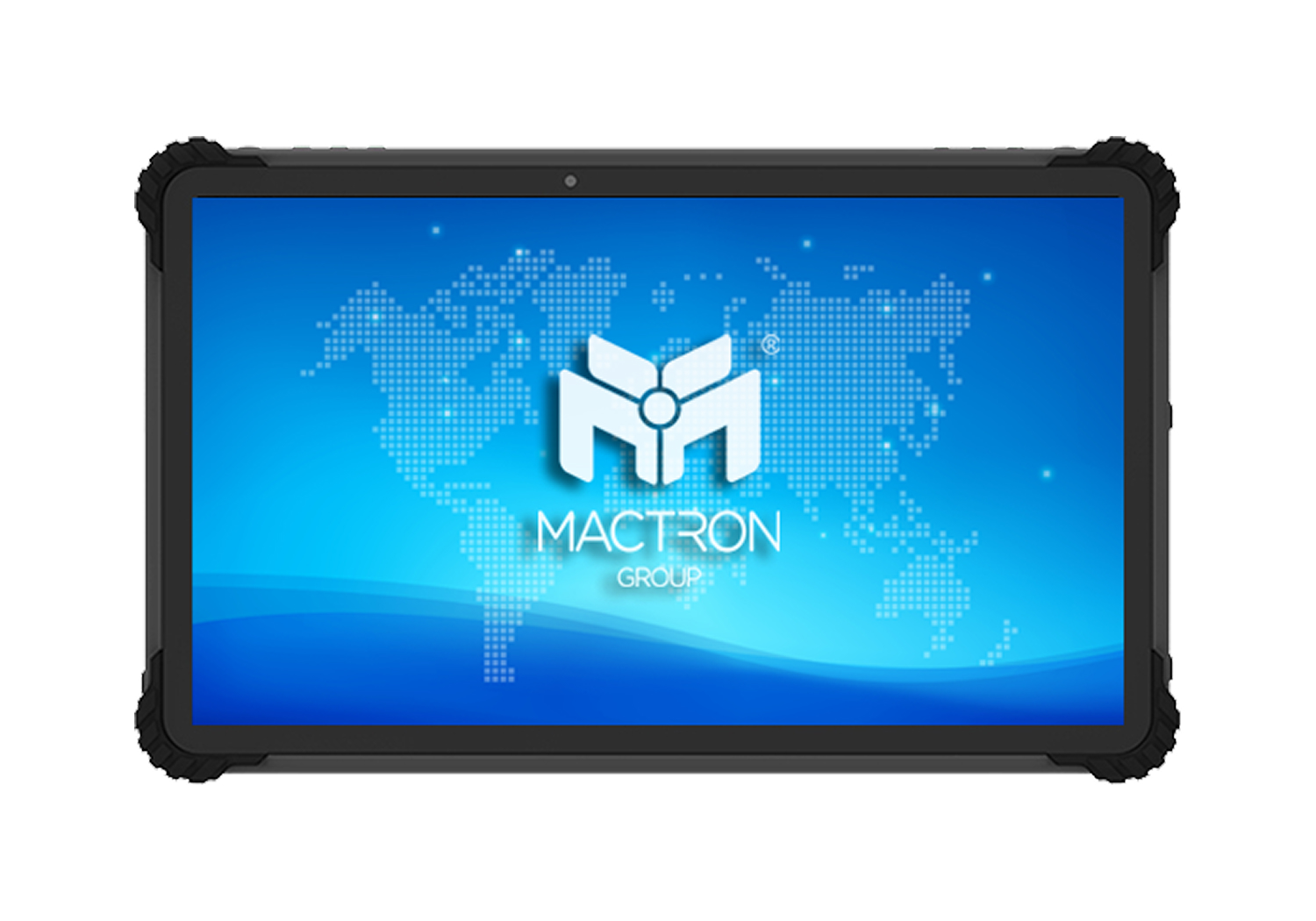

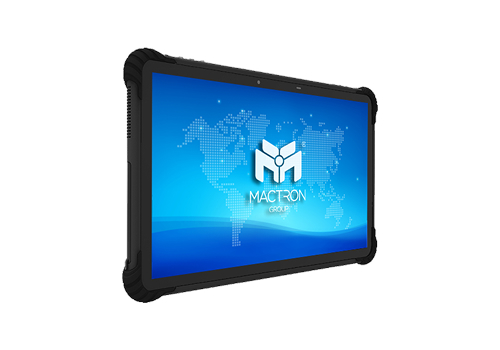

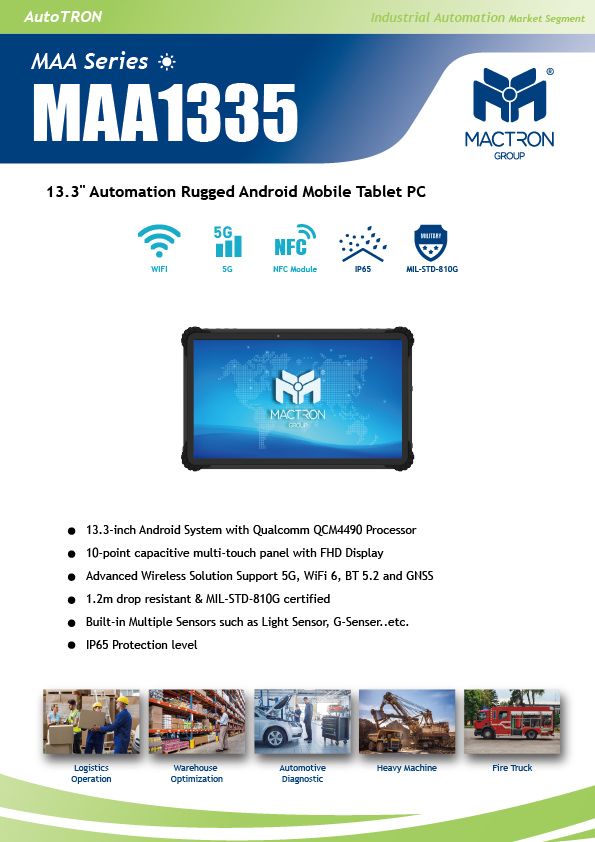

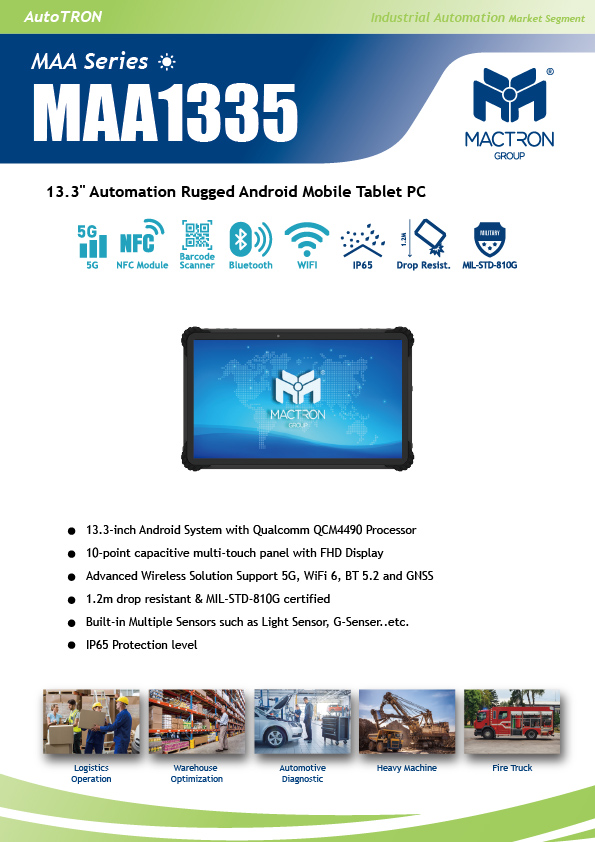

13.3-inch Android System with Qualcomm QCM4490 Processor
10-point capacitive multi-touch panel with FHD Display
Advanced Wireless Solution Support 5G, WiFi 6, BT 5.2 and GNSS
1.2m drop resistant & MIL-STD-810G certified
Built-in Multiple Sensors such as Light Sensor, G-Senser..etc.
IP65 Protection level
Logistics Operation, Warehouse Optimization, Automotive Diagnostic, Heavy Machine, Fire Truck
| Display | |
|---|---|
| Display Type | 13.3" IPS LCD |
| Resolution | 1080 x 1920 |
| Brightness | 400 nits |
| Touch Panel | 10-point Capacitive multi-touch screen, support Stylus |
| System | |
| CPU | Qualcomm QCM4490 Octa Core Processor |
| GPU | Adreno GPU 613 |
| Memory | 8GB |
| Storage | 128GB (Optional 256GB) |
| OS | Android 13 |

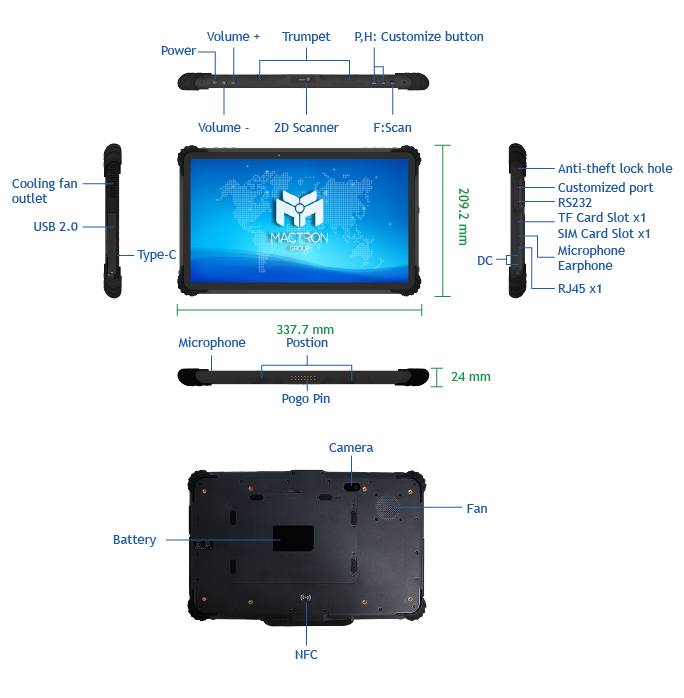

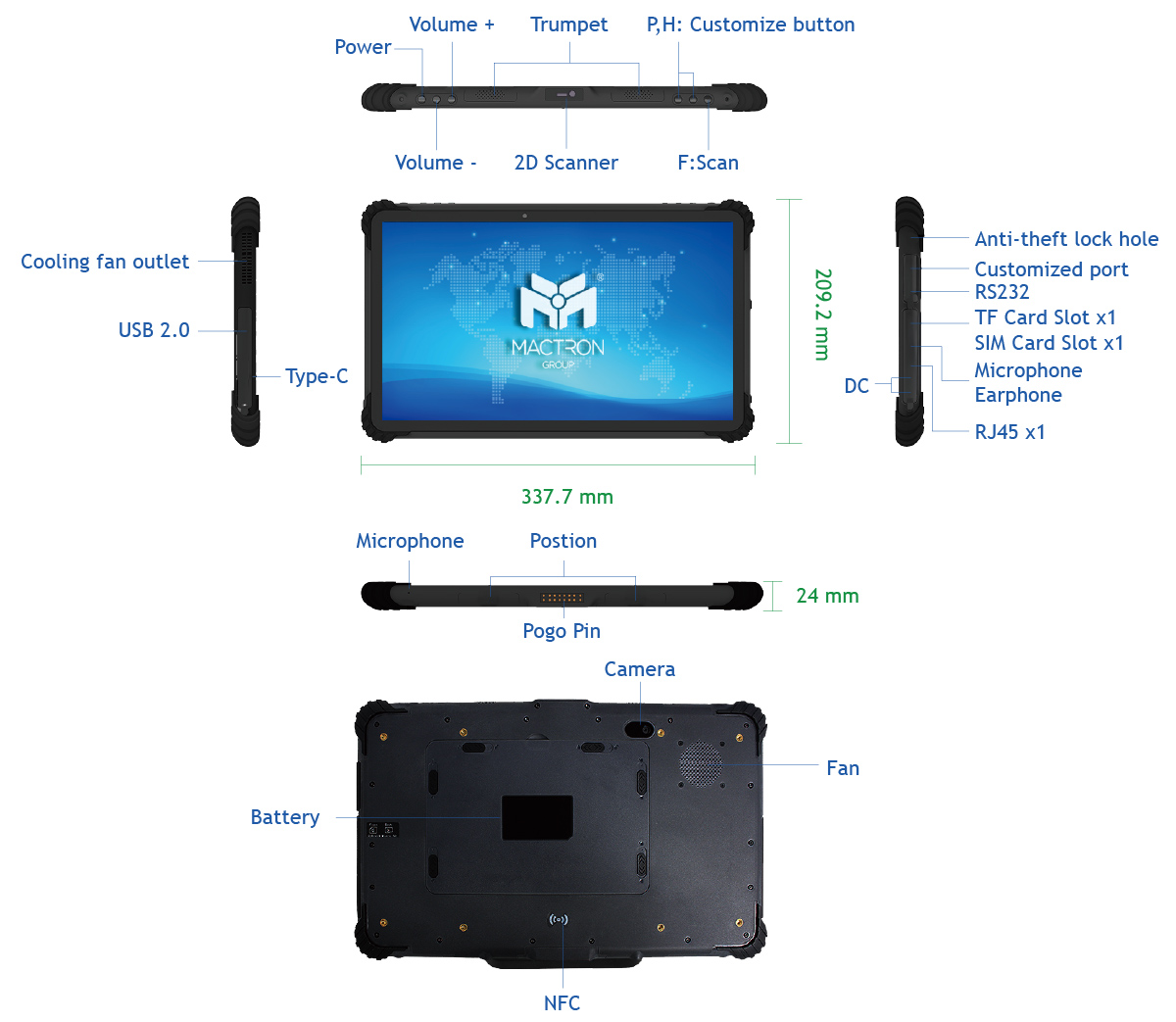

| I/O Ports |

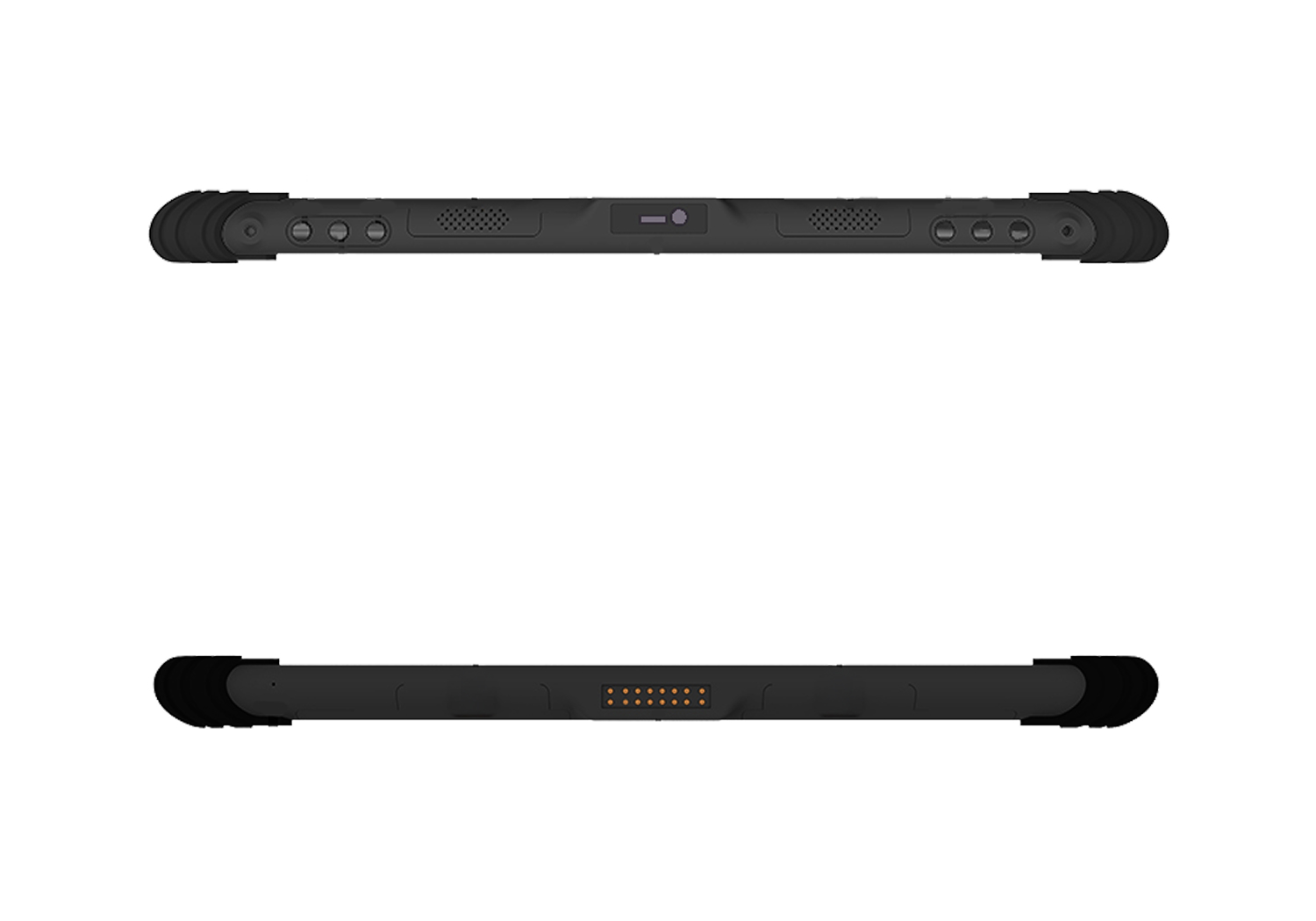

1 x USB 2.0 Type-A 1 x Type-C x 1 (Support charging) 2 x Aviation interface: customized interface & RS232 (RS232 not fully functional, only TX RX GND) Card slot: SIM card slot+TF card slot 1 x phone Jack (3.5mm standard headphone interface) 1 x 10/100M RJ45 1 x DC-In jack (3.5mm) 1 x Anti-theft lock hole 1 x 16-pin Pogo Pin |
| WiFi | Wi-Fi 6 (802.11 ax) |
| Bluetooth | Bluetooth® 5.2 |
| 4G/5G | 5G |
| GPS | GPS, BDS, GLONASS, Galileo |
| Data Collection |
NFC Module Barcode Scanner Module (Optional) |
| Physical | |
| Camera | Front Camera 8M Rear Camera 16M with Flash light |
| Audio | 2 x 8Ω /0.8W |
| Color | Black |
| Dimension | 330 mm (L) x 205 mm (W) x 19.5 mm (H) |
| Weight | 1450g |
| Buttons |
1 x Power 1 x Volume + Key 1 x Volume - Key 2 x User-definable Key (P&H) 1 x "F" for Barcode Scan |
| Sensors | Light Sensor, Geomagnetic Sensor, Barometric Sensor, G-Sensor, Acceleration Sensor, Gyroscope, Distance Sensor, Vibrate (motor) |
| Battery | 3.8V/16000mAh |
| Power Adapter | USB Type-C Power Adapter (5V/3A) |
| Standard Accessory |
1 x Power Adapter 1 x Carry strap 1 x Wrist strap |
| Packing List | |
| Accessories |
1 x Power Adapter 1 x Carry strap 1 x Wrist strap 1 x Screw |
| Product Dimension | 330 mm (L) x 205 mm (W) x 19.5 mm (H) |
| Product Weight | 1450g |
| Environment | |
| IP Rating | IP65 |
| Drop Test | CE/ FCC/ MIL-STD-810G |
| Certification | CE/ FCC/ MIL-STD-810G |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -25°C ~ 80°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
ADA15C0
USB Type-C
Power Adapter
Carry Strap
Wrist Strap
ADOCK35
Docking Station
1 x LAN / 1 x COM
2 x USB Type A / 1 x DC Jack
