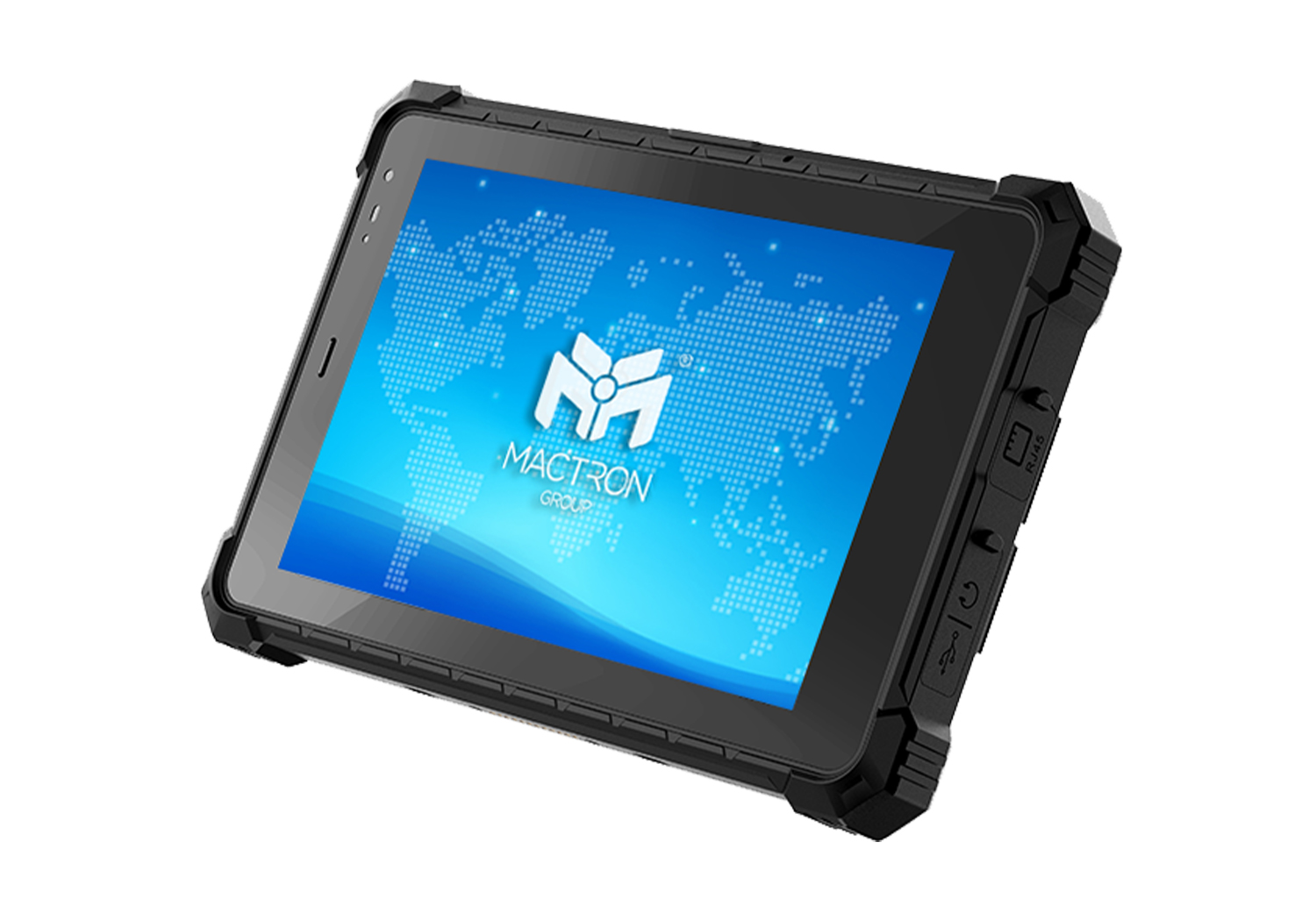

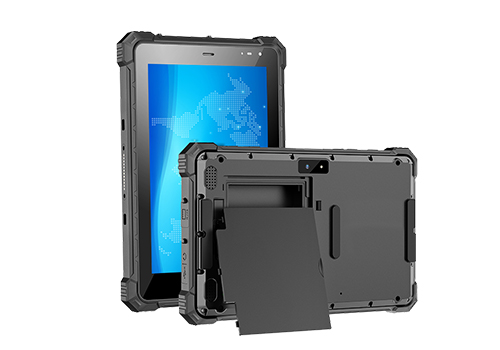

MAS0800

10.1″ Automation Rugged Windows Mobile Tablet PC

  • Datasheet

    • 8″ Windows Rugged Mobile Tablet PC System

    • Equipped with Intel® Celeron® N5100 Processor

    • Equipped with FHD 1920 x 1200 Display with Pcap Touch screen

    • Seamless integration of Wi-Fi, Bluetooth, 4G LTE, and GPS

    • 1.22m Drop Resistant & MIL-STD-810H Certified

    • IP67 Dust and Water Resistance for rugged and harsh environments

    Applications:

    Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

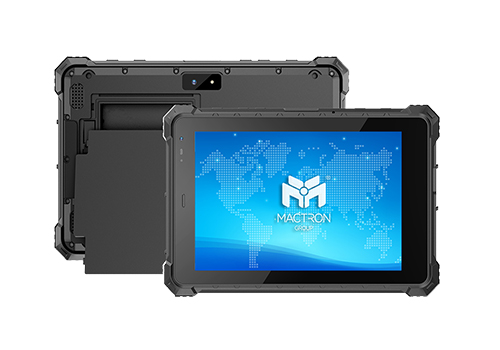

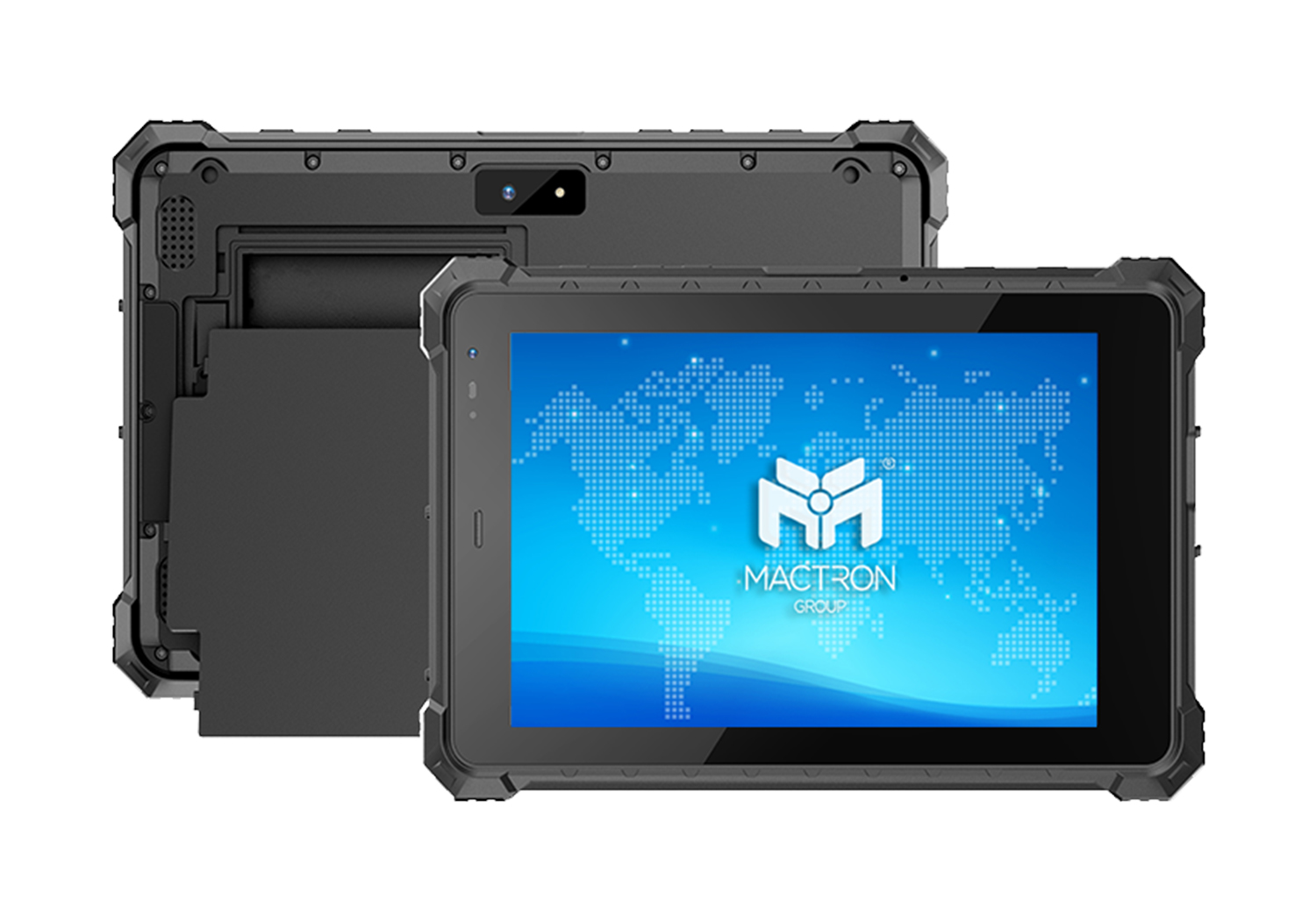

    MAS0800 8” Entry-Level Rugged Tablet

    Windows Platform, Intel® Celeron® Processor N5100

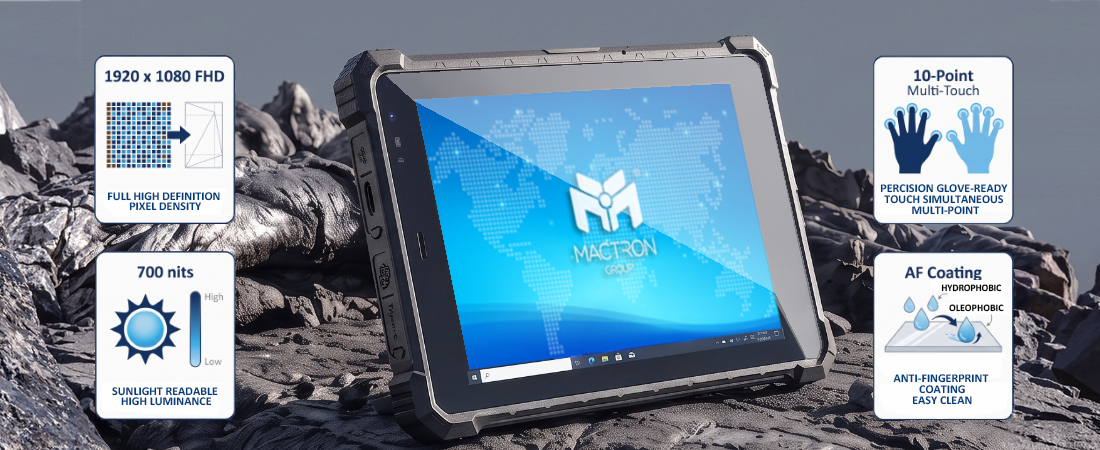

    8” FHD Sunlight-Readable Tablet PC

    1920 × 1080 FHD | 700 nits | AF Coating | 10-Point Multi-Touch

    IP67 Rated Dust & Water Protection

    Built to withstand harsh environments, MAS0800 is dust-tight and protected against temporary water immersion.

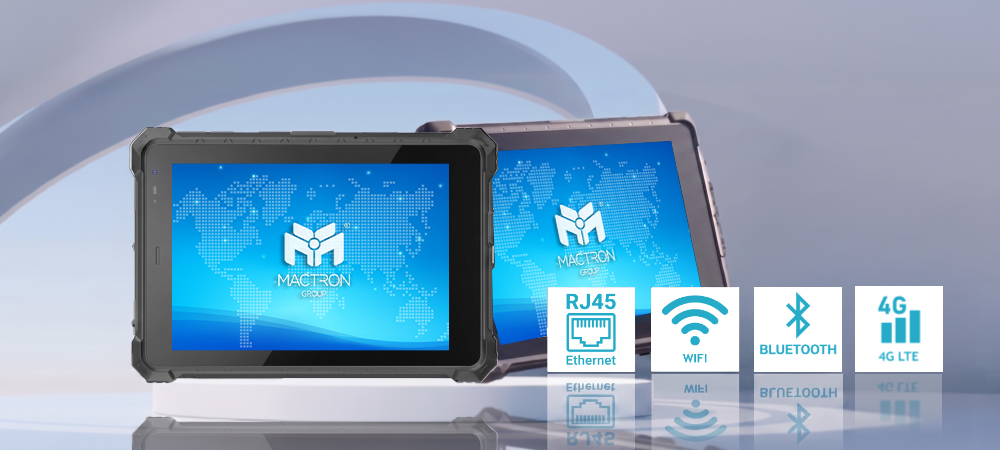

    Seamless Wired & Wireless Connectivity

    RJ45 Ethernet • Wi-Fi • Bluetooth • 4G LTE

    One Design, Dual Architectures

    MAS0800｜Intel® x86 · Max Computing Power
    MAA0800｜MTK ARM · Smart All-Day Mobility

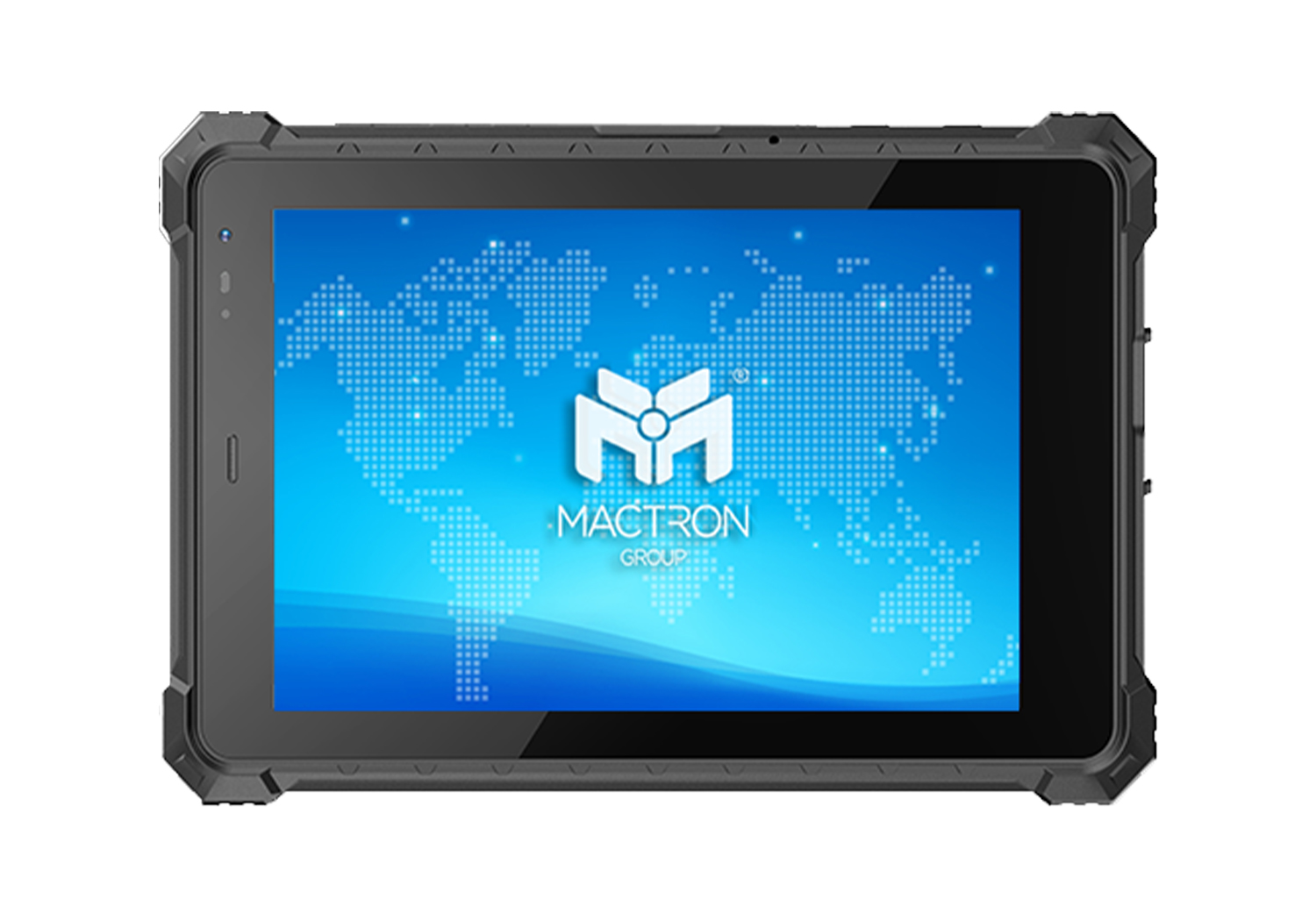

    Display
    Display Type 8" IPS TFT LCD
    Resolution 1920 x 1200
    Aspect Ratio 16:10
    Brightness 700 nits (Optional 1000 nits)
    Touch Panel Anti-fingerprint (AF) Coating, 5-point touch G+G, Hardness 7H, Support for Medical Rubber Gloves Touch Screen (Can be Customised Wet Hand Touch Screen)
    System
    CPU Intel® Celeron® N5100 Quad Core Processor
    GPU Intel® UHD Graphics
    Memory 8GB
    Storage 128GB

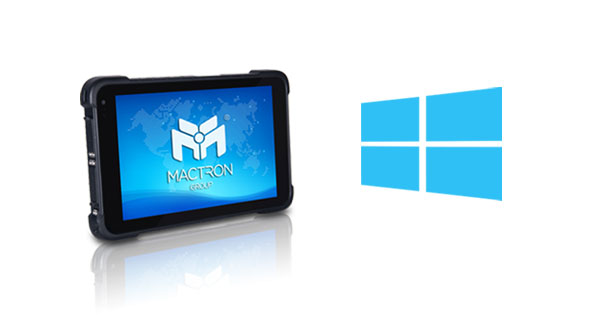

    OS Windows 10 IoT Enterprise 2021 LTSC, Windows 11,Ubuntu 22.04.5

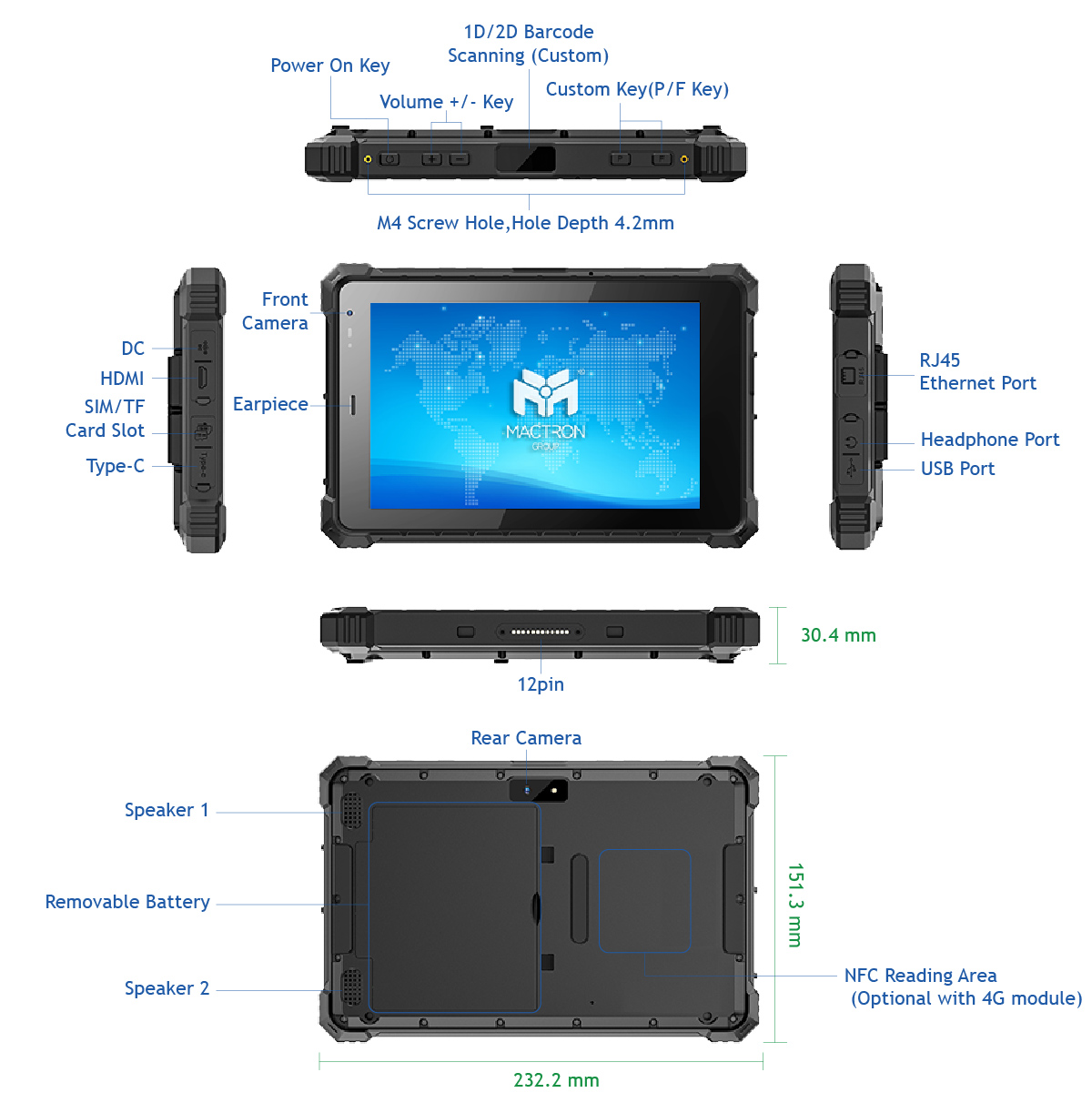

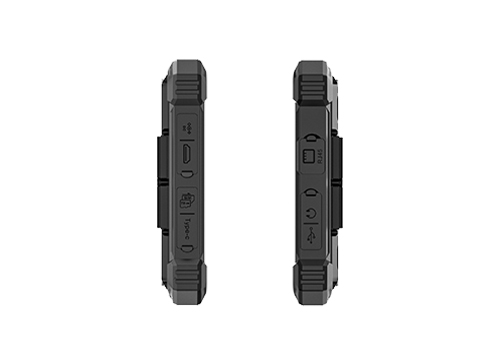

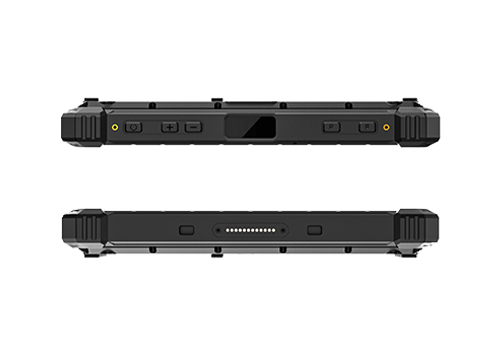

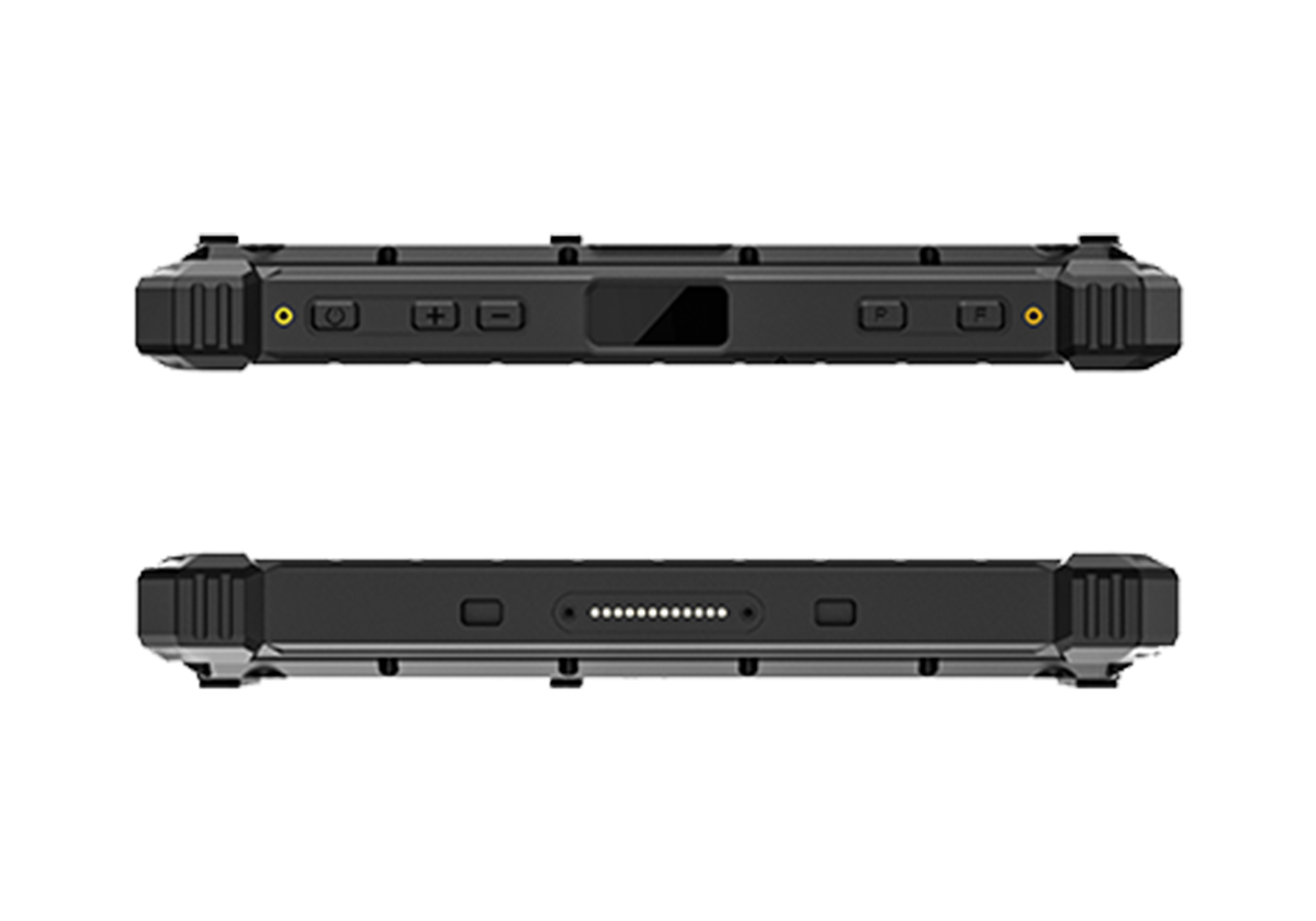

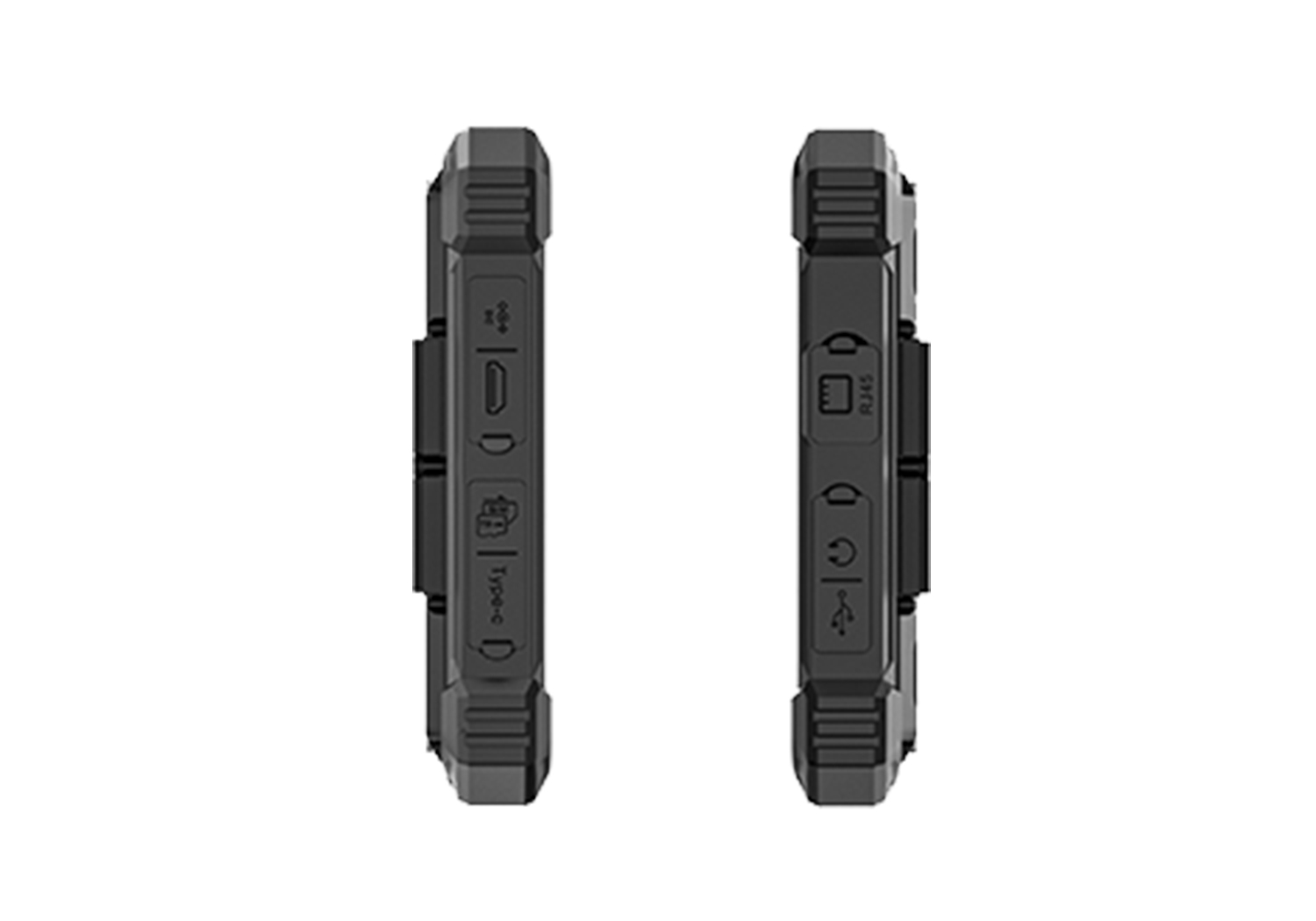

    I/O Ports USB Type C x1 (USB3.0 support PD charging)
    USB3.0 Type A x1
    3.5mm Standard Headphone Jack x1
    RJ45 (100Mbps) x1
    Micro SIM Card x1
    TF Card x1 (Max. 256GB)
    Micro HDMI x1
    DC Piug (12V/4A_3.5mm/1.35mm) x1
    Pogo Pin (12Pin USB+Charging) x1
    WiFi WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Wi-Fi 5 (Optional Wi-Fi 6)
    4G 4G LTE
    Bluetooth Bluetooth 5.0 (BLE) class1 transmit distance：10m
    GPS GPS,GLONASS (Optional Single-System BeiDou Positioning)
    Data Collection NFC Module (Optional with 4G module)
    Barcode Scanner Module (Optional)
    Physical
    Camera Front Camera: 5.0MP Fixed Focus
    Rear Camera: 8.0MP Auto Focus
    Audio 1W Waterproof Speaker x2
    Color Black
    Dimension (WxHxD) 232.2 x 151.3 x 30.4mm (WxHxD)
    Weight 889g
    Buttons Power Button x1
    Volume +/- Key x2
    Custom keys x2 (P key & F Key)
    Sensors Gravity Sensor

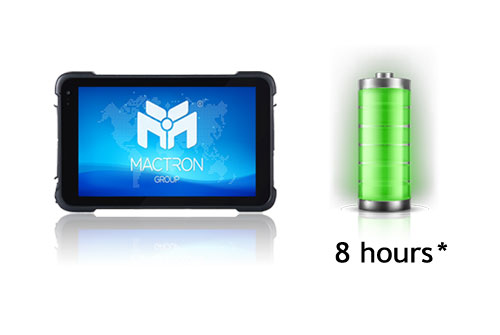

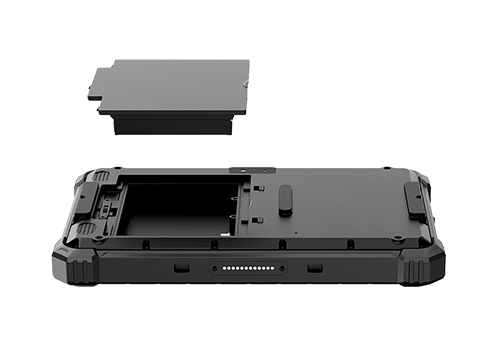

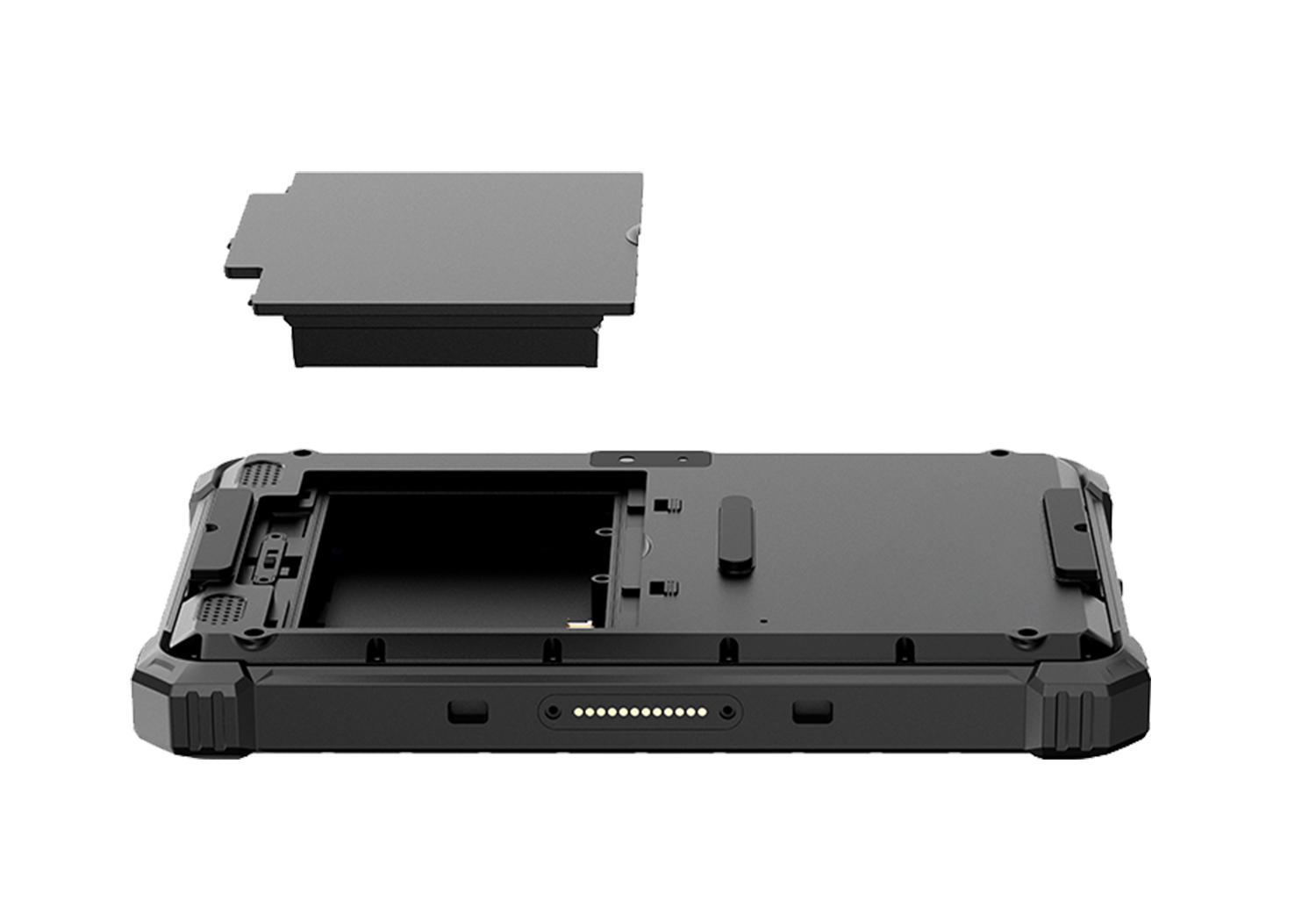

    Battery 4,700mAh/ 7.6V Removable Battery
    Power Adapter 12V/ 4A DC Power Adapter
    Optional Accessory Docking Station (Under Development)

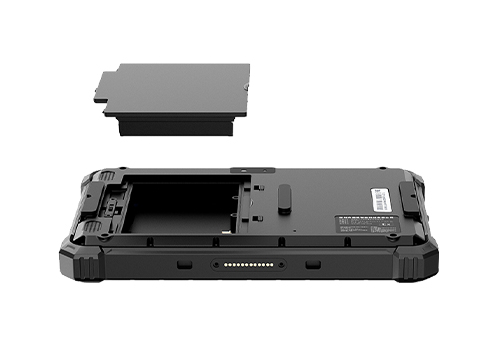

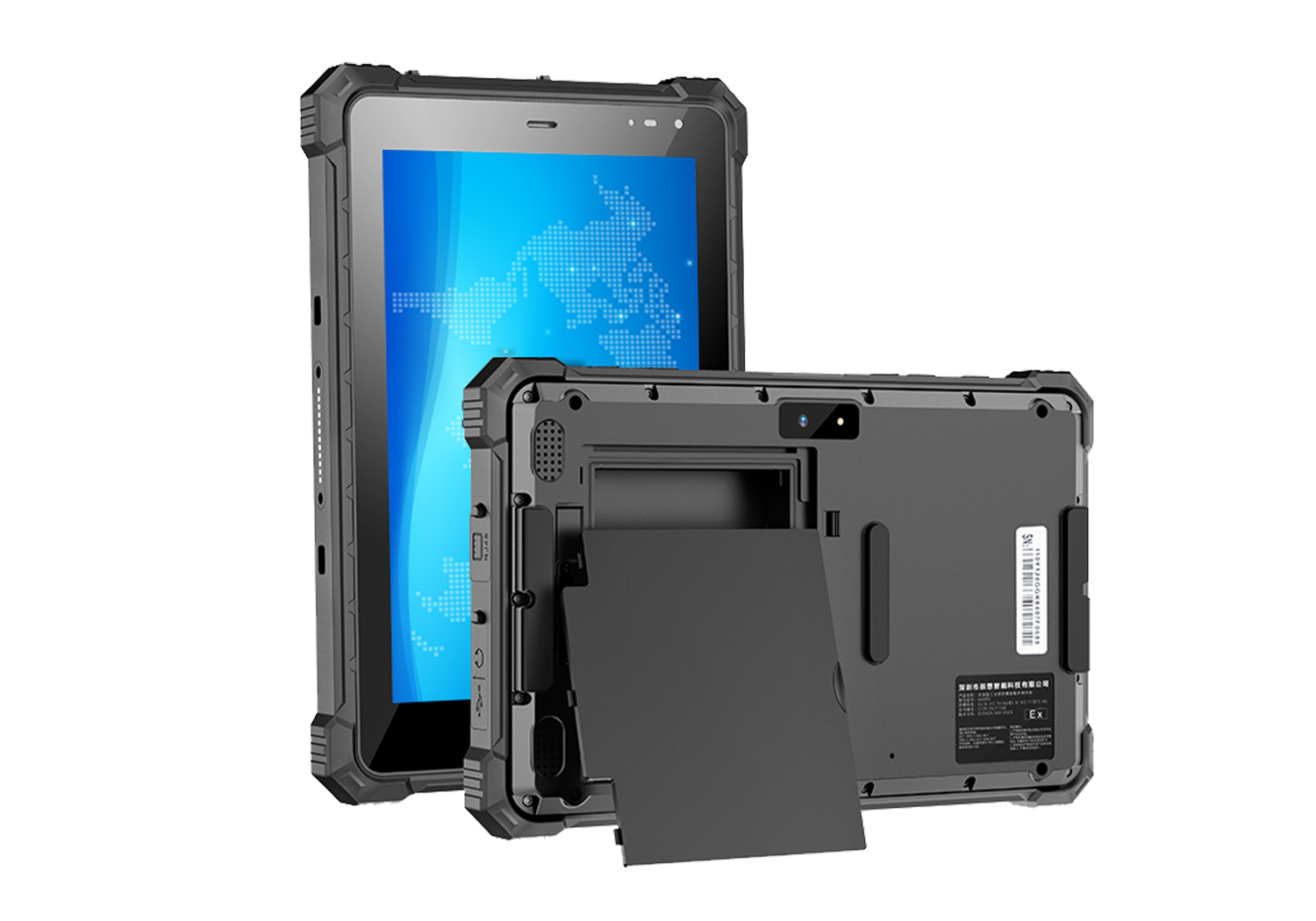

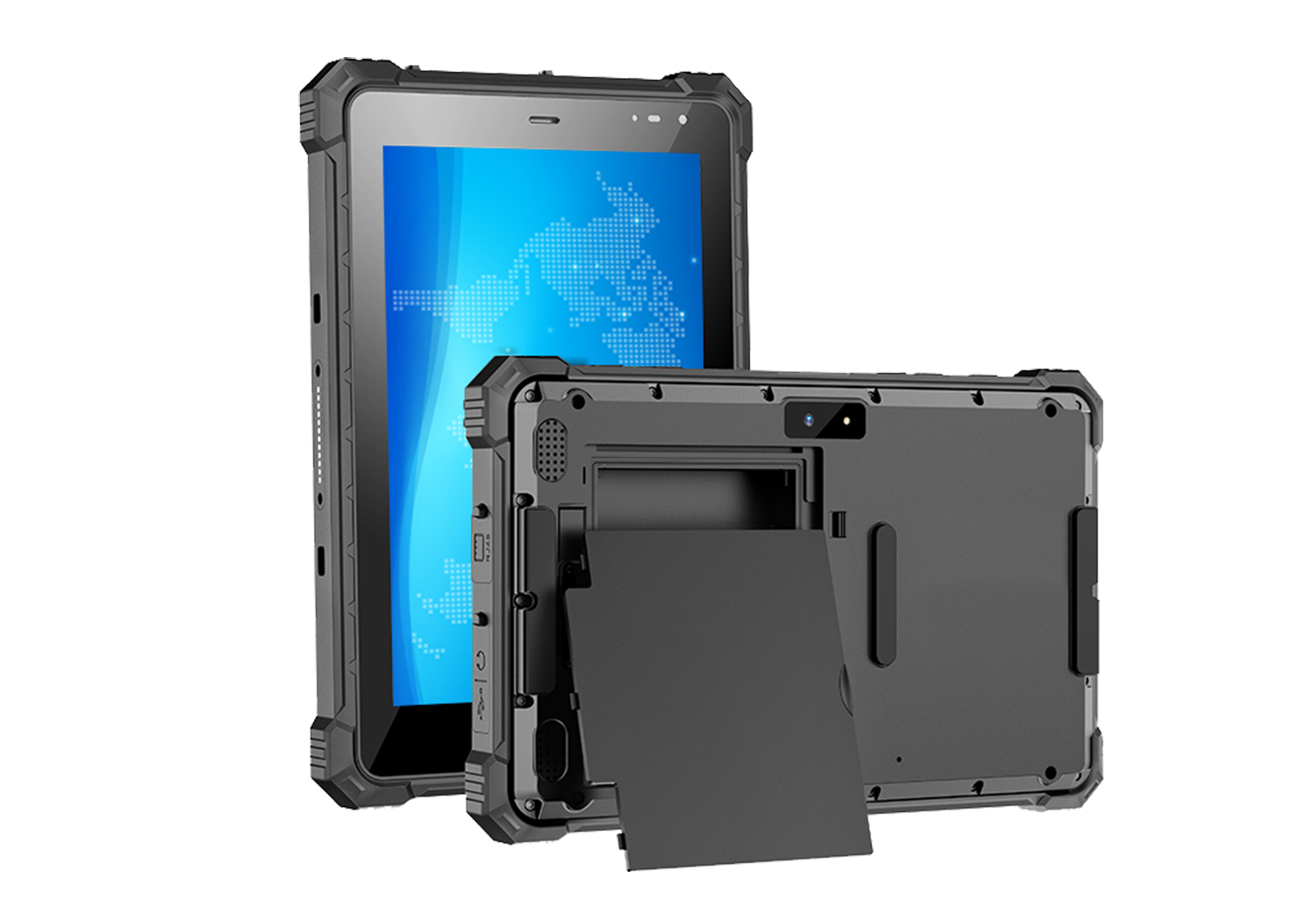

    Removable Battery
    DC Power Adapter
    USB Type-C Adapter
    Carry Strap
    Packing List
    Standard Accessory 12V/4A Power Adapter x 1
    Hand Strap
    Product Dimension 232.2 x 151.3 x 30.4mm (WxHxD)
    Product Weight 889g
    Packaging Box Dimension 335 x 175 x 68 mm (WxHxD)
    Packaging Box Weight 1381g
    Environment
    IP Rating IP67
    Drop Test 1.22m Drop Resistance
    Certification CE/MIL-STD-810H
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 60°C
    Relative Humidity 95% Non-Condensing
    Warranty 2 Years

    Optional Accessory

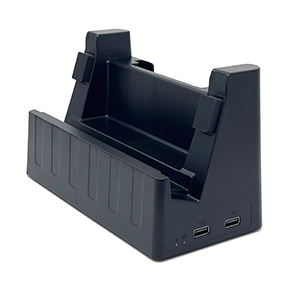

    ADOCKM1

    ADOCKI1 (Under Development)
    Docking Station
    2xUSB 2.0, 1 x RJ45 LAN, 1 x RS232

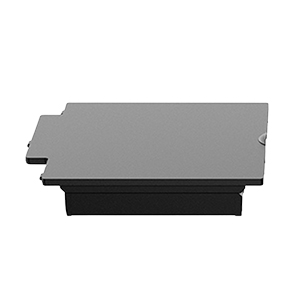

    ABATM00

    ABATI00
    Removable Battery (4,700mAh/ 7.6V)

    ADA05D2

    ADA12D2

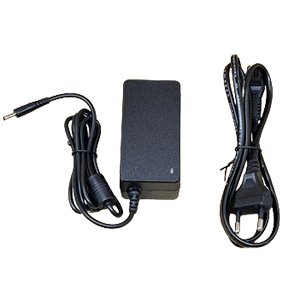

    DC Power Adapter 12V/4A

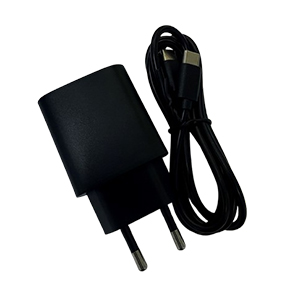

    ADA30C1

    ADA48C1
    Type-C Rapid Power Adapter

    ADOCKM1

    AHSTRM1

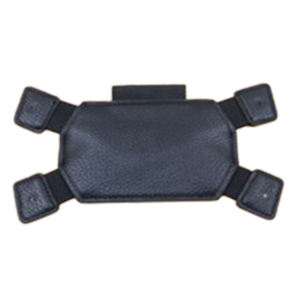

    4-point Hand Strap

    ACRHDM1

    ACRHDM1

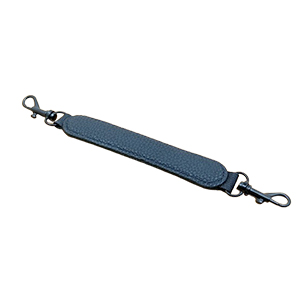

    Carry Handle

    Datasheet

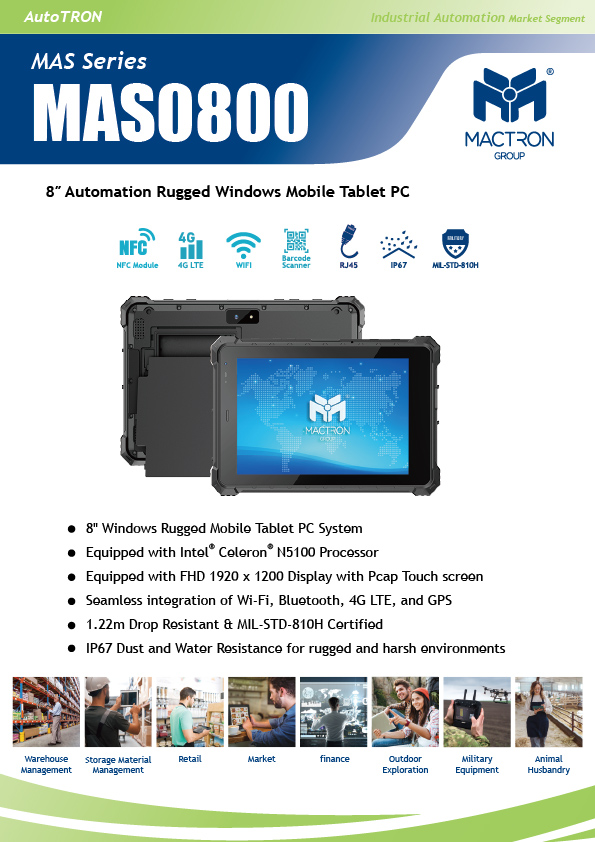

    flyer MAA0800
