MAS0805

8″ Automation Rugged Windows Mobile Tablet PC

Intel^® Alder Lake-N N100 Processor
8 inch Windows System
550 nits High Brightness Sunlight Readable
Support 4G/LTE, WiFi, BT and GNSS
Support 2D Barcode Scanner Module, NFC Module
1.22m drop resistant & MIL-STD-810H certified

Applications:

Instrument Testing, Industrial Operating Sytem, Logistics Operation, Warehouse Optimization, Inventory Checking

MAS0805 8" Rugged Tablet

Windows Base, Intel Alder Lake-N N100 Processor

Advanced Wireless

Support 4G/LTE, Wi-Fi, BT, GNSS

1200×1920

16:10 High Resolution Panel

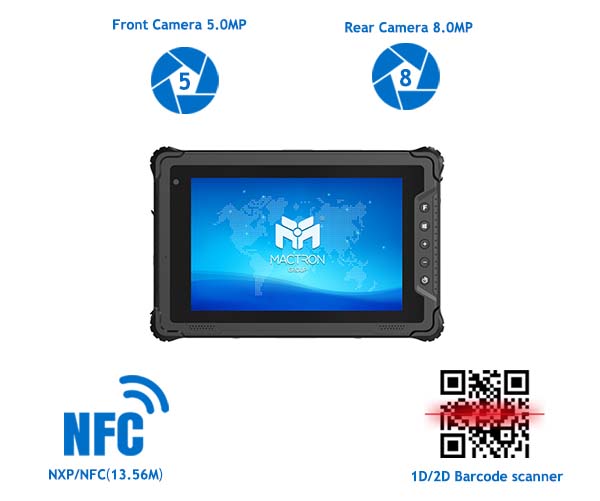

Full Range of Data Collection Functions

NNXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0MP

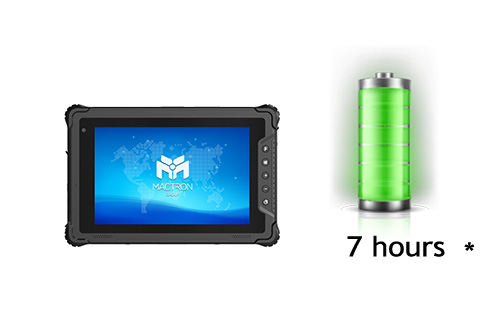

5000mAh Large Capacity Battery

You don’t have to worry your business would be interrupted by power off anymore
* 7hrs (Default 22% Volume (70dB), Default 50% Volume Brightness (300nits), Play 1080P HD Video)

Display
Display Type	8 inch IPS LCD
Resolution	1920 x 1200
Brightness	550 nits
Touch Panel	5-Point capacitive touch screen, Hardness Above 7H, Scratch-Resistant, Supports 930 Stylus
System
CPU	Intel N100 Processor
GPU	Intel^® UHD Graphics
Memory	8GB LPDDR5
Storage	128GB eMMC
Operating System	Windows 10 IoT Enterprise LTSC 2021/ Windows 11

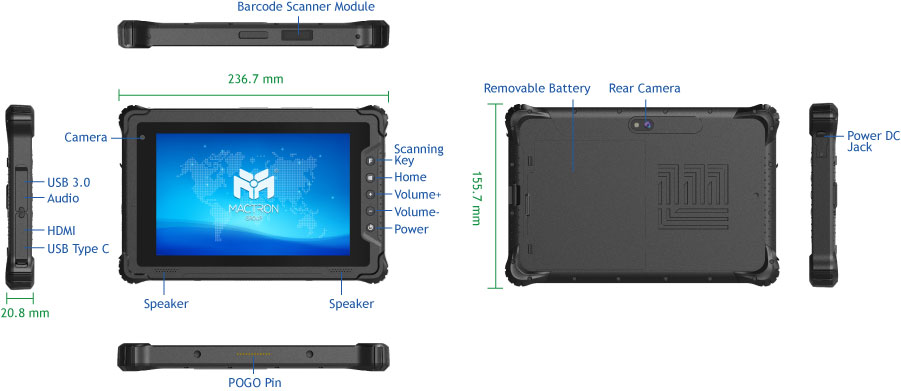

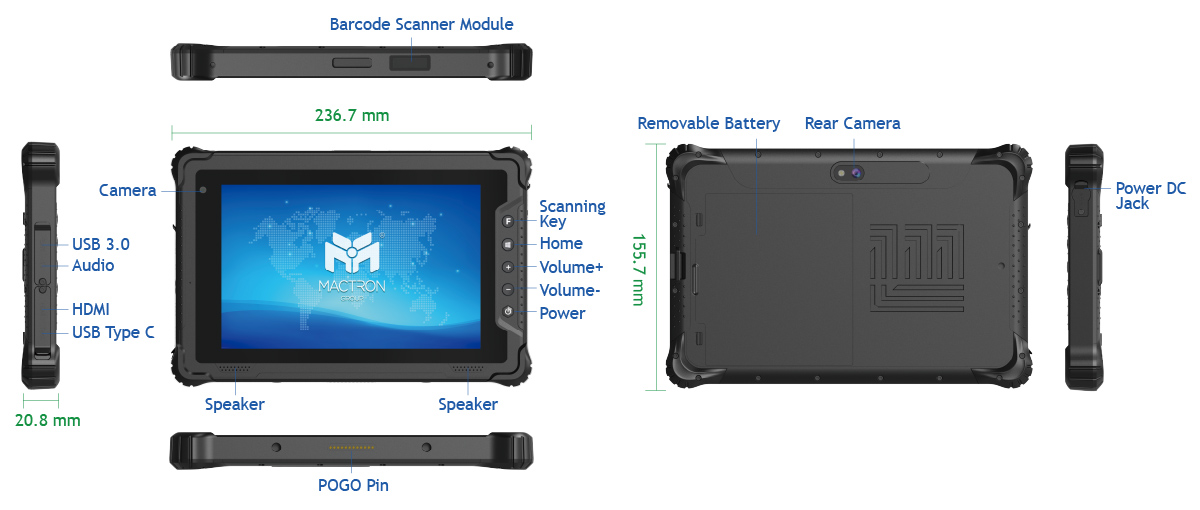

I/O Ports	1 x USB 3.0 Type-A x 1 1 x USB 3.0 Type-C x 1 (Data & Charging) 1 x SIM Card 1 x TF Card 1 x HDMI 2.0 Mini 1 x 12PIN Pogo Pin 1 x φ3.5mm standard earphone jack 1 x DC 12V 4A Power Port
WiFi	WIFI6 802.11(a/b/g/n/acR2/ax 1x1) frequency 2.4G + 5.8G Dual-band WIFI (Intel AX101)
4G	LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD B38/B40/B41
Bluetooth	BT5.2
GPS	GPS+Glonass, (Optional GPS+Beidou)
Data Collection	NFC Module Barcode Scanner Module (Optional)
Physical
Camera	Front 5.0MP ; Rear 8.0MP
Speaker	2 x 1W Waterproof Speaker
Color	Caesious
Dimension (WxHxD)	236.7 x 155.7 x 20.8mm
Weight	818g
Buttons	1 x Power 1x Volume + Key 1 x Volume - Key 1 x P1 Key (HOME Key) 1 x F Key (Barcode Scanning, Connected to GPIO)
Sensors	G-Sensor
Battery	Removable Polymer Lithium-ion Battery 7.6V/5000mAh
Using Time	7 hrs (Default 22% Volume (70dB), Default 50% Volume Brightness (300nits), Play 1080P HD Video)
Power Adapter	1 x DC 12V 4A Adapter (Male Plug Outer Diameter 5.5mm)
Standard Accessory	1 x DC 12V 4A Adapter 1 x Hand-Strap
Packaging Box Dimension (WxHxD)	323 x 173 x 62mm
Packaging Box	1580g
Environment
IP Rating	IP65
Drop Test	1.22m drop resistance
Certification	CE/ FCC/CCC/ MIL-STD-810H
Operating Temperature	-20°C to 60°C
Storage Temperature	-30°C to 70°C
Relative Humidity	95% Non-Condensing
Warranty	2 Years
