MAS1017(Mass Production in Q1 2027)

10.1″ Automation Rugged Windows AI Mobile Tablet PC

  • Datasheet

    • 10.1" Windows Rugged Mobile Tablet PC with up to 40 TOPS AI Performance

    • Equipped with Intel ® Core™ Ultra 5 processor 226V

    • Equipped with FHD 1920 x 1200 Display and PCAP Touch screen

    • Seamless integration of Wi-Fi, Bluetooth, 4G LTE, and GPS

    • 1.22m Drop Resistant & MIL-STD-810H Certified

    • IP65 Dust and Water Resistance for rugged and harsh environments

    Applications:

    Warehouse Management, Storage Material Management, Retail, Market, finance, Outdoor Exploration, Military Equipment, Animal Husbandry

    MAS1017 10.1" Intel® Core™ Ultra Performance

    Windows Platform, Intel Core™ Ultra 5 processor 226V

    Field-Ready Wireless Connectivity

    Keep off-site operations in sync with high-speed, dependable data flow anywhere in the field.

    Endless Power. Zero Downtime.

    Dual-battery architecture with seamless hot-swap capability

    Work Anywhere, Rain or Shine

    IP65-rated durability built for extreme, all-weather field work

    Ultimate Connection: Ready for Every Field Challenge

    Comprehensive array of native industrial interfaces to ensure seamless device integration.
    Display
    Display Type 10.1" IPS TFT LCD
    Resolution 1920x1200
    Aspect Ratio 16:10
    Brightness 700 nits
    Touch Panel 10 points Projected Capacitive touchscreen
    System
    CPU Intel Core™ Ultra 5 processor 226V (Octa-Core)
    Optional Intel Core™ Ultra 7 processor 256V (Octa-Core)
    GPU Intel® Arc™ 130V/140V GPU
    Memory 16GB LPDDR5x on board
    Storage 256GB PCIe SSD (Optional 512GB/ 1TB)
    Operating System Windows 11
    I/O Ports Thunderbolt 4 x1
    USB 3.2 Gen2（Type-A）x1
    3.5mm Standard Headphone Jack x1
    SIM Card x1
    Micro SD card x 1
    HDMI 2.0a mini x1
    5.5 mm DC in jack x1
    Pogo Pin (12Pin USB+Charging) x1
    4 in 1 Module One of Four Options; Default 10/100/1000 Ethernet (RJ45) x1
    Optional serial port (RS232: D-sub, 9-pin)/ USB 2.0 (Type-A) / Barcode Scanner x 1
    WiFi Intel® Wi-Fi 6E （802.11 ax）
    Bluetooth Bluetooth® V5.4
    WWAN 4G LTE (Optional 5G)
    GPS GPS,GLONASS
    Security TPM 2.0
    Fingerprint Scanner
    Data Collection NFC Module
    Barcode Scanner Module (Optional)
    Physical
    Camera Front Camera: MF 2.0 MP
    Rear Camera: AF 13.0 MP
    Audio 1W Waterproof Speaker x1
    Color Black
    Buttons 1 x Power On/Off
    1 x Volume + Button
    1 x Volume - Button
    1 x Home Button
    1 x F button (Scanning Button)
    Sensors 1 x G-sensor
    Battery 860mAh/7.4V (Built-in); 5000mAh/7.4V (Optional 9800mAh/7.4V) (Removable)
    Power Adapter 19V/ 3.42A DC Power Adapter
    Using Time 7h
    Optional Accessory Docking Station
    Mounting Holder
    Removable Battery: Li-Ion, 7.4V, 5000mAh
    Removable Battery: Li-Ion, 7.4V, 9800mAh
    Power Adapter with DC Barrel Plug
    Power Adapter with Type-C Plug
    Active Pen
    Quad Battery Charging Dock
    Packing List
    Standard Accessory 19V/3.42A Power Adapter with AC Cable x 1
    Hand Strap
    Carry Handle

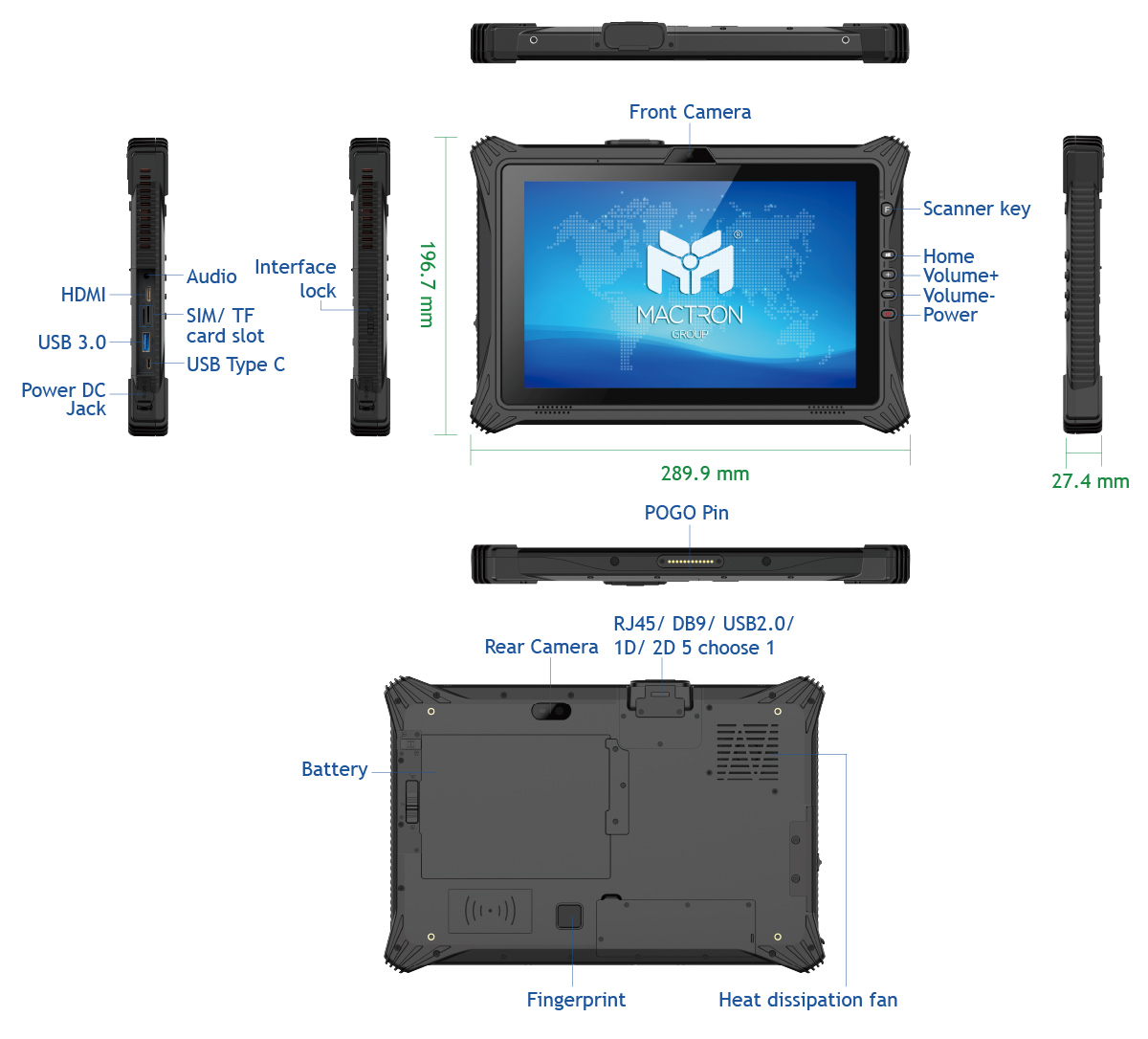

    Product Dimension 289.9 mm (L) × 196.7 mm (W) × 21.2 mm (H)
    Product Weight 1230g
    Packaging Box Dimension 369 x 205 x 60 mm (WxHxD)
    Packaging Box Weight 2050g
    Environment
    IP Rating IP65
    Drop Test 1.22m Drop Resistance
    Certification CE/ MIL-STD-810H
    Operating Temperature -20°C to 60°C (-4°F to 140°F)
    Storage Temperature -30°C to 70°C (-22°F to 158°F)
    Relative Humidity 95% Non-Condensing
    Warranty 2 Years

    Optional Accessory

    ABAT119
    Removable Battery
    7.4V/5000mAh

    ACARM91
    Mounting Holder

    ADOCK29
    Docking Station

    ADA19D2
    Power Adapter 19V/3.42A
    DC In 5.5mm

    APEN001
    Passive Pen

    ACHD174
    Quad Charging Dock

    ACARC18
    Vehicle Charger (19V/3.42A)
    DC In 5.5mm

    ABAT219
    Removable Battery
    7.4V/9800mAh

    ADA19C0
    Power Adapter
    19V/3.42A with Type-C Plug
