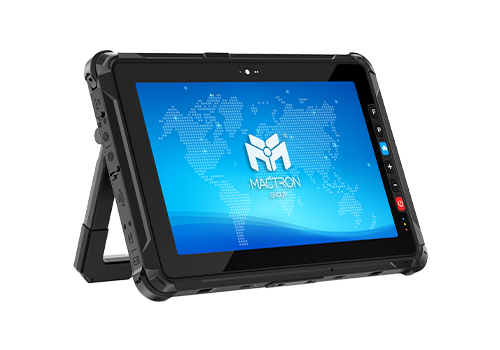

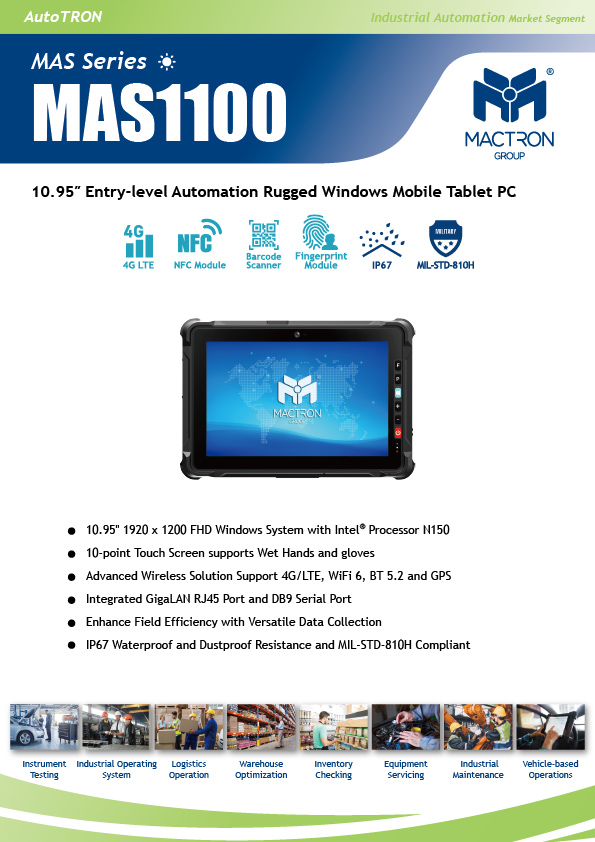

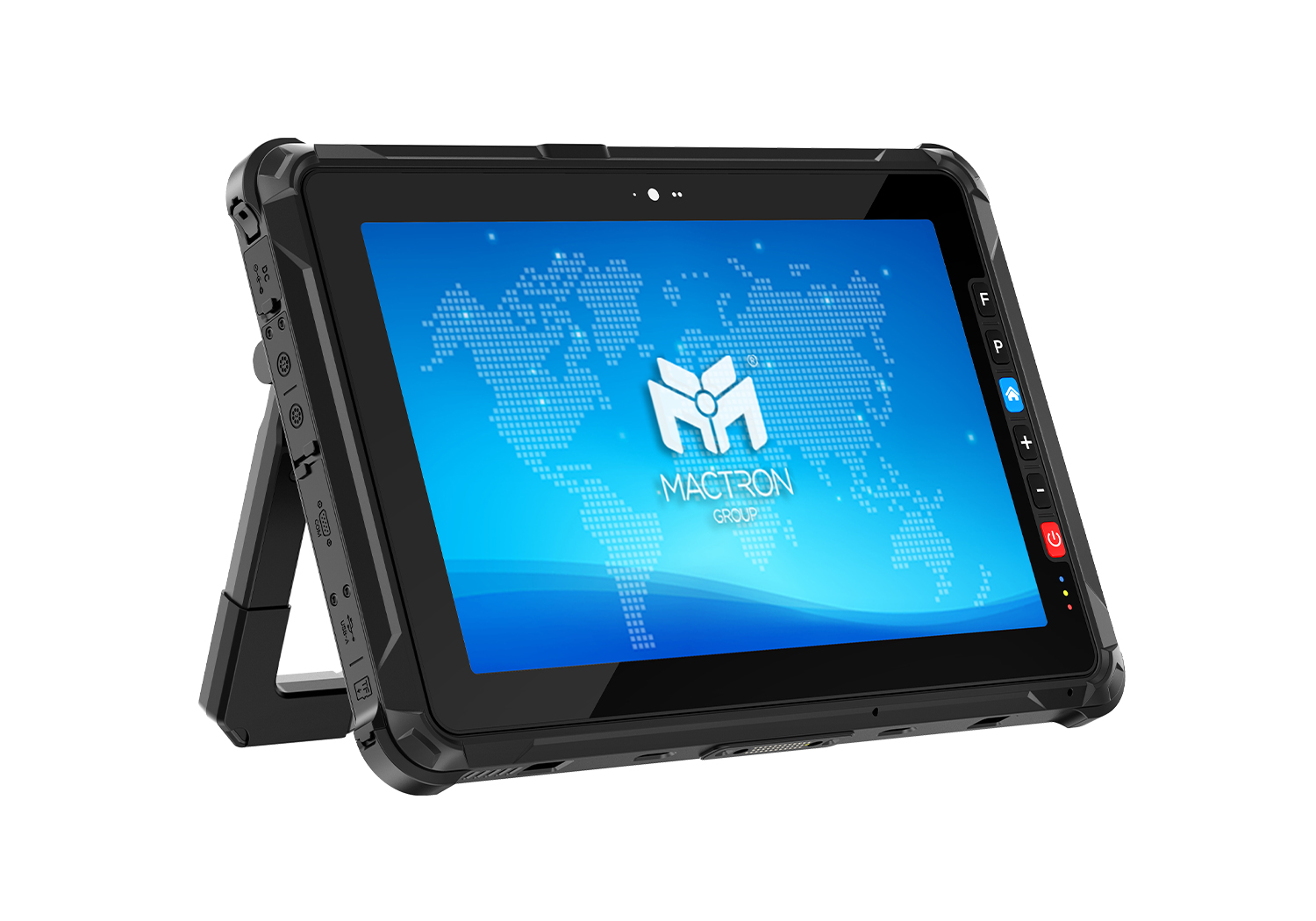

10.95" 1920 x 1200 FHD Windows System with Intel® Processor N150
10-point Touch Screen supports Wet Hands and gloves
Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GPS
Integrated GigaLAN RJ45 Port and DB9 Serial Port
Enhance Field Efficiency with Versatile Data Collection
IP67 Waterproof and Dustproof Resistance and MIL-STD-810H Compliant
Instrument Testing, Industrial Operating Sytem, Logistics Operation, Warehouse Optimization, Inventory Checking, Equipment Servicing, Industrial Maintenance, Vehicle-based Operations
| Display | |
|---|---|
| Display Type | 10.95" TFT LCD |
| Resolution | 1920x1200 |
| Brightness | 700 nits |
| Touch Panel | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥7H, Supports touch with wet hands and touch whilst wearing medical rubber gloves |
| System | |
| CPU | Intel® Processor N150 Quad-Core, 6M Cache, up to 3.60 GHz |
| GPU | Intel® Graphics |
| Memory | 8GB , 16GB(Optional) |
| Storage | M.2 SSD 128GB, Up to 2TB(Optional) |
| Operating System | Windows 11, Ubuntu22.04.5 |
| Security |
Built-in Trusted Platform Module (TPM 2.0) Locker Hole |
| I/O Ports |

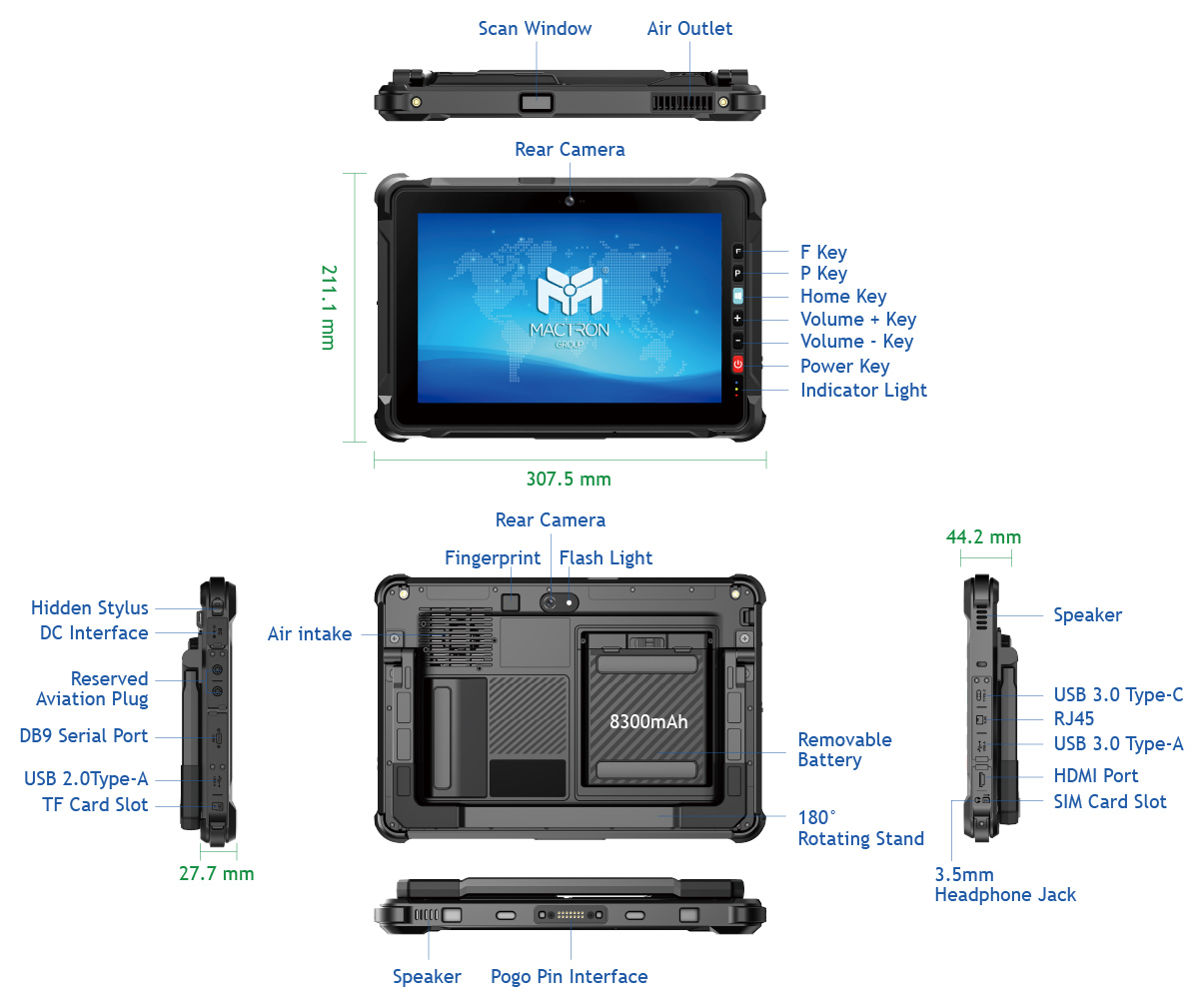

USB3.0 Type-C x 1, Support PD charging USB 3.0 Type-A x1 USB 2.0 Type-A x1 RS232 serial port x1 3.5mm headphone jack x1 TF Card (Maximum support 1TB expansion) x1 Standard Micro SIM card slot x1 RJ45 Gigabit Ethernet Port x 1 HDMI x 1 DC port 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) x 1 POGO PIN 14Pin USB+charger x 1 |
| WiFi | Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) Dual-Band (2.4 GHz / 5 GHz) |
| Bluetooth | Bluetooth® 5.2 Transmit Distance：10m |
| 4G/5G | 4G LTE (Optional 5G) |
| GPS | GPS as standard (optional: GPS, BeiDou, Galileo, GLONASS) |
| Data Collection |

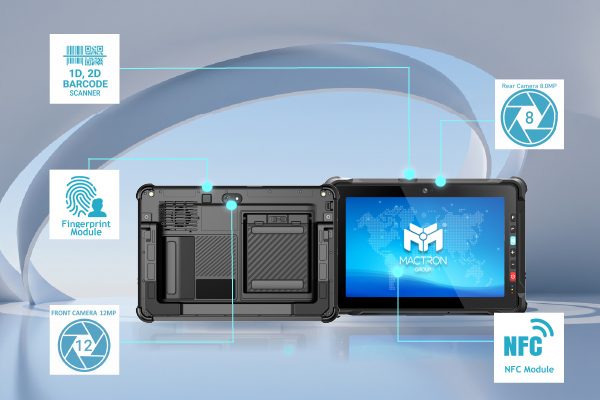

NFC Module Fingerprint Module (Optional) Barcode Scanner Module (Optional) |
| Physical | |
| Camera | Front Camera: 8.0MP Fixed Focus Camera Rear Camera: 12.0MP Autofocus Camera with Flash |
| Audio | 2W/4Ω Speaker x2 MICx1,waterproof rating |
| Color | Black |
| Dimension | 307.5x211.1x27.7 mm |
| Weight | 1800g |
| Button |
Power button*1 Volume keys*2, Vol+, Vol- Custom keys*2, P key, F key windows button*1 |
| Sensors | Gravity sensor |
| Main Battery | 11.4V 8300mAh high-voltage lithium battery, removable, battery life ≥8h (1080P+50% brightness) |
| Power Adapter | 19V-3.42A, DC interface Power Adapter x1 |
| Optional Accessory |
Removable Battery Power Adapter Shoulder Strap Handle Strap Vehicle Charger Battery Charging Base |
| Packing List | |
| Accessories |
19V-3.42A, DC interface Power Adapter x1 Adjustable stand x1 Stylus x1 |
| Product Dimension | 307.5 x 211.1 x 27.7 mm |
| Product Weight | 1800g |
| Box Dimension | TBD |
| Box Weight | TBD |
| Environment | |
| IP Rating | IP67 |
| Drop Test | 1.22m drop resistance |
| Certification | CE / MIL-STD-810H |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Relative Humidity | 95% Non-Condensing |
| Warranty | 2 Years |
ABATI02
11.4V/ 8300mAh Removable Battery
ADA65C1
Type-C 65W Power Adapter
ADA19D3
AC to DC Power Adapter, 19V DC / 3.42A (DC Jack, 5.5 x 2.1 mm)
ACARC03
Vehicle Charger

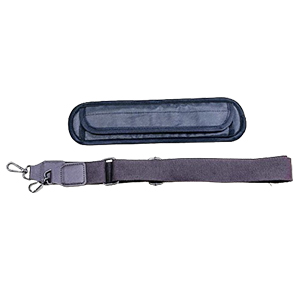

ASTRAC0
Shoulder Strap
ACRHDM1
Carry Handle

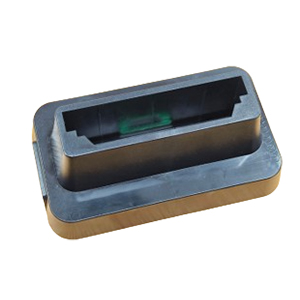

ABCDN01
Battery Charging Dock
