MAS1107

10.95″ Automation Rugged Windows High Performance Mobile Tablet PC

  • Datasheet

    • 10.95-inch Windows System with Intel® Core i5-1235U Processor

    • 10-point Touch Screen supports Touch Screen with Wet Hands and gloves

    • Hot Swappable Dual Battery Design

    • Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS

    • Integrated GigaLAN RJ45 Port and DB9 Serial Port

    • IP67 Waterproof and Dustproof Resistance and MIL-801H Compliant

    Applications:

    Instrument Testing, Industrial Operating Sytem, Logistics Operation, Warehouse Optimization, Inventory Checking

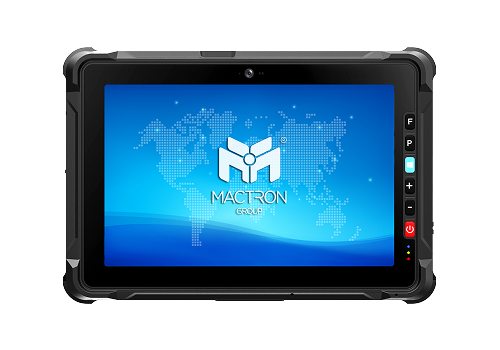

    10.95” Automation Rugged Windows Mobile Tablet PC
    Windows Base, Intel® Alder Lake-U Processor
    IP67 Dust & Water Proof

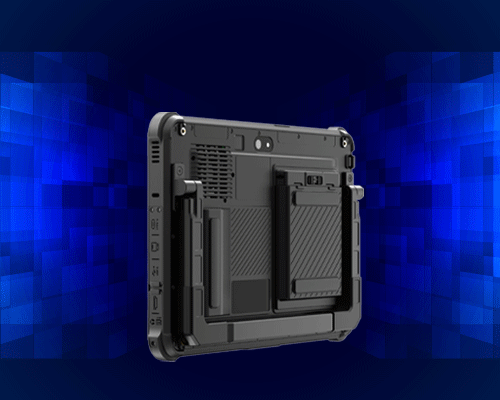

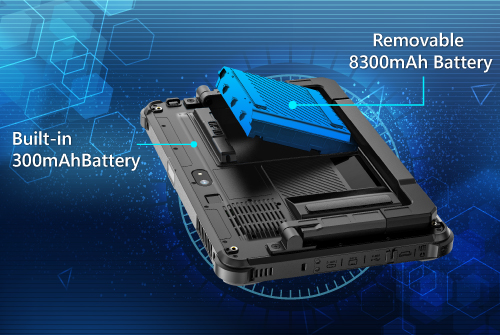

    Dual Capacity Hot Swap Battery Design
    Real-time Data Connectivity
    Support 4G/LTE, Wi-Fi 6, BT 5.2 and GPS
    Foldable 180° Adjustable Stand
    Freely adjust the viewing angle up to 180° for comfortable use and easy portability
    Display
    Display Type10.95" TFT LCD
    Resolution1920x1200
    Brightness550 nits
    Touch Panel10-point touch G+FF, hardness ≥7H,supports touch screen with wet hands,Touch screen with gloves
    System
    CPUIntel® Core™ Alder Lake i5-1235U 10 cores, 12 threads, 1.3GHz-4.4GHz
    Intel® Core™ Alder Lake i7-1255U 10 cores, 12 threads, 1.7GHz-4.7GHz (Optional)
    GPUIntel® Iris® Xe Graphics eligible
    MemoryDDR5-4800 MT/s 16G , Up to 48GB (Optional)
    StorageM.2 SSD 256GB, Up to 2TB(Optional)
    Operating SystemWindows 10 , Windows 11 , Ubuntu22.04.5
    SecurityTrusted Platform Module (TPM 2.0) , Locker Hole

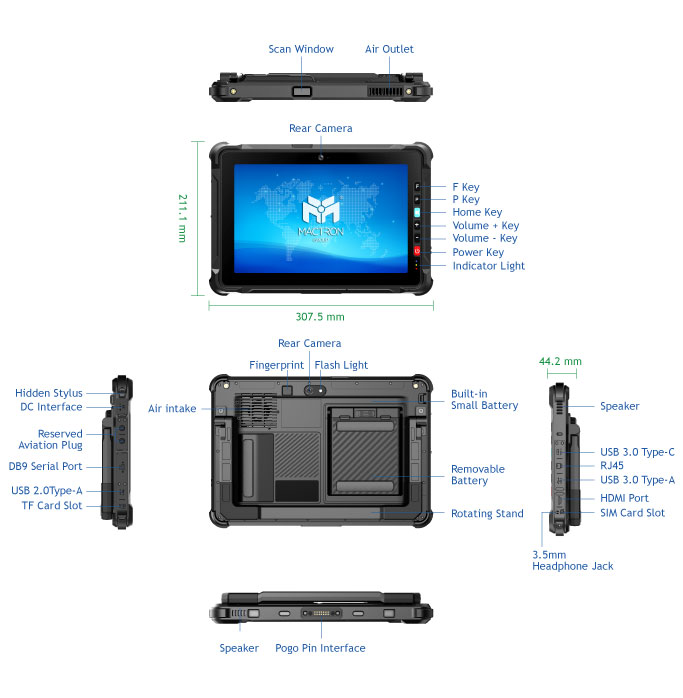

    I/O PortsUSB 3.0 Type-C x1
    1 x USB 3.2 Type A
    USB 3.0 Type-A x1
    USB 2.0 Type-A x1
    3.5mm Audio jack x1
    RS232 serial port (optional 232/422/485 protocol) x1
    TF Card (Maximum support 256GB expansion) x1
    Standard Micro SIM card slot x1
    RJ45 Gigabit Ethernet Port x 1
    HDMI x 1
    DC port 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) x 1
    POGO PIN 14Pin USB+charger x 1
    WiFiWIFI 6
    BluetoothBluetooth® 5.2
    4G/5G4G LTE (Optional 5G)
    GPSGPS, BDS, GLONASS
    Data CollectionNFC Module (Optional)
    Barcode Scanner Module (Optional)
    Fingerprint Module (Optional)
    Physical
    CameraFront Camera: 8.0MP Fixed Focus Camera
    Rear Camera: 12.0MP Autofocus Camera with Flash
    AudioSpeaker 2W/4Ω x2
    Rear Camera: 12.0MP Autofocus Camera with Flash
    ColorBlack

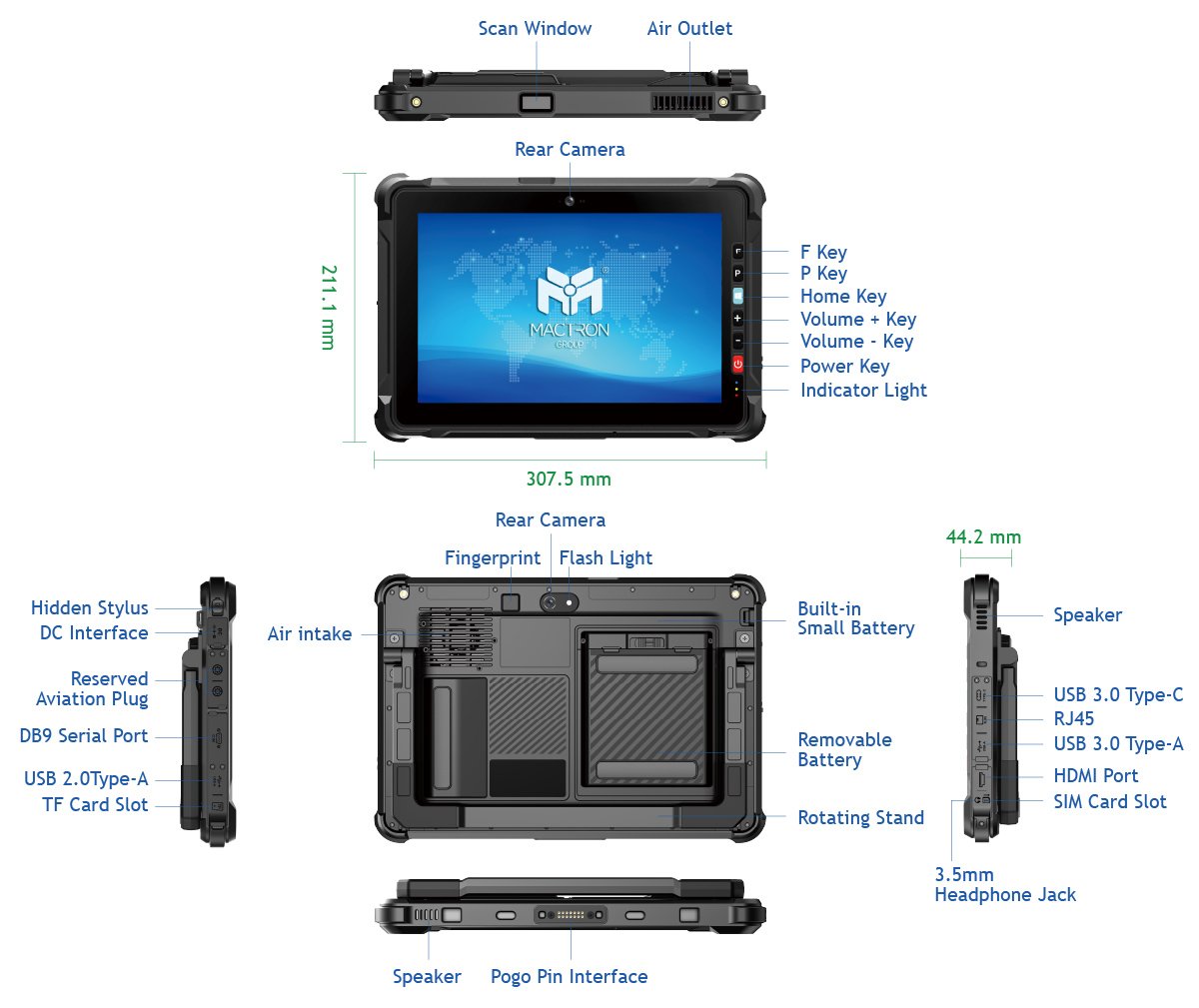

    Dimension307.5mm x 211.1mm x 44.2mm
    Weight1560g
    ButtonPower Button*1
    Volume Keys*2, Vol+, Vol-
    Windows Button*1
    LEDPower, Battery, WIFI
    SensorsGravity sensor
    Main Battery11.4V 8300mah High-Voltage Lithium Battery
    Removable, Battery Life ≥8h (1080P+50% Brightness)
    Sub Battery11.4V 300mah High-Voltage Lithium Battery, Non-Removable
    Battery Life ≥15MIN (1080P+50% Brightness)
    Power Adapter19V-3.42A, DC interface Power Adapter x1
    Standard AccessoryHand-Strap x1
    Stylus x1
    Optional AccessoryRemovable Battery
    Power Adapter
    Docking Station
    Shoulder Strap
    Packing List
    Accessories19V-3.42A, DC Interface Power Adapter x1
    Hand-Strap x1
    Product Dimension300.5mm x 204.1mm x 23.3mm
    Product Weight1560g
    Environment
    IP RatingIP67
    Drop Test 1.2m drop resistance
    CertificationCE/ FCC/ MIL-STD-810H
    Operating Temperature-20°C ~ 60°C
    Storage Temperature-25°C ~ 70°C
    Relative Humidity95% Non-Condensing
    Warranty2 Years

    Optional Accessory

    Docking Station

    Shoulder Strap
    Adapter 5V/3A

    Power Adapter 19V-3.42A


    Mounting Holder

    Removable Battery
    11.4V 8300mAh


    Datasheet

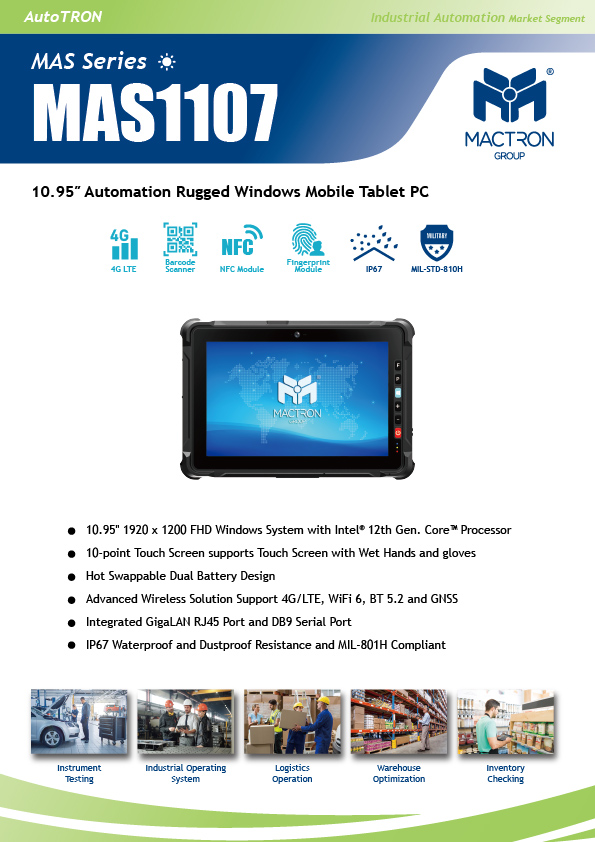

    flyer MAS1107
