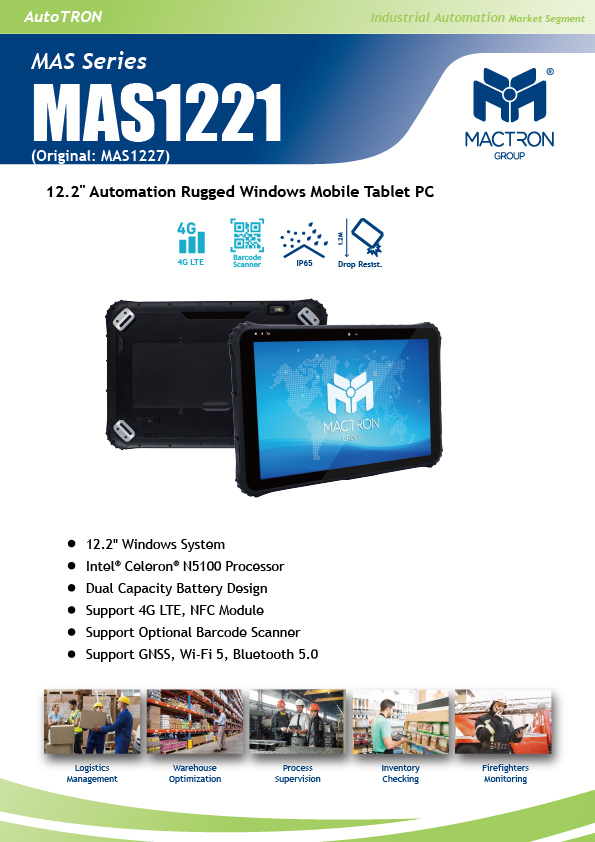

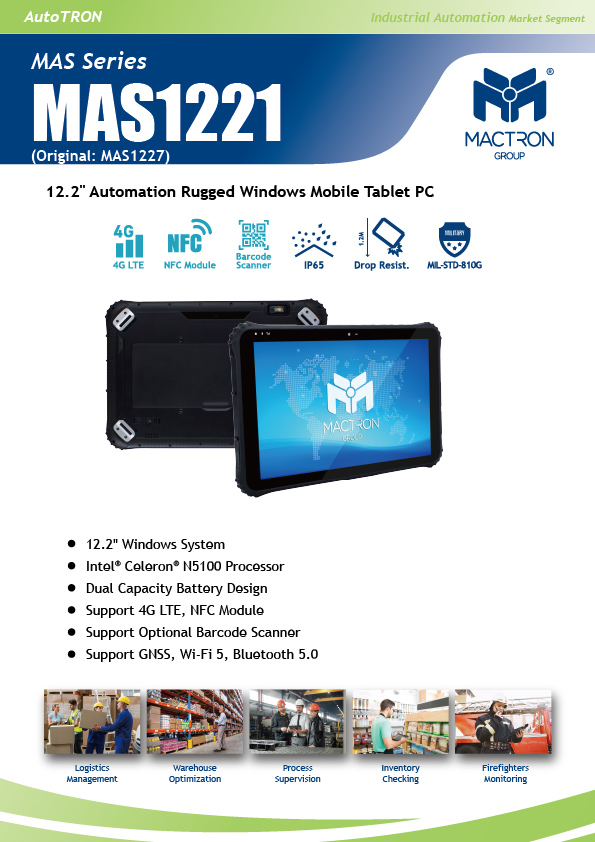

MAS1221 (Original: MAS1227)

12.2″ Automation Rugged Windows Mobile Tablet PC

  • Datasheet

    • 12.2″ Windows System

    • Intel® Celeron® N5100 Processor

    • Dual Capacity Battery Design

    • Support 4G LTE, NFC Module

    • Support Optional Barcode Scanner

    • Support GNSS, Wi-Fi 5, Bluetooth 5.0

    Applications:

    Food Process, Robotics, Factory, HMI screening, Packaging, etc.

    MAS1221 12.2" Rugged Tablet

    Windows Base, Intel Jasper Lake N5100

    IP65 Dust & Water Proof

    This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

    6,300mAh Large Capacity Battery

    You don’t have to worry your business would be interrupted by power off anymore
    *9hrs (default 50% volume，default200nit，play 1080P HD video)

    Full Range of Data Collection Functions

    NXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0 MP

    Multiple Accessories Can Be Adapted To Virtually Any Job And Environment

    Docking Station / Vehicle Mount / Holder / Hand Strap /Shoulder Strap/Back Strap/ Keyboard
    Display
    Display Type 12.2″ IPS TFT LCD
    Resolution 1920 x 1200
    Aspect Ratio 16:10
    Brightness 650 nit
    Touch Panel 10 Points Projected Capacitive Touch
    System
    Processor Intel® Celeron® N5100 Quad Core
    GPU Intel® UHD Graphics
    Memory LPDDR4 8 GB
    Storage 128 GB eMMC

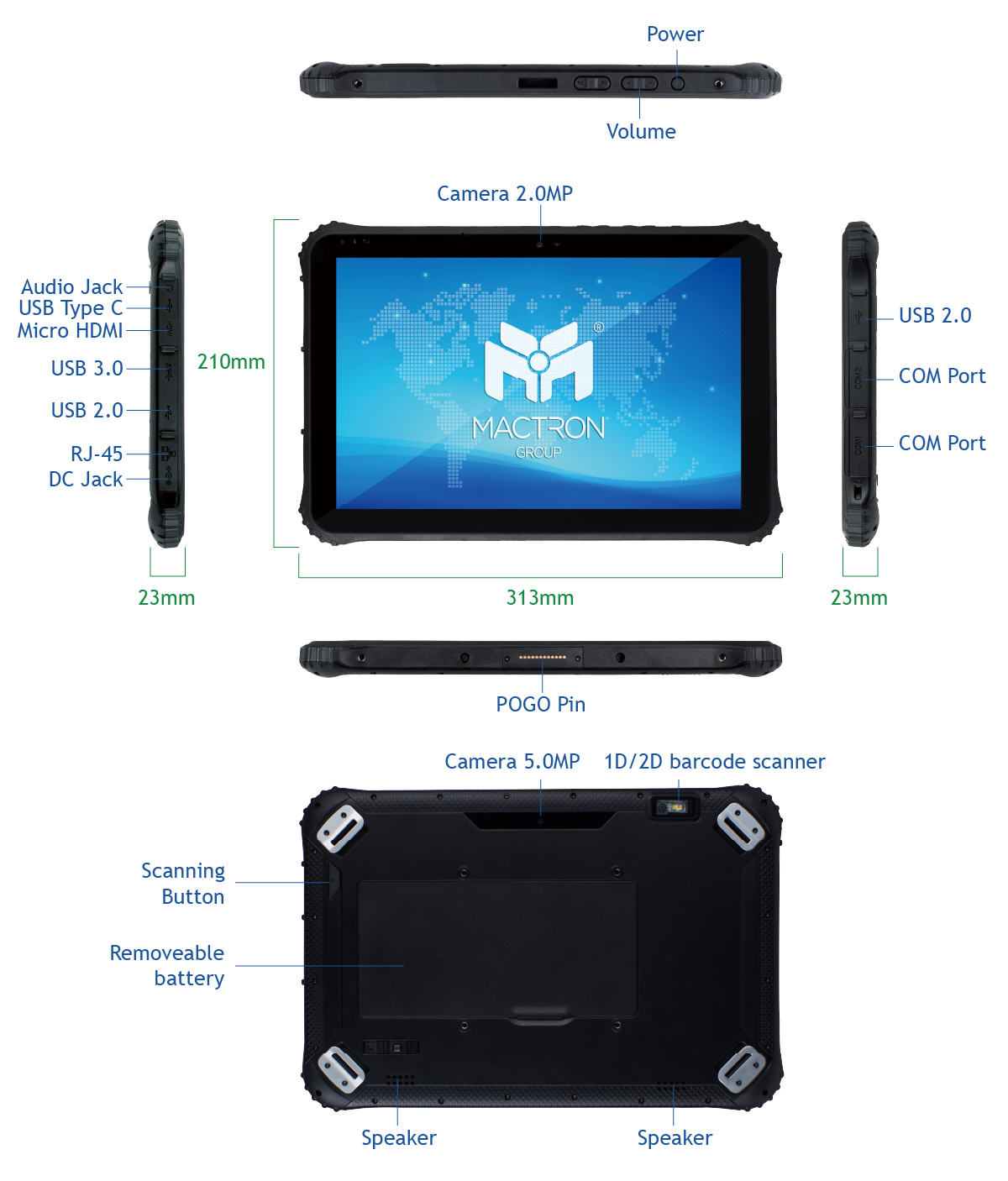

    I/O Ports 1 x USB 2.0 Type A
    2 x USB 3.0 Type A
    1 x USB Type C
    1 x LAN
    1 x HDMI 1.4a Type C
    1 x COM (RS232)
    1 x COM (RS485)
    1 x 3.5mm standard earphone jack
    1 x TF slot (Max.128GB) (SDHC/SDXC)
    1 x SIM slot
    1 x DC jack
    1 x 12pin POGO pin
    Operating System Windows 11
    Physical
    Camera Front Camera : 5.0 MP
    Rear Camera : 8.0 MP
    Speaker 2 x 0.8W
    Color Black
    Dimensions (WxHxD) 319.6 x 216 x 24.3 mm
    Weight 1500 g
    Button 1 x Power On/Off
    1 x Volume +
    1 x Volume -
    1 x Scanning
    1 x Custom
    Sensor G-sensor
    Battery 1000mAh/7.4V (Built-in); 6300mAh/7.4V (Removable)
    Using Time 9 hrs (Default 50% Volume, 200 nits, Play 1080 HD Video)
    Power Adapter 19 V/3.42 A
    Communication WLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz
    WWAN - 4G
    Bluetooth 5.0
    GNSS - GPS, Glonass
    Data Collection NFC Module
    Barcode Scanner Module (Optional)
    Standard Accessory 1 x Hand Strap
    1 x Power Cable
    Packaging Box Dimension (WxHxD) 420 x 240 x 60mm
    Packaging Box 2800g
    Environment
    IP Rating IP65
    Drop Test 1.22 m
    Certification MIL-STD-810G
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Relative Humidity 95% (non-condensing)
    Warranty 2 Years

    Optional Accessory

    ADOCK27
    Docking Station

    ABAT227
    Removable Battery

    AKYBD12
    Detachable Keyboard

    ASTRAP1
    Shoulder Strap

    ASTRAP2
    Back Strap

    ACARM27
    Mounting Holder

    ADA19D1
    Adapter 19 V/3.42 A
    DC In 4mm

    ACARC19
    Vehicle Charger (19V/3.42A)
    DC In 4mm
