MAS1224

12.2″ Automation Rugged Windows Mobile Tablet PC

  • Datasheet

    • 12.2® 1920 x 1200 FHD Windows System with Intel ® 12th Gen. Core™ Processor

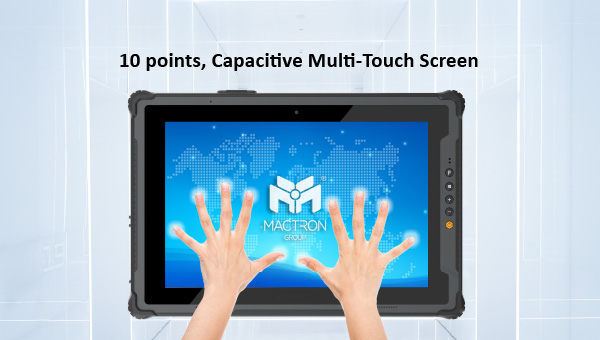

    • 10 points, Cpacitive Multi-Touch Screen

    • Hot Swappable Dual Battery Design

    • Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GPS

    • Multiple Touch Modes Support Glove Touch

    • IP65 Waterproof and Dustproof Resistance and MIL-STD-810H Compliant

    Applications:

    Instrument Testing, Industrial Operating Sytem, Logistics Operation, Warehouse Optimization, Inventory Checking

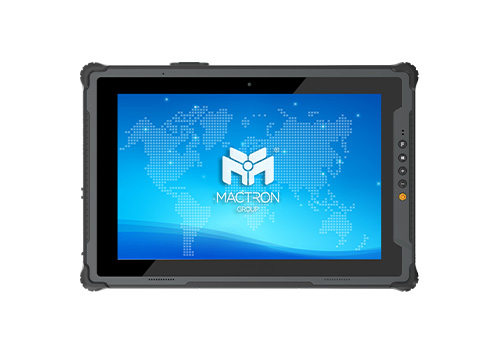

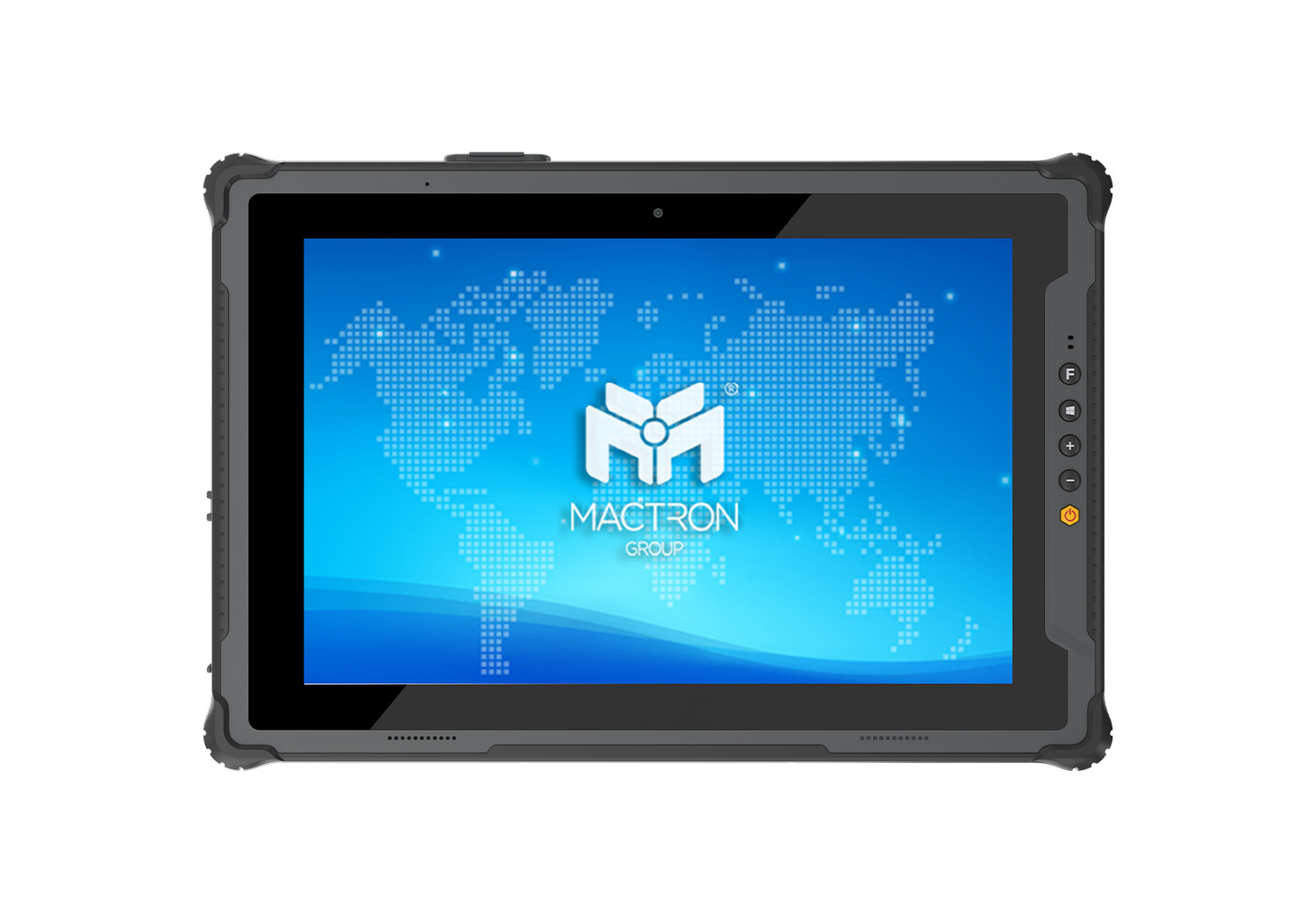

    MAS1224, 12.2″ Rugged Windows Tablet PC

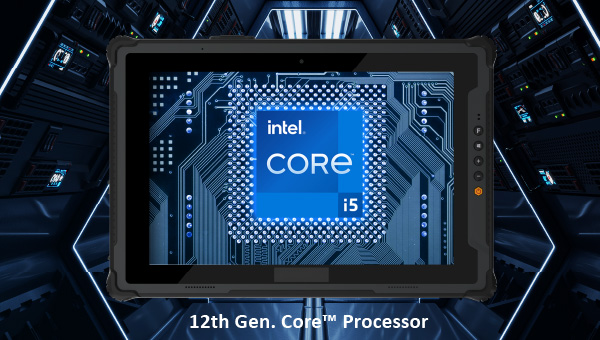

    Windows Base, Intel® 12th Gen. Core™ Processor

    10 points, Capacitive Multi-Touch Screen

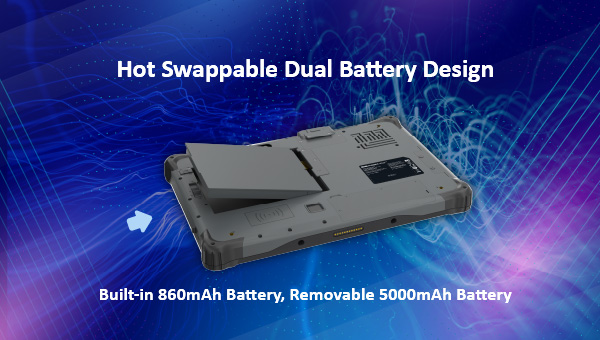

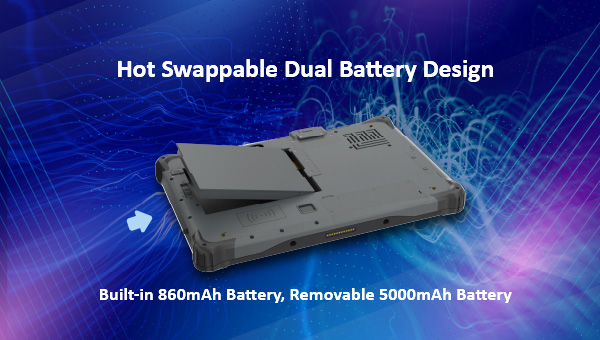

    Hot Swappable Dual Battery Design

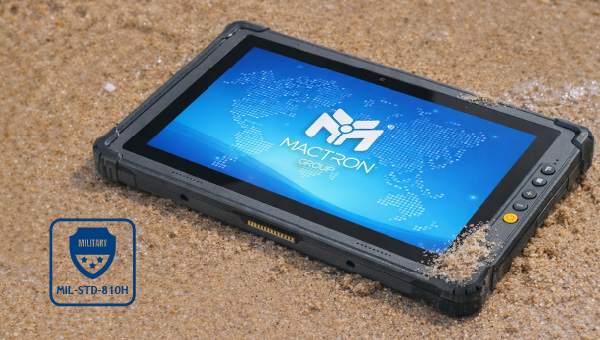

    IP65 Waterproof and Dustproof Resistance and MIL-801H Compliant

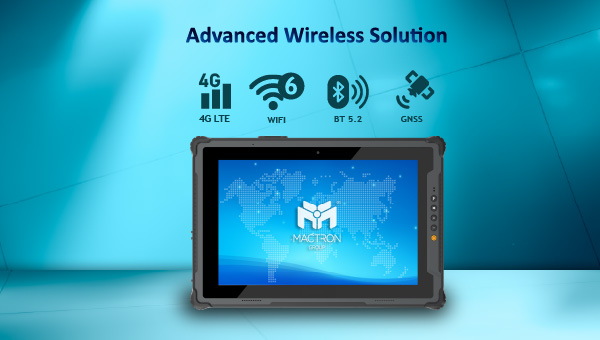

    Advanced Wireless Solution

    Support 4G/LTE, WiFi 6, BT 5.2 and GPS
    Display
    Display Type 10.1® IPS LCD
    Resolution 1920 x 1200 FHD
    Brightness 700 nits
    Touch Panel 10 Points, Capacitive Multi-Touch Screen G+G, Hardness over 7H, Scratch Resistant, Support Glove Touch
    System
    CPU IIntel® Core™ i5-1235U (12th Gen) Processor (12MB Cache, up to 4.4 GHz, 2P+8E cores)
    GPU Intel® Iris® Xe Graphics eligible
    Memory DDR4L-16G
    Storage 128GB SSD
    Operating System Windows 11
    Security Integrated Trusted Platform Module (TPM 2.0)

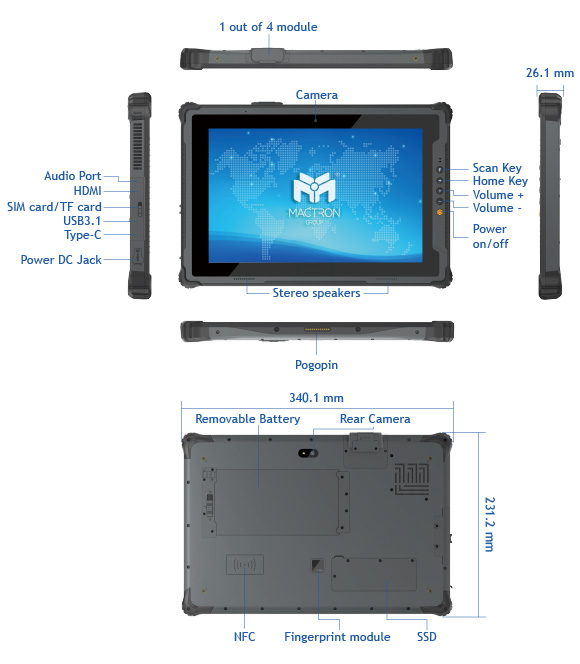

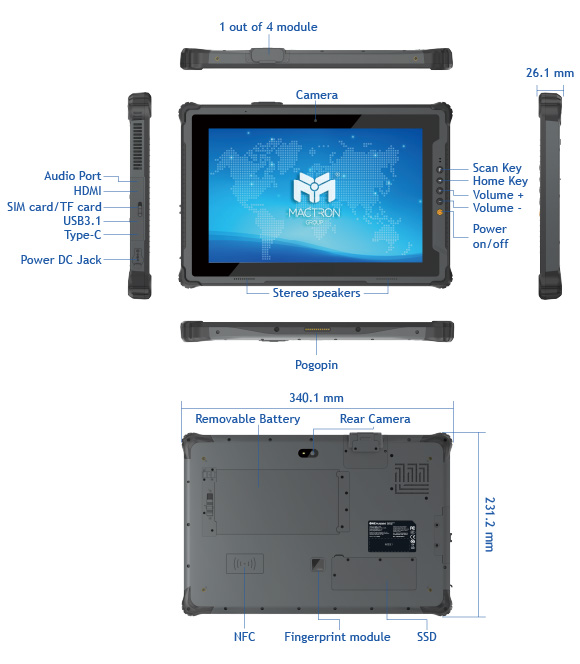

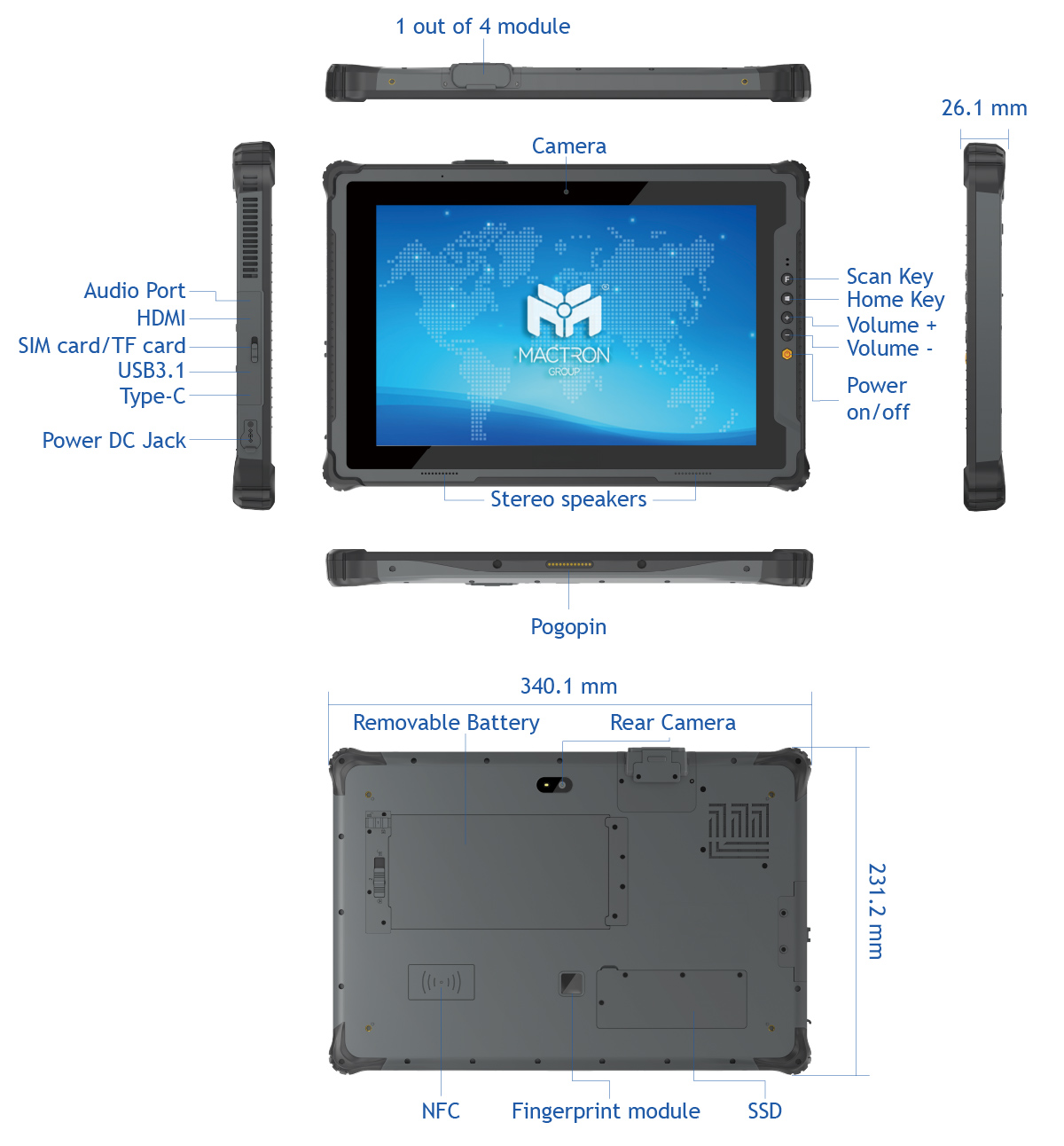

    I/O Ports USB 3.1 Type-A x1
    USB 3.0 Type-C x1 (Full Function Support)
    TF Card x1 Max: 128GB
    mini HDMI ( HDMI2.1a ) x1
    5.5mm DC Jack x1
    Docking Connector (12-pin Pogo) x1
    3.5mm Standard Earjack x1
    SIM card slot x1
    Expansion Interface RJ45 Gigabit Ethernet Port x1/RS232 x1/USB2.0 x1
    /Barcode Sanner Module x1 (Choose 1)
    WiFi Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI
    Bluetooth Bluetooth® 5.1 Class1 Transmited Distance：10m
    4G/5G 4G LTE (Optional 5G)
    GPS GNSS Module (uBlox M7N) Support GPS
    Data Collection NFC Module
    Fingerprint Module
    Barcode Scanner Module (Optional)
    Physical
    Camera Front 5.0MP
    Rear 8.0MP
    Audio 1W Speaker x1
    Microphone x1
    Color Gray
    Dimension 292.1 mm (L) × 192.1 mm (W) × 23.8 mm (H)
    Weight 1.29 kg
    Buttons Power x1
    Volume Key + x1
    Volume Key - x1
    Windows Home x1
    F Key x1 (Barcode Scanning, Customizable without barcode)
    Sensors G-Sensor
    Fan IPX5 Fan x1
    Main Battery Removable Li-polyment Battery 7.4V/5000mAh
    6.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
    Sub Battery Build in Lithium-Ion Polymer Battery,Non-Removable 7.4V/860 mAh
    Power Adapter AC adapter : AC100V ~ 240V, 19V 3.42A/65W Output
    Standard Accessory 19V-3.42A, DC interface Power Adapter x1
    Hand-Strap x1
    Optional Accessory Removable Battery
    Power Adapter
    Docking Station
    Mounting Holder
    Packing List
    Accessories 19V-3.42A, DC interface Power Adapter x1
    Product Dimension 292.1 mm (L) × 192.1 mm (W) × 23.8 mm (H)
    Product Weight 1.29 kg
    Box Dimension TBD
    Box Weight TBD
    Environment
    IP Rating IP65
    Drop Test 1.2m Drop Resistance
    Certification CE,CCC / MIL-STD-810H
    Operating Temperature -20°C to 60°C
    Storage Temperature -30°C to 70°C
    Relative Humidity 95% Non-Condensing
    Warranty 2 Years

    Optional Accessory

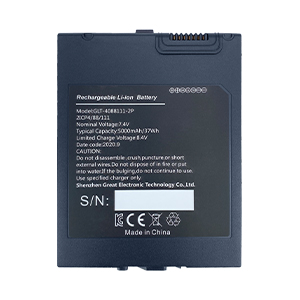

    Removable Battery
    ABAT119

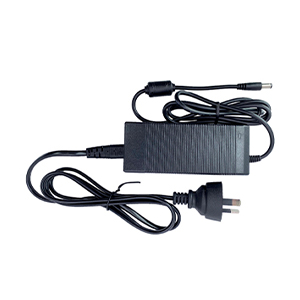

    Power Adapter: 19V-3.42A
    ABAT119

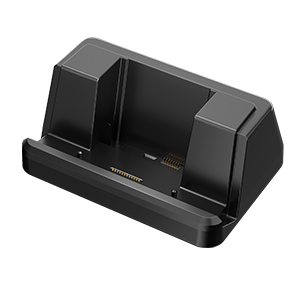

    Docking Station:
    RJ45*1 / RS232*1
    USB 2.0 Type-A*2 / DC Jack*1

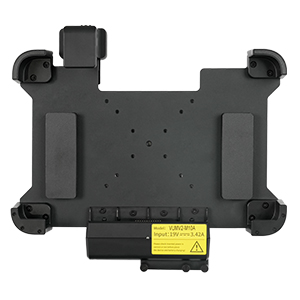

    Mounting Holder

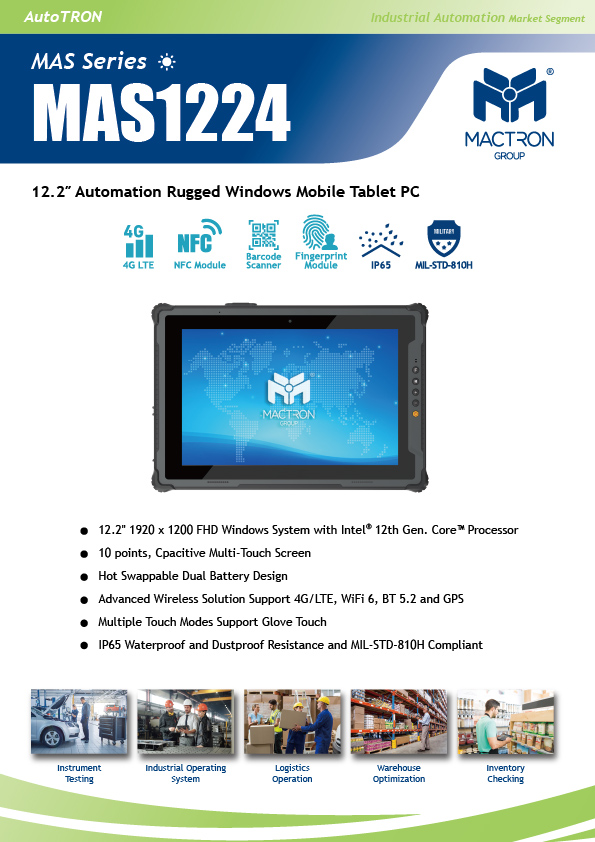

    Datasheet

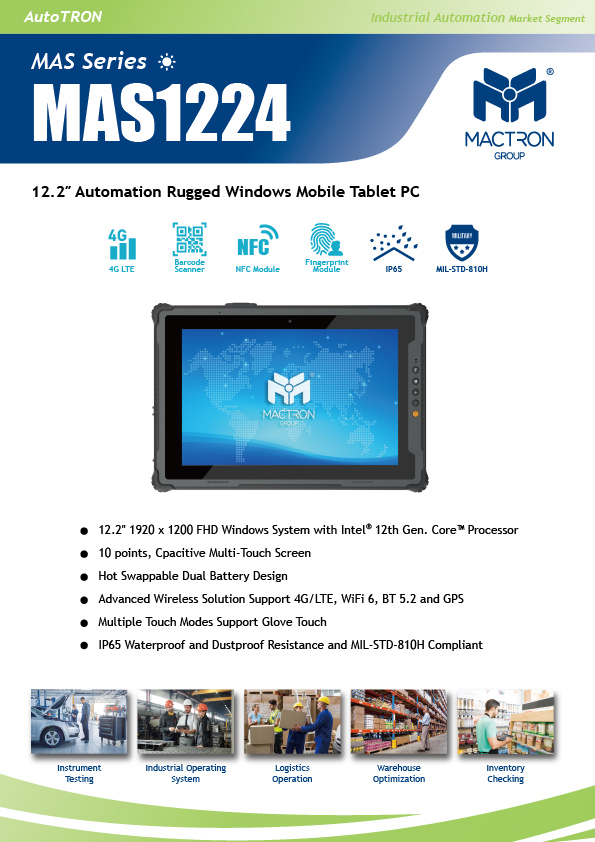

    flyer MAS1014
