MAS1338

13.3″ Automation Rugged Android Mobile Tablet PC

  • Datasheet

    • 13.3-inch Windows System with Powerful Intel® Core™ Ultra Performance

    • 10-point Touch Screen supports Touch Screen with Wet Hands and glove

    • Hot Swappable Dual Battery DesignS

    • Advanced Wireless Solution Support 4G/LTE, WiFi 6, BT 5.2 and GNSS

    • Rich Industrial I/O Connectivity

    • IP65-Rated Rugged Design for Harsh Environments

    Applications:

    Warehouse Management, Storage Material Management, Outdoor Exploration, Military Equipment, Animal Husbandry

    MAS1338 13.3” Intel® Core™ Ultra Performance with Edge AI

    Windows Platform, Intel® Core Ultra 5 125U

    Advanced Wireless Solution

    Support 4G/LTE (/5G), Wi-Fi 6E, BT 5.3 and GNSS

    Certified Military-Grade Ruggedness

    Full IP65-rated ingress protection & MIL-STD-810H compliance

    Hot-Swappable Dual Battery Architecture

    Preventing accidental data loss and eliminating operational downtime during battery replacements.

    Versatile Industrial I/O & Modular Data Capture Integration

    RJ45 + RS232 + USB + HDMI + NFC + 2D Scanner
    Display
    Display Type 13.3" TFT LCD
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Brightness 400 nits
    Touch Panel 10-point touch screen, hardness ≥ 7H, support wet hand touch screen, glove touch screen
    System
    CPU Intel® Core™ Ultra 5 Processor 125U
    GPU Intel® Graphics
    Memory 16GB, up to 48GB DDR5
    Storage 256GB, up to 2TB M.2 SSD
    Security Built-in TPM 2.0
    Operating System Windows 11, Ubuntu22.04.5
    I/O Ports USB 3.0 Type-C x1 (support data transmission and charging)
    USB3.0 Type-A x1
    USB 2.0 Type-A x 2
    3.5mm Standard Headphone Jack x1
    1GbE RJ45 x1
    Nano SIM Card Slot x1
    TF Card Slot x1 (up to 256GB Expansion)
    HDMI x1
    RS-232 with DB9 Connector x 1 (Optional for RS-232/422/485)
    DC Plug (19V/3.42A_5.5mm/2.1mm) x1
    Pogo Pin (14Pin USB+Charging) x1
    WiFi Wi-Fi 802.11 b/g/n/ax , Wi-Fi 6E
    Bluetooth Bluetooth 5.3 Transmission distance: 10m
    WWAN 4G/LTE
    GPS GPS、 Beidou, Galileo GLONASS ,(Optional single Beidou positioning)
    Data Collection NFC Module (Optional)
    Fingerprint Module
    Barcode Scanner Module (Optional)
    UHF RFID Module (Optional with Customized back cover)
    Physical
    Camera Front Camera: 8.0 MP fixed focus camera
    Rear Camera: 12.0 MP autofocus camera with
    flash support (16MP Optional )
    Audio 22W Speaker x2
    MIC x1
    Color Black

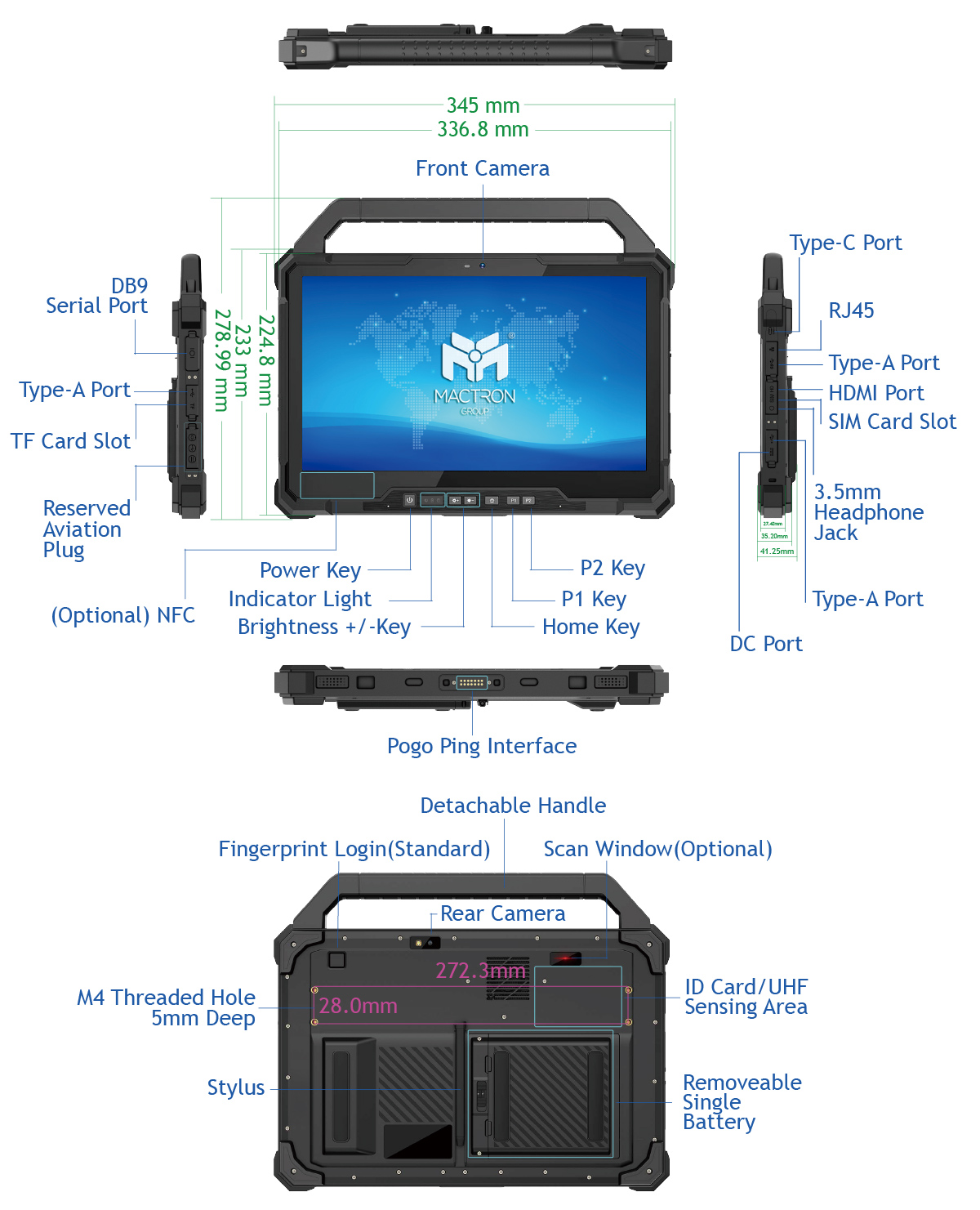

    Dimension 345.0 x 233.0 x 35.2 (WxHxD)
    (excluding handle: ±5 mm)
    Weight 2098g (excluding handle: ±10 g)
    Button Power Button x1
    Brightness +/- Key x2
    Home Key x 1
    Customized function keys x2 (P1, P2 (scanning key) )
    Sensors Gravity Sensor
    Battery 11.4V 8300mAh lithium battery, removable,supports hot-swapping, battery life ≥ 6h (1080P+50% brightness)
    Built-in 11.4V 300mAh lithium battery, non-removable, battery life ≥10MIN (1080P+50% brightness)
    Power Adapter 19/3.42A，65W DC interface adapter
    Optional Accessory Power Adapter
    Removable Battery
    Shoulder Strap
    Charging Dock
    Vehicle Charger
    Packing List
    Standard Accessory 65W DC Power Adapter x 1
    Stylus x 1

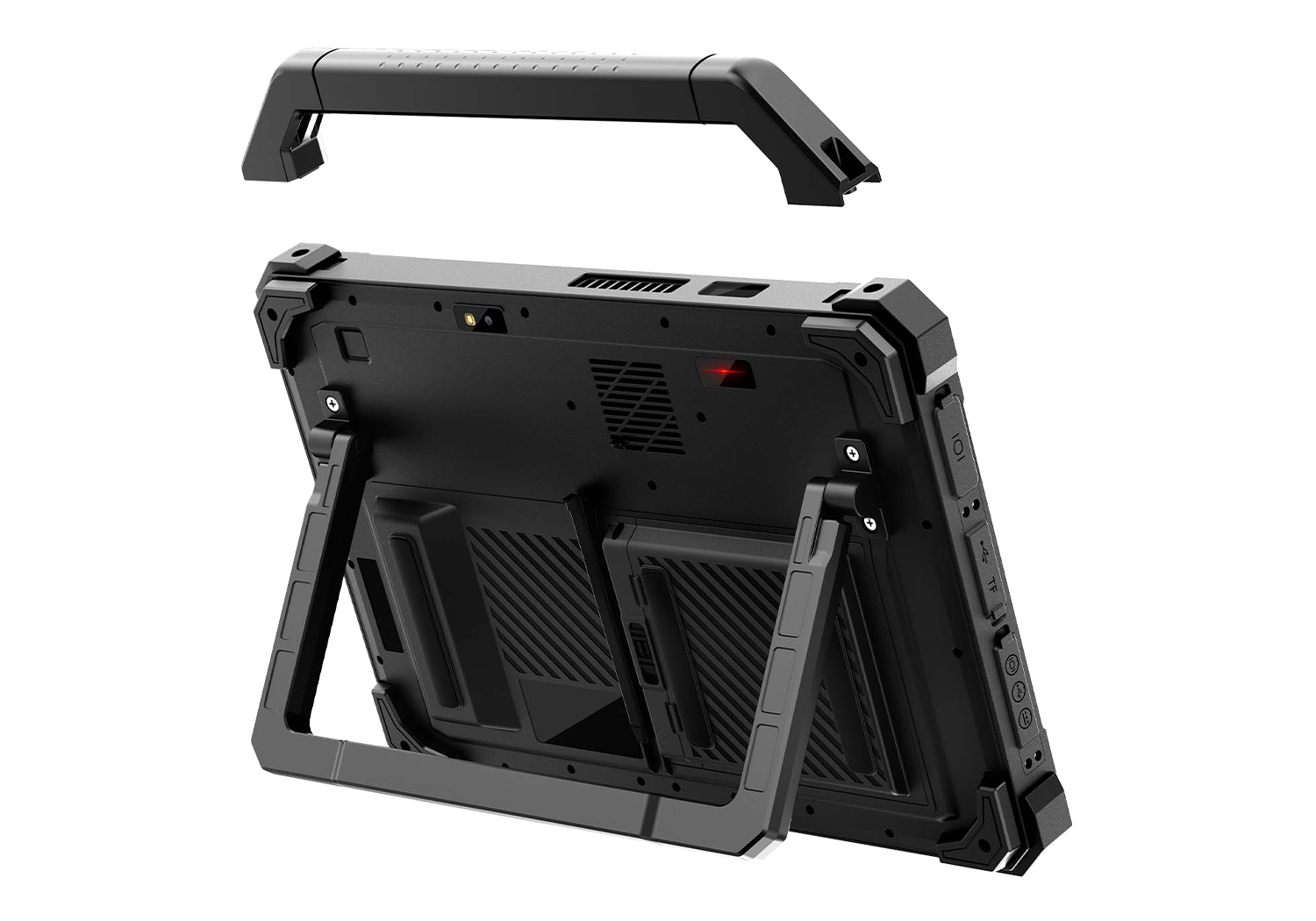

    Handle x 1
    Product Dimension 345.0 x 233.0 x 35.2 (WxHxD)
    (excluding handle: ±5 mm)
    Product Weight 2098g (excluding handle: ±10 g)
    Box Dimension 434 x 255 x 60 mm
    Box Weight 3125g
    Environment
    IP Rating IP65
    Drop Test 1.22m Drop Resistance
    Certification CE/ MIL-STD-810H
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Relative Humidity 95% Non-Condensing
    Warranty 2 Years

    Optional Accessory

    ABATI02
    11.4V/ 8300mAh Removable Battery

    ADA19D3
    AC to DC Power Adapter, 19V DC / 3.42A (DC Jack, 5.5 x 2.1 mm)

    ACRHDM1

    ABCDN01
    Battery Charging Dock

    ACRHDM1

    ACARC03
    Vehicle Charger

    Datasheet

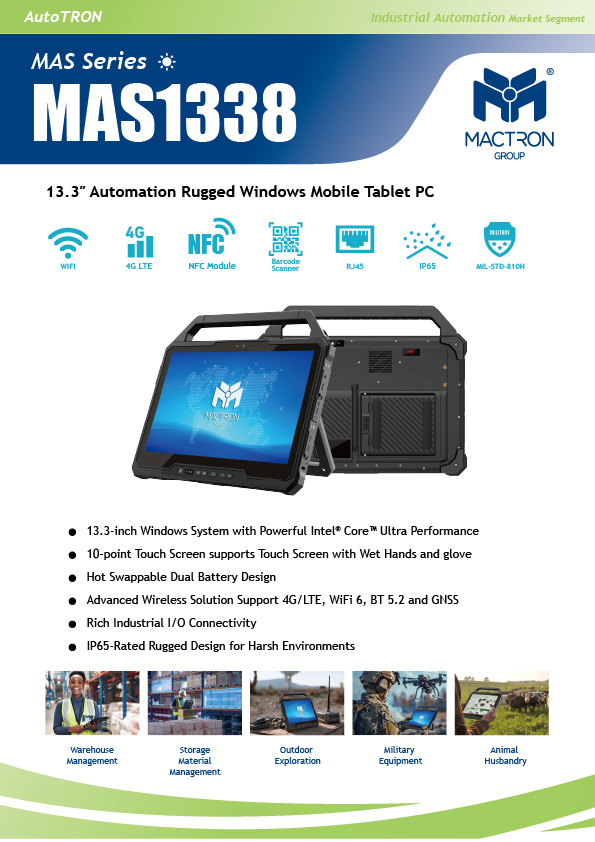

    flyer MAS1338
