MAS1408

14″ Automation Rugged Windows Mobile AI Tablet PC

  • Datasheet

    • Intel® Core™ Ultra 7 Processor 155H

    • 14 inch Windows System

    • New integrated NPU for dedicated AI Acceleration

    • Dual Capacity Hot Swap Battery Design

    • 1,000 nits High Brightness Sunlight Readable

    • Advanced wireless solution support 4G/LTE, WiFi 6, BT 5.1 and GNSS

    Applications:

    Logistics Operation, Warehouse Optimization, Inventory Checking, Firefighters Monitoring

    MAS1408 14" Rugged Tablet

    Windows Base, Intel® Core™ Ultra 7 Processor 155H

    New integrated NPU for dedicated AI Acceleration

    Dual Capacity
    Hot Swap Battery Design

    Advanced Wireless

    Support 4G/LTE, Wi-Fi 6, BT5.1, GNSS

    1000 nits

    High Brightness Sunlight Readable
    Display
    Display Type 14-inch LCD
    Resolution 1920x1080
    Brightness 1000 nits
    Touch Panel 10-Point Capacitive Screen, Hardness above 7H; Scratch-resistant; Supports glove touch
    System
    CPU Intel® Core™ Ultra 7 Processor 155H 24M Cache, up to 4.80 GHz
    GPU iGfx/dGfx (Intel Xe LPG Graphics)
    Memory 16GB DDR5 (Default), 32GB (Optional)
    Storage 256GB M.2 SSD
    Operating System Windows 11/10 IoT
    Security TPM2.0

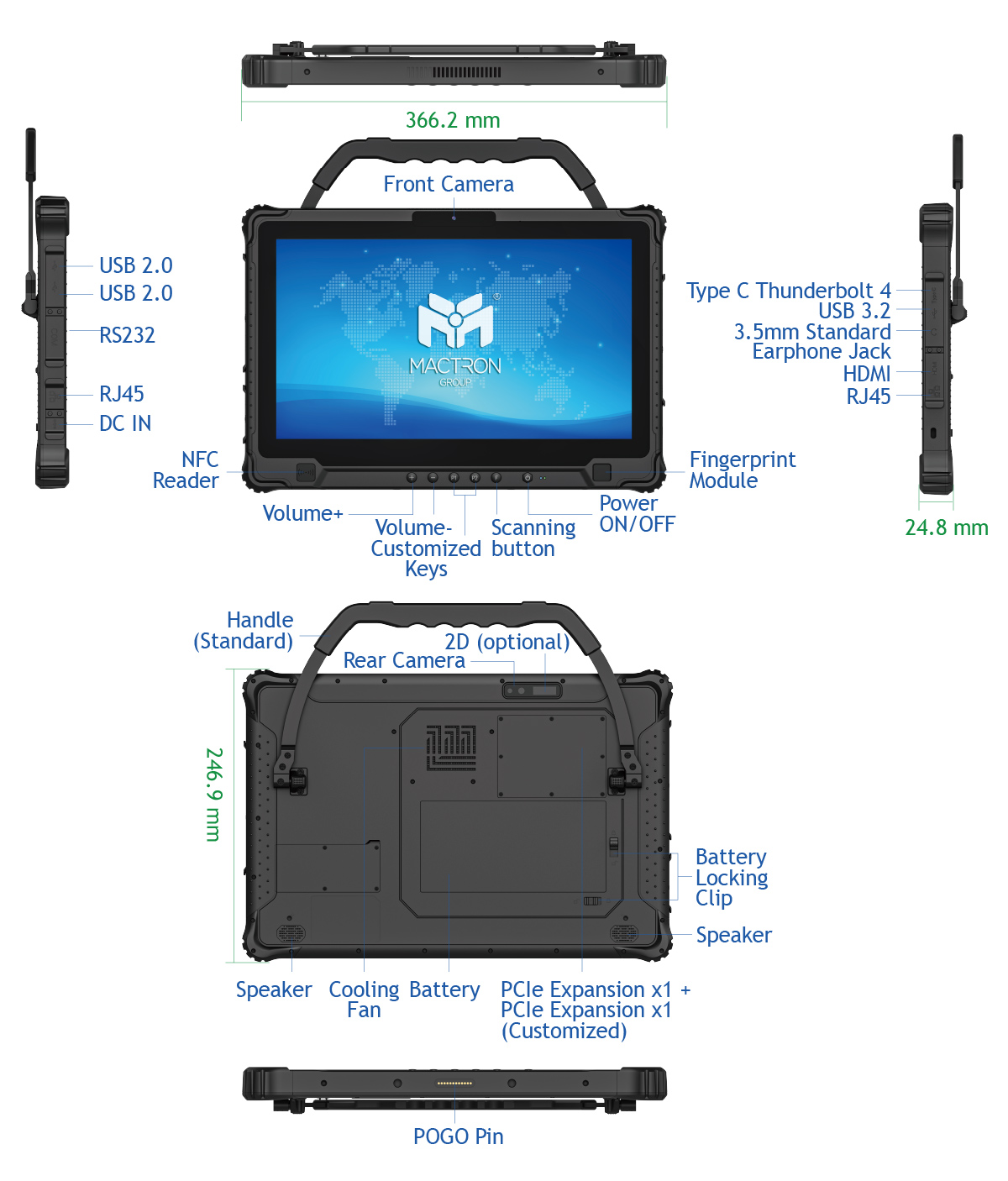

    I/O Ports 3 x USB Type-A (1 x USB3.2, 2 x USB2.0)
    1 x USB Type-C (Support Thunderbolt 4)
    1 x φ3.5mm standard earphone jack
    1 x HDMI 2.0a Mini
    1 x SIM card
    1 x TF card
    1 x RJ45 10M/100M/1000M self-adaptive
    1 x RJ45 10M/100M/1000M self-adaptive (USB2.0), supports Gigabit Ethernet protocol
    1 x RS232
    1 x 12PIN Pogo Pin (USB & Charging)
    1 x DC19V/3.78A φ5.5mm power interface
    WiFi Intel AX200, Supports Wi-Fi 6
    Frequency: 2.4G+5.8G Dual-band WiFi
    4G 4G (M.2 interface) ; LTE-FDD: B1/3/5/7/8/20/28
    LTE-TDD: B38/40/41 (Optional 5G)
    Bluetooth BT5.1 (BLE) class1 Data transmission distance: 10m
    GPS GPS
    Data Collection NFC Module
    Fingerprint Module
    Barcode Scanner Module (Optional)
    Physical
    Camera Front 5.0MP ; Rear 13.0MP
    Speaker 2 x Built in 3W waterproof speaker
    Color Black
    Dimension (WxHxD) 366.2mm x 246.9mm x 24.8mm
    Weight 2400g
    Buttons 1 x Power
    1x Volume + Key
    1 x Volume - Key
    1 x PCustomized key
    1 x F Key (Barcode Scanning)
    Sensors G-Sensor
    Battery 1300mAh/11.1V (Built-in), 4850mAh/11.55V (Removable and Hot Swappable)
    Using Time 8H (1080P video playing with system in balanced mode, 320nits screen brightness, 70db volume at 10cm, and WiFi/BT turned off)
    Power Adapter 1 x DC 19V / 3.78A / 71.82W Power Adapter
    Standard Accessory 1 x DC19V / 3.78A adapter
    1 x Hand-Strap
    Packaging Box Dimension 445 x 315 x 75 mm
    Packaging Box Weight 3100g
    Environment
    IP Rating IP65
    Drop Test 1.22m drop resistance
    Certification CE/ MIL-STD-810H
    Operating Temperature -20°C to 60°C
    Storage Temperature -30°C to 70°C
    Relative Humidity 95% Non-Condensing
    Warranty 2 Years

    Optional Accessory

    ABAT140
    Removable Battery
    4850mAh/11.55V

    ADA19D3
    Power Adapter
    DC 19V / 3.78A / 71.82W
