MAV0703

7” Vehicle Mounted Android Mobile Tablet PC

“For Your Unique Android In-Vehicle Applications”
MACTRON GROUP’s (MTG) 7 Inch MAV0703 is the Vehicle Mounted Mobile Tablet PC which is designed to fit seamlessly into forklifts and other warehouse vehicles to help minimize errors, streamline ordering and inventory management, and improve operational efficiencies.
Android platform allows for the fast development of a variety of customized applications to satisfy In-Vehicle application needs.

7" Android 9.0 System
Cortex A53, Qualcomm MSM8953 Processor
5000mAh Capacity Battery
IP67 Certified & 1.5m Drop Test
High Brightness 800 nits
Support Versatile Mounting Holder, All-In-One Cable

Applications:

Fleet Management, Vehicle Diagnostic, Agriculture Vehicles, Forklift Application, Logistics Operation, etc.

Other MAV Series == Back to MTP

Ready for Fleets

Excellent On-the-go connectivity to keep you up to speed.

MAV0703 is LTE-ready and is with Built-in GNSS, Wi-Fi, Bluetooth and NFC.

All-terrain Android Mobile Tablet PC

Equipped with Qualcomm MSM8953 Octa-core high-performance processor.

Rugged Features with IP67 Rating & MIL-STD 810G certified. MAV0703 is a reliable and productive daily workhorse!

Underline the Visibility of Outdoor

800 Nits High Brightness Display Gives Crystal-Clear Visibility.

Collecting data in bright sunlight is just as easy as reviewing it indoors.

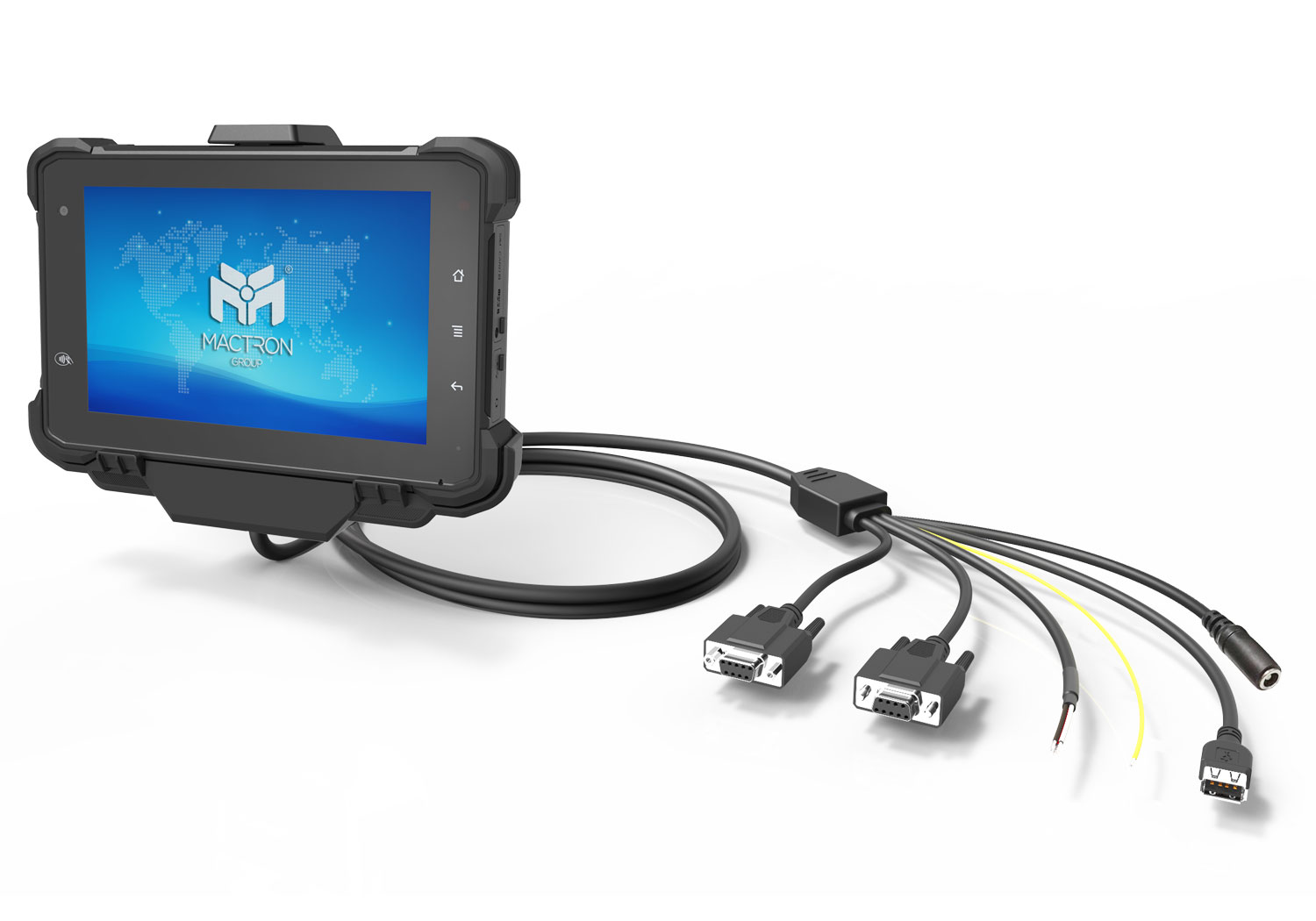

Versatile Mounting Holder & AII-In-One Cable

Different Configurations for Deployment

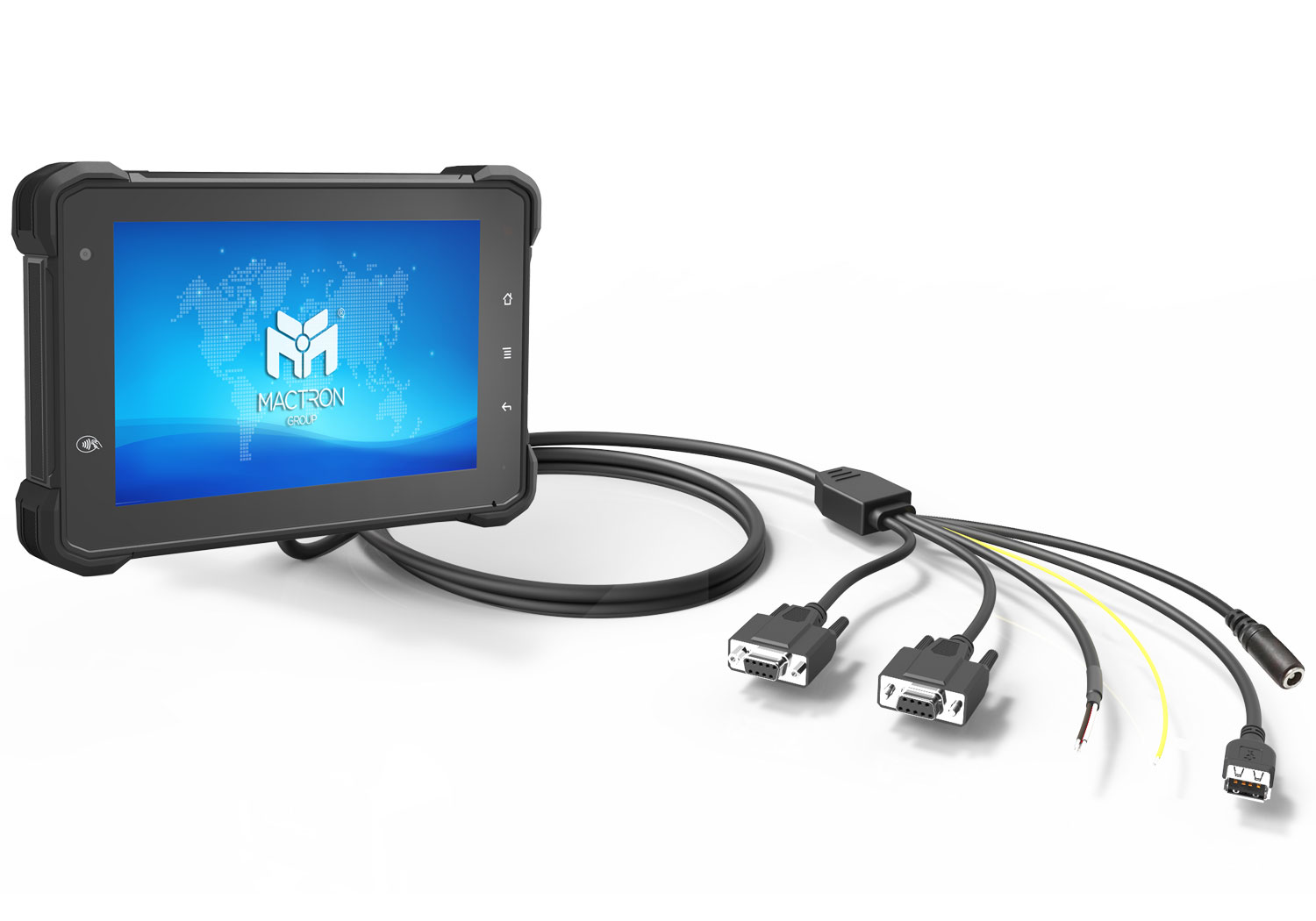

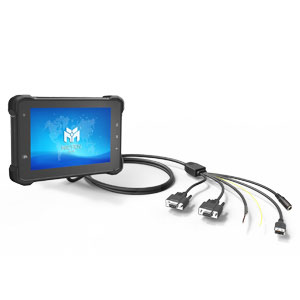

Comprehensive Cables for In-Vehicle Applications

Display
Display Type	7” IPS LCD
Resolution	1280 x 800
Brightness	800 Nits
Touch screen type	5 Points Multi-touch Capacitive Touch Panel
System
CPU	Qualcomm MSM8953 Cortex-A53 64-bit Octa-core processor, 1.8GHz
Memory	4GB LPDDR3
Storage	64GB eMMC
OS Support	Android 9.0
Communication	WWAN: 4G LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
	WLAN: IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz
	Bluetooth 4.2
	GNSS: GPS, GLONASS

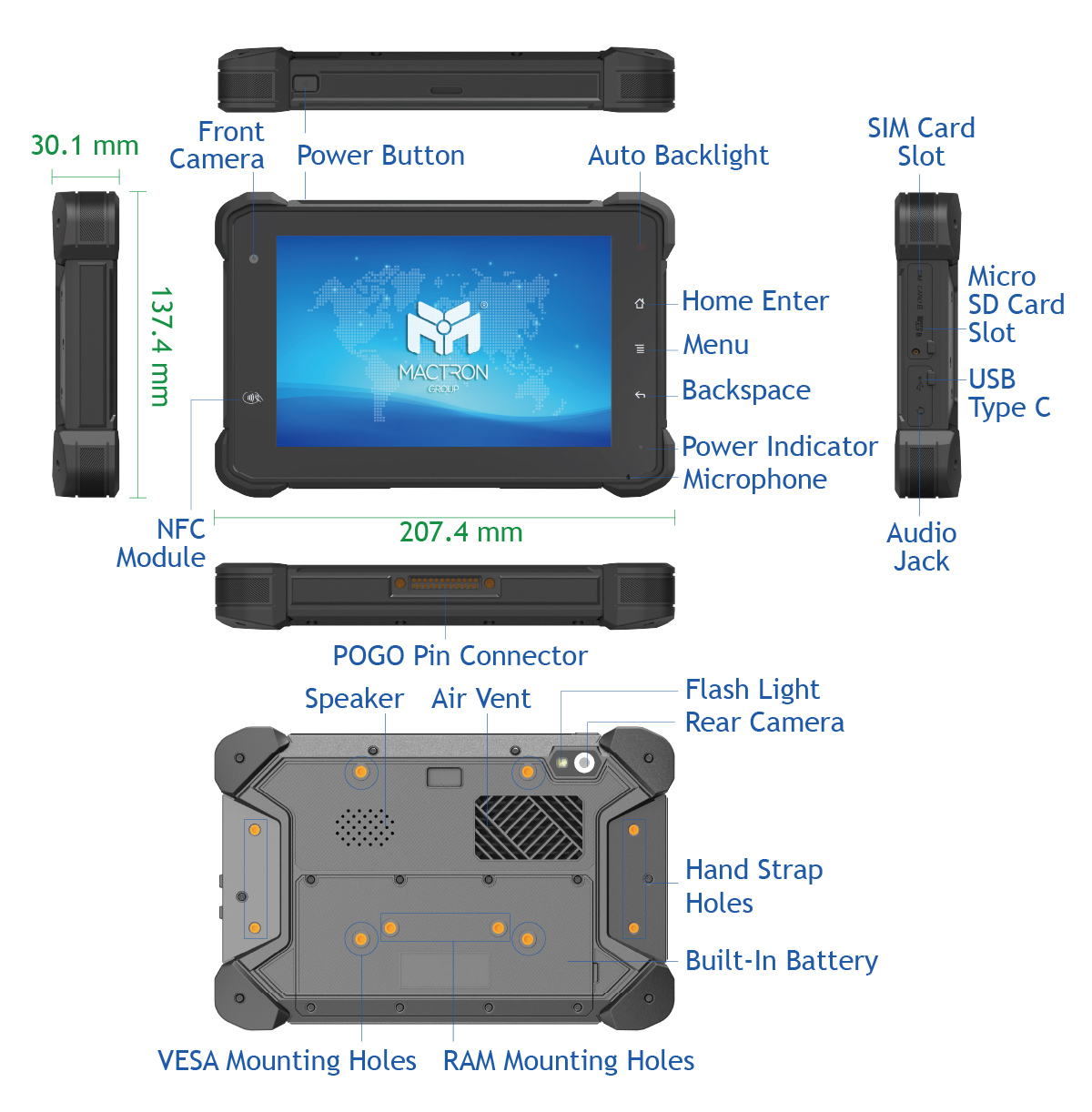

IO Ports	1 x Audio Jack
	1 x USB3.0 Type C (for data transfer; supports OTG)
	1x Micro SD Card Slot (Max. 128GB)
	1 x Sim Card Slot

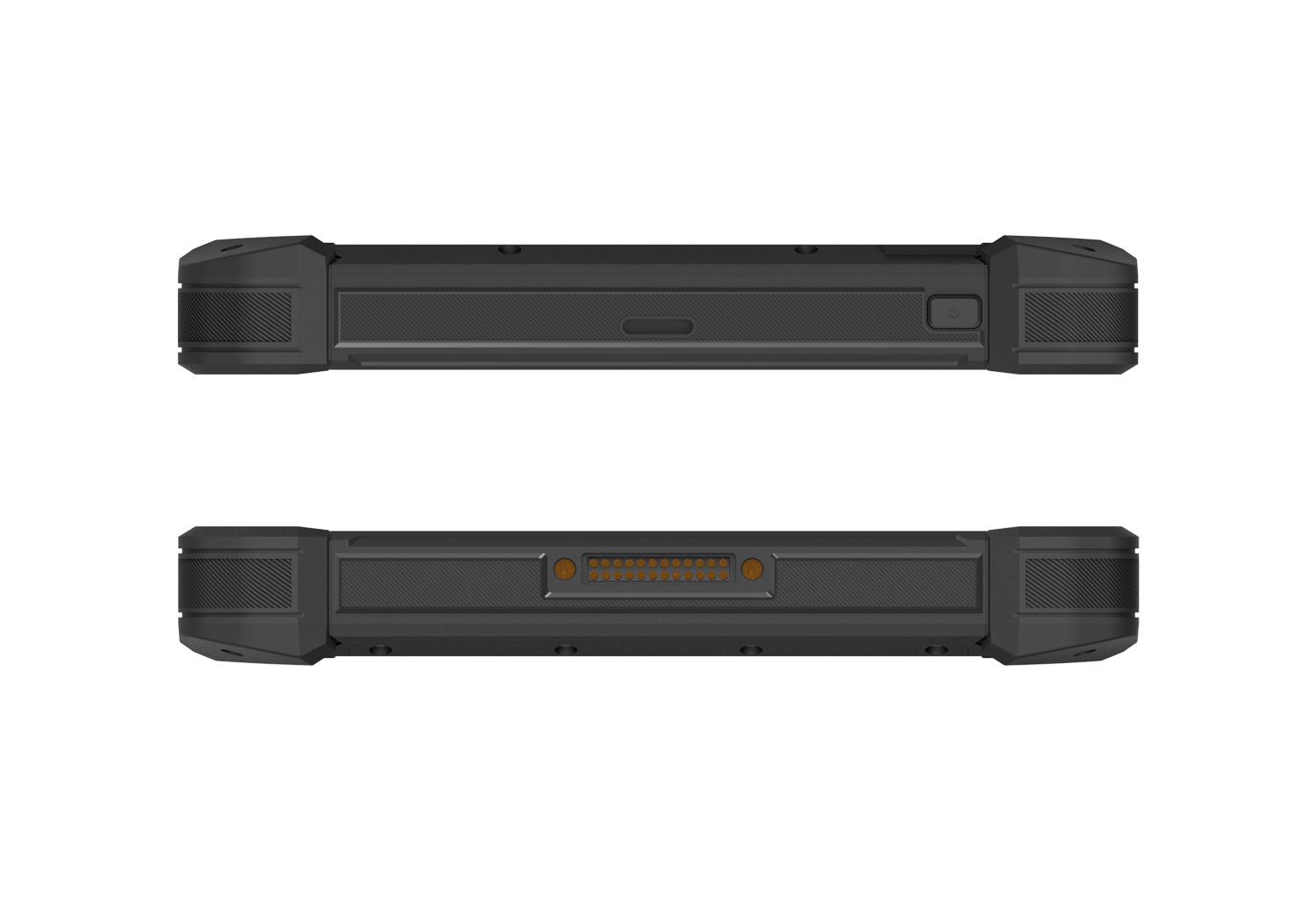

	1 x Mounting Holder Pogo Pin Connector (24-pin)
	1 x DC-in Jack (On All-In-One Cable)
	1 x ACC (On All-In-One Cable)
	2 x RS232 (On All-In-One Cable)
	1 x USB 2.0 Type A (On All-In-One Cable)
	1 x GPIO (On All-In-One Cable)
	1 x RJ45 (On All-In-One Cable)
	1 x CANBUS (On All-In-One Cable)
	1 x RS422 (On All-In-One Cable)
	1 x RS485 (On All-In-One Cable)
	1 x AV In (On All-In-One Cable)
Physical
Audio	1x Built-In Speaker (2 Watt)
	1 x Built-in Microphone
Sensor	Acceleration sensor, Ambient light sensor, Gyroscope, Compass
Camera	Front: 5MP Camera
	Rear: 16MP Camera with LED Light
Module	NFC Module (Built-In)
Battery	3.7V, 5000mAh, Li-ion Battery
Operating Time	About 4.5hr (Depending on User Behavior / Environment)
Power Input	DC 8-36V (ISO 7637-II-compliant)
Power Adapter	DC 12V/2A
Packing List
Standard Accessory	1 x USB3.0 Type C

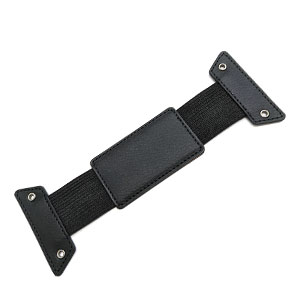

	1 x Hand Strap
	1 x Power Adapter (12V/2A)
Product Dimension	207.4 x 137.4 x 30.1 mm
Product Weight	815g
Packaging Box Dimension	240 x 210 x 120mm
Packaging Box Weight	2050g
Environment
Rugged Feature	IP67 certified, MIL-STD 810G certified, 1.5 m drop test
Operating Temperature	-10°C to 65°C (14°F~149°F)
	0°C to 55°C (32°F~131°F) (Charging)
Storage Temperature	-20°C to 70°C
