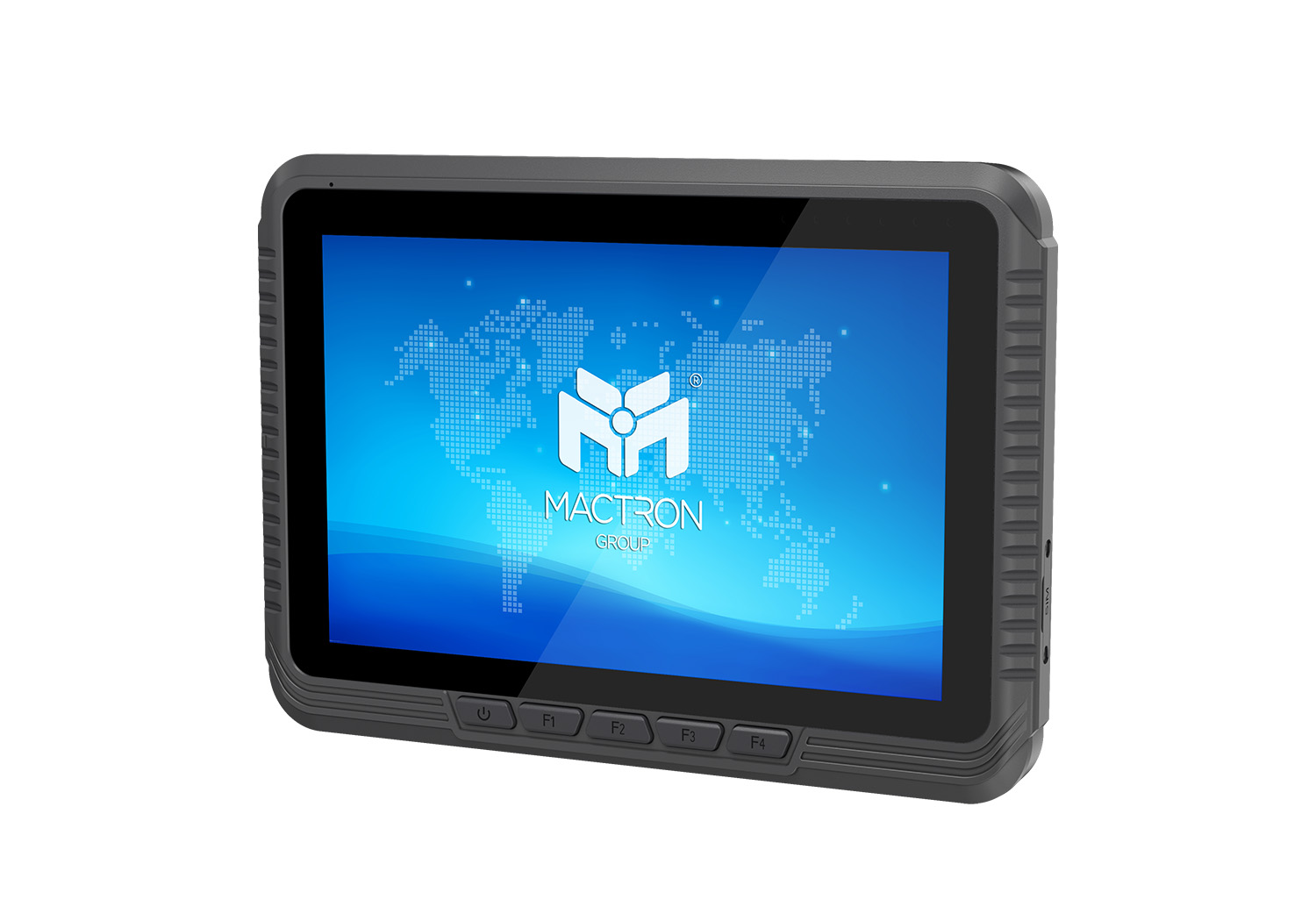

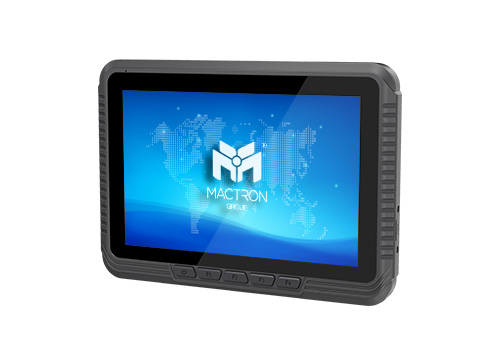

MAV0802

8” Vehicle High Brightness Android Mobile Tablet PC

  • Datasheet

    • “For Your Unique Android In-Vehicle Applications”
    MACTRON GROUP’s (MTG) 8 Inch MAV0802 is the Vehicle Mounted Mobile Tablet PC which is designed to fit seamlessly into forklifts and other warehouse vehicles to help minimize errors, streamline ordering and inventory management, and improve operational efficiencies.
    Android platform allows for the fast development of a variety of customized applications to satisfy In-Vehicle application needs.

    • 8" Android 12 with GMS
    • MTK MT6789 Octa-core
    • 2000mAh, Li-polymer Battery
    • High Brightness
    • IP65, MIL-STD-810G
    • Support NFC

    Applications:

    Fleet Management, Vehicle Diagnostic, Agriculture Vehicles, Forklift Application, Logistics Operation, etc.

    Other MAV Series == Back to MTP

    Ready for Fleets
    MAV0802 is integrated with 4G LTE, NFC.
    Excellent On-the-go connectivity to keep you up to speed and connect with various IoT devices.
    Ready for Fleets
    All-terrain Android Mobile Tablet PC
    Equipped with MTK MT6789 Processor high-performance processor
    Rugged Features with IP65 Rating & MIL-STD 810G certified. MAV0802 is a reliable and productive daily workhorse!
    All-terrain Android Mobile Tablet PC
    Underline the Visibility of Outdoor
    700 Nits High Brightness Display Gives Crystal-Clear Visibility.
    Collecting data in bright sunlight is just as easy as reviewing it indoors.
    Underline the Visibility of Outdoor

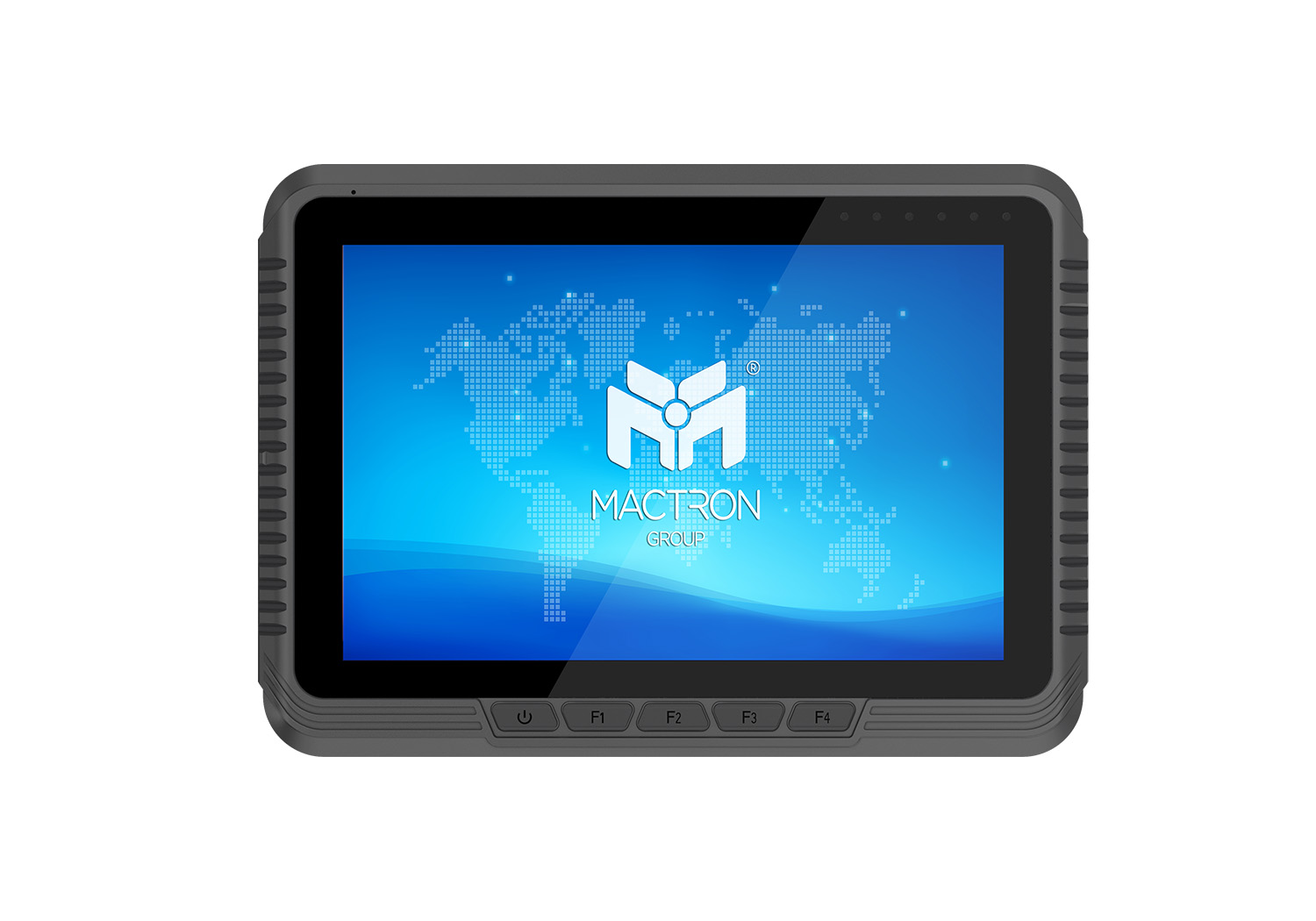

    Display
    Display Type8" HD IPS
    Resolution800 x 1280
    Brightness700nits
    Touch Panel5-point tempered glass capacitive screen G+ hardness 6H
    System
    CPUMTK MT6789 Octa-core
    MemoryLPDDR4X 4GB
    Storage64GB UFS
    Operating SystemAndroid 12

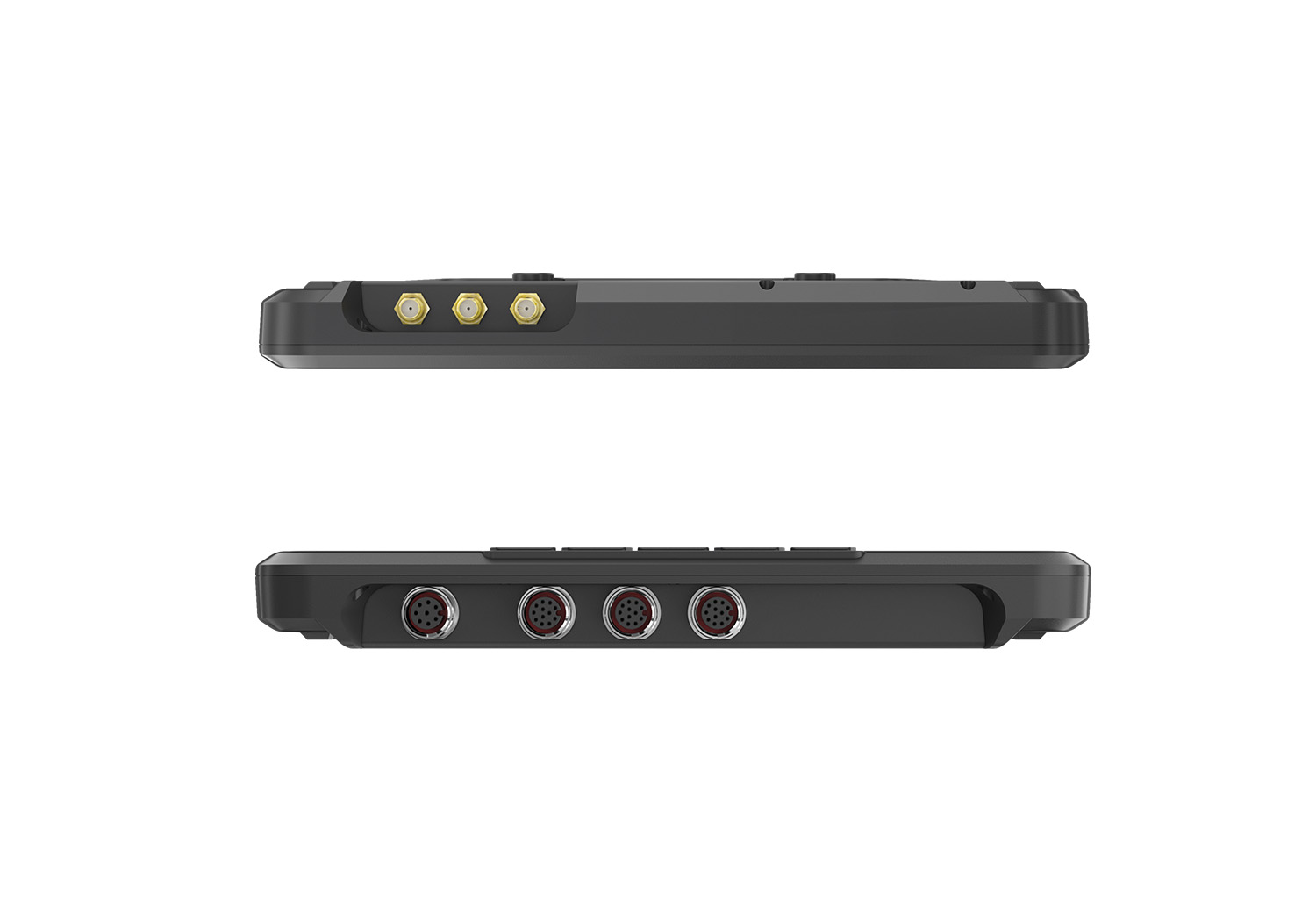

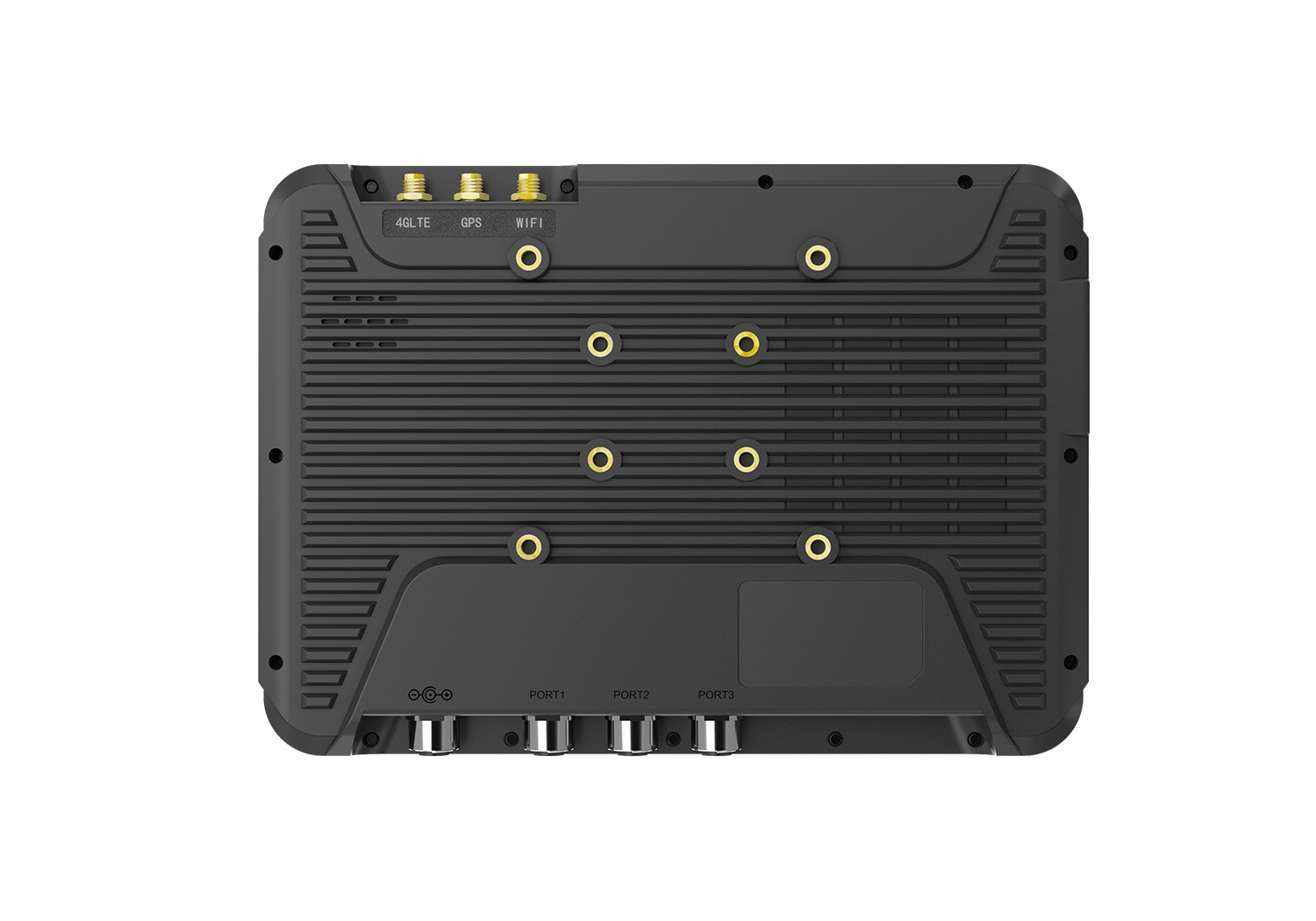

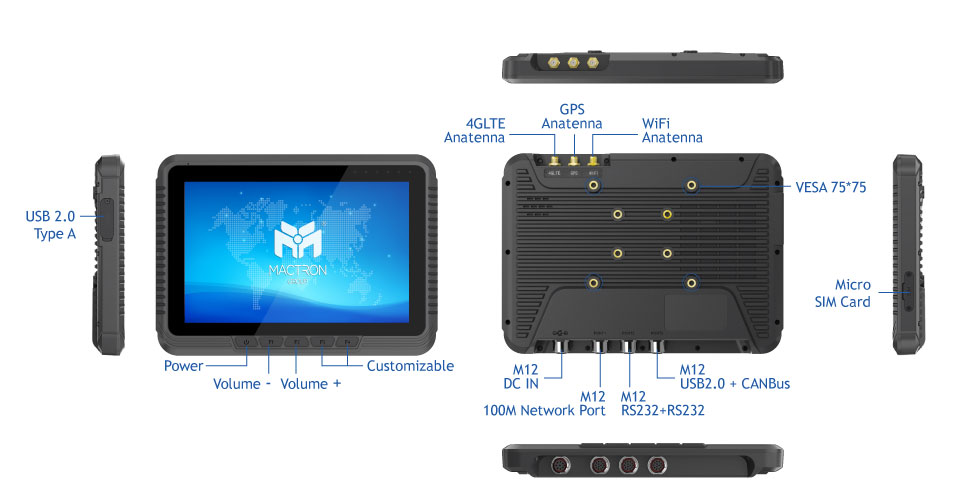

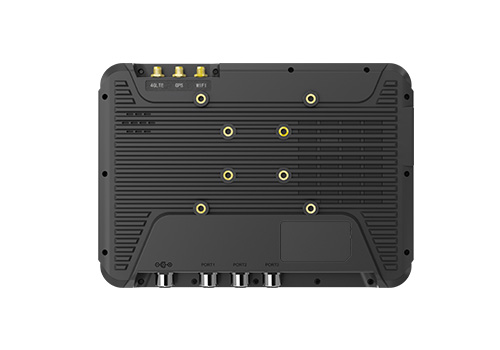

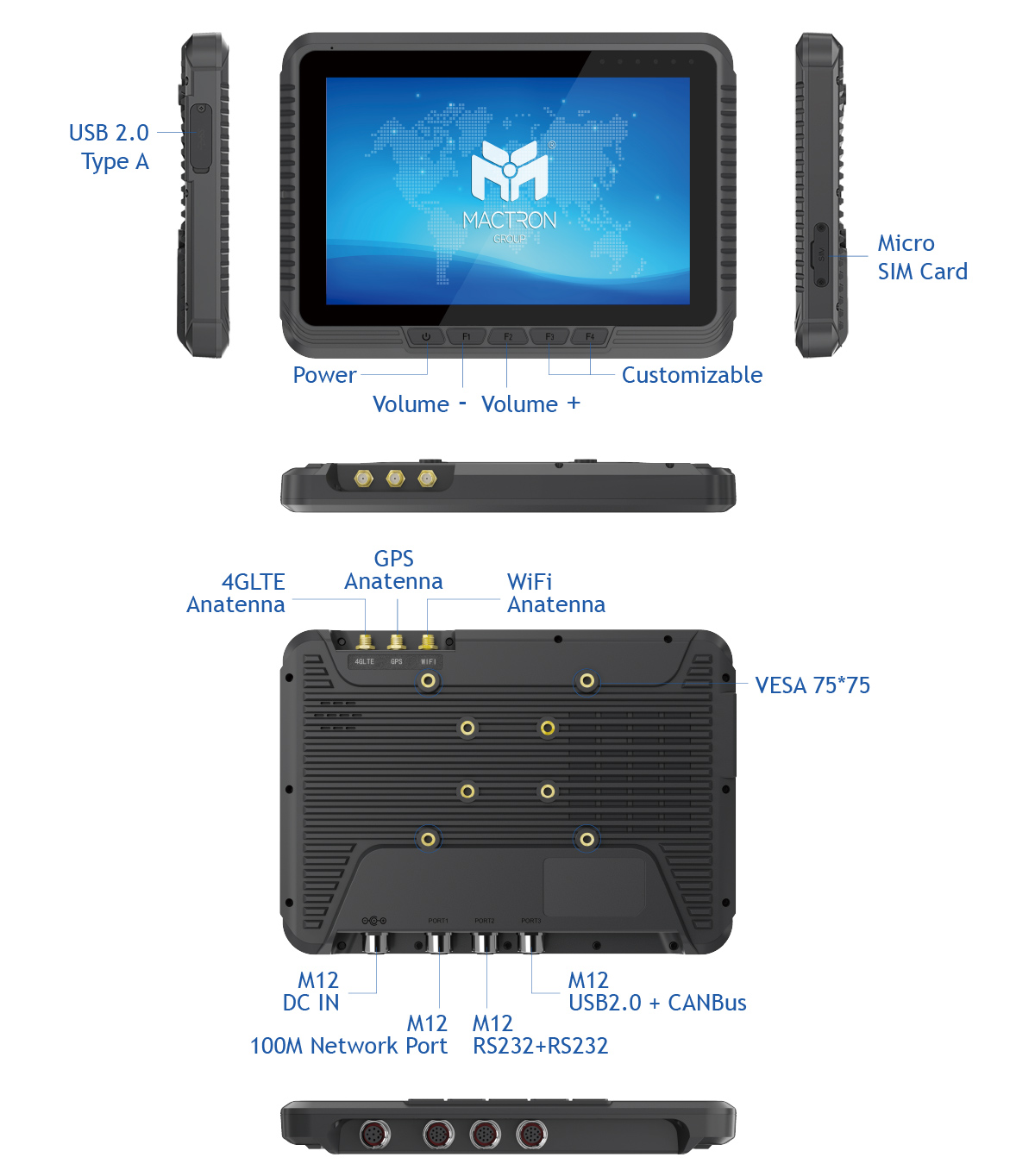

    I/O Ports1 x Micro SIM Card
    1 x USB 2.0 Type A
    1 x M12 DC Input
    1 x M12 100M Network Port
    1 x M12 RS232 + RS232
    1 x M12 USB2.0 + CAN Bus
    CommunicationWiFi - 802.11(a/b/g/n/ac) Dual frequency 2.4G + 5.0G(5.1G+5.8G), Support AP seamless roaming
    4G - GSM(B2/3/5/8) + WCDMA (B1/B2/5/8) + TDS (B34/B39) + FDD (B1/2/3/4/5/7/8/13/17/20/28AB) + TDD(B38/39/40/41) + TDD (B38/39/40/41)
    Bluetooth - BT 5.2
    GPS - GPS (L1 1.575GHz C/A code), Beidou (B1 1.561GHz), GLONASS (L1 1.602GHz)
    Physical
    Audio2.5W Single Horn
    ModuleNFC Module
    Buttons1 x Power
    1 x Volume - Key (F1)
    1 x Volume + Key (F2)
    1 x Customizable (F3)
    1 x Customizable (F4)
    Battery2000mAh, Li-polymer Battery
    Product Dimension218.1 x 154.5 x 23.0mm
    Product Weight611g
    Packaging Box Dimension323 x 173 x 62mm
    Packaging Box Weight1099g
    Power AdapterDC 12V/4A
    Standard Accessory1 x Power Adapter
    1 x WiFi Rod Antenna
    1 x GPS Vehicle Mushroom Antenna
    1 x 4G Rod Antenna
    1 x M12 Function Adapter Cable 1 (12PIN USB2.0x1 + CAN Busx1)
    1 x M12 Function Adapter Cable 2 (12PIN to full function RS232 power line + serial communication 485)
    1 x M12 Function Adapter Cable 4 (12PIN to 100M RJ45) (Need to rebuild 4G small board and add LAN)
    Environment
    IP RatingIP65
    CertificationCE, FCC, CCC, MIL-STD-810H
    Operating Temperature-20°C ~ 60°C
    -10°C ~ 60°C (Battery Mode)
    Storage Temperature-30°C ~ 70°C
    Relative Humidity95% (non-condensing)
    Warranty2 Years

    MAV0802

    Optional Accessory

    Wide Voltage Module
    Wide Voltage Module
    (9~36V Wide Voltage Input, 12V ± 0.5V Constant Voltage Output to Equipment)
    M12 RS232 RS232
    M12 Function Adapter Cable 3
    (12PIN to full function RS232 power line + serial communication 232)
    M12 12PIN to 12 Loose Wires 1.2m
    M12 Function Adapter Cable 5
    (12PIN to 12 Loose Wires 1.2m to Meet The Customer's Demand for Self Connection)

    Datasheet

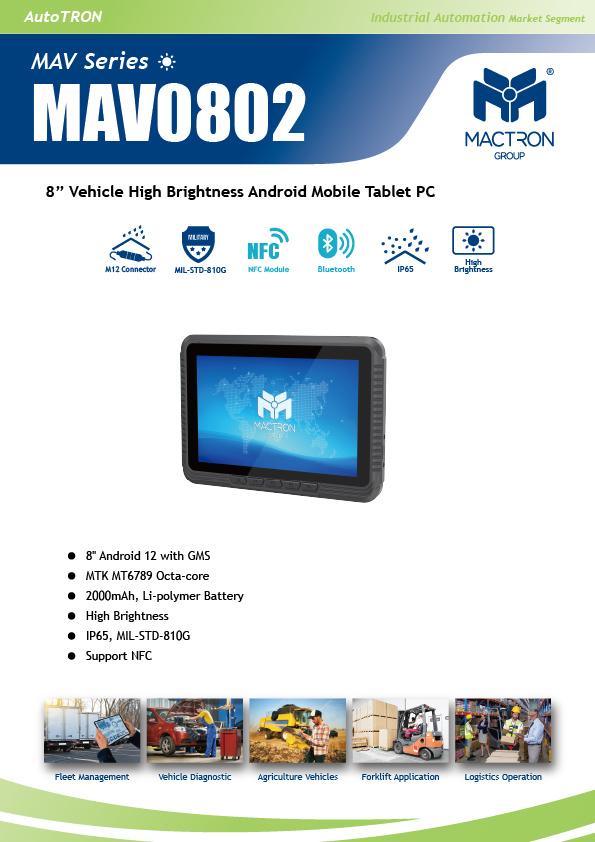

    flyer MAV0802
