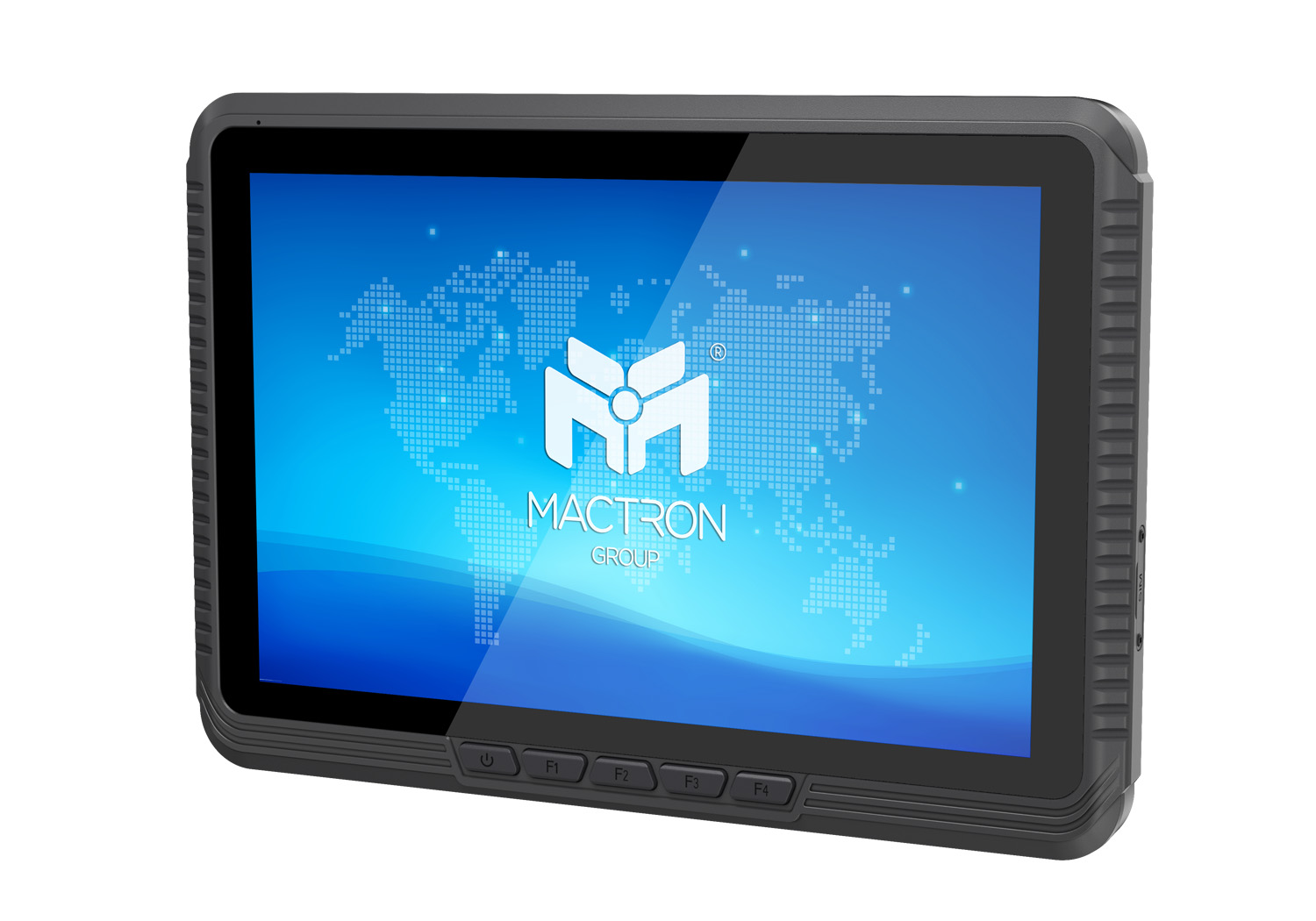

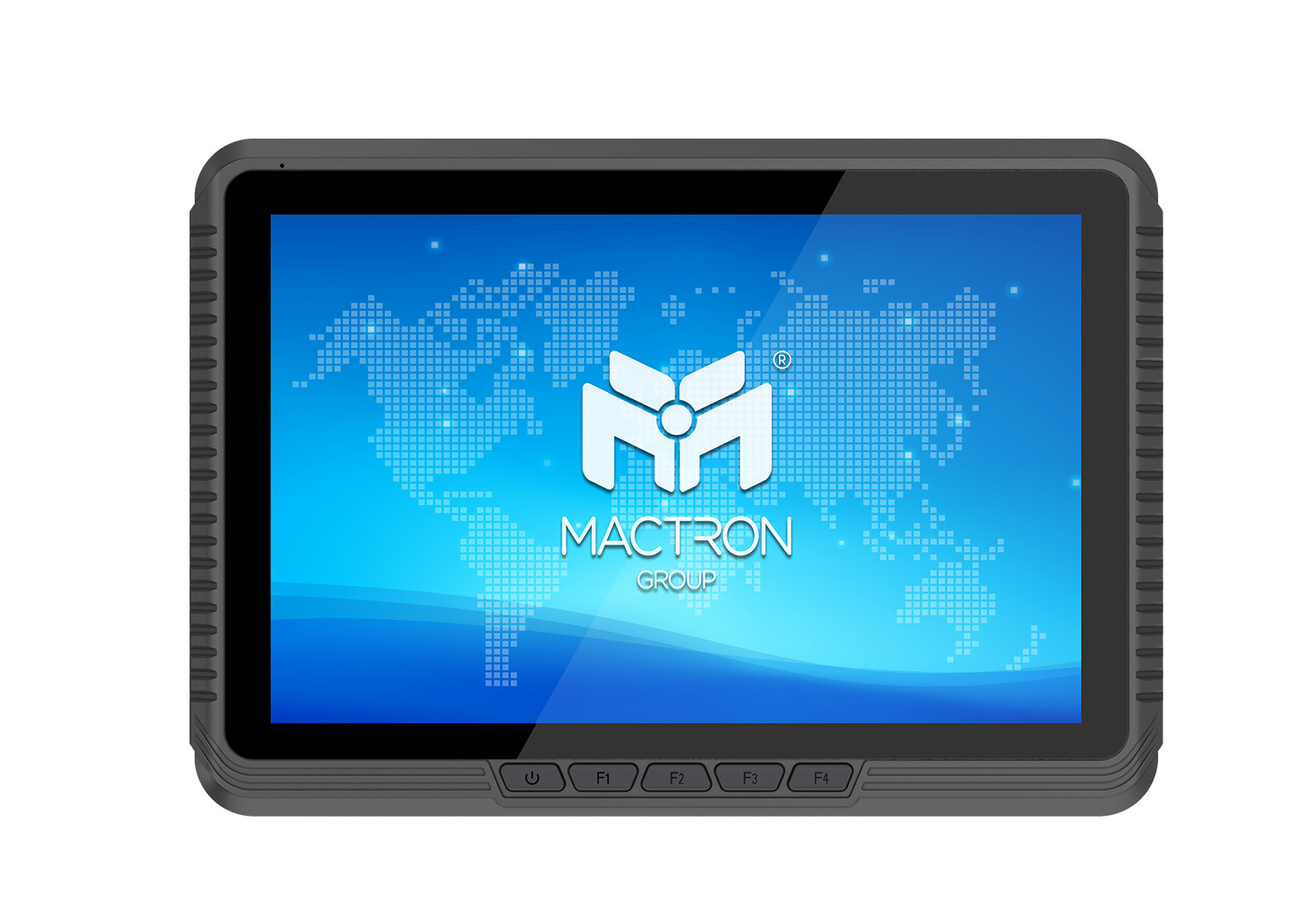

MAV1011

10.1” Vehicle High Brightness Windows Mobile Tablet PC

  • Datasheet

    • “For Your Unique Windows In-Vehicle Applications”
    MACTRON GROUP’s (MTG) 10.1 Inch MAV1011 is the Vehicle Mounted Mobile Tablet PC which is designed to fit seamlessly into forklifts and other warehouse vehicles to help minimize errors, streamline ordering and inventory management, and improve operational efficiencies.
    Windows platform allows for the fast development of a variety of customized applications to satisfy In-Vehicle application needs.

    • 10.1" Windows Tablet System
    • Intel® Celeron® N5100 Processor
    • 10.1 inch IPS Screen, 700 nits
    • M12 Connector for Power and I/O Ports
    • IP65 Waterproof and Dustproof
    • Wide Temperature opreration: -20 °C to 60 °C

    Applications:

    Fleet Management, Vehicle Diagnostic, Agriculture Vehicles, Forklift Application, Logistics Operation, etc.

    Other MAV Series == Back to MTP

    Ready for Fleets
    MAV1011 is integrated with WiFi, 4G LTE, NFC.
    Excellent On-the-go connectivity to keep you up to speed and connect with various IoT devices.
    Ready for Fleets
    All-terrain Windows Mobile Tablet PC
    Equipped with Intel® Celeron® N5100 6W Processor
    Rugged Features with IP65 Rating & MIL-STD 810G certified. MAV1011 is a reliable and productive daily workhorse!
    All-terrain Windows Mobile Tablet PC
    Underline the Visibility of Outdoor
    700 Nits High Brightness Display Gives Crystal-Clear Visibility.
    Collecting data in bright sunlight is just as easy as reviewing it indoors.
    Underline the Visibility of Outdoor
    Display
    Display Type10.1" IPS TFT LCD
    Resolution800 x 1280
    Brightness700 nits
    Touch Panel5 points Capacitive touch screen
    System
    CPUIntel® Celeron® N5100 Processor
    GPUIntel® HD Graphics Gen 11
    Memory8GB
    Storage128GB
    Operating SystemWindows 11

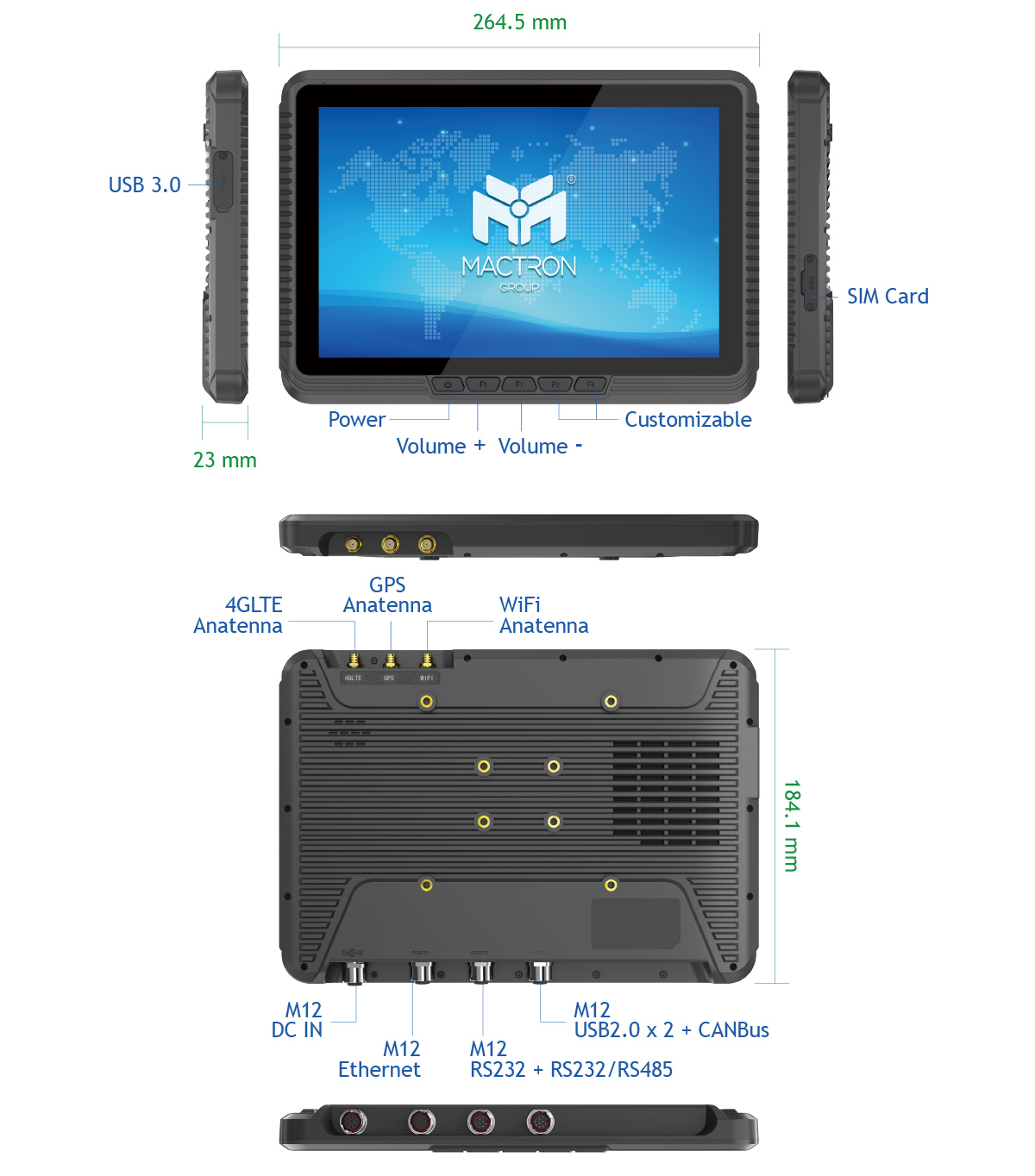

    I/O Ports1 x USB 3.0 Type-A
    1 x SIM card slot (optional)
    1 x DC jack
    1 x PORT1 (M12 for LAN)
    1 x PORT2 (M12 for Serial Ports)
    1 x PORT3 (M12 for USB 2.0/ CAN)
    WiFi802.11(a/b/g/n/ac), 2.4G+5.8G
    4G4G
    BluetoothBT5.0 transmission distance: 10m
    GPSGPS, GLONASS
    Physical
    Speaker1 x 2.5W Single Horn
    MicrophoneSingle MIC
    ColorBlack
    Dimension (WxHxD)264.5 x 184.1 x 23.0 mm
    Weight834g
    Buttons1 x Power
    1 x Volume Key + (F1 Key)
    1 x Volume Key - (F2 Key)
    Indicator LightBlue (Power indicator)
    Red (Power-on indicator)
    The red light flashes (Low battery indicator)
    Battery1000mAh/7.4V
    Using Time30 mins (50% volume sounds, 50% screen brightness, 1080P HD video display by default)
    Power AdapterDC φ5.5 12V/4A
    Standard Accessory1 x Power Adapter
    1 x WiFi Rod Antenna
    1 x Power adapter Cable
    1 x GPS Vehicle Mushroom Antenna
    1 x 4G Rod Antenna
    1 x M12 Function Adapter Cable 1 (12PIN USB2.0x1 + CAN Busx1)
    1 x M12 Function Adapter Cable 2 (12PIN to full function RS232 power line+serial communication 485)
    1 x M12 Function Adapter Cable 4 (12PIN to 100M RJ45) *Need to Rebuild 4G Small Board and Add LAN
    Environment
    IP RatingIP65
    CertificationCE, FCC
    Operating Temperature-20°C ~ 60°C (DC Mode)
    -10°C ~ 60°C (Battery Mode)
    Storage Temperature-30°C ~ 70°C
    Relative Humidity95% (non-condensing)
    Warranty2 Years

    MAV1011

    Standard Accessory

    Power Adapter Cable
    Power Adapter Cable
    Power Adapter
    Power Adapter (12V/4A DC φ5.5 Adapter)
    WiFi Rod Antenna
    WiFi Rod Antenna
    GPS Vehicle Mushroom Antenna
    GPS Vehicle Mushroom Antenna
    4G Rod Antenna
    4G Rod Antenna

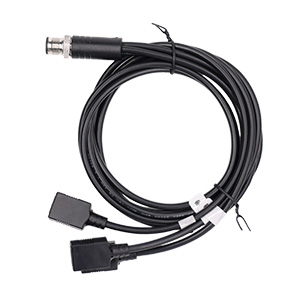

    M12 12PIN USB2.0x1 + CAN Busx1
    M12 Function Adapter Cable 1
    (12PIN USB2.0x1 + CAN Busx1)
    M12 RS232 RS485
    M12 Function Adapter Cable 2
    (12PIN to full function RS232 power line + serial communication 485)
    M12 12PIN to 100M RJ45
    M12 Function Adapter Cable 4
    (12PIN to 100M RJ45)
    * Need to Rebuild 4G Small Board and Add LAN

    Optional Accessory

    Wide Voltage Module
    Wide Voltage Module
    (9~36V Wide Voltage Input, 12V ± 0.5V Constant Voltage Output to Equipment)
    M12 RS232 RS232
    M12 Function Adapter Cable 3
    (12PIN to full function RS232 power line + serial communication 232)
    M12 12PIN to 12 Loose Wires 1.2m
    M12 Function Adapter Cable 5
    (12PIN to 12 Loose Wires 1.2m to Meet The Customer's Demand for Self Connection)

    Datasheet

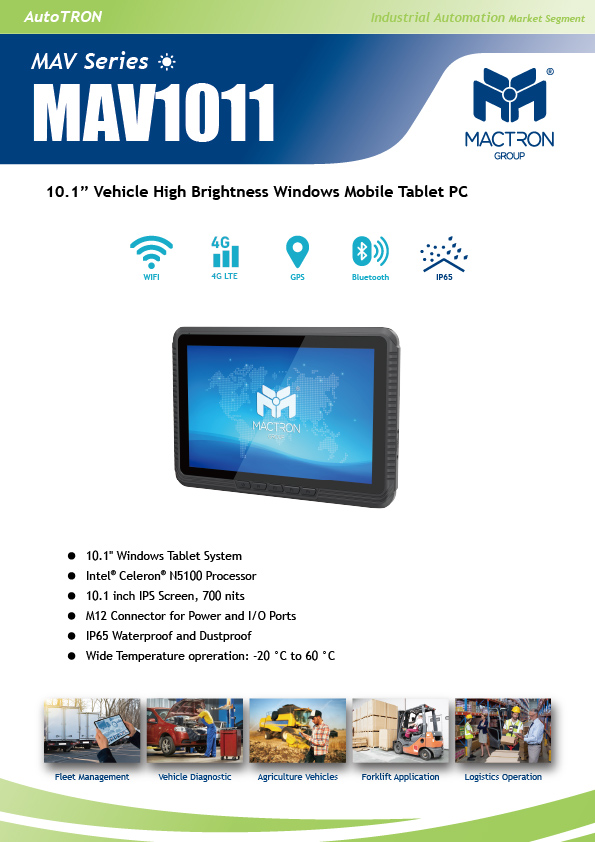

    flyer MAV1011
