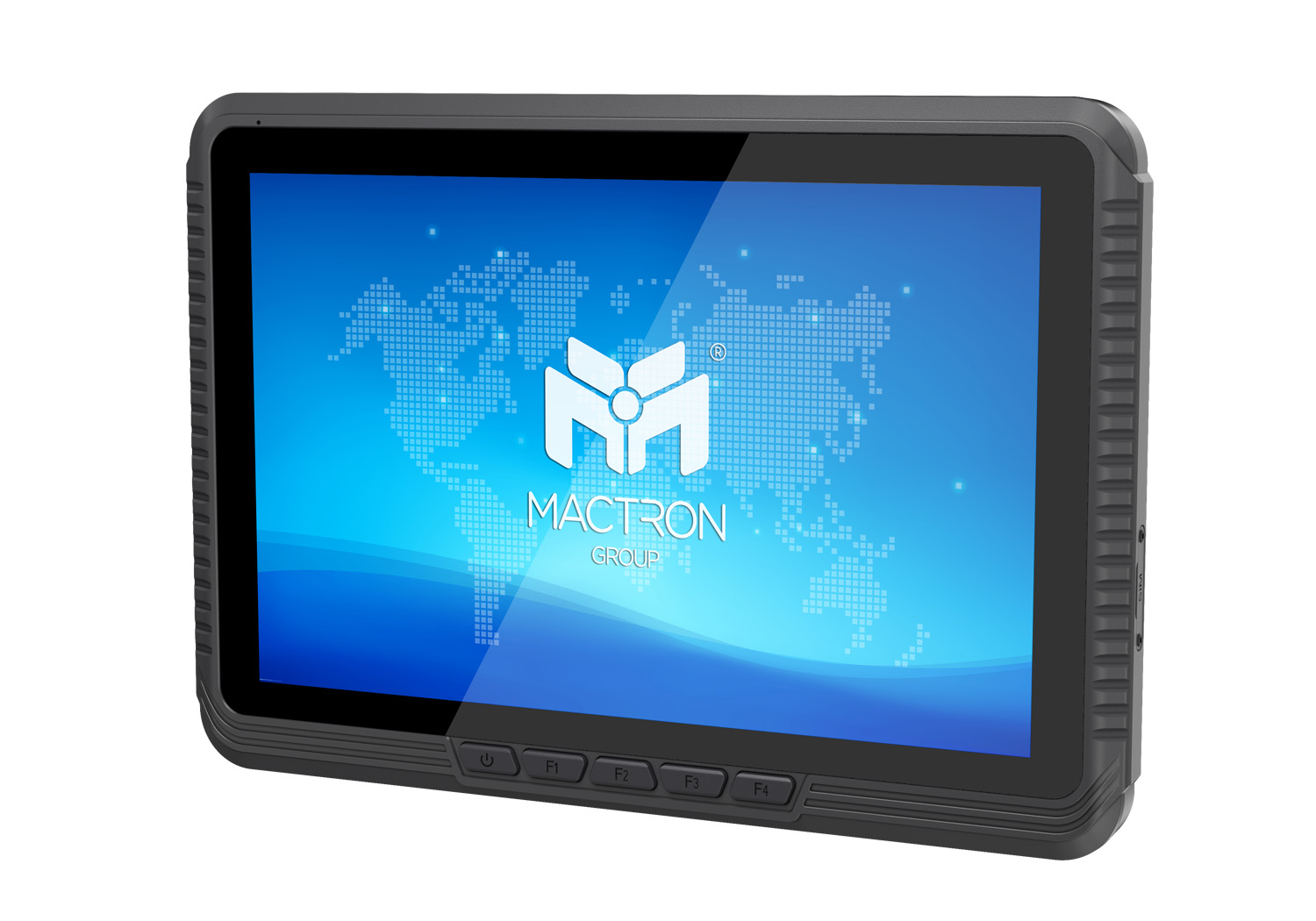

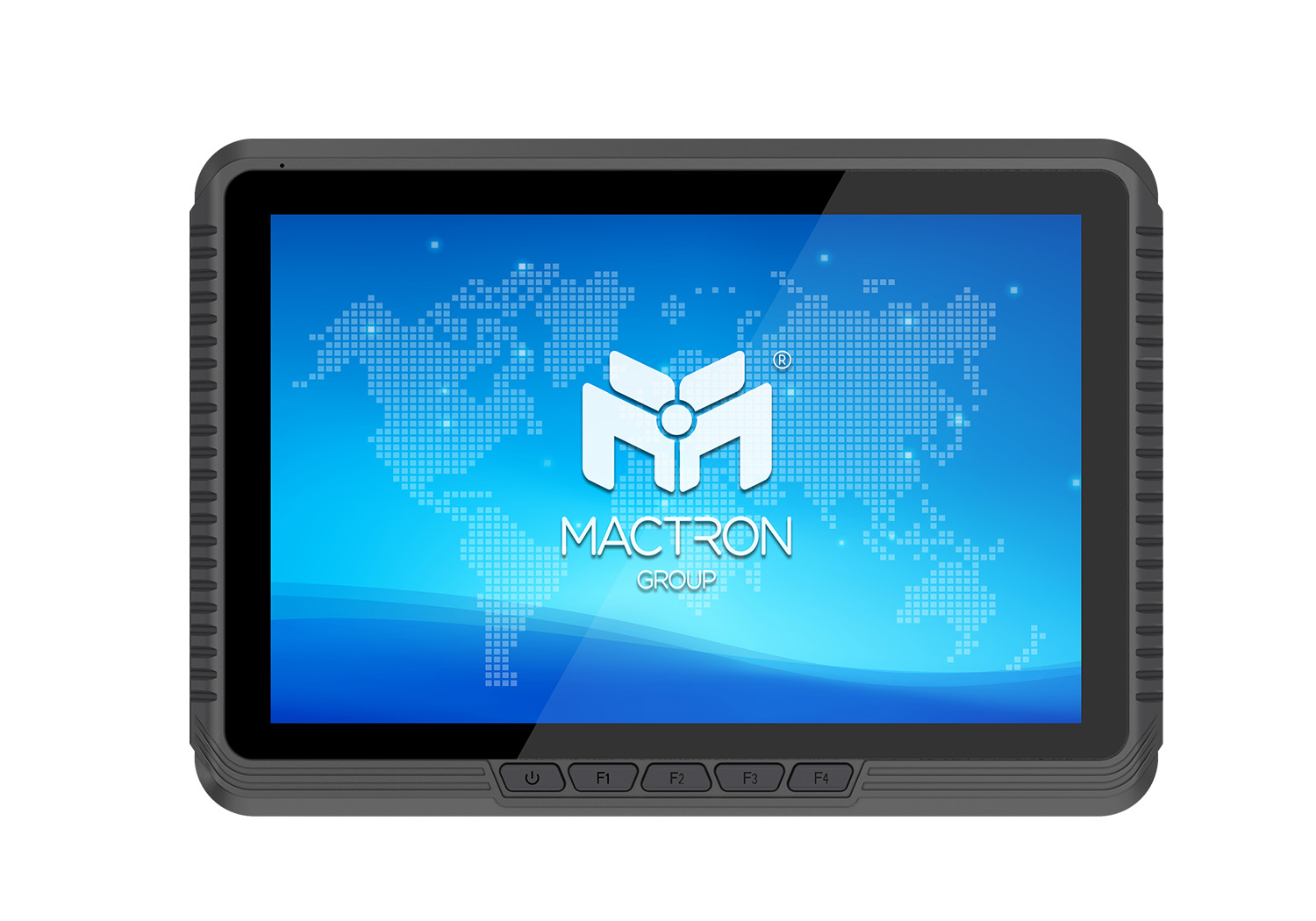

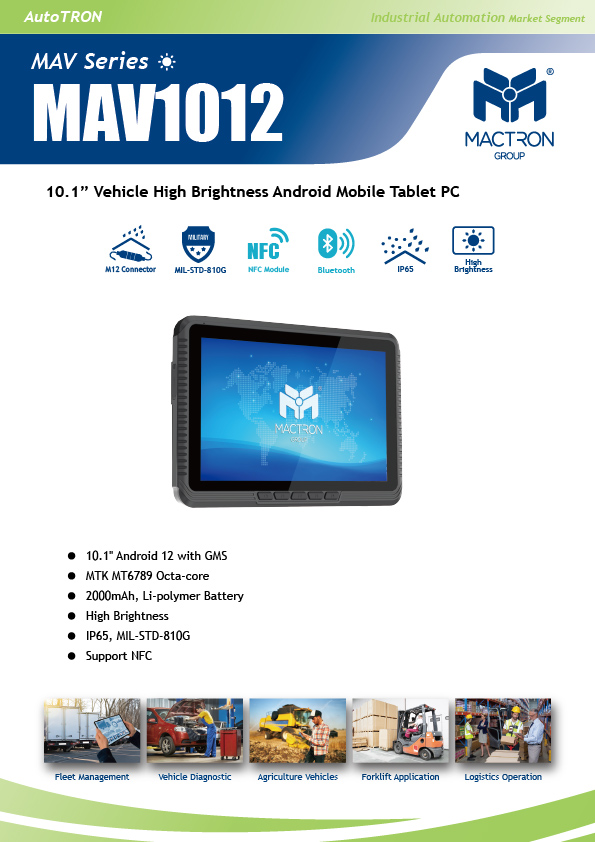

MAV1012

10.1” Vehicle High Brightness Android Mobile Tablet PC

“For Your Unique Android In-Vehicle Applications”
MACTRON GROUP’s (MTG) 10.1 Inch MAV1012 is the Vehicle Mounted Mobile Tablet PC which is designed to fit seamlessly into forklifts and other warehouse vehicles to help minimize errors, streamline ordering and inventory management, and improve operational efficiencies.
Android platform allows for the fast development of a variety of customized applications to satisfy In-Vehicle application needs.

10.1" Android 12 with GMS
MTK MT6789 Octa-core
2000mAh, Li-polymer Battery
High Brightness
IP65, MIL-STD-810G
Support NFC

Applications:

Fleet Management, Vehicle Diagnostic, Agriculture Vehicles, Forklift Application, Logistics Operation, etc.

Other MAV Series == Back to MTP

Ready for Fleets

MAV1012 is integrated with 4G LTE, NFC.

Excellent On-the-go connectivity to keep you up to speed and connect with various IoT devices.

All-terrain Android Mobile Tablet PC

Equipped with MTK MT6789 Processor high-performance processor

Rugged Features with IP65 Rating & MIL-STD 810G certified. MAV1012 is a reliable and productive daily workhorse!

Underline the Visibility of Outdoor

700 Nits High Brightness Display Gives Crystal-Clear Visibility.

Collecting data in bright sunlight is just as easy as reviewing it indoors.

Display
Display Type	10.1" HD IPS
Resolution	800 x 1280
Brightness	700nits
Touch Panel	5-point tempered glass capacitive screen G+ hardness 8H
System
CPU	MTK MT6789 Octa-core
Memory	LPDDR4X 4GB
Storage	64GB UFS
Operating System	Android 12

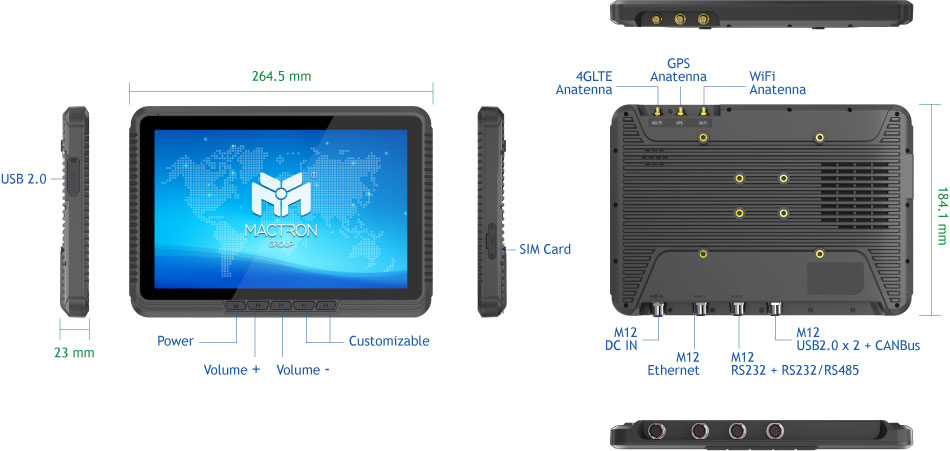

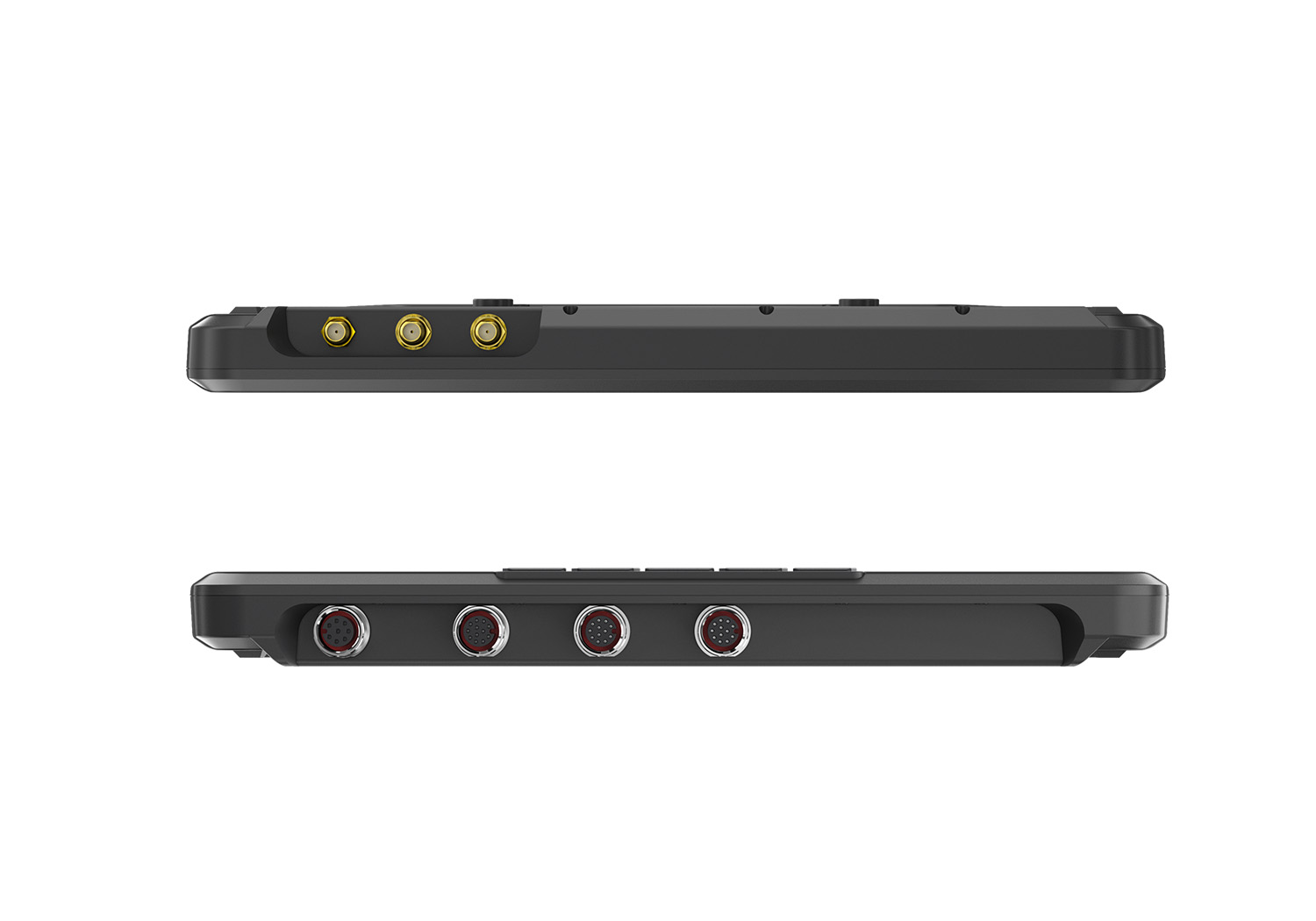

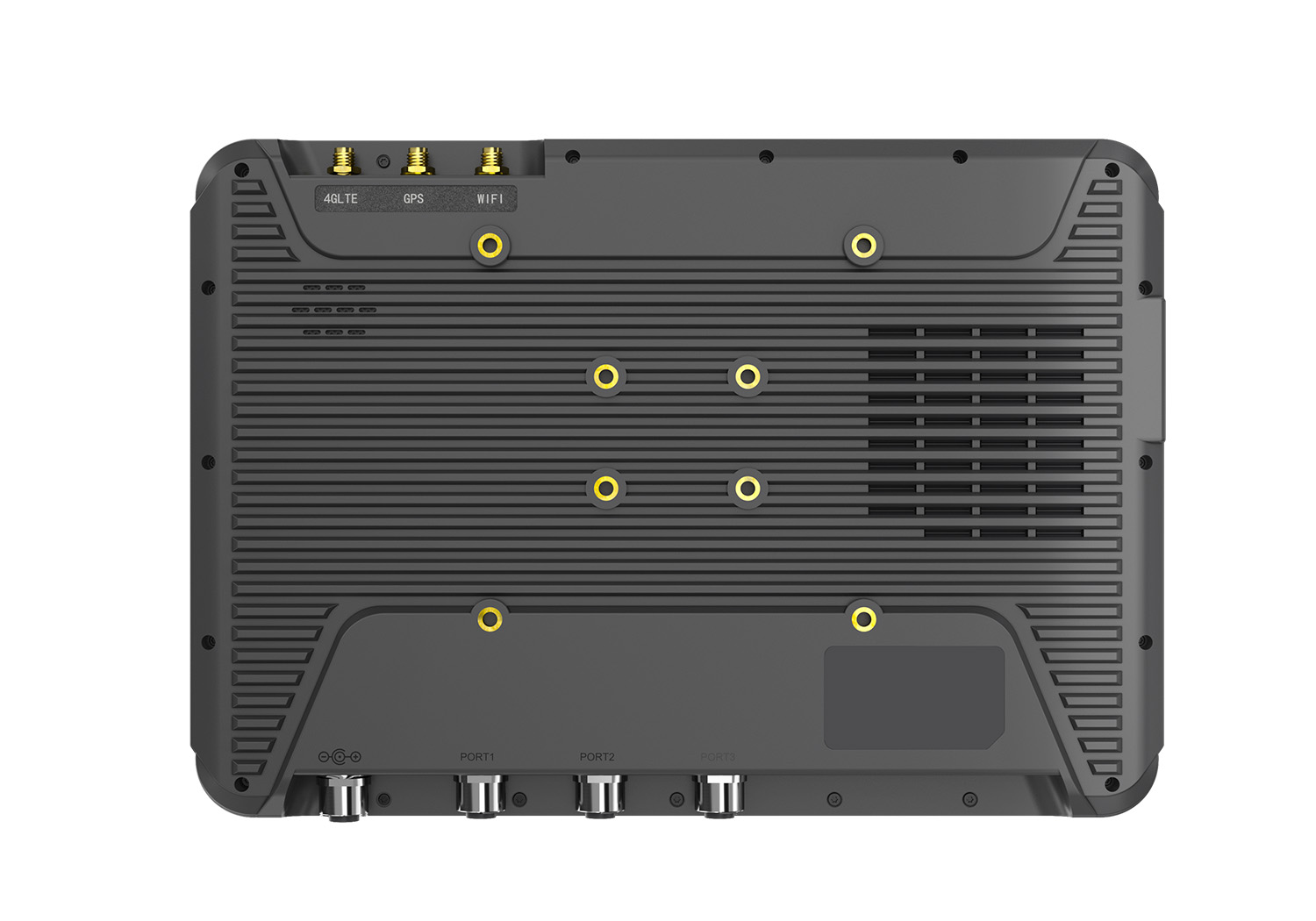

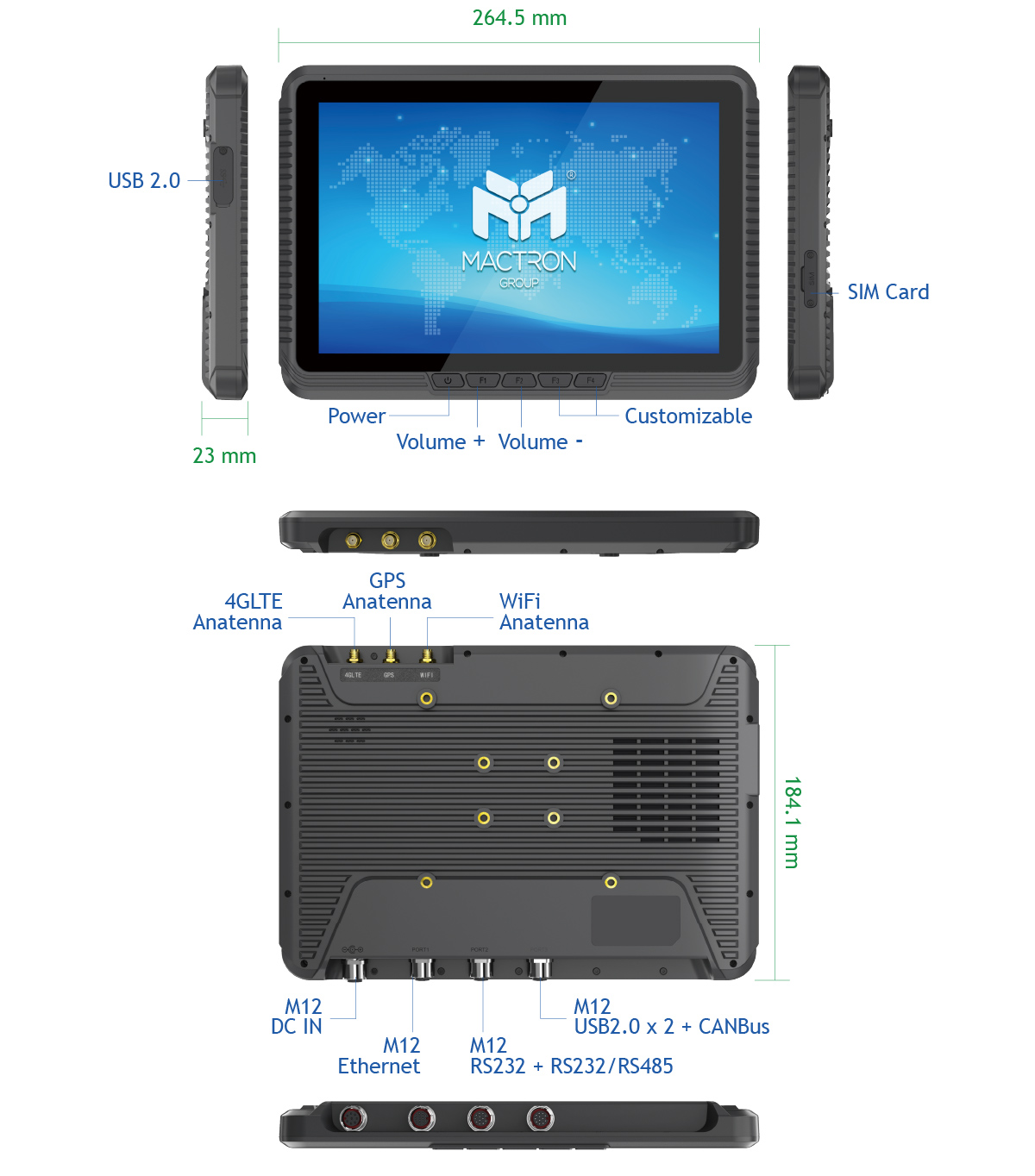

I/O Ports	Micro SIM Card
	1 x USB 2.0 Type A
	1 x M12 DC Input
	1 x M12 100M Network Port
	1 x M12 RS232 + RS232
	1 x M12 USB2.0 + CAN Bus
Communication	WiFi - 802.11(a/b/g/n/ac) Dual frequency 2.4G + 5.0G(5.1G+5.8G), Support AP seamless roaming
	4G - GSM(B2/3/5/8) + WCDMA (B1/B2/5/8) + TDS (B34/B39) + FDD (B1/2/3/4/5/7/8/13/17/20/28AB) + TDD(B38/39/40/41) + TDD (B38/39/40/41)
	Bluetooth - BT 5.2
	GPS - GPS (L1 1.575GHz C/A code), Beidou (B1 1.561GHz), GLONASS (L1 1.602GHz)
Physical
Audio	2.5W Single Horn
Module	NFC Module
Buttons	1 x Power
	1 x Volume - Key (F1)
	1 x Volume + Key (F2)
	1 x Customizable (F3)
	1 x Customizable (F4)
Battery	2000mAh, Li-polymer Battery
Power Adapter	DC 12V/4A
Product Dimension	264.5 x 184.1 x 23.0mm
Product Weight	824g
Standard Accessory	1 x Power Adapter
	1 x WiFi Rod Antenna
	1 x GPS Vehicle Mushroom Antenna
	1 x 4G Rod Antenna
	1 x M12 Function Adapter Cable 1 (12PIN USB2.0x1 + CAN Busx1)
	1 x M12 Function Adapter Cable 2 (12PIN to full function RS232 power line + serial communication 485)
	1 x M12 Function Adapter Cable 4 (12PIN to 100M RJ45) *Need to Rebuild 4G Small Board and Add LAN
Environment
IP Rating	IP65
Certification	CE, FCC, CCC, MIL-STD-810H
Operating Temperature	-20°C ~ 60°C
	-10°C ~ 60°C (Battery Mode)
Storage Temperature	-30°C ~ 70°C
Relative Humidity	95% (non-condensing)
Warranty	2 Years

MAV1012

Standard Accessory

Power Adapter Cable

Power Adapter (12V/4A DC φ4.0 Adapter)

WiFi Rod Antenna

GPS Vehicle Mushroom Antenna

4G Rod Antenna

M12 Function Adapter Cable 1
(12PIN USB2.0x1 + CAN Busx1)

M12 Function Adapter Cable 2
(12PIN to full function RS232 power line + serial communication 485)

M12 Function Adapter Cable 4
(12PIN to 100M RJ45(with LED))
* Need to Rebuild 4G Small Board and Add LAN

Optional Accessory

Wide Voltage Module
(9~36V Wide Voltage Input, 12V ± 0.5V Constant Voltage Output to Equipment)

M12 Function Adapter Cable 3
(12PIN to full function RS232 power line + serial communication 232)

M12 Function Adapter Cable 5
(12PIN to 12 Loose Wires 1.2m to Meet The Customer's Demand for Self Connection)
