MCA0556

5.5” Commercial Grade Android Mobile Tablet PC

  • Datasheet
    • Commercial Grade Android Mobile Tablet PC Commercial Grade Android Mobile Tablet PC Commercial Grade Android Mobile Tablet PC Commercial Grade Android Mobile Tablet PC

    • 5.5" Android 11.0 System with GMS

    • Qualcomm® Snapdragon™ 662 Octa Core

    • 5200mAh Capacity, Li-ion Battery (Removable)

    • 2G, 3G, 4G LTE

    • IP65, 1.8m Drop Test

    • Support Fingerprint, UHF RFID Module

    Applications:

    Logistics Management, Warehouse Optimization, Inventory Checking, Asset Management, Process Supervision

    Other MCA Series == Back to MTP

    MCA0556 5.5” Multiple Functions Tablet
    Android 11.0, Qualcomm MSM8953
    5200mAh Large Capacity Battery
    You don’t have to worry your business would be interrupted by power off anymore
    Full Range of Data Collection Functions
    Camera/ NFC/ 2D Barcode Scanner/ UHF RFID
    Ticket validation

    Waiter / Waitress Order

    Inventory management

    Ticket validation
    Application Usage
    Warehouse Optimization Application Usage

    Warehouse Optimization


    Multiple Modules Can Be Adapted To Virtually Any Job And Environment
    Multiple Accessories Can Be Adapted To Virtually Any Job And Environment
    Display
    Display type5.5" IPS
    Resolution1440 x 720
    Brightness450 nits
    Touch Panel5 Points Projected Capacitive Touch Panel
    Main System
    CPUQualcomm® Snapdragon™ 662 Octa Core
    Memory3GB
    Storage32GB
    OS SupportAndroid 11
    Developing EnvironmentSDK: Supported
    Language: Java
    Tool: Eclipse / Android Studio
    CommunicationWLAN: 802.11 a/b/g/n/ac/d/e/h/i/k/r/v (2.4G + 5G dual-band WiFi)
    WWAN: 4G
    Bluetooth: 5.1
    GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo; Internal Antenna
    Card Slot1 x Nano SIM Card, 1 x Nano SIM or TF Card
    ExpansionSupports up to 128 GB Micro SD card
    InterfaceUSB 3.1, Type-C, OTG, Extended Thimble
    Physical
    Speaker1 x Speaker
    Microphone2 x Microphone
    SensorGravity sensor, Proximity sensor, Light sensor, Accelerometer sensor, Vibration motor
    CameraRear: 13MP Camera with LED Light
    ModuleNFC Module
    Barcode Scanner Module
    Capacitive Fingerprint Module (Optional)
    Internal UHF RFID Module (Optional)
    External UHF RFID Reader (Optional)
    Volume Measurement Module (Optional)
    Battery5200mAh Capacity, Li-ion Battery (Removable)
    Using TimeOver 12hrs (Depending on User Behavior / Environment)
    Power InputAC 100 - 240V
    Power AdapterDC 5V/2A
    Keypad1 power key, 2 volume keys, 2 scan keys, 1 user-defined key
    Packing List
    Standard Accessory 1 x Power Adapter (5V/2A)
    1 x USB Type-C Cable
    1 x Docking Station
    1 x Power Adapter (for Docking Station)
    1 x Hand Strap

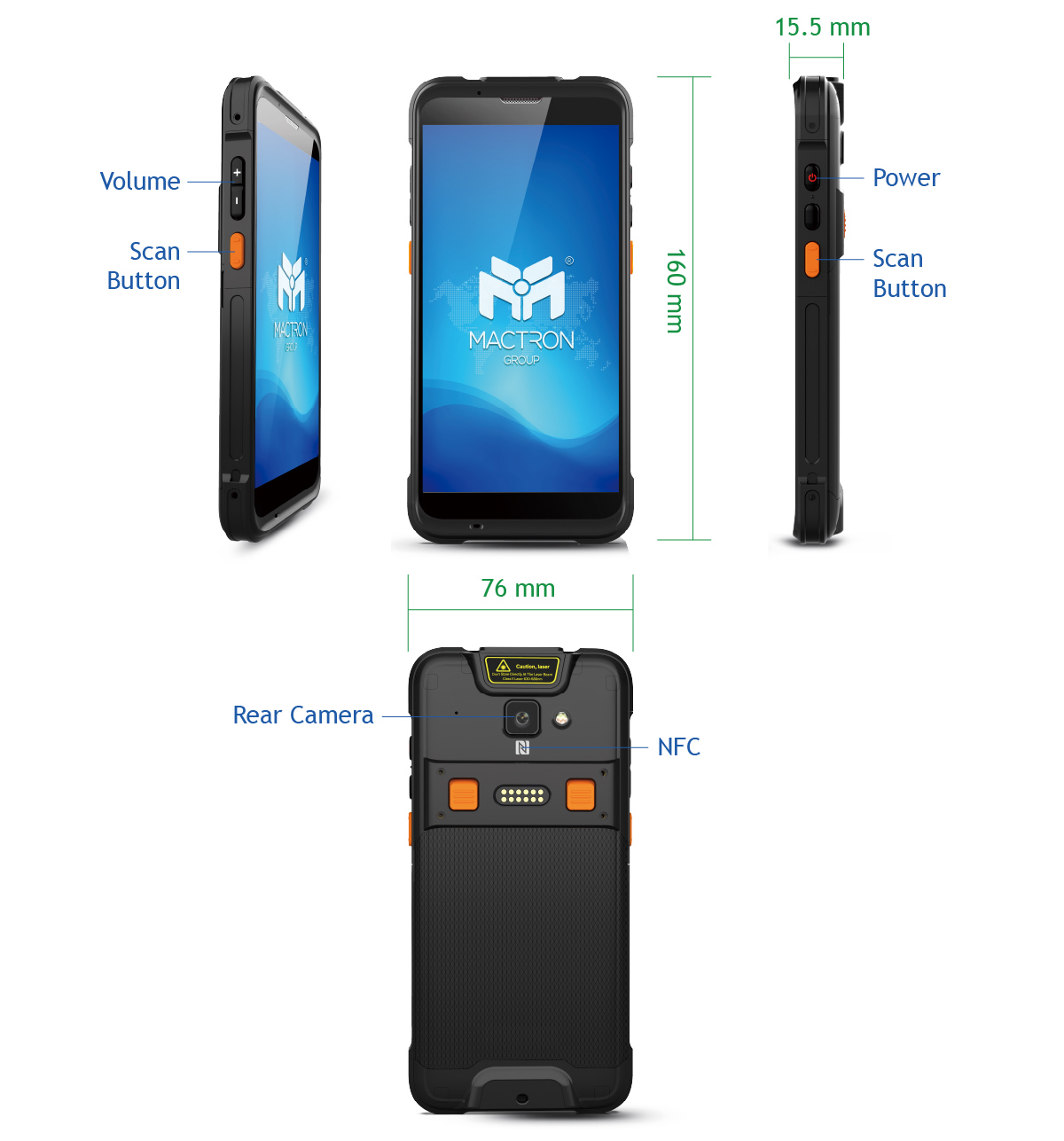

    Product Dimension 160 x 76 x 15.5 mm
    Product Weight 287g
    Box Dimension 197 x 112 x 77 mm
    Box Weight 630g
    Environment
    Rugged Feature IP65, 1.8m Drop Test
    Operating Temperature -20°C to 50°C
    Storage Temperature -40°C to 70°C
    Humidity 5% ~ 95% (non-condensing)

    Module Configuration

    Barcode Scanner Module
    2D Barcode EngineZebra: SE4710 / SE2100;
    Honeywell: N6603; E3200; IA166S
    1D SymbologiesUPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
    2D SymbologiesPDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
    NFC Module
    Frequency13.56 MHz
    ProtocolISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
    ChipsM1 card (S50, S70), CPU card, NFC tags, etc.
    Range2 to 4 cm
    Fingerprint Module
    SensorTCS1
    Sensing Area (mm)12.8 x 18.0 ; 10.4 x 14.4
    Resolution (dpi)508 dpi, 8-bit greylevel
    CertificationsFIPS 201, STQC
    Format ExtractionISO 19794, WSQ, ANSI 378, JPEG2000
    Fake Finger DetectionSupport by SDK
    SecurityAES, DES key encryption of the host communication channel
    * Fingerprint version does not support ATRI055 accessory
    Volume Measurement
    SensorIRS1645C
    Measurement Error 5%
    ModuleMD101D
    Field of View AngleD71°/H60°/V45°
    Measurement Speed2s/ piece
    Measured Distance40cm-4m
    * Volume Measurement version does not support ATRI055 accessory
    UHF RFID (Internal) Module
    EngineImpinj E510
    Frequency865-868 MHz / 920-925 MHz / 902 MHz
    ProtocolEPC C1 GEN2 / ISO18000-6C
    AntennaCircular polarization (-2.5 dBi)
    Power1 W (+19 dBm to +30 dBm adjustable)
    R/W rangeUp to 1.5 m
    UHF RFID (With Back Clip)
    EngineImpinj E710 ; Impinj Indy R2000
    Frequency865-868 MHz / 920-925 MHz / 902 MHz
    ProtocolEPC C1 GEN2 / ISO18000-6C
    AntennaCircular Polarized Antenna (4 dBi)
    Power1W (30 dBm, +5 dBm to +30 dBm adjustable) ; 2W (33 dBm, for Latin America, etc.) (Optional)
    R/W rangeUp to 15 m (open outdoors, Impinj MR6 tag)
    Fastest Read Rate900+ tags/sec
    Communication ModePin Connector
    UHF RFID (With Sled Reader)
    EngineImpinj E710 ; Impinj Indy R2000
    Frequency865-868 MHz / 920-925 MHz / 902 MHz
    ProtocolEPC C1 GEN2 / ISO18000-6C
    AntennaCircular Polarized Antenna (3 dBi)
    Power1W (30 dBm, support +5~+30 dBm adjustable) ; 2W (33 dBm, for Latin America, etc.) (Optional)
    R/W rangeUp to 10 m (open outdoors, Impinj MR6 tag)
    Fastest Read Rate900+ tags/sec
    Communication ModePin Connector / Bluetooth

    Optional Accessory


    Optional Module

    Standard Accessory

    Power Adapter

    USB Type-C Cable

    Charging Cradle

    Hand Strap

    Datasheet

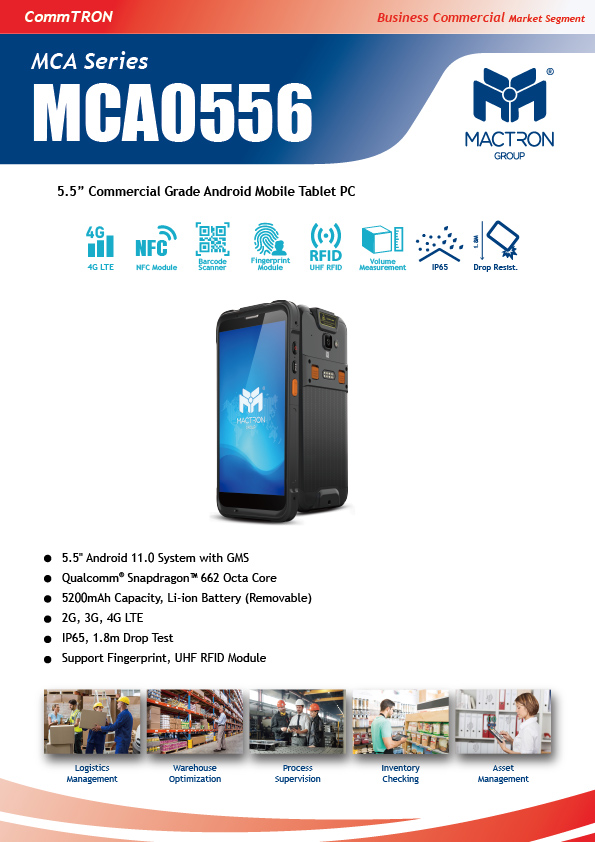

    flyer MCA0556
