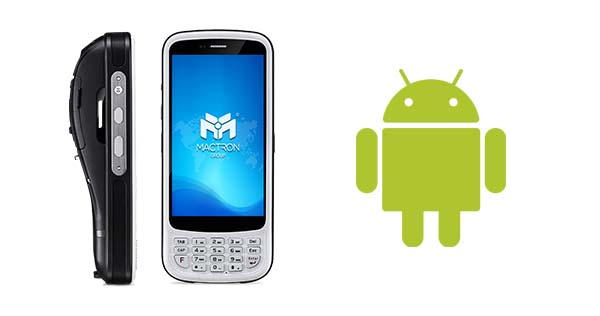

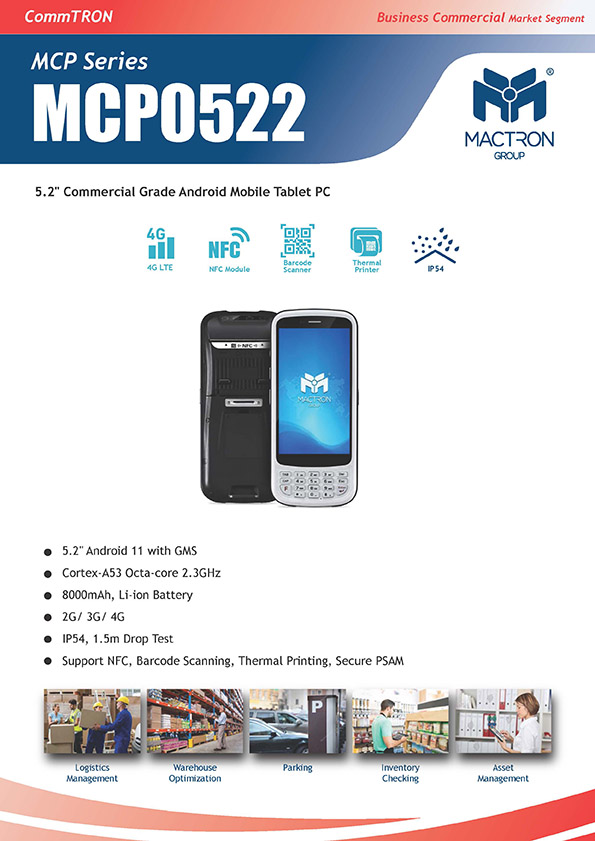

5.2" Android 11 with GMS
Cortex-A53 Octa-core 2.3GHz

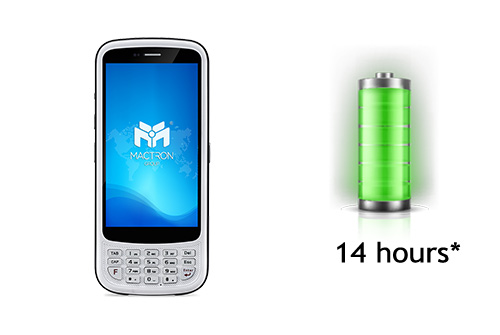

8000mAh, Li-ion Battery
2G/ 3G/ 4G
IP54, 1.5m Drop Test

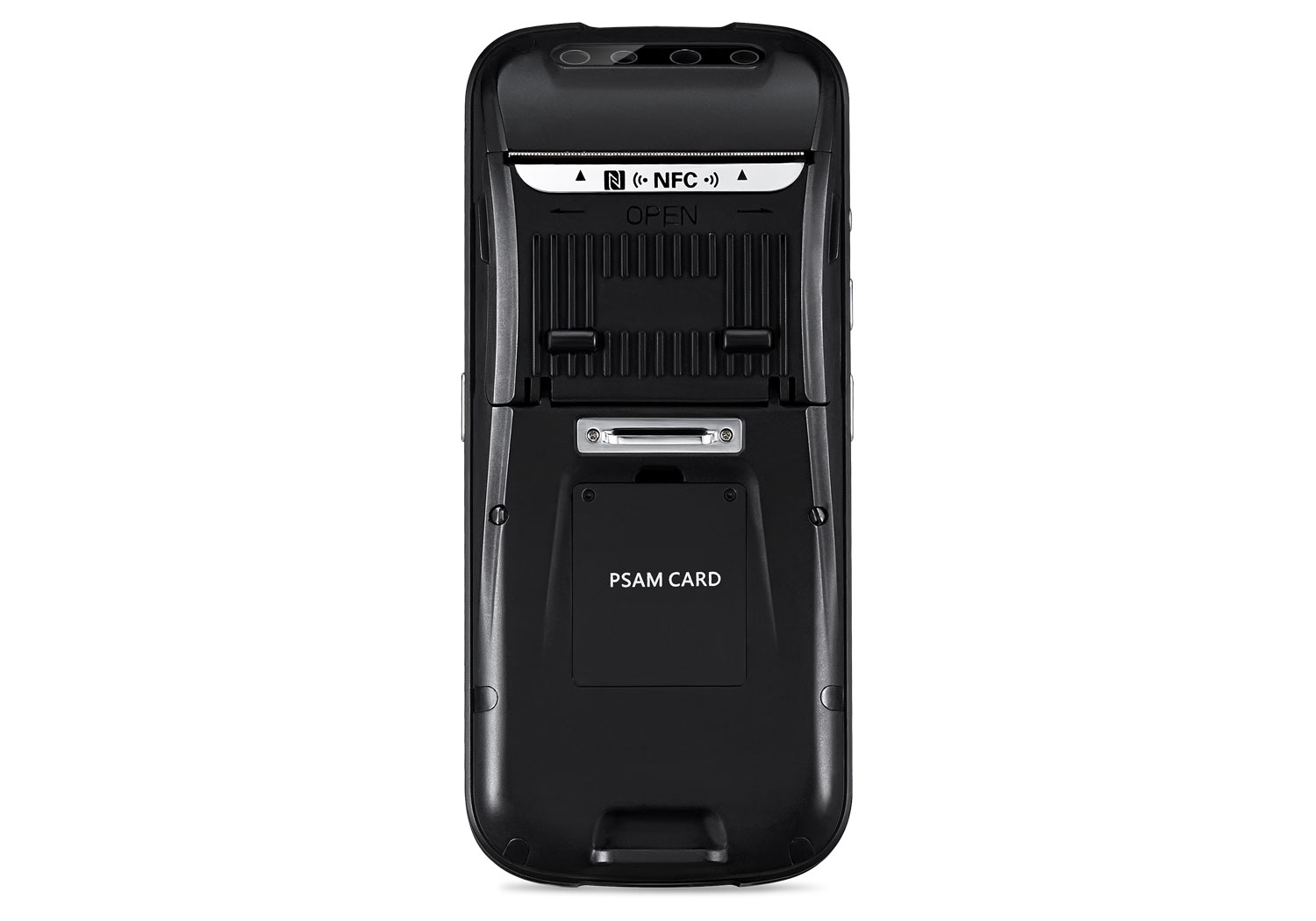

Support NFC, Barcode Scanning, Thermal Printing, Secure PSAM
Logistics Management, Warehouse Optimization, Inventory Checking, Asset Management, Retail, Parking
| Display | |
|---|---|
| Display type | 5.2" IPS FHD |
| Resolution | 1920 x 1080 |
| Brightness | 520 nits |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Main System | |
| CPU | Cortex-A53 2.3 GHz Octa-core |
| Memory | 3GB |
| Storage | 32GB |
| OS Support | Android 11 |
| Developing Environment |
SDK: Supported Language: Java Tool: Eclipse / Android Studio |
| Communication |
WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band WWAN: 4G Bluetooth 5.0 GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Card Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Expansion | 2 PSAM slots at most (ISO7816 protocol) |
| Interface | USB 2.0 Type-C, OTG |
| Physical | |
| Audio | 1 microphone; 1 speaker; receiver |
| Sensor | Light sensor, proximity sensor, gravity sensor |
| Camera | 13MP Autofocus with flash |
| Module |
NFC Module Thermal Printer Barcode Scanner Module (Optional) |
| Battery | 8000mAh, Li-ion, rechargeable |
| Power Input | AC 100 - 240V |
| Power Adapter | DC 5V/2A |

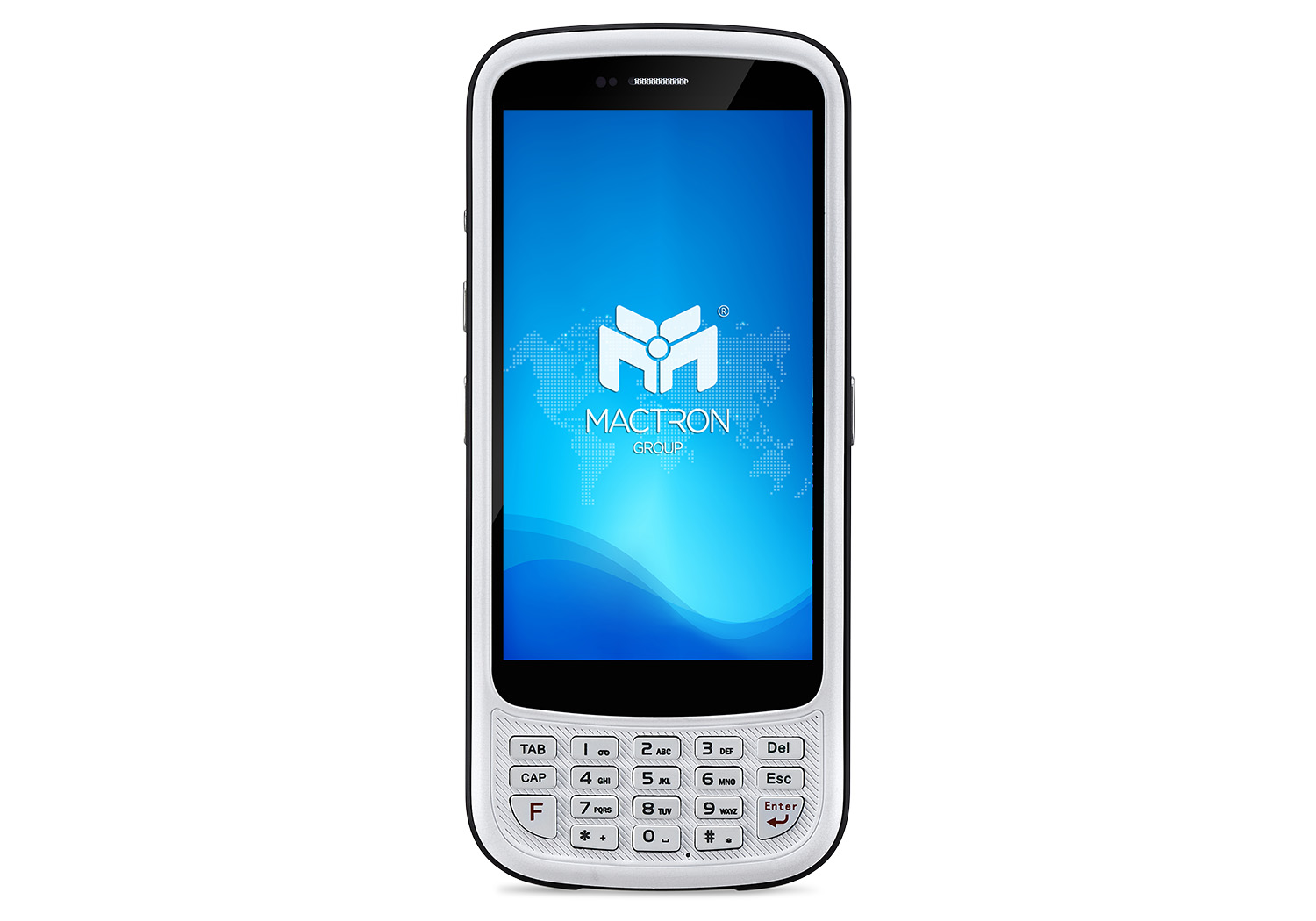

| Keypad | 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard |
| Packing List | |
| Standard Accessory |
1 x Power Adapter (5V/2A) 1 x USB Type-C Cable 1 x Lanyard 1 x SIM Tray Ejector 1 x Thermal Paper Roll |

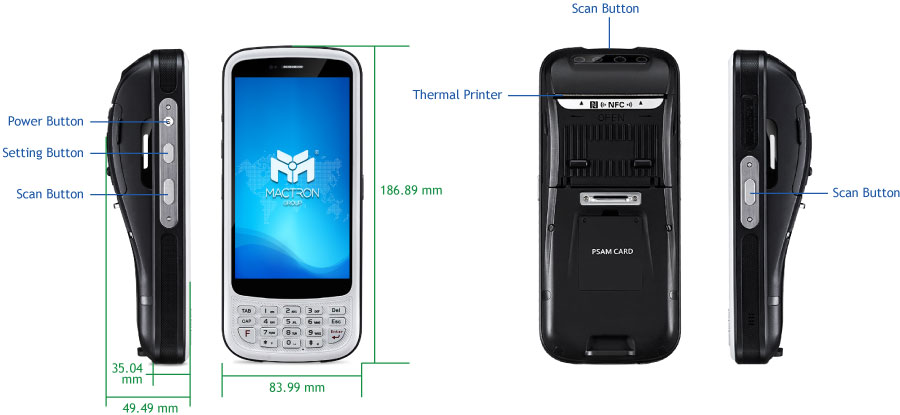

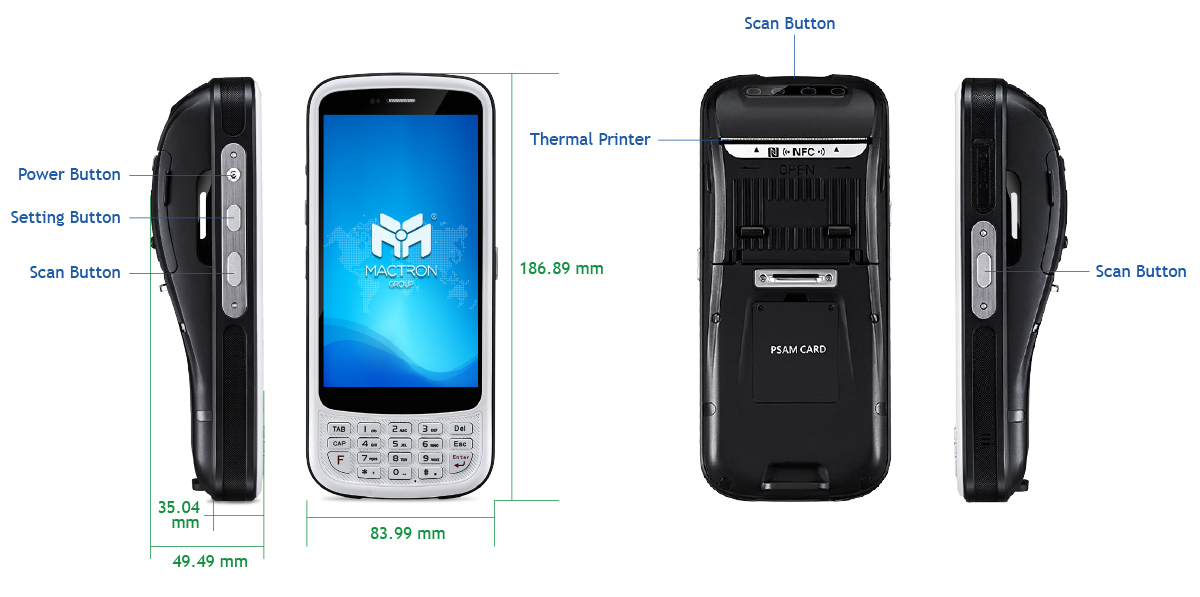

| Product Dimension | 186.89 x 83.99 x 35.04 - 49.49mm |
| Product Weight | 507g / 17.88oz |
| Environment | |
| Rugged Feature | 1.5m Drop Test |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% - 95% (non-condensing) |
| Barcode Scanner Module | |
|---|---|
| 2D Barcode Engine | Zebra SE4710, Honeywell N6603, Coas IA166S / IA171S |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| NFC Module | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc |
| Range | 2-4 cm |
| Thermal Printer | |
| Rate | 85mm/s |
| Image Size (pixel) | 384 dots |
| Paper Width | 58 mm |
| Paper Diameter | 3 cm |
| Paper Length | 5.45 m |
