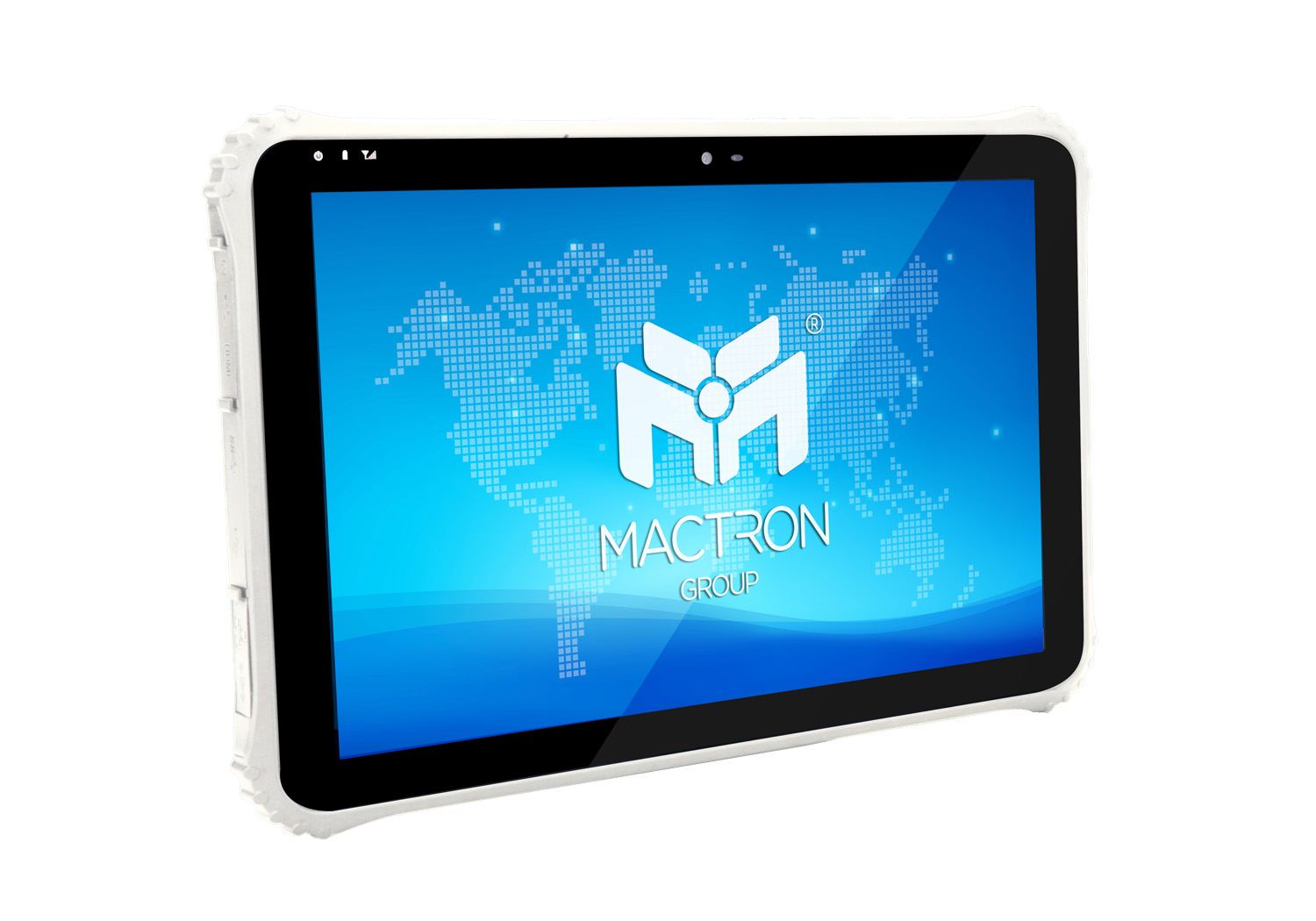

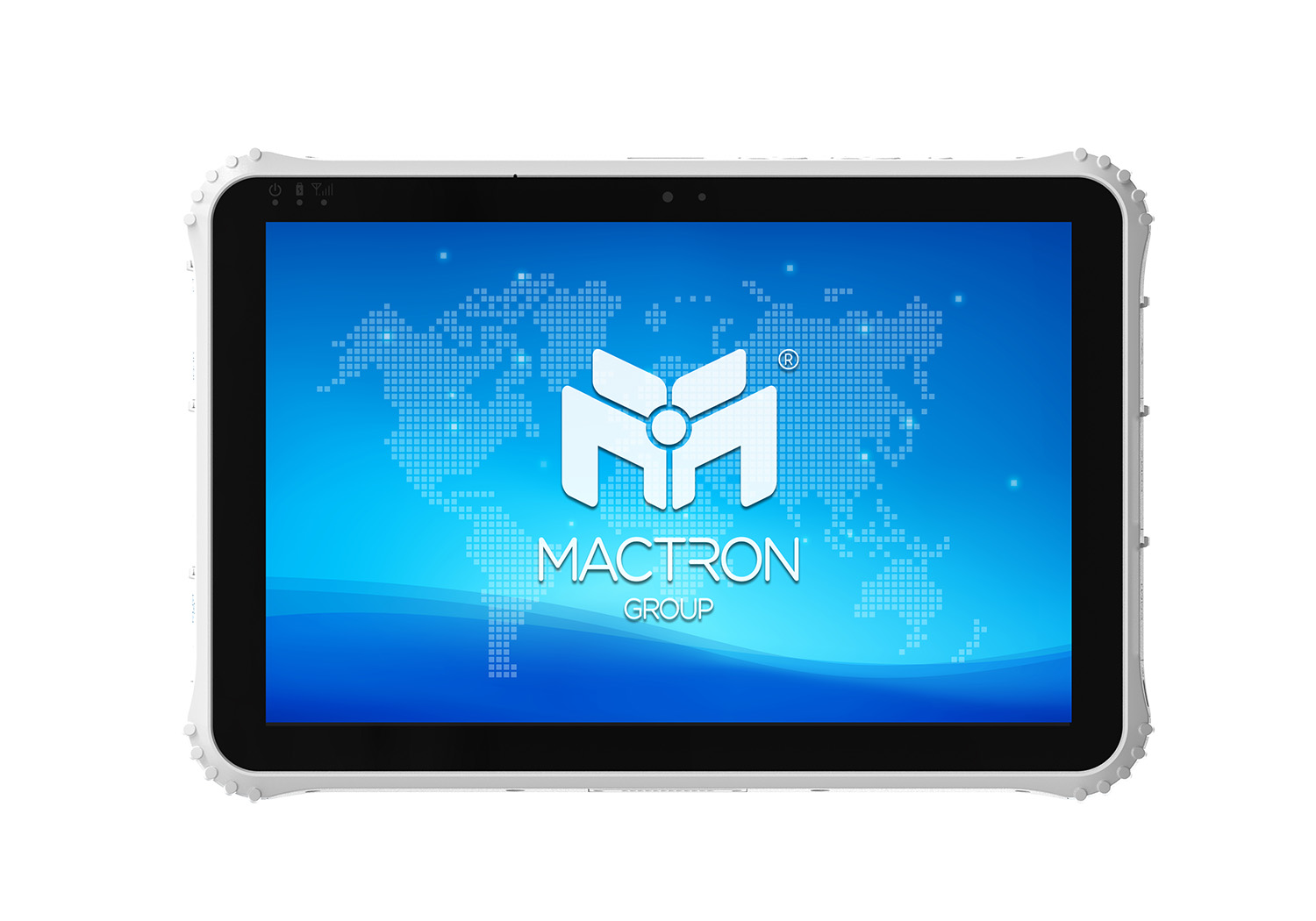

MMS1221

12.2″ Medical Rugged Windows Mobile Tablet PC

  • Datasheet

    • 12.2" Medical Grade Windows System

    • Intel® Celeron® N5100 Processor

    • Dual Capacity Battery Design

    • IP65 Ruggedized Protection

    • Alcohol Resistant, Anti-BACTERIA

    • IEC60601 Medical Certified

    Applications:

    Medical & Healthcare, Daily Patient Management, Remote Mobile Medical Service, Medicine Management, Emergency Field, etc.

    MMS1221 12.2" Medical Grade Tablet

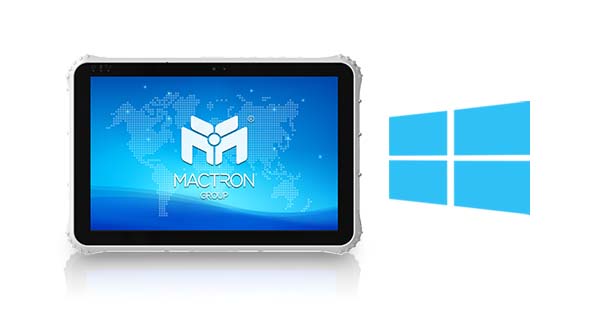

    Windows Base, Intel Jasper Lake N5100

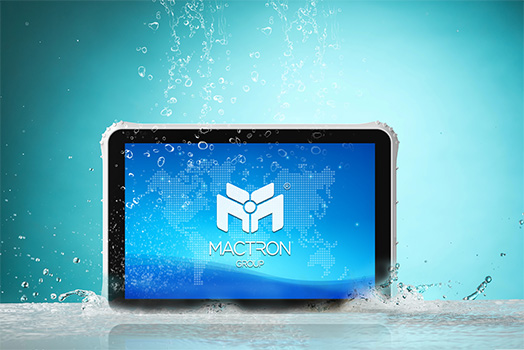

    IP65 Ruggedized Protection

    This rugged tablet is IP65 Dust & Water proof, so you can use it anywhere.

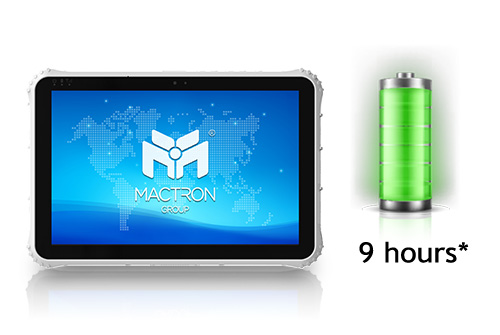

    6,300mAh Large Capacity Battery

    You don’t have to worry your business would be interrupted by power off anymore *9hrs (default 50% volume，default200nit，play 1080P HD video)

    E-Health, Medical Person Could Record And Get Data Conveniently

    Full Range of Data Collection Functions

    NXP NFC（13.56M）/ 1D, 2D Barcode Scanner / Front Camera 5.0MP / Rear Camera 8.0 MP
    Display
    Display Type 12.2″ IPS TFT LCD
    Resolution 1920 x 1200
    Aspect Ratio 16:10
    Brightness 650 nit
    Touch Panel 10 Points Projected Capacitive Touch
    System
    Processor Intel® Celeron® N5100 Quad Core
    GPU Intel® UHD Graphics
    Memory LPDDR4 8 GB
    Storage 128 GB

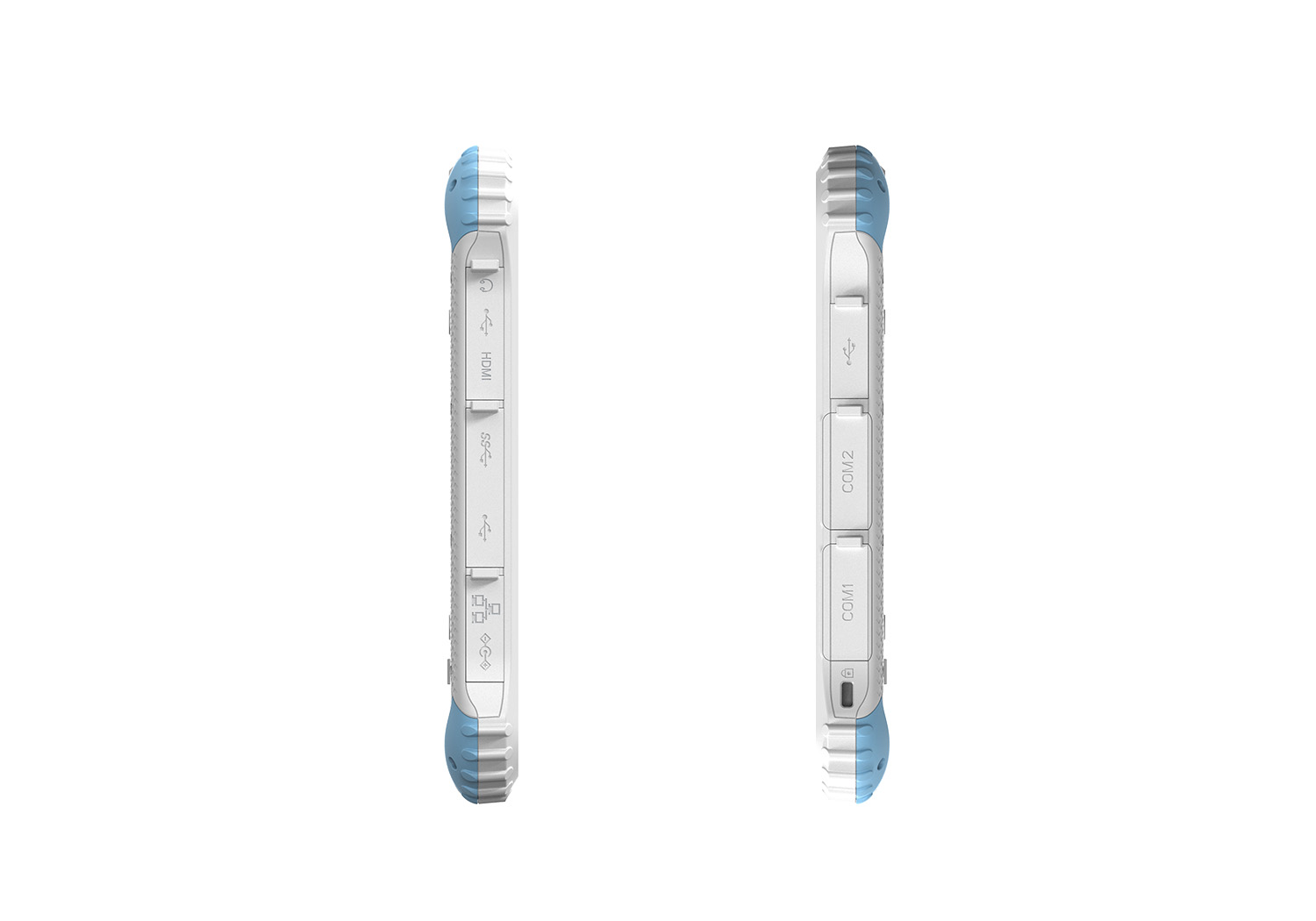

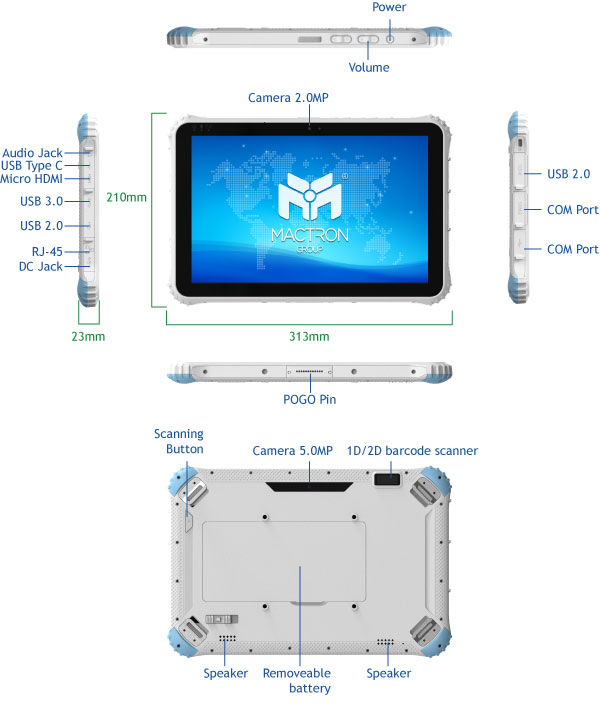

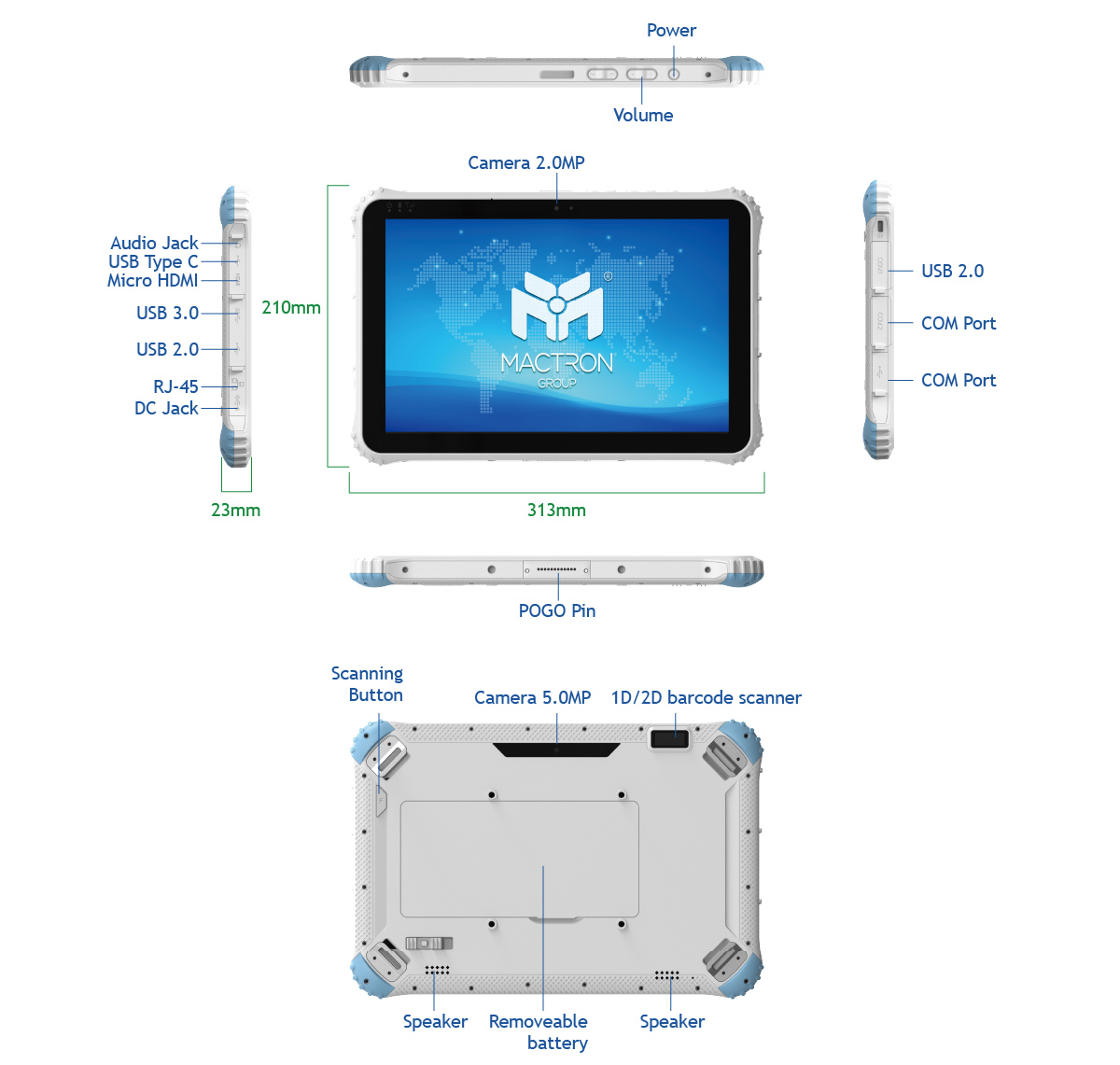

    I/O Ports 1 x USB 2.0 Type A
    2 x USB 3.0 Type A
    1 x USB Type C
    1 x LAN
    1 x HDMI 1.4a Type C
    1 x COM (RS232)
    1 x COM (RS485)
    1 x 3.5mm standard earphone jack
    1 x TF slot (Max.128GB) (SDHC/SDXC)
    1 x SIM slot
    1 x DC jack
    1 x 12pin POGO pin
    Operating System Windows 11
    Physical
    Camera Front Camera : 5.0 MP
    Rear Camera : 8.0 MP
    Speaker 2 x 0.8W
    Color White
    Dimensions (WxHxD) 319.6 x 216 x 24.3 mm
    Weight 1500 g

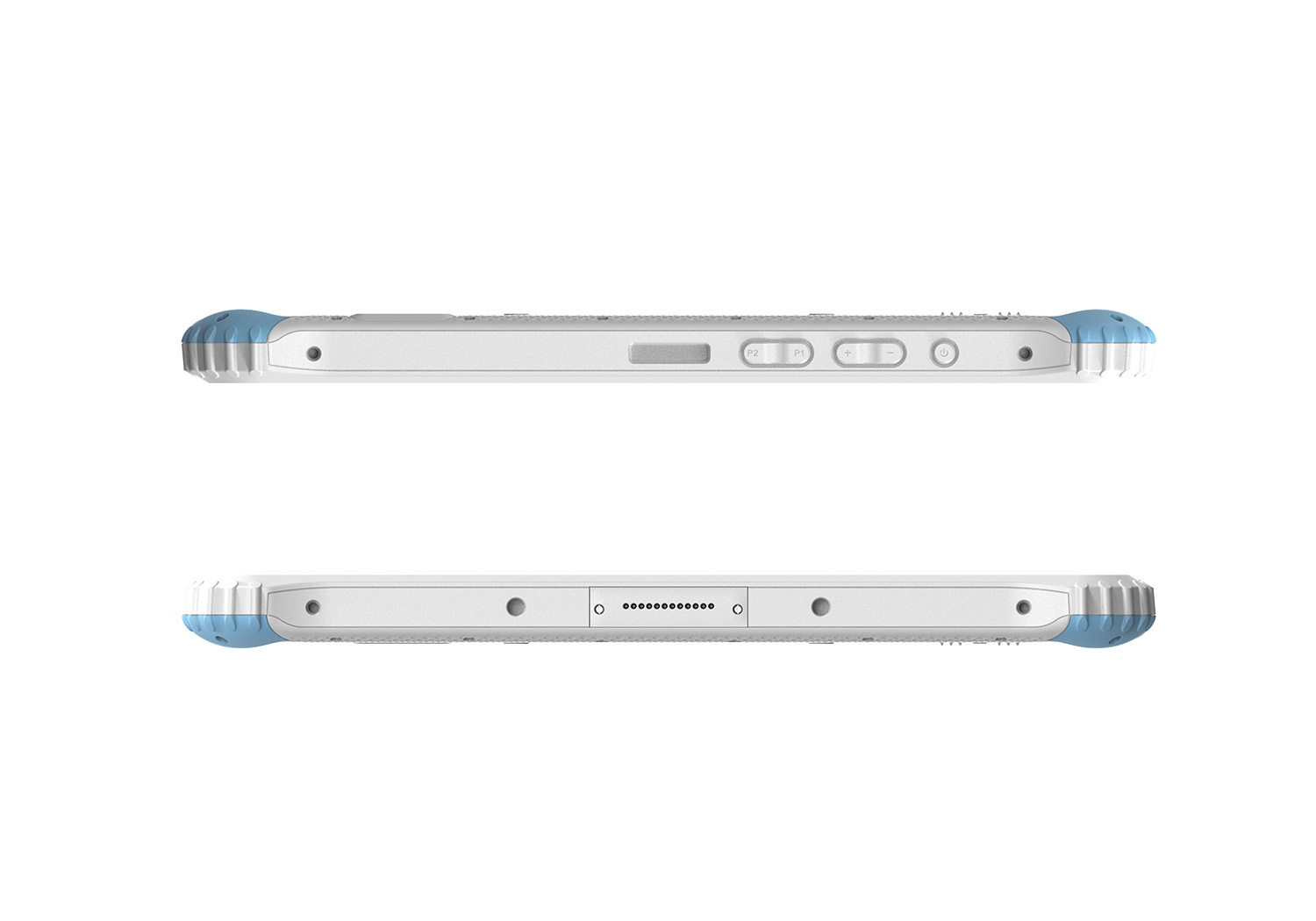

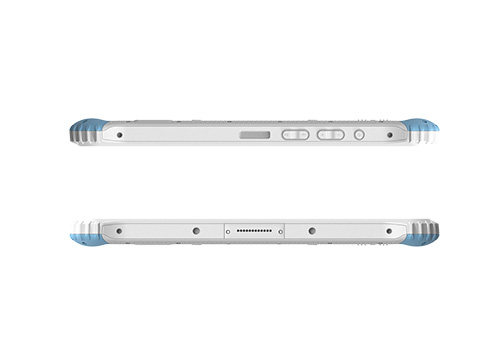

    Button 1 x Power On/Off
    1 x Volume + 1 x Volume - 1 x Scanning 1 x Custom
    Sensor G-sensor
    Battery 1000mAh/7.4V (Built-in); 6300mAh/7.4V (Removable)
    Using Time 9 hrs (Default 50% Volume, 200 nits, Play 1080 HD Video)
    Power Adapter 19 V/3.42 A
    Communication WLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz
    WWAN - 4G
    Bluetooth 5.0
    GNSS - GPS, Glonass
    Data Collection NFC Module
    Barcode Scanner Module (Optional)
    Standard Accessory 1 x Hand Strap
    1 x Power Cable
    Environment
    IP Rating IP65
    Drop Test 1.22 m
    Certification CE/ FCC Part 15 Class B /MIL-STD-810G/ IEC 60601-1
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Relative Humidity 95% (non-condensing)
    Warranty 2 Years

    Optional Accessory

    Docking Station
    ADOCKM1
    Docking Station
    1 x RJ4 / 1 x RS232 / 2 x USB2.0 Type A / 1 x DC Jack
    Removable Battery
    ABATM21
    Removable Battery
    6300mAh / 7.4.55V
    Adapter 19 V/3.42 A
    ADA20C0
    USB Type-C
    Power Adapter

    Datasheet

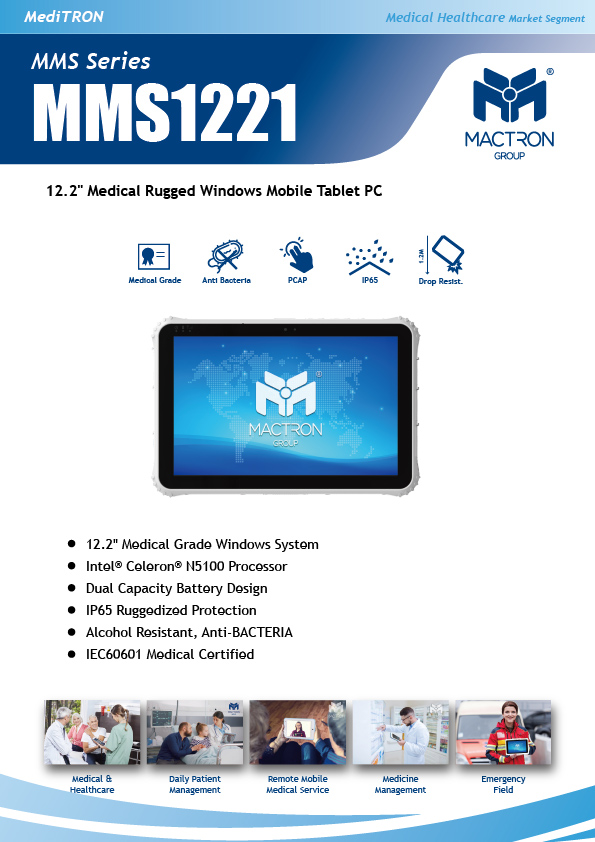

    flyer MMS1221
