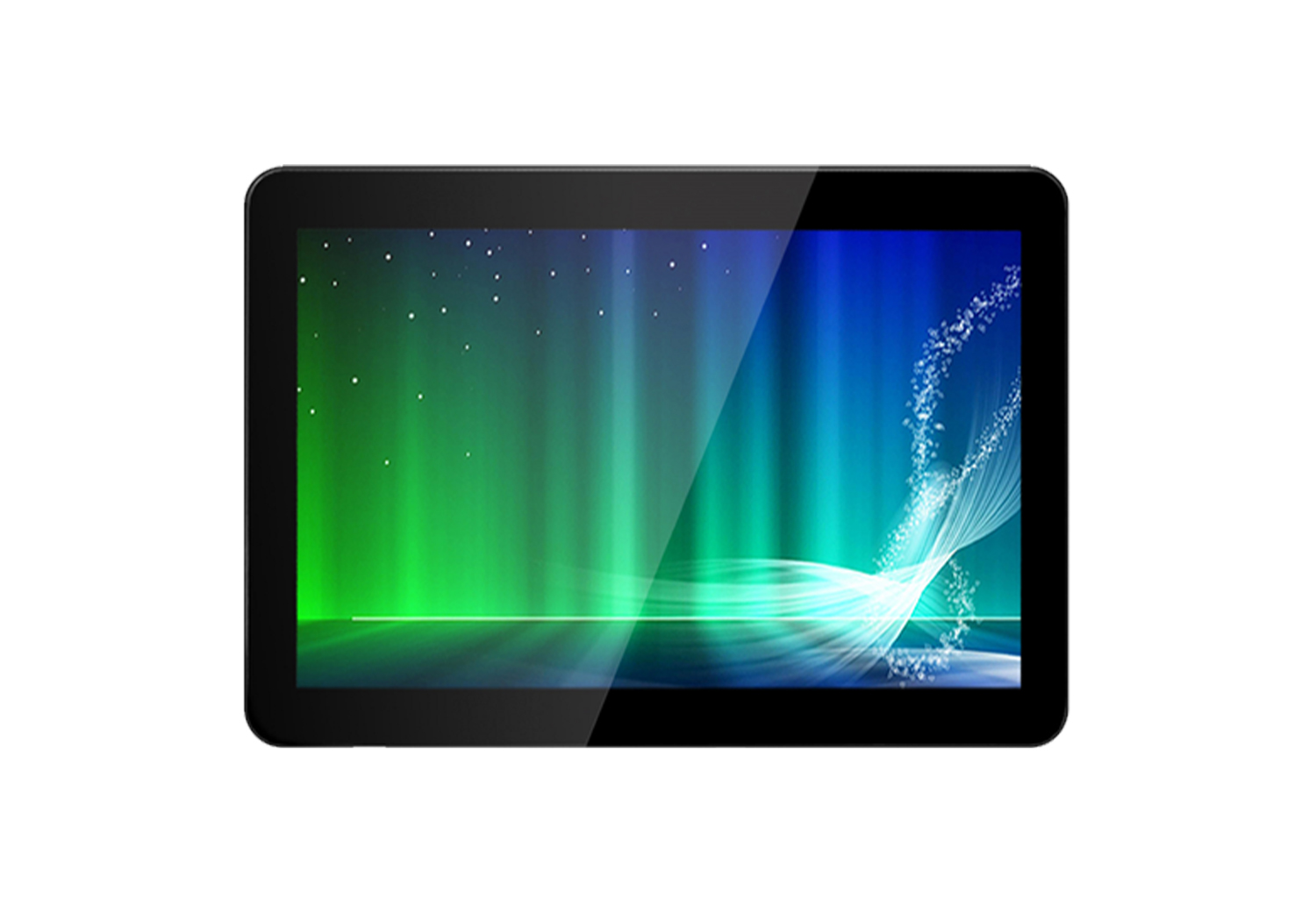

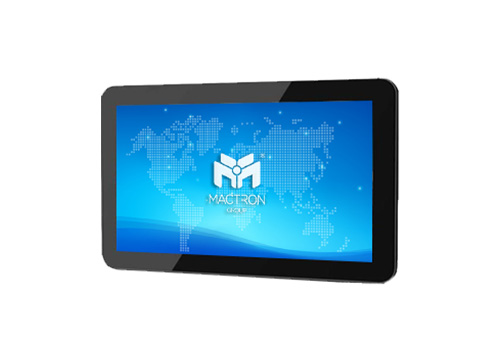

TCS1010

10.1″ Commercial Grade Touch Display Monitor

Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC Medical Mobile Tablet PC
  • Slim Front Bezel Panel Design

  • 10.1″ 1280 x 800 IPS LCD Panel

  • True Flat Panel With Multiple P-Cap Touch

  • Standard VESA 75 Support

  • HDMI Input for Display

  • Built-in Speaker for Audio Output

Applications:

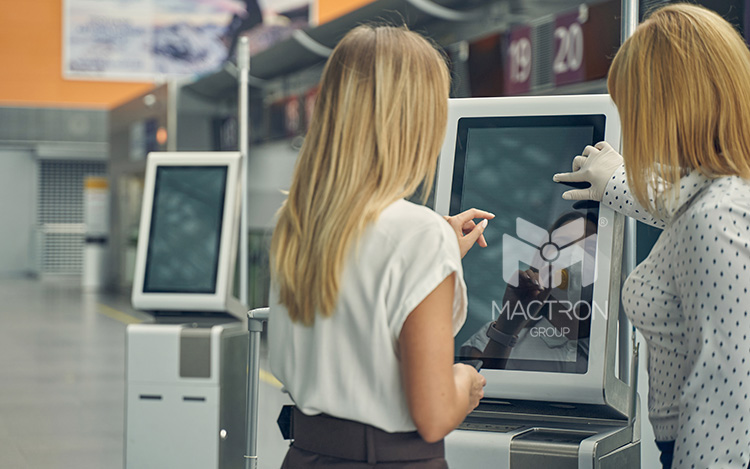

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

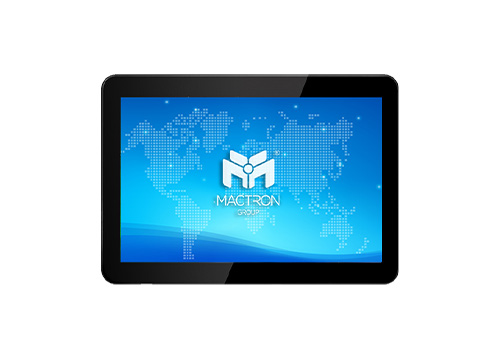

TCS1010 10.1″ Commercial Grade Touch Display Monitor


10 Points PCAP Touch

Projected Capacitive (PCAP) touch screens offer the user friendly multi-touch experience

Slim Front Bezel Panel Design with Plastic Housing

Lightweight Construction with Cost-Effective Design

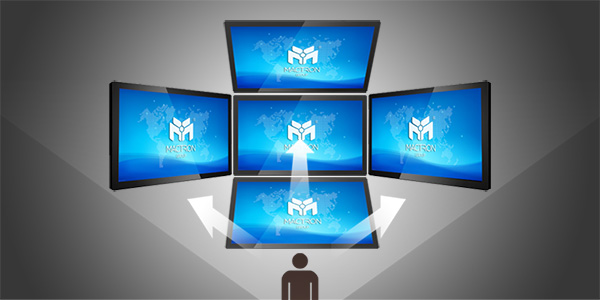

IPS LCD Panel Type

Our IPS Monitor provide a excellent color performance and super wide viewing angle

Application Usage

Data Monitoring

Data Monitoring

Automated Teller Machines

Automated Teller Machines

Display
CPU Novatek 68862
Memory SPI Flash 2M bits
Display Type 10.1″ TFT IPS LCD
Resolution 1280 x 800
Brightness 500 nits
Touch Panel 10 point capacitive multi-touch type
Viewing Angle Horizontal 170° / Vertical 170°
Contrast Ratio 800:1
Response Time 30ms

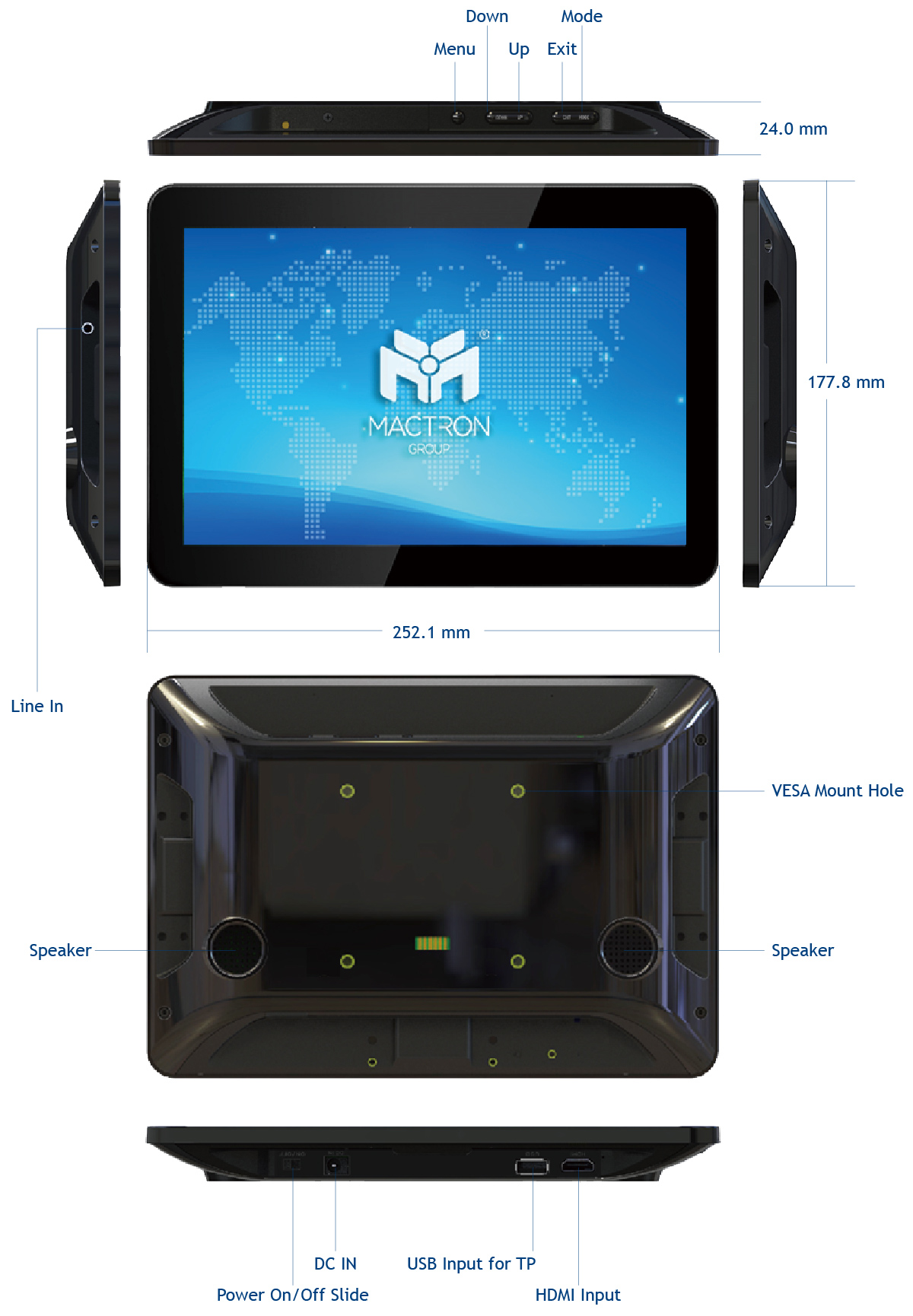

I/O Port 1 x HDMI
1 x USB Type-A (For Touch)
Physical Button 1 x Power Switch
Menu
Up/Down
Auto/Return
Input Mode Select
Physical
Audio 2x 2W Speaker
Color Black

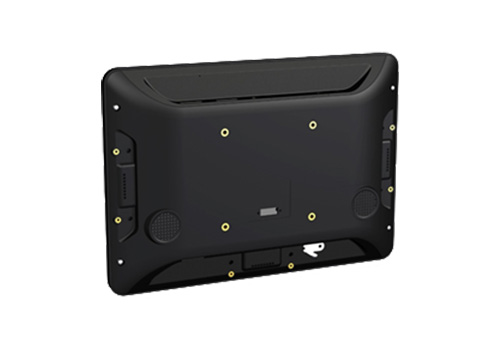

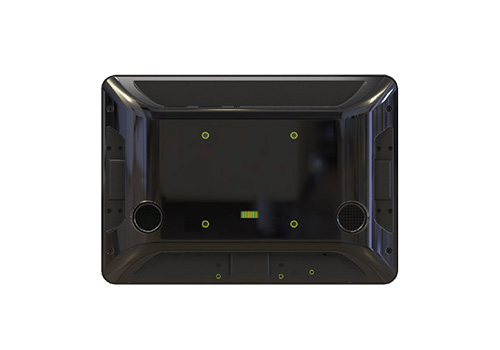

Mounting VESA Mount 75 x 75
Housing Plastic
Power Adapter DC 12V/2A
Standard Accessory 1 x Power Adapter (12V/2A)
Product Dimension 252.1 x 177.8 x 24 mm
Product Weight 594.3
Environment
Certification CE, FCC
Operating Temperature 0°C ~ 40°C ( 32°F ~104°F)
Storage Temperature -10°C ~ 55°C (14°F ~ 131°F)
Relative humidity 10%~ 70% (non-condensing)

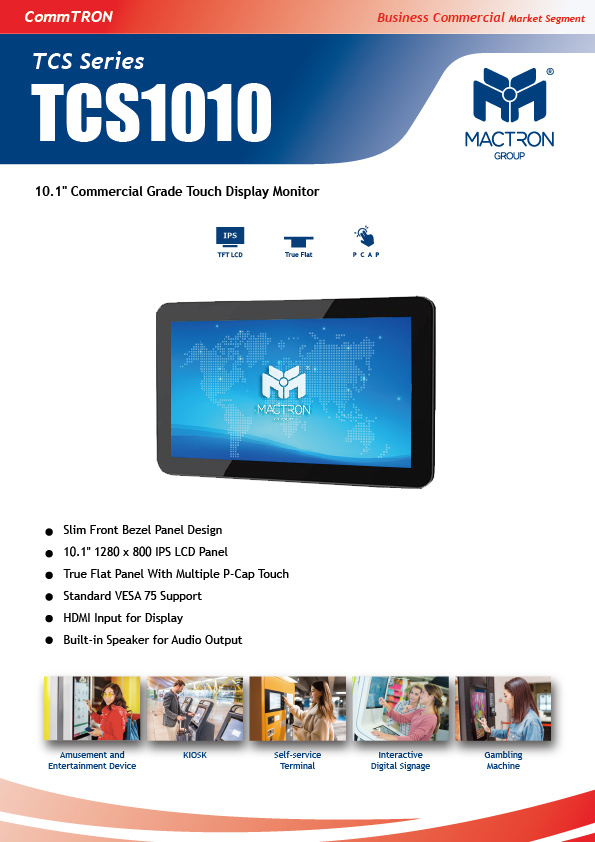

Datasheet
