Slim Front Bezel Panel Design
15.6″ 1920 x 1080 IPS LCD Panel
True Flat Panel With Multiple P-Cap Touch
Standard VESA 100 Support
HDMI Input for Display
Built-in Speaker for Audio Output
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
| Display | |
|---|---|
| CPU | Novatek 68862 |
| Memory | SPI Flash 2M bits |
| Display Type | 15.6″ TFT IPS LCD |
| Resolution | 1920 x 1080 |
| Brightness | 400 nits |
| Touch Panel | 10 point capacitive multi-touch type |
| Viewing Angle | Horizontal 170° / Vertical 170° |
| Contrast Ratio | 800:1 |
| Response Time | 30ms |
| I/O Port |
1 x HDMI 1 x USB Type-A (For Touch) |
| Physical Button |
1 x Power Switch Menu Up/Down Auto/Return Input Mode Select |
| Physical | |
| Audio | 2x 2W Speaker |
| Color | Black |
| Mounting | VESA Mount 100 x 100 |
| Housing | Plastic |
| Power Adapter | DC 12V/2A |
| Standard Accessory | 1 x Power Adapter (12V/2A) |

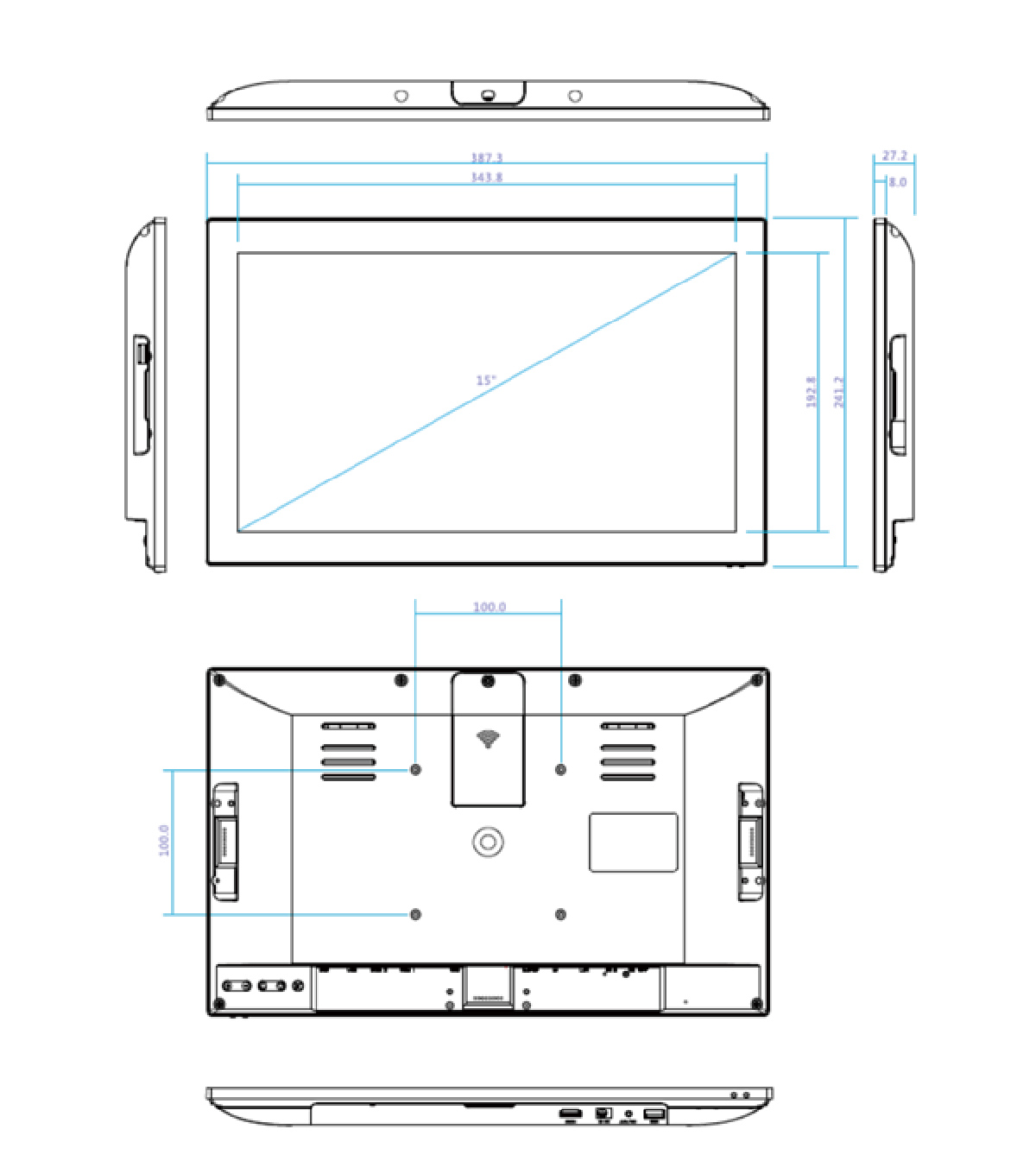

| Product Dimension | 387.3 x 241.2 x 27.2 mm |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 40°C ( 32°F ~104°F) |
| Storage Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Relative humidity | 10%~ 85% (non-condensing) |
