TCS2380

23.8″ Commercial Grade Touch Display Monitor

  • Datasheet
    • Touch Display Monitor Touch Display Monitor

    • Slim Metal Housing

    • IPS Touch Type LCD Panel

    • Optional Open Frame Solution

    • Flexible and High Integration

    • 16:9 Full HD 1920 x 1080 Resolution

    • True Flat Panel With Multiple P-Cap Touch

    Applications:

    Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

    TCS2380 23.8″ Commercial Grade Touch Display Monitor

    10 Points PCAP Touch

    Projected Capacitive (PCAP) touch screens offer the user friendly multi-touch experience

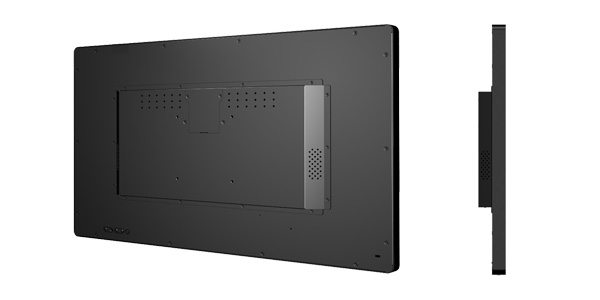

    Slim & Light Weight Design with Metal Housing

    Full range display sizes from 21.5” to 42.5” meet various application and integration

    IPS LCD Panel Type

    Our IPS Monitor provide a excellent color performance and super wide viewing angle

    Application Usage

    Commercial Kiosk

    Commercial Kiosk

    Data Monitoring

    Data Monitoring

    Data Monitoring

    Gambling Machine

    Automated Teller Machines

    Automated Teller Machines

    Automated Teller Machines

    Vending Machine

    Display
    CPU Novatek 68862
    Memory SPI Flash 2M bits
    Display Type 23.8" TFT IPS LCD
    Resolution 1920 x 1080
    Brightness 250 nits
    Touch Panel 10 Points Projected Capacitive Touch Panel
    Viewing Angle Horizontal 178° / Vertical 178°
    Contrast Ratio 1000:1
    Response Time 14 ms
    IO Ports 1 x HDMI
    1 x USB (For Touch)
    Physical
    Audio 2 x 3W Speaker
    Color Black
    Mounting VESA Mount 100 x 100
    Housing Metal
    Power Adapter DC 12V/5A, 60W
    Standard Accessory 1 x Power Adapter (12V/5A)

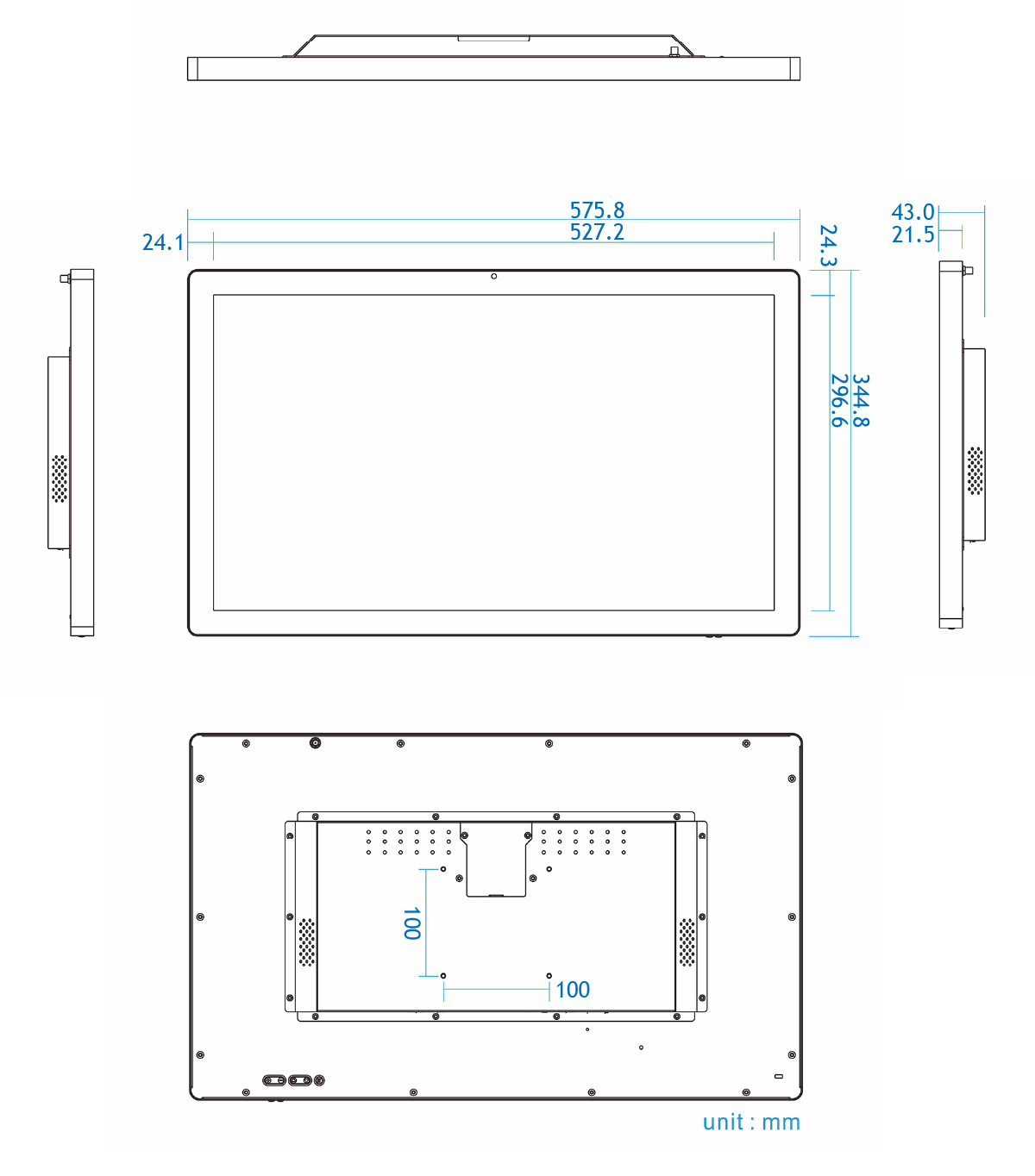

    Product Dimension 575.8 x 344.8 x 44.3 mm
    Product Weight 7.5kgs
    Environment
    Certification CE, FCC
    Operating Temperature 0°C ~ 40°C
    Storage Temperature -10°C ~ 55°C
    Relative humidity 10%~ 85% (non-condensing)

    Datasheet

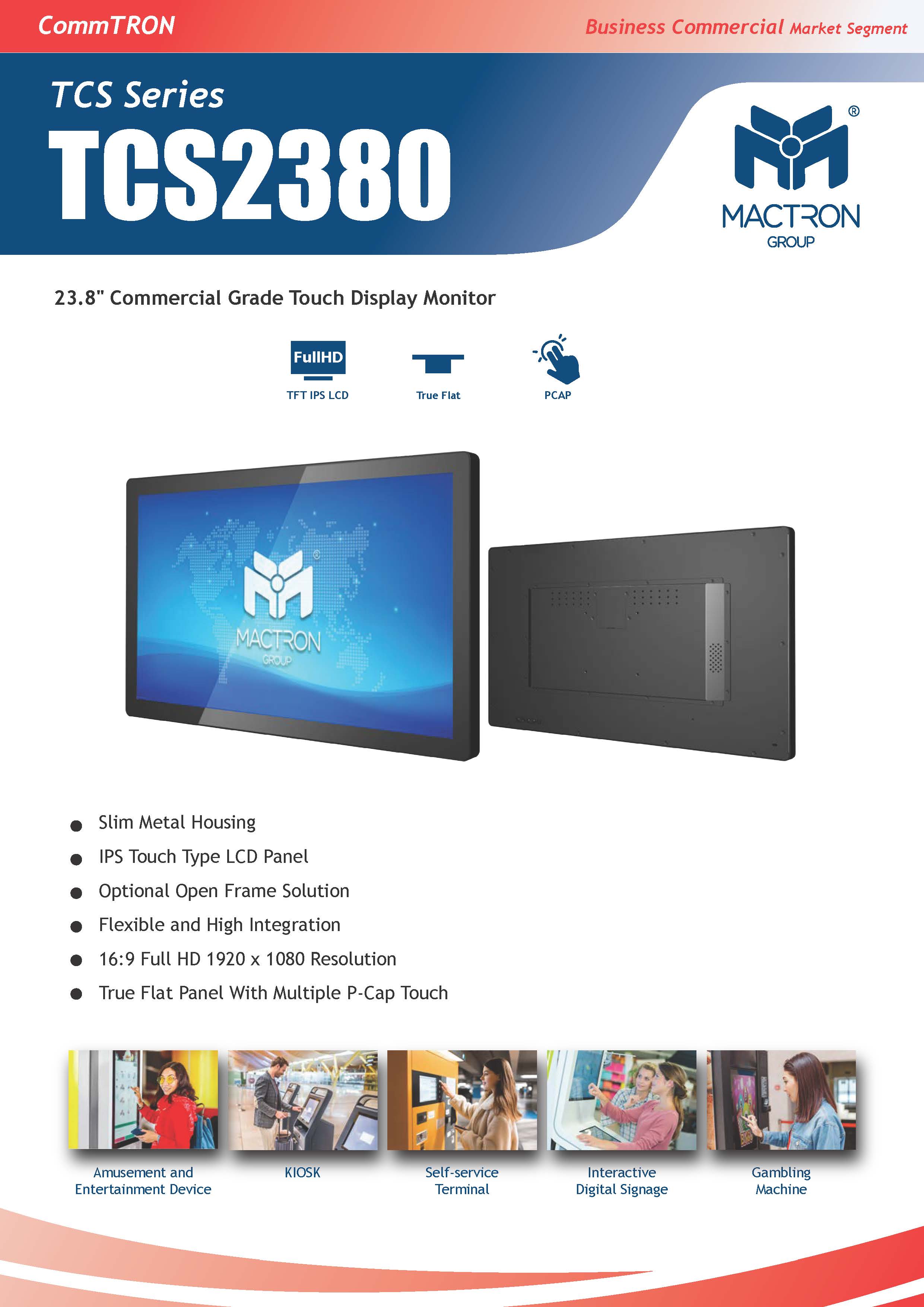

    flyer TCS2380
