Slim Metal Housing
IPS Touch Type LCD Panel
Optional Open Frame Solution
Flexible and High Integration
16:9 Full HD 1920 x 1080 Resolution
True Flat Panel With Multiple P-Cap Touch
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
| Display | |
|---|---|
| CPU | Novatek 68862 |
| Memory | SPI Flash 2M bits |
| Display Type | 32" TFT IPS LCD |
| Resolution | 1920 x 1080 |
| Brightness | 400 nits |
| Touch Panel | 10 Points Projected Capacitive Touch Panel |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| IO Ports |
Power Switch x 1 Power Stand by Button x 1 HDMI x 1 DP x 1 VGA x 1 USB Type A x 1 (For USB Touch) 3.5mm Audio Line-in x 1 |
| Physical | |
| Audio | 3W 8 Ohm x 2 |
| Color | Black |
| Mounting | VESA Mount 200 x 200 |
| Housing | Metal |
| Power Supply | Power Input: 100–240V AC |
| Standard Accessory |
Power Cord x 1 USB Cabe for Touch x 1 |

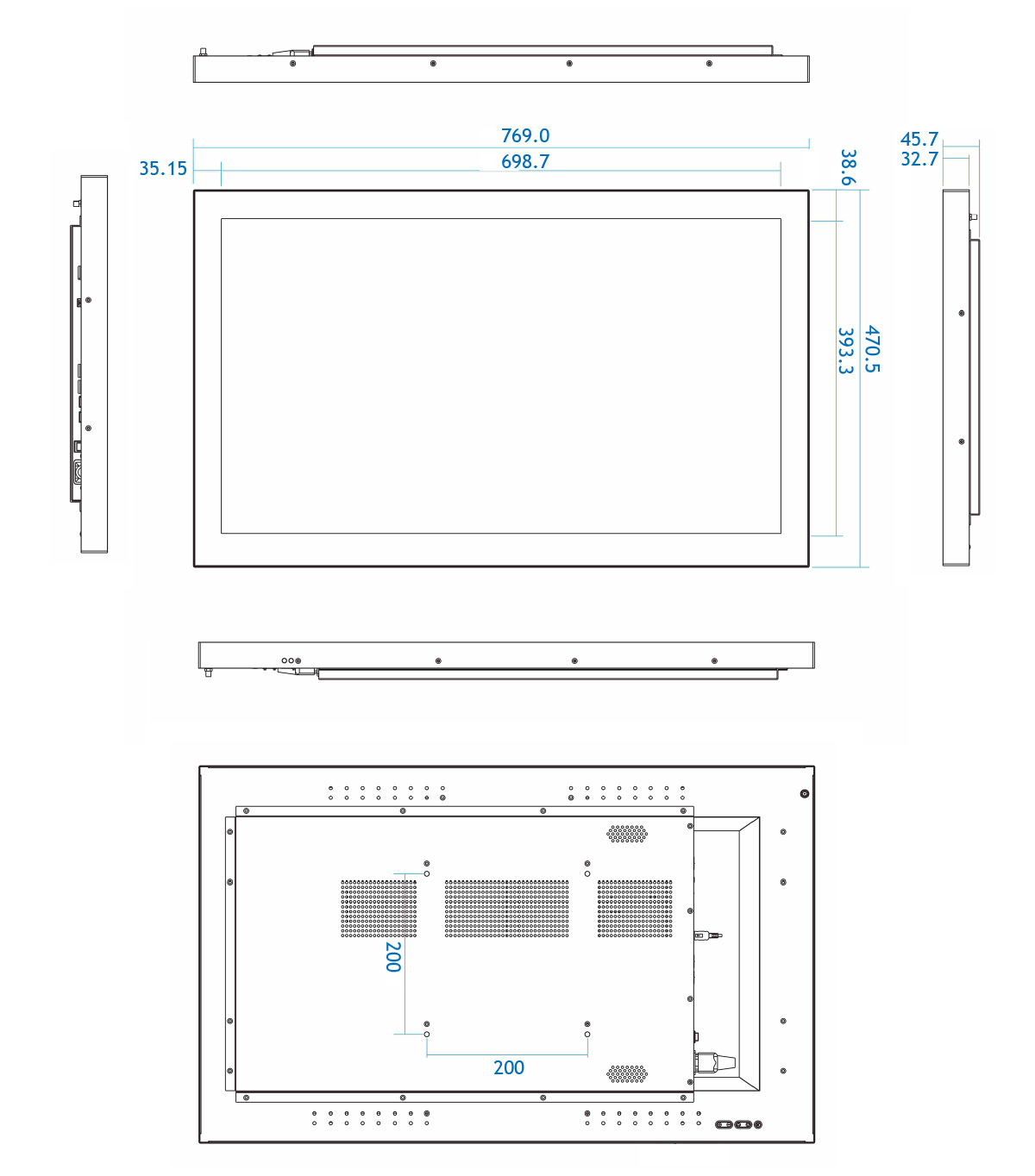

| Product Dimension | 767.7 x 469.2 x 59 mm |
| Product Weight | 13.9 kg |
| Environment | |
| Certification | CE, FCC, LVD |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 55°C |
| Relative humidity | 10% ~ 85% (non-condensing) |
