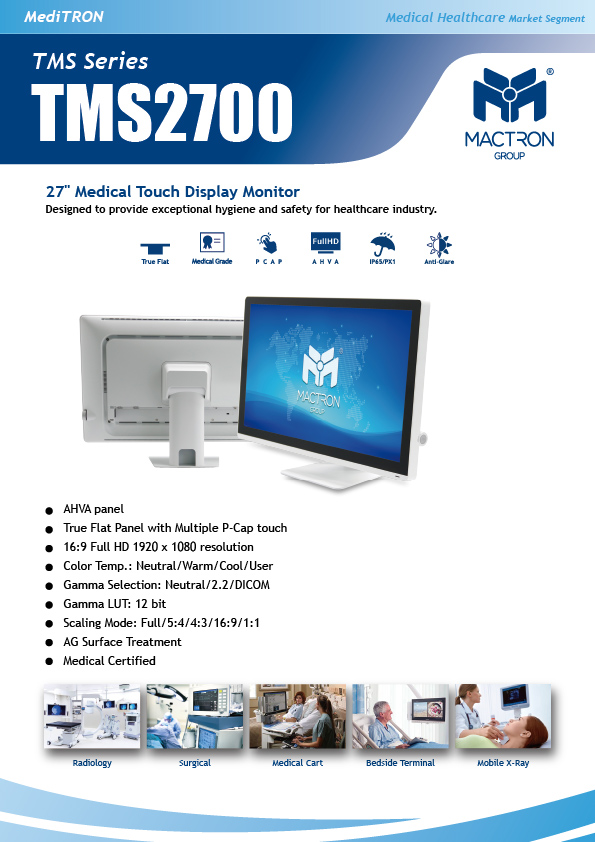

MACTRON Medical Touch Display Monitor. Designed to provide exceptional hygiene and safety for healthcare industry.
AHVA panel
16:9 Full HD 1920 x 1080 resolution
True Flat Panel with Multiple P-Cap touch
Color Temperature: Neutral/Warm/Cool/User
Scaling Mode: Full/5:4/4:3/16:9/1:1
Gamma Selection: Neutral/2.2/DICOM
Gamma LUT: 12 bits
AG Surface Treatment
Medical Certified
Radiology, Surgical, Medical Cart, Bedside Terminal, Mobile X-Ray, etc.
| Display | |
|---|---|
| Display Type | 27" AHVA True Flat |
| Resolution | 1920 x 1080 |
| Display Area (mm) | 597.6(H) x 336.1(V) |
| Pixel Pitch (mm) | 0.311 (H) x 0.311 (V) |
| Viewing Angle (degree) | 178 (H)/ 178 (V) |
| Response time (ms) | 12 (On/Off) |
| Brightness (cd/m²) | 300 (typical) |
| Contrast Ratio | 3000:1 (typical) |
| Color Depth (bits) | 8 |
| I/O Interface |
1 x DVI-D 1 x DP 1.2 1 x VGA 1 x AUDIO |
| Touch | |
| Type | PCAP (10 points) |
| Point | 10 points |
| Screen Printing | Black |
| Surface Treatment | AG |
| Touch Interface | USB / RS232 (COMBO) |
| Environment | |
| Color Temperature | Neutral/Warm/Cool/User |
| OSD Languages | English/ Spanish/ French/ German/ Italian/ Japanese |
| Gamma Selection | Neutral/2.2/DICOM |
| Gamma LUT | 12 |
| Scaling Mode | Full/5:4/4:3/16:9/1:1 |
| Speaker | 2W Speaker |
| IP level | IP65 (Front) / IPX1 (Back Cover) |
| Power Supply | DC 24V |
| Power Consumption (W) | 40 (Max) / < 5 (Off Mode) |
| Operating Temperature | 10°C ~ 40°C |
| Operating Humidity (RH) | 30% - 75% |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity (RH) | 10% - 90% |
| Tilt | 0° ~ +30° |

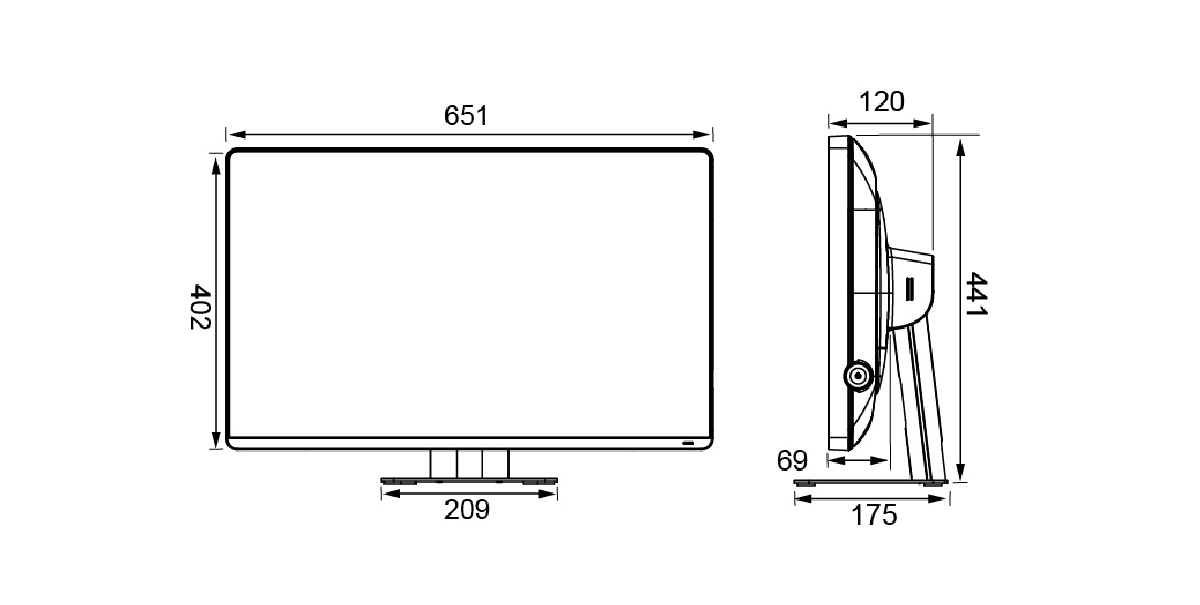

| Dimensions(mm) | 651(W) x441(H) x175(D)(with Stand) 651(W) x402(H) x69(D)(w/o Stand) |
| VESA Mounting | 100 x 100 |
| Stand | Optional |
| Weight | 10.3 (with Stand) 8.4 (w/o Stand) |
| Certifications and Compliances | cTUVus(60601 Ed3.1),CB(60601 Ed3.1),CE,FCC-B |
