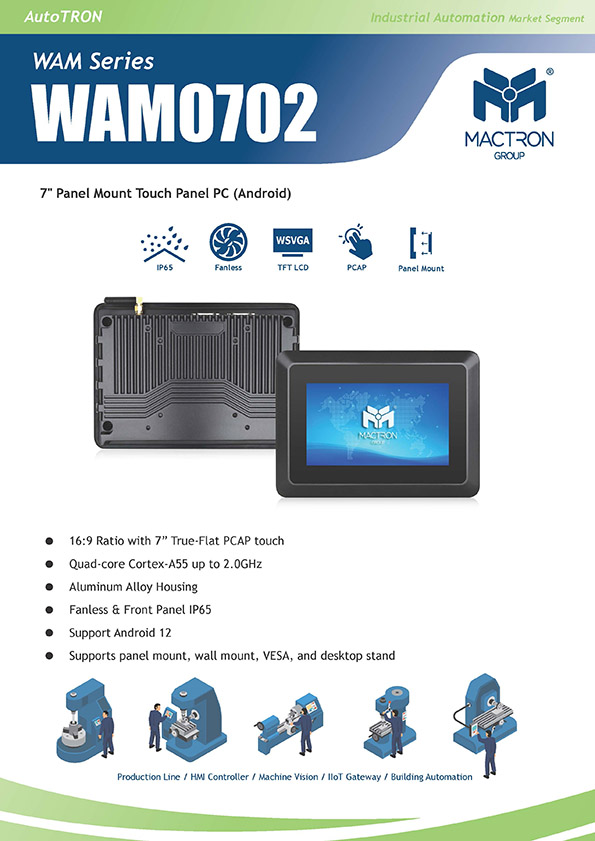

WAM0702

7 Inch Panel Mount Touch Panel PC Android

  • Datasheet

    • 16:9 Ratio with 7” True-Flat PCAP touch

    • Quad-Core ARM Cortex-A55 up to 2.0GHz

    • Aluminum Alloy Housing

    • Fanless & Front Panel IP65

    • Support Android 12

    • Supports panel mount, wall mount, VESA, and desktop stand

    Applications:

    Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation

    Other WAM Series == Back to PPC Line

    Display
    Display Type7” TFT LCD
    Resolution1024 x 600
    Brightness300 nits (Optional to 800 nits)
    Touch Panel10 Points Multiple PCAP touch
    Aspect Ratio16:9
    Main System
    CPUQuad-core Cortex-A55 RK3568 Processor    
    Quad-core Cortex-A55 + Quad-core Cortex-A76 Quad-Core RK3588 Processor (Optional)
    GPUMali-G52 for RK3568    
    Mali-G610 for RK3588
    Memory2GB (Max.8GB)
    Storage32GB (Max.128GB)
    OS SupportAndroid 12
    Function SupportBluetooth 4.2
    WLAN: 802.11 a/b/g/n
    RTC
    UBOOT

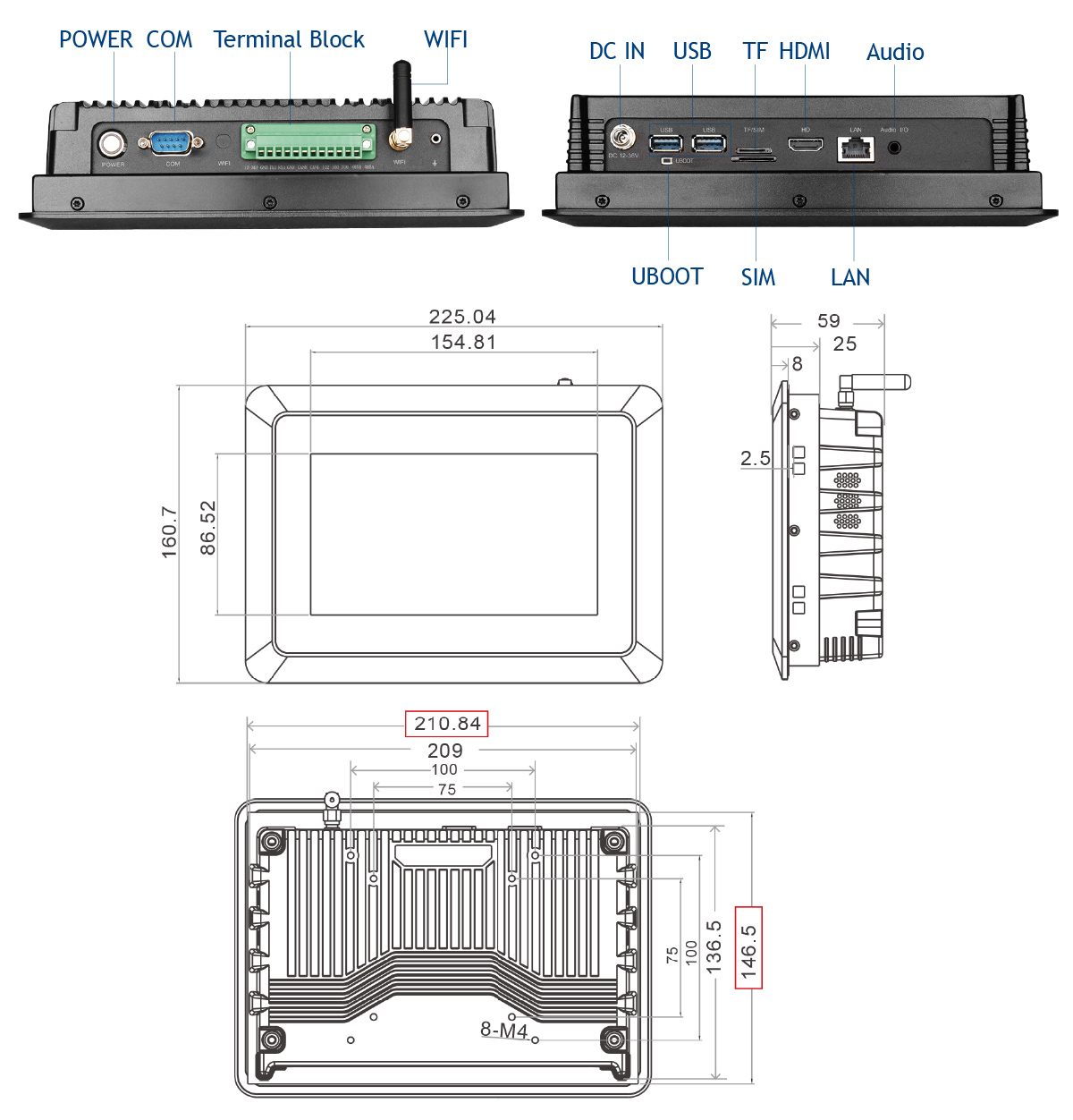

    IO Ports1 x Terminal Block (12-pin)
    1 x DC-in
    2 x USB3.0
    1 x RJ-45
    1 x HDMI
    1 x SIM card slot
    1 x TF card slot
    1 x Audio (Mic-in & Line-out)
    1 x DB9 (RS232)
    Physical
    Internal Speaker2x 2W
    Power InputDC12-36V
    Power AdapterDC 24V/2.5A
    MountingPanel Mount, VESA 75 x 75 mm & 100 x 100 mm, Wall mount, Desktop stand
    HousingAluminum Alloy Housing
    Packing List
    Standard AccessoryPower Adapter
    Clamp Mount Kit
    Product Dimension225.04 x 160.7 x 59 mm
    Product Weight1.7 kg
    Environment
    Rugged FeatureFront IP65

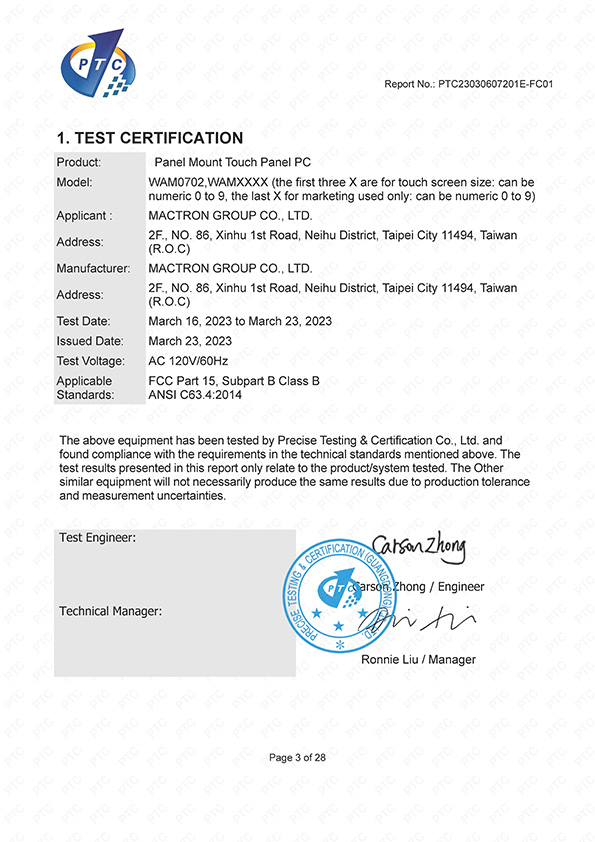

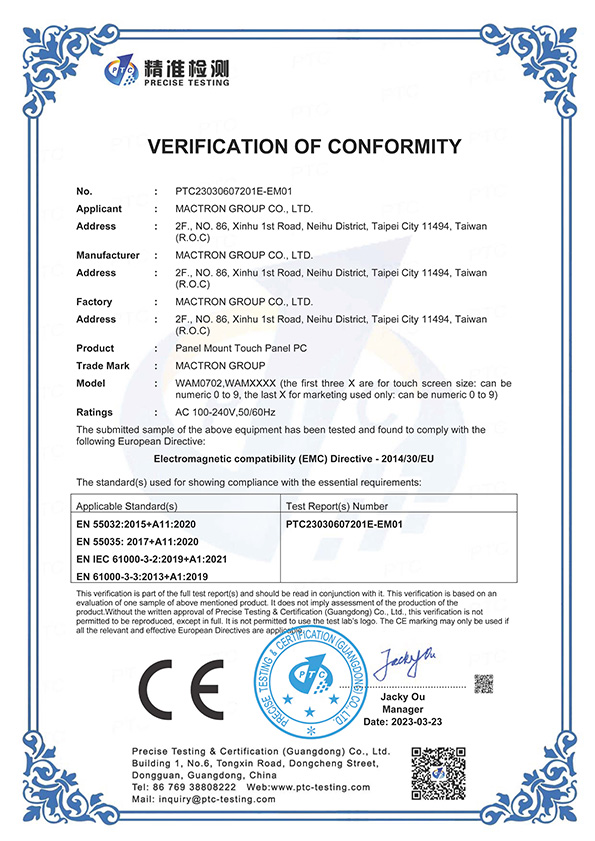

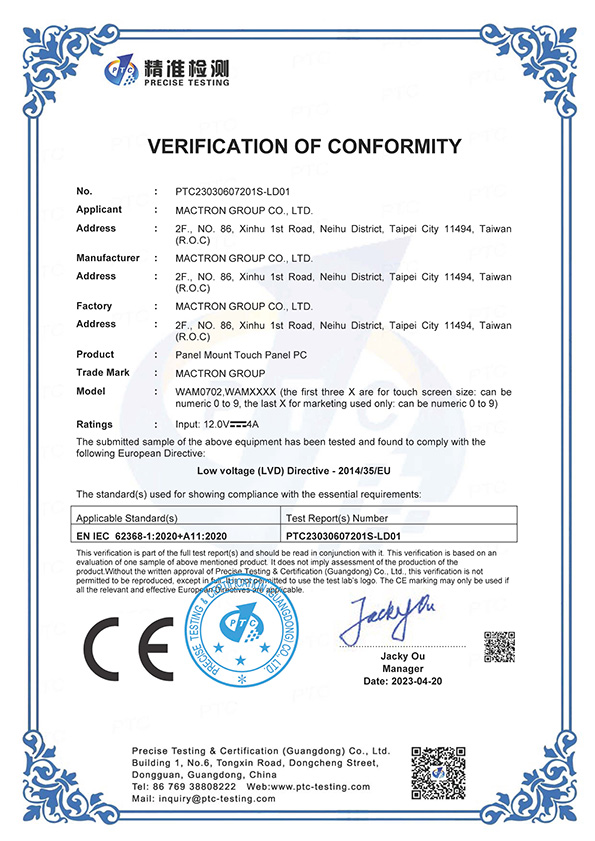

    CertificationCE, FCC Class B
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    Relative humidity95% RH non-condensing
    WAM0702 7″ Panel Mount Touch Panel PC
    Quad-Core ARM Cortex-A55 up to 2.0GHz


    Standard Accessory

    Optional
