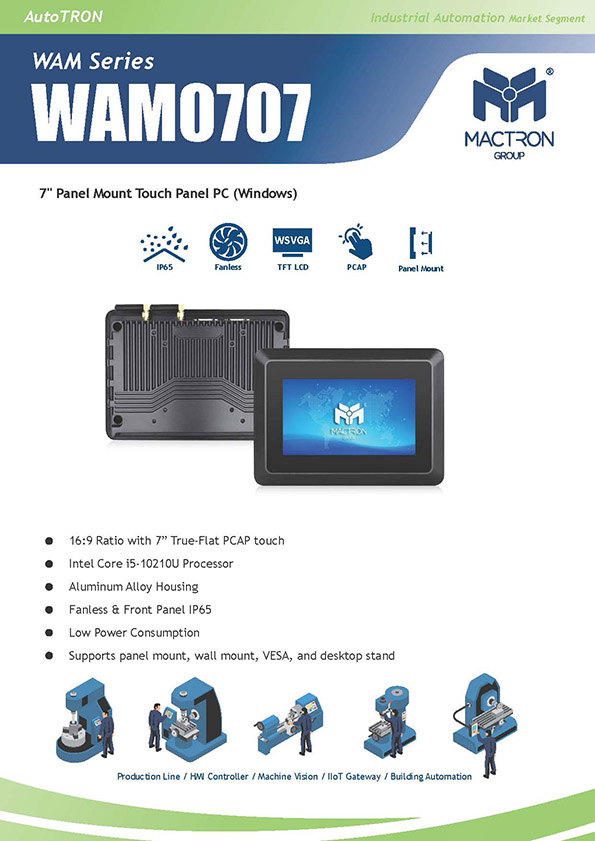

WAM0707

7 Inch Panel Mount Touch Panel PC (Windows)

  • Datasheet

    • 16:9 Ratio with 7” True-Flat PCAP touch

    • Intel Core i5-10210U Processor

    • Aluminum Alloy Housing

    • Fanless & Front Panel IP65

    • Low Power Consumption

    • Supports panel mount, wall mount, VESA, and desktop stand

    Applications:

    Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation

    Other WAM Series == Back to PPC Line

    Display
    Display Type7” TFT LCD
    Resolution1024 x 600
    Brightness300 nits (Optional to 800 nits)
    Touch Panel10 Points Multiple PCAP touch (Optional Resistive Touch)
    Aspect Ratio16:9
    Main System
    CPUIntel Core i5-10210U Processor (Optional Core i7/i3, Celeron J4125)
    GPUIntel® HD Graphics Engine
    Memory8GB
    Storage256GB
    Expansion1x Full-size Mini-PCIe Socket
    1x M.2 Key M 2280 Socket
    OS SupportWindows 10 Pro, Windows 10 IoT, Windows 11, Linux
    Function SupportBluetooth 4.0
    WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna)
    RTC
    Time Switch

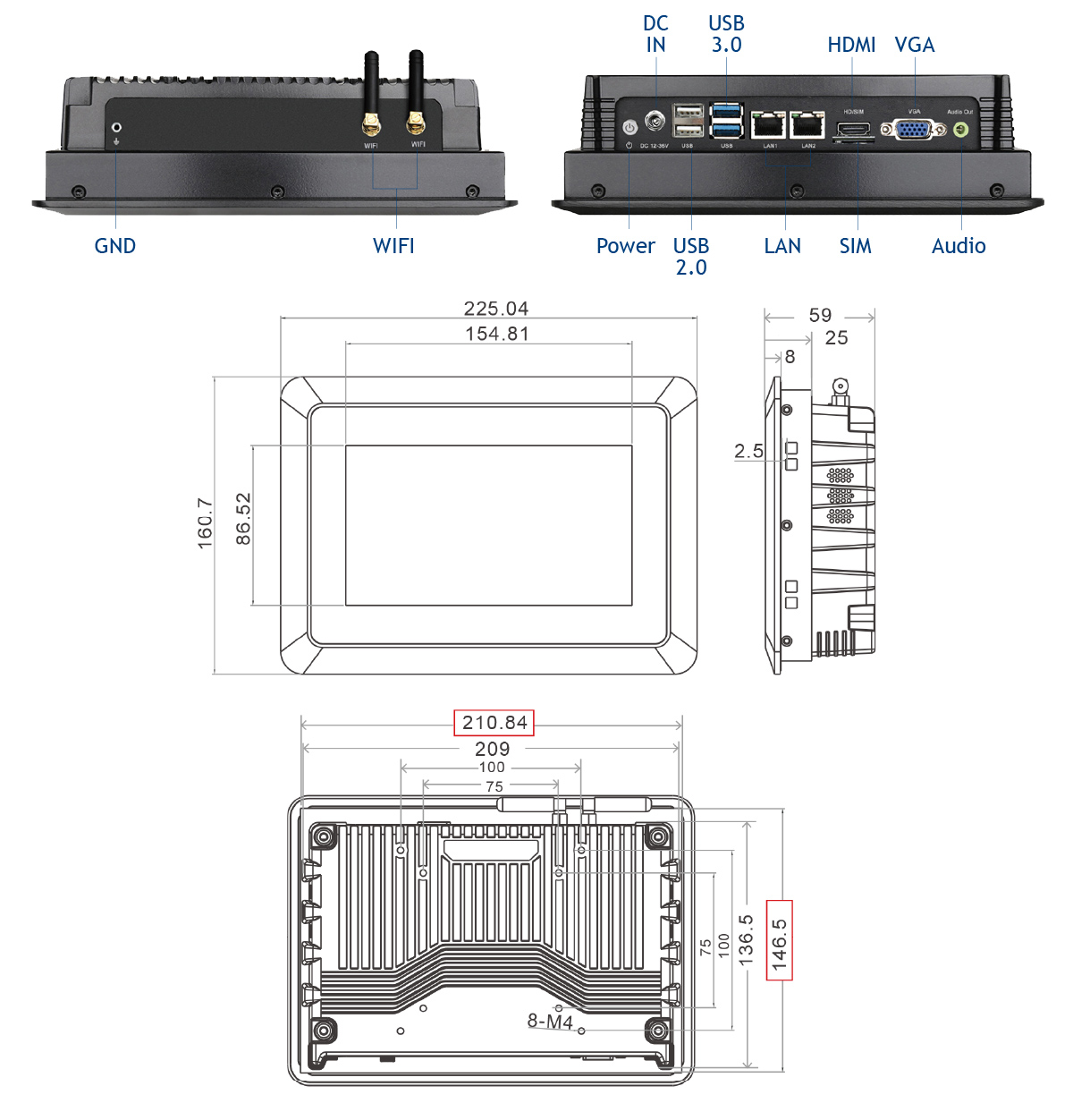

    IO Ports1 x DC-in
    2 x USB2.0
    2 x USB3.0
    2 x RJ-45 (Support Wake-on-LAN)
    1 x HDMI
    1 x SIM card slot
    1 x DB15 (VGA)
    1 x Audio (Line-out)
    1 x Power Button
    Physical
    Intermal Speaker2 x 2W
    Power InputDC 12-36V
    Power AdapterDC 24V/4A
    MountingPanel Mount, VESA 75 x 75 mm & 100 x 100 mm, Wall mount, Desktop stand
    HousingAluminum Alloy Housing
    Packing List
    Standard AccessoryPower Adapter
    Clamp Mount Kit
    Product Dimension225.04 x 160.7 x 59 mm
    Product Weight1.9 kg
    Environment
    Rugged FeatureFront IP65
    CertificationCE, FCC Class B
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    Relative humidity95% RH non-condensing
    WAM0707 7″ Panel Mount Touch Panel PC
    Intel Core i5-10210U Processor (Optional Core i7/i3, Celeron J4125)


    Standard Accessory

    Optional
