WAM1162

11.6 Inch Panel Mount Touch Panel PC Android

  • Datasheet

    • 16:9 Ratio with 11.6” True-Flat PCAP touch

    • Quad-core ARM Cortex-A55 RK3568 Processor

    • Aluminum Alloy Housing

    • Fanless & Front Panel IP65

    • Support Android 12

    • Supports panel mount, wall mount, VESA, and desktop stand

    Applications:

    Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation

    Other WAM Series == Back to PPC Line

    Display
    Display Type11.6” TFT LCD
    Resolution1920 x 1080
    Brightness300 nits (Optional to 800 nits)
    Touch Panel10 Points Multiple PCAP touch
    Aspect Ratio16:9
    Main System
    CPUQuad-core Cortex-A55 RK3568 Processor
    Quad-core Cortex-A55 Quad-Core + Quad-core Cortex-A76 RK3588 Processor (Optional)
    GPUMali-G52 for RK3568
    Mali-G610 for RK3588
    Memory2GB (Max.4GB)
    Storage16GB (Max.32GB)
    OS SupportAndroid 12
    Function SupportWiFi 802.11 a/b/g/n/ac 2.4G (External Antenna)
    Bluetooth 4.2
    RTC
    UBOOT
    IO Ports1 x Phoenix type connector (2-pin)
    1 x DC-in
    2 x USB2.0
    1 x RJ-45
    1 x HDMI
    1 x SIM card slot
    1 x TF card slot
    1 x Audio (Mic-in & Line-out)
    2 x DB9 (RS232)
    1 x Power Button
    Physical
    Internal Speaker2x 2W
    Power AdapterDC 24V/2.5A
    MountingPanel Mount, VESA 75 x 75 mm & 100 x 100 mm, Wall mount, Desktop stand
    HousingAluminum Alloy Housing
    Packing List
    Standard AccessoryPower Adapter
    Clamp Mount Kit

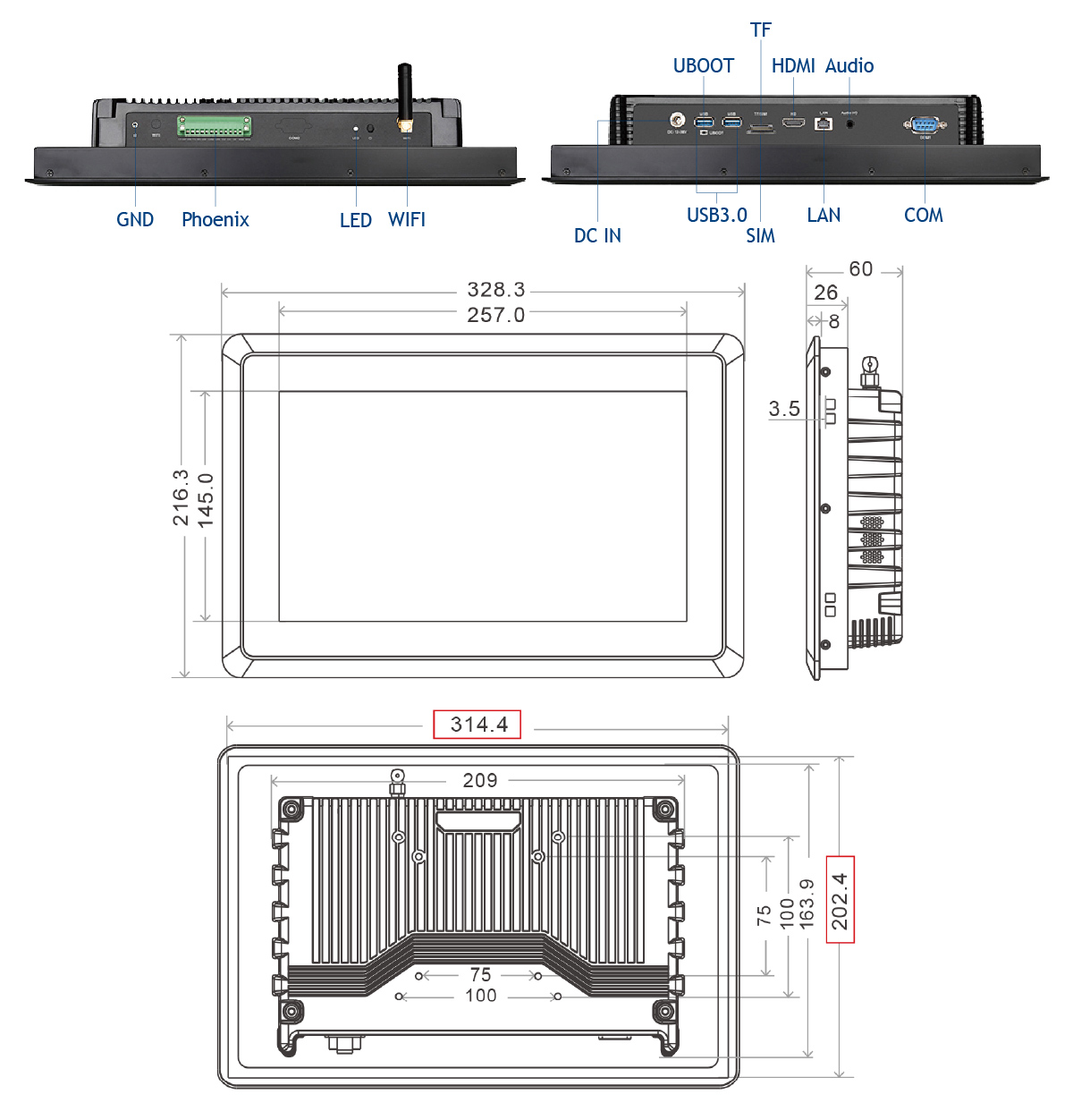

    Product Dimension328.3 x 216.3 x 60 mm
    Product Weight2.5 kg
    Environment
    Rugged FeatureFront IP65
    CertificationCE, FCC Class B
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    Relative humidity95% RH non-condensing
    WAM1162 11.6″ Panel Mount Touch Panel PC
    Quad-Core ARM Cortex-A55 up to 2.0GHz


    Standard Accessory

    Optional
