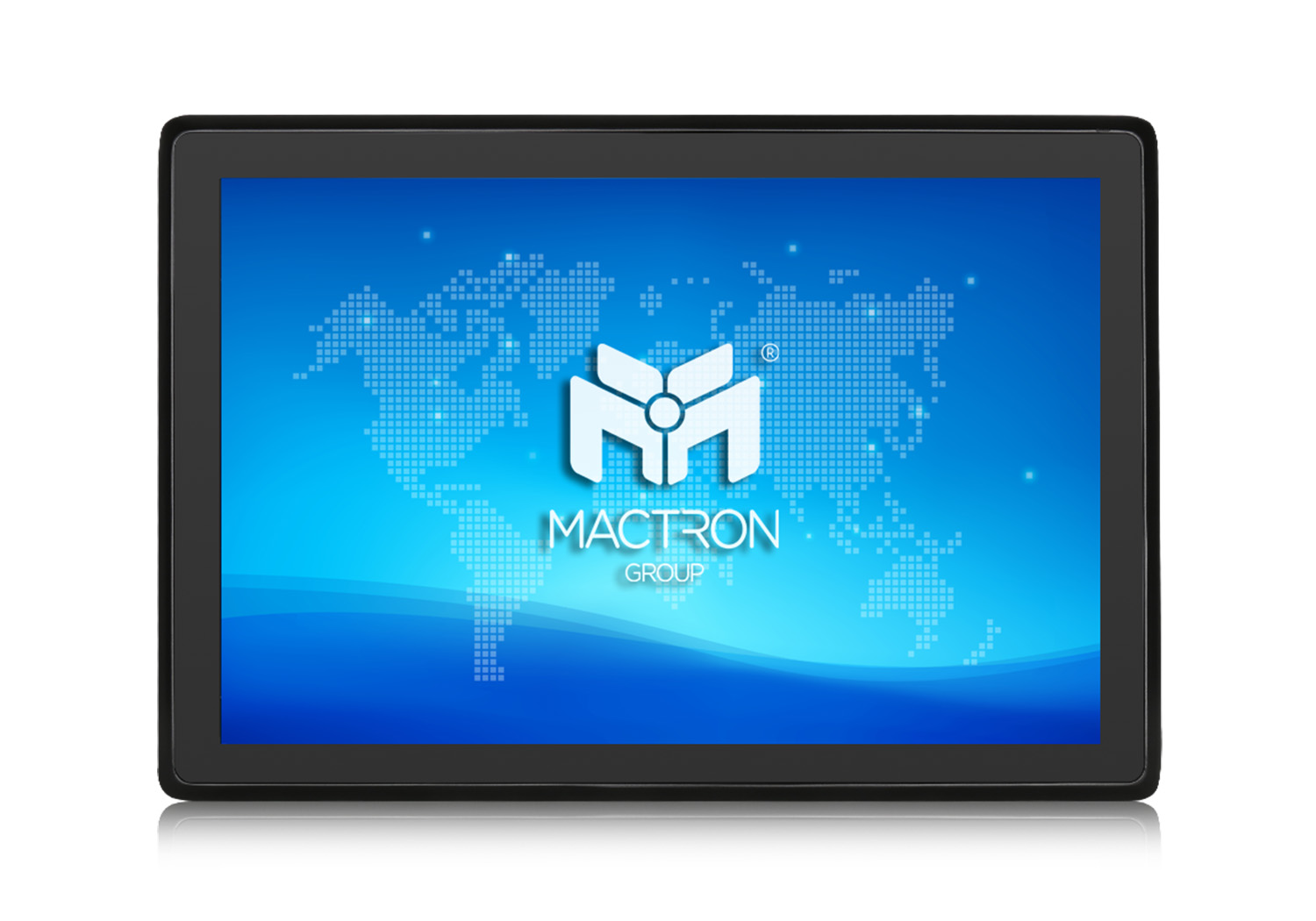

16:9 Ratio with 21.5” True-Flat PCAP touch
Intel® Core™ i5-1235U Deca-Core Processor
Aluminum Alloy Housing
Fanless & Front Panel IP65
Support Phoenix type connector for DC power input
Supports panel mount, wall mount, VESA, and desktop stand
Production Line, HMI Controller, Machine Vision, IIoT Gateway, Building Automation
| Display | |
|---|---|
| Display Type | 21.5” TFT LCD |
| Resolution | 1920 x 1080 |
| Brightness | 300 nits (Optional to 1000 nits) |
| Touch Panel | 10 Points Multiple PCAP touch (Optional Resistive Touch) |
| Aspect Ratio | 16:9 |
| Main System | |
| CPU | Intel Core i5-1235U Processor (Optional Intel Core i7-1255U Processor) |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | 8GB (optional 16GB) |
| Storage | 256GB (optional 512GB) |
| Expansion |
1x M.2 Key M 2280 Slot for NVMe SSD 1 x M.2 Key B for 4G/5G WWAN |
| OS Support | Windows 11, Linux |
| Function Support |
Bluetooth 4.0 WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna) RTC Time Switch |

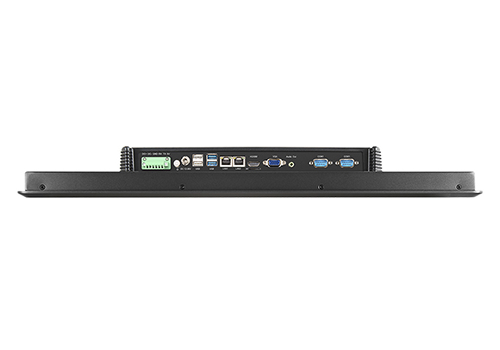

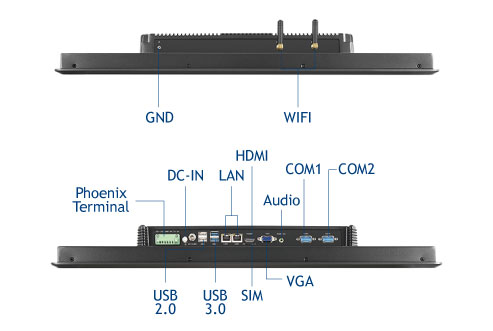

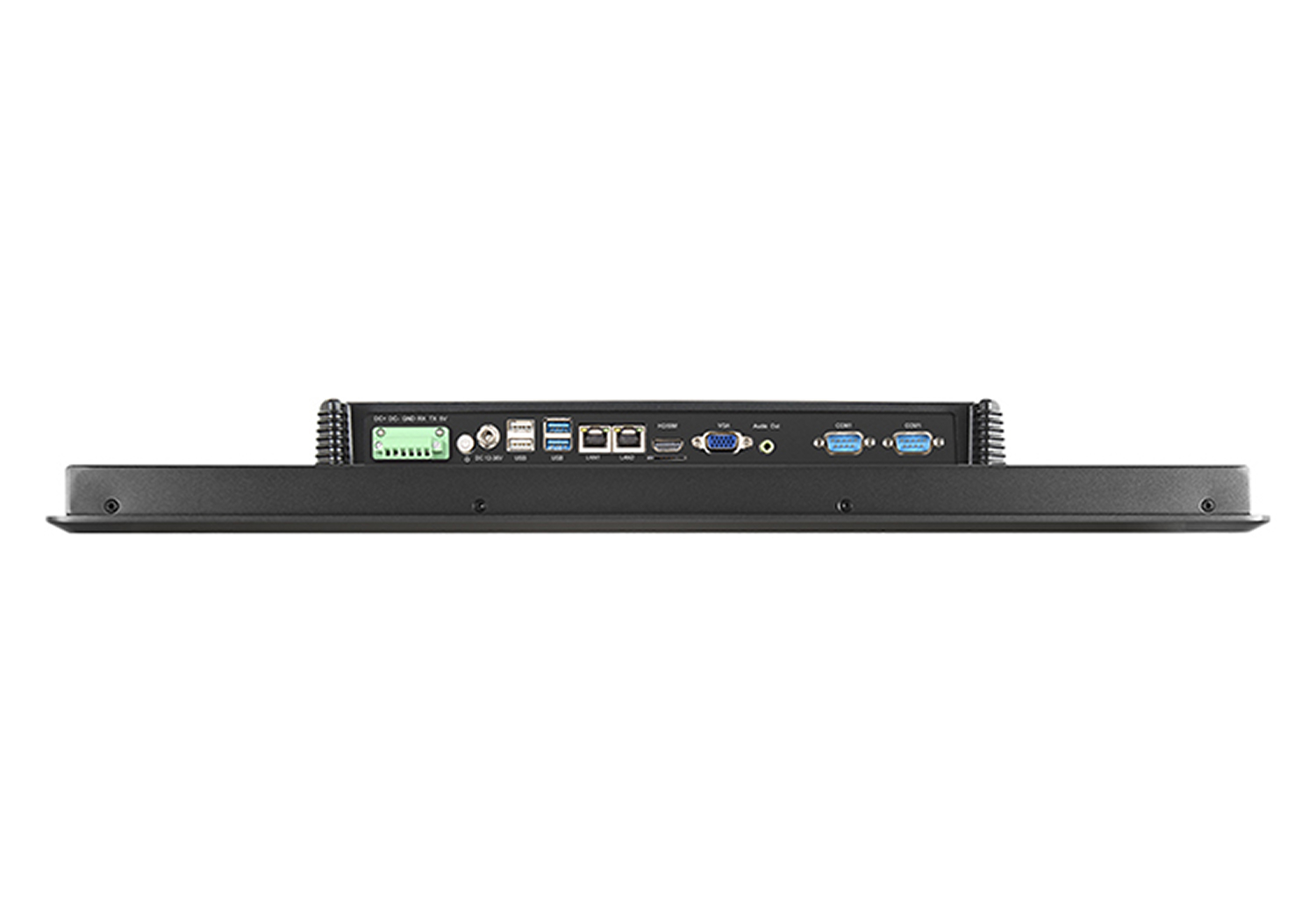

| IO Ports |
1 x Phoenix type connector (6-pin) 1 x DC-in 2 x USB2.0 2 x USB3.0 2 x RJ-45 (Support Wake-on-LAN) 1 x HDMI 1 x SIM card slot 1 x DB15 (VGA) 1 x Audio (Line-out) 2 x DB9 (RS232) 1 x Power Button |
| Physical | |
| Intermal Speaker | 2 x 2W |
| Power Input | DC 12-36V |
| Power Adapter | DC 24V/4A |
| Mounting | Panel Mount, VESA 75 x 75 mm &100 x 100 mm, Wall mount, Desktop stand |
| Housing | Aluminum Alloy Housing |
| Packing List | |
| Standard Accessory |
Power Adapter Clamp Mount Kit |

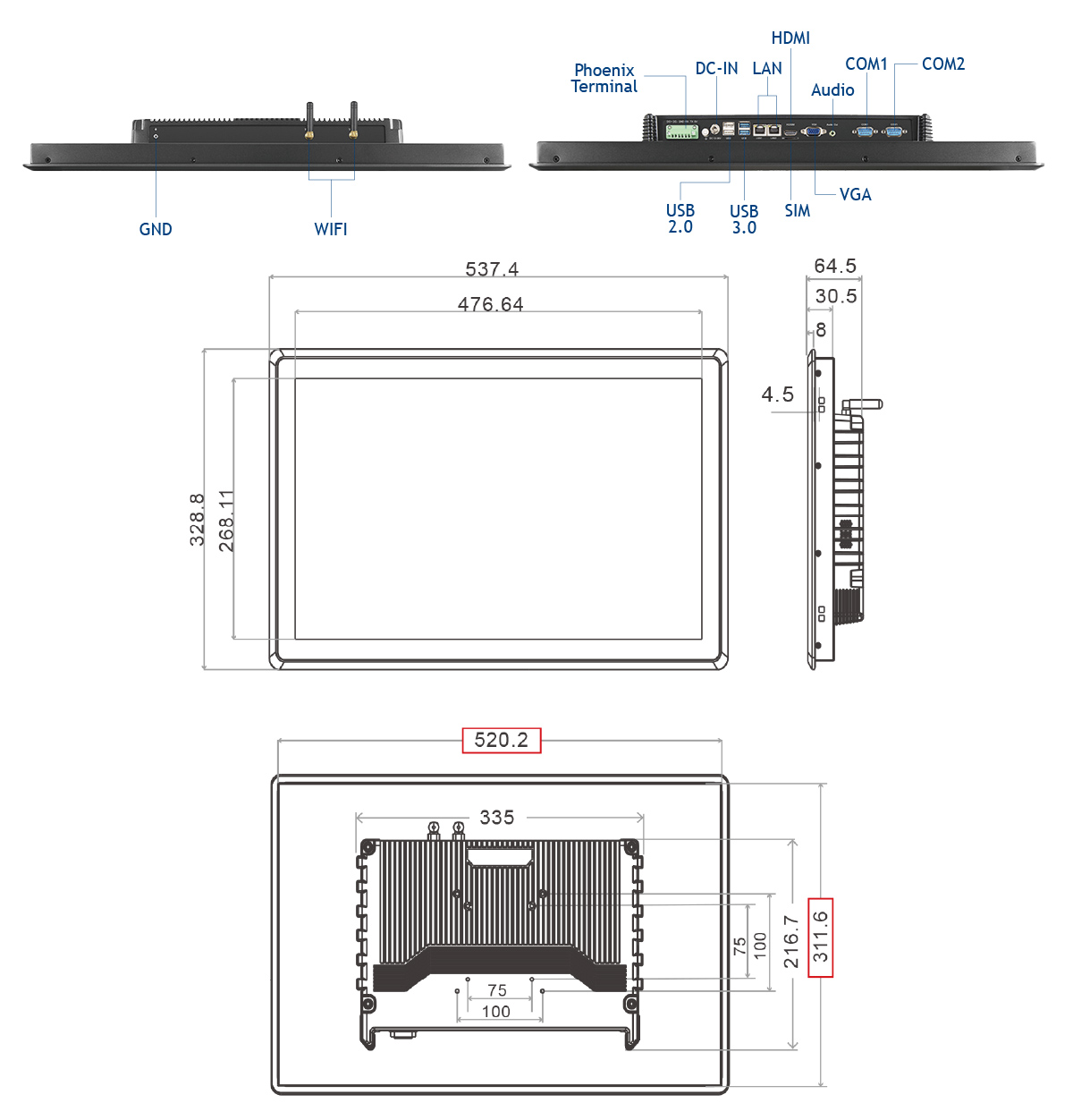

| Product Dimension | 537.4 x 328.8 x 64.5 mm |
| Product Weight | 6.4 kg |
| Environment | |
| Rugged Feature | Front IP65 |
| Certification | CE, FCC Class B |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative humidity | 95% RH non-condensing |
