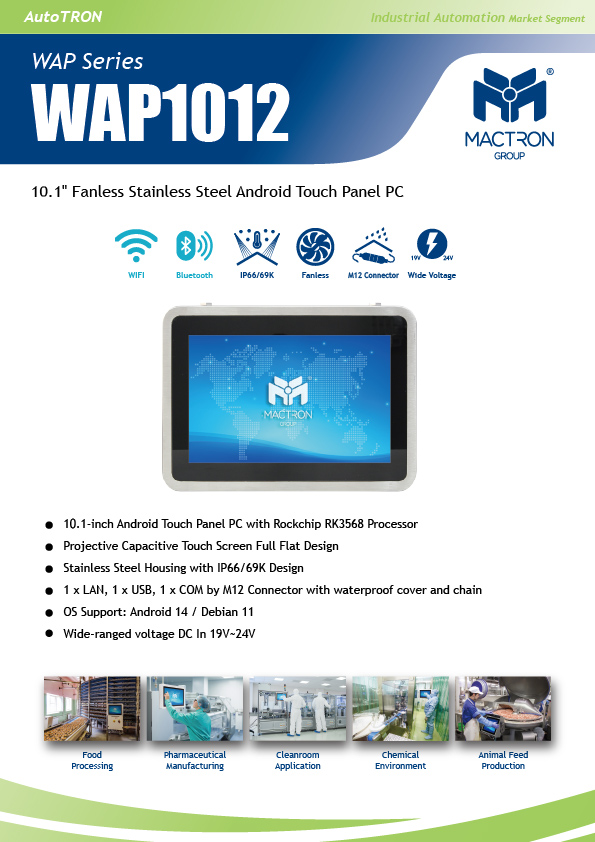

Food Processing, Pharmaceutical Manufacturing, Cleanroom Application, Chemical Environment, Animal Feed Production
| Display | |
|---|---|
| Display Type | 10.1" WXGA LCD |
| Resolution | 1280 x 800 |
| Brightness | 350 nits |
| Contrast Ratio | 1000 |
| Viewing Angle | -85° ~ 85° (H) ; -85° ~ 85° (V) |
| Response Time | 25 ms |
| Touch Type | 10 Points Projective Capacitive Multi-Touchscreen |
| Main System | |

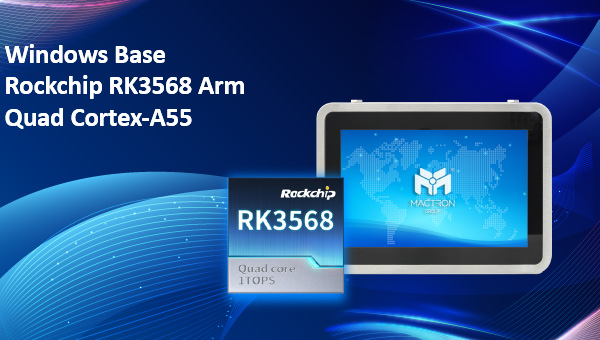

| CPU | Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz |
| Memory | 2GB DDR4 on board |
| Storage | 32GB eMMC on board |
| OS Support | Android 14 / Debian 11 |
| Wireless | WiFi with waterproof Antenna (Optional) |
| BT 5.0 (Optional) | |

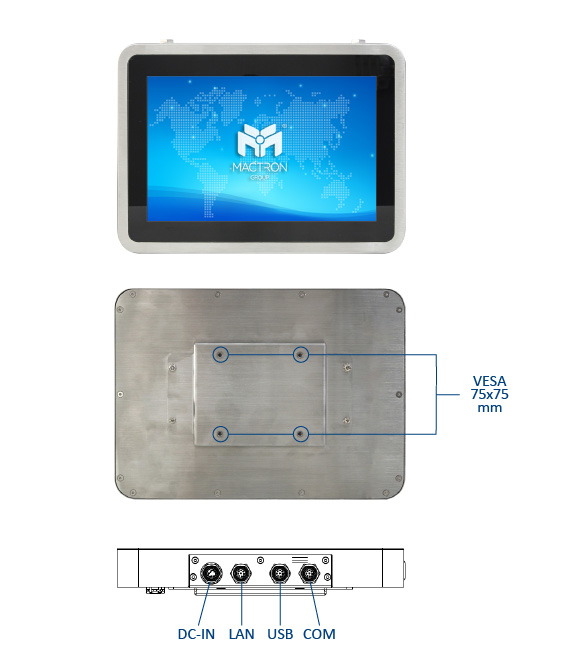

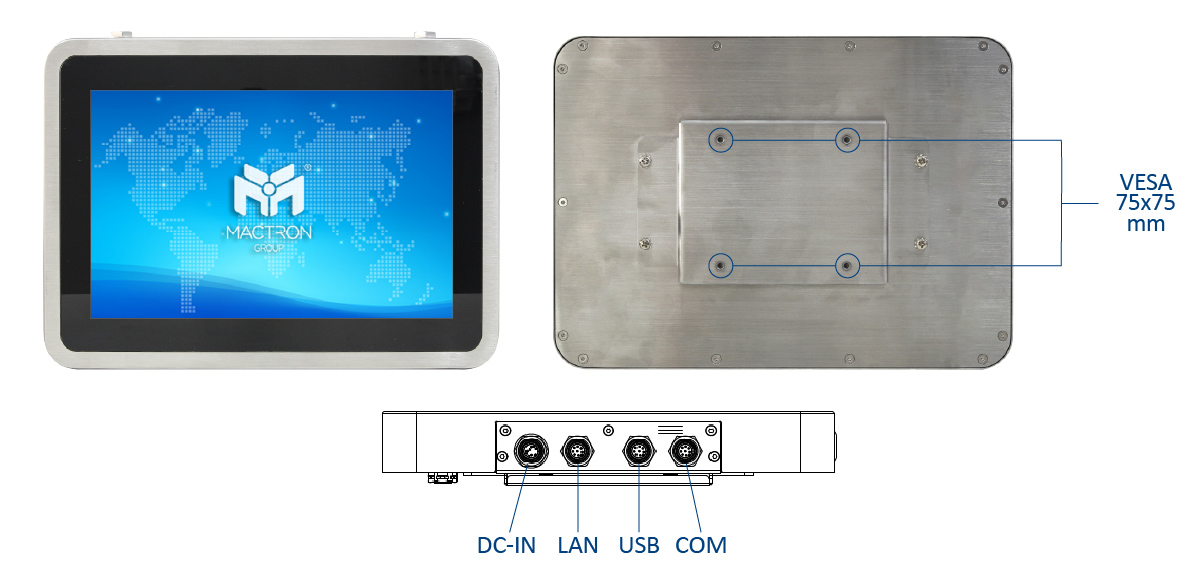

| IO Ports | 1 x M12 8-pin (male) for 2 x USB 2.0 with waterproof cover and chain |
| 1 x M12 8-pin (male) for LAN with waterproof cover and chain | |
| 1 x M12 8-pin (male) for COM (RS-232/422/485) with waterproof cover and chain | |
| 1 x M12 DC-In Connector | |
| 1 x Power Switch on the back | |
| Physical | |

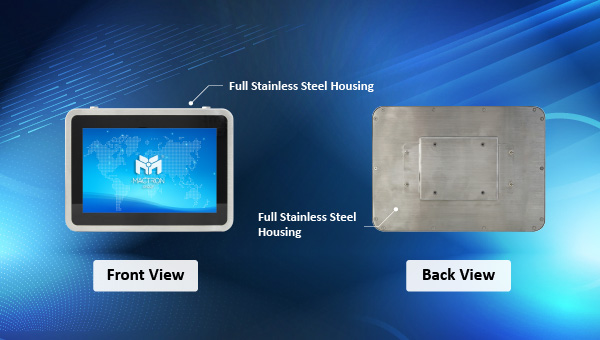

| Construction | Stainless Steel |
| CPU Cooler (Type) | Fanless heatsink |

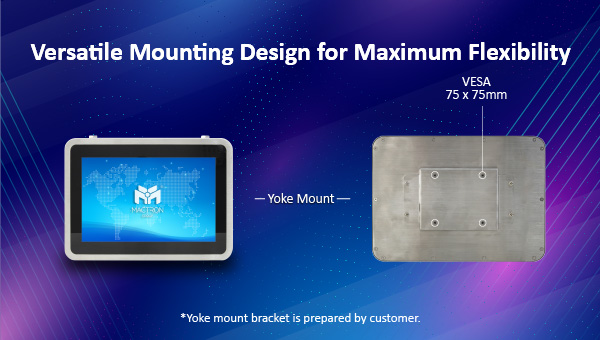

| Mounting | Wall / Stand / VESA 75 x 75mm |
| Power Mode | AT/ATX (ATX is default) |
| Power Connector | M12 Connector |
| Power Input | DC 19-24V |
| Power Adapter | DC 24V/2.5A, 60W |
| Packing List | |
| Standard Accessory | Power Adapter |
| Waterproof M12 DC Cable | |
| Product Dimension | 272.6 x 194.6 x 36.9mm |
| Product Weight | 3.4 Kg |
| Box Dimension | 425 x 125 x 375 mm |
| Box Weight | 4.0 kg |
| Environment | |

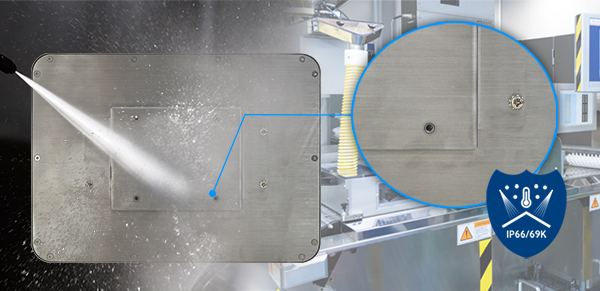

| IP Rating | Whole system IP69K, IP66 |
| Certification | CE / FCC Class A |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Relative Humidity | 40°C @ 95% Relative humidity, non-condensing |
M12 Connector to
2x USB
2.0 Cable
M12 Connector to
DB9 Cable
M12 Connector to
LAN Cable
