Food Processing, Pharmaceutical Manufacturing, Cleanroom Application, Chemical Environment, Animal Feed Production
| Display | |
|---|---|
| Display Type | 15" XGA 4:3 LCD (LED) |
| Resolution | 1024 x 768 |
| Brightness | 300 nits |
| Contrast Ratio | 2000 |
| Viewing Angle | -88° ~ 88° (H) ; -88° ~ 88° (V) |
| Response Time | 16 ms |
| Touch Type | 10 Points Projective Capacitive Multi-Touchscreen |
| Main System | |
| CPU | Intel® 13th Gen Raptor Lake-PS Core™ 5 Processor 120UL (15W, 2P+4E) |
| Intel® 13th Gen Raptor Lake-PS Core™ 3 Processor 100UL(15W, 2P+4E)" | |
| GPU | Intel® Graphics |
| Memory | 1x 262-pin DDR5 5200MHz SO-DIMM socket, 8GB,supports up to 32GB |
| Storage | 128GB SSD (Optional 256GB/512GB) |
| OS Support | Windows 10/11, Ubuntu LTS |
| LAN Controller | Intel I225LM Gigabit Ethernet Controller |
| Audio Controller | Realtek ALC888S |
| Wireless | Intel® Wi-Fi 6E AX210 Module (Optional) |
| TPM | TPM 2.0 |
| Watchdog Timer | H/W reset, 1sec. ~ 65535sec./1sec.step |
| H/W Monitor | Monitoring CPU & System Temperature and Voltage |
| Expansion | 1 x M.2 Key B 3042/3052/2280 with 1 x PCI-e x2 |
| 1 x USB 3.0/2.0 signal | |
| 1 x M.2 Key E 2230 support WiFi module | |

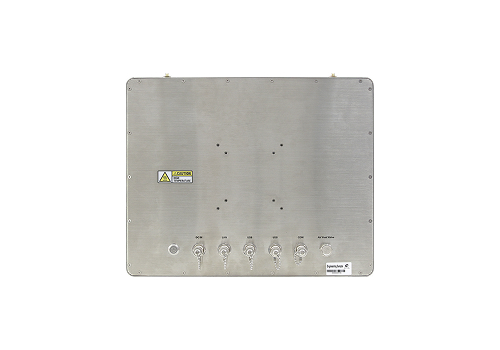

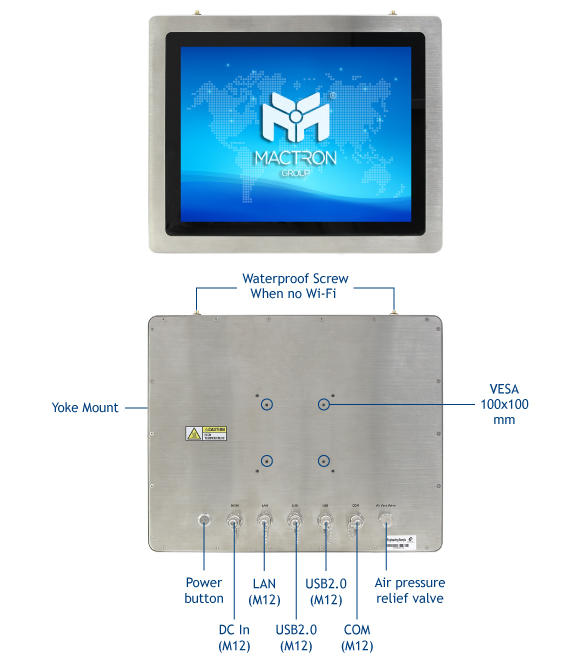

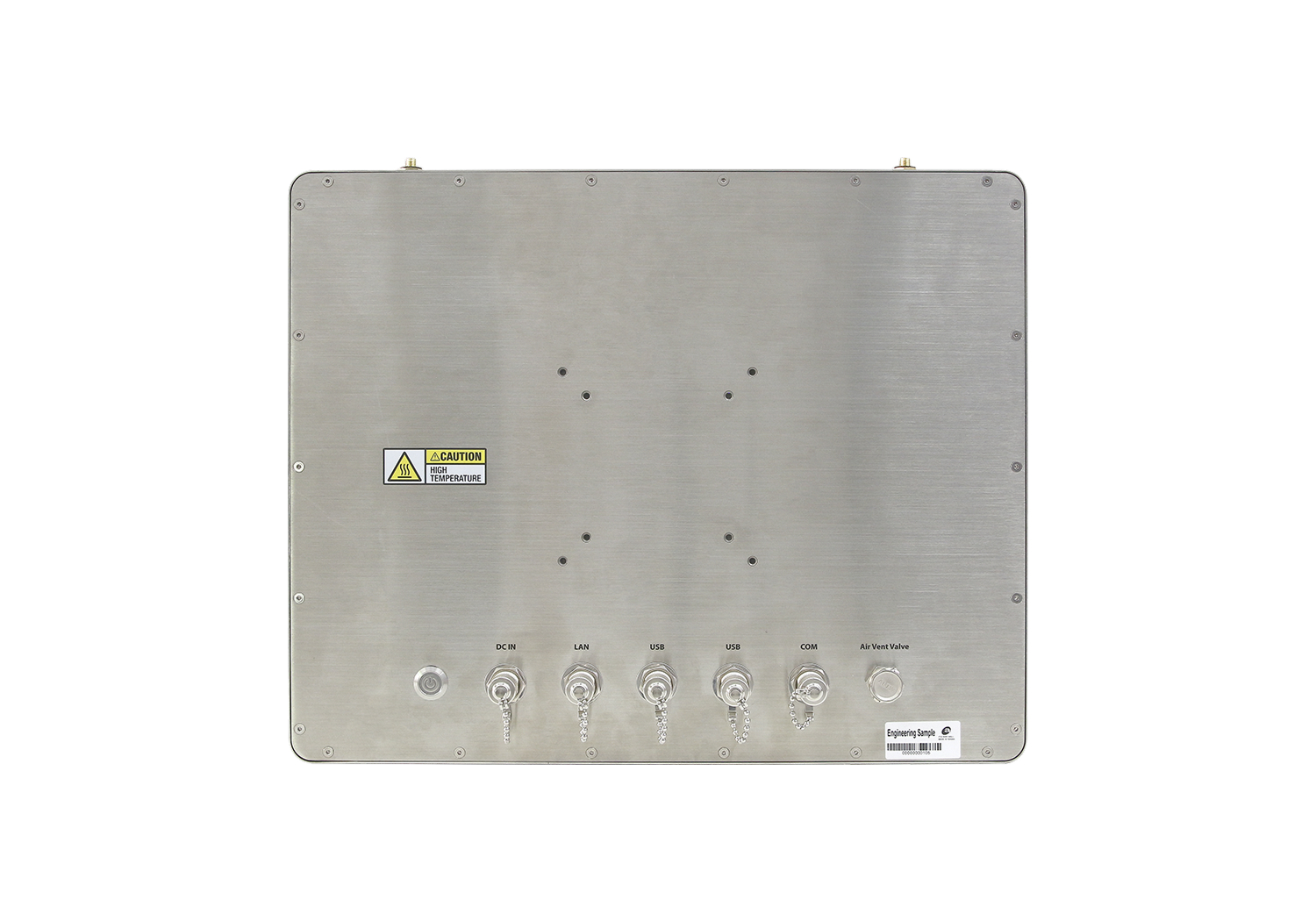

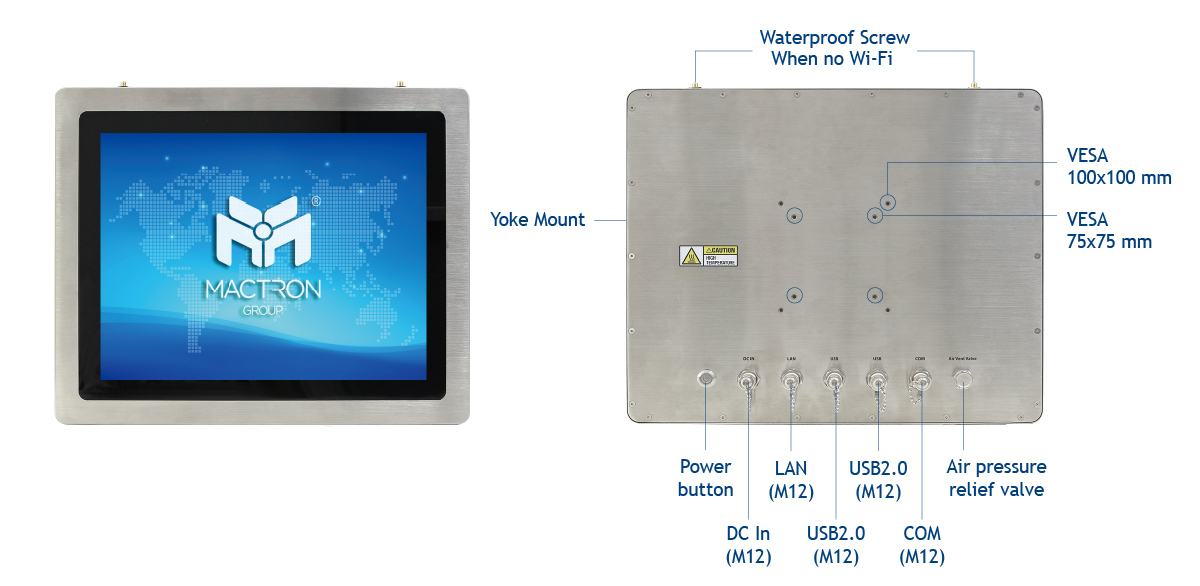

| IO Ports | 2 x M12 8-pin (male) for 2 x USB 2.0 with waterproof cover and chain |
| 1 x M12 8-pin (male) for LAN with waterproof cover and chain | |
| 1 x M12 8-pin (male) for COM (RS-232/422/485) with waterproof cover and chain | |
| 1 x M12 DC-In Connector | |
| Physical | |

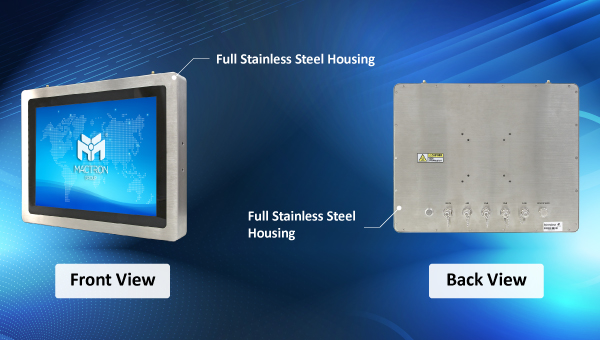

| Construction | Stainless Steel SUS304 (Optional SUS316 with MOQ) |
| CPU Cooler (Type) | Fanless heatsink |

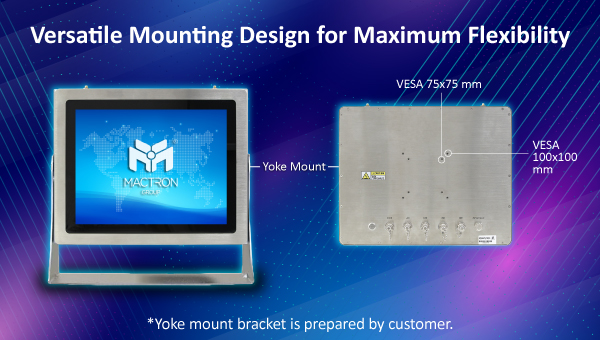

| Mounting | Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm |
| Power Mode | AT/ATX (ATX is default) |
| Power Connector | M12 Connector |
| Power Input | DC 19-24V |
| Power Adapter | DC 24V/3.75A, 90W |
| Packing List | |
| Standard Accessory | 1 x Power Adapter (24V/3.75A) |
| Product Dimension | 393 x 315.8 x 49 mm |
| Product Weight | 7.9 Kg |
| Box Dimension | 595 x 535 x 125 mm |
| Box Weight | 8.3 Kg |
| Environment | |

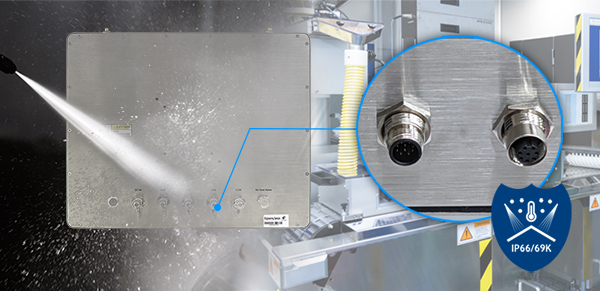

| Rugged Feature | Whole system IP69K, IP66 |
| Certification | CE / FCC Class A |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F), by air-flow = 0.5 |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Relative Humidity | 40°C @ 95% Relative humidity, non-condensing |
M12 Connector to
2x USB
2.0 Cable
M12 Connector to
DB9 Cable
M12 Connector to
LAN Cable
