21.5” Android System
Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU
Multiple Various Optional Accessories
Passive Cooling Fanless Design
True Flat With 10 Points PCAP Touch
Rich I/O Ports Provide Excellent Peripheral Connectivity
Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
Other WCA Series == Back to PPC Line
| Display | |
|---|---|
| Display Type | 21.5" TFT LCD |
| Resolution | 1920 x 1080 |
| Brightness | 250 nits |
| Touch Panel | 10 Points Projected Capacitive Touch Panel |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Contrast Ratio | 3000:1 |
| Main System | |
| CPU | Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU (Optional: RK3399) |
| GPU | Mali-G52 |
| Memory | 4GB LPDDR4 |
| Storage | 16GB eMMC |
| OS Support | Android 13 (Optional Android 14) |
| Communication | WLAN: 802.11 b/g/n Module |
| Bluetooth 4.2 | |
| IO Ports | 1 x Micro SD Card Slot |
| 1 x USB 3.0 | |
| 1 x USB 2.0 | |
| 1 x Micro USB 2.0 | |
| 1 x LAN Port (Optional PoE Function) | |
| 1 x Mini HDMI | |
| 2 x COM Port | |
| 1 x Combo JACK | |
| 1 x SPDIF | |
| Physical | |
| Audio | 2 x 3W Speaker |
| Camera | Front: 2 or 5MP (Optional) |
| Ventilation | Fanless |
| Color | Black |
| Mounting | VESA Mount 100 x 100 |
| Housing | ABS+PC |
| Power Adapter | DC 12V/5A, 60W |
| Packing List | |
| Standard Accessory | 1 x Power Adapter (12V/5A) |

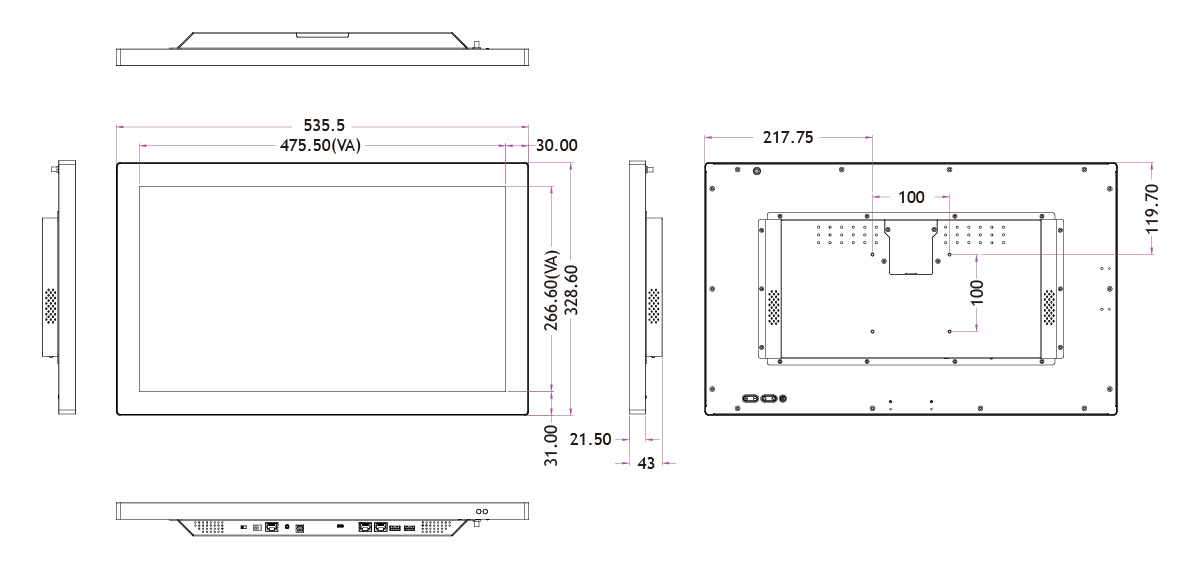

| Product Dimension | 530.1 x 321.8 x 36.0mm |
| Product Weight | TBD |
