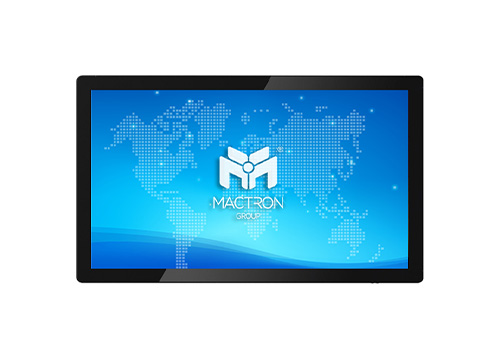

WCA2382

23.8" Commercial Entry Android Touch Panel PC

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine

Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU(Optional: RK3399)

Full range display sizes from 7” to 42.5” meet various application and places

WCA Series is suited for all kinds of your needs

Fast & easily to switch your accessories like transformers

Display
Display Type	23.8" TFT LCD
Resolution	1920x1080
Brightness	350 nits
Touch Panel	10 points Projected Capacitive Touch Panel
Main System
CPU	Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU (Optional: RK3399)
GPU	Mali-G52,1-Core-2EE, 3D+2D Graphics Engine
Memory	4GB LPDDR4 SDRAM
Storage	16GB/32GB (optional) eMMC
OS Support	Android 13 (Optional Android 14)
Wireless	Wi-Fi：IEEE 802.11b/g/n/ac Bluetooth 5.2
Function Key	Exit Vol +/- Brightness +/-
IO Ports	Micro SD Card Slot x 1 USB 2.0 x 2 USB 3.0 x 1 Micro USB (USB 2.0 OTG) x 1 LAN x 1 (10/100/1000Mbps) Mini HDMI x 1 Audio Combo Jack x1 DC Jack x 1 RS232 COM Port (RJ45) x 2 S/PDIF out x 1 Power Switch x 1
Data Collection	NFC Module (Optional) MSR Reader (Optional) 2D Barcode Reader Module (Optional)
Physical
Internal Speaker	2x 3W
Power Adapter	DC 12V/5A
Mounting	VESA100 x 100
Housing	Metal with black color
Packing List
Standard Accessory	Power Adapter

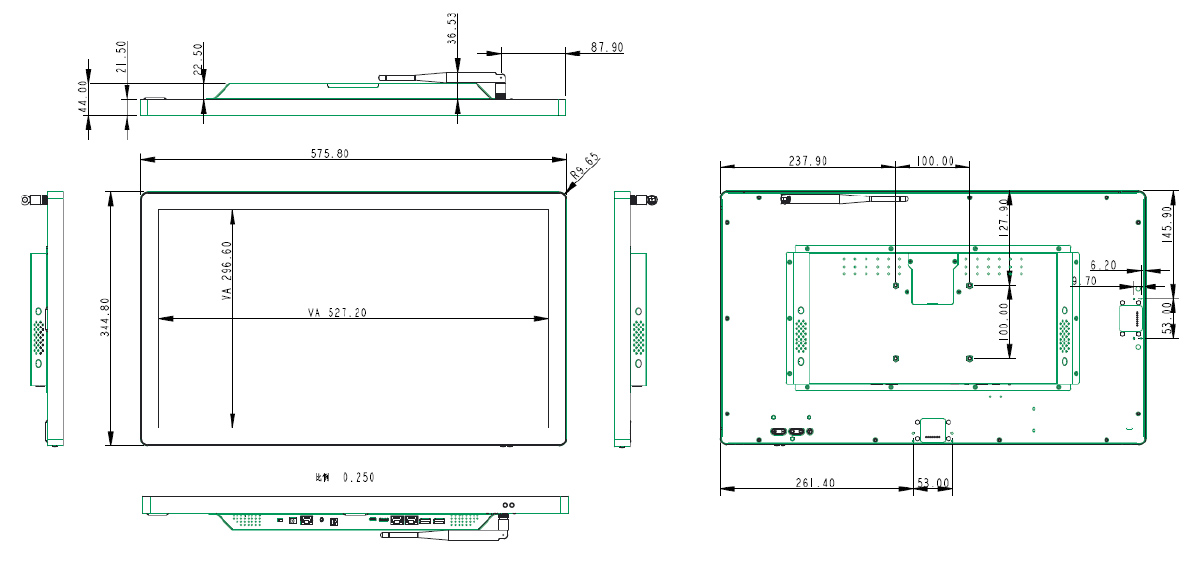

Product Dimension	575.80 x 344.8 x 44 mm
Product Weight	7.21kg
Environment
Certification	CE, FCC
Operating Temperature	0°C ~ 40°C (32℉ ~ 104℉)
Storage Temperature	0°C ~ 55°C (32℉ ~ 131℉)
Relative Humidity	Operating: 85% relative humidity, non-condensing Storage: 85%relative humidity, non-condensing
