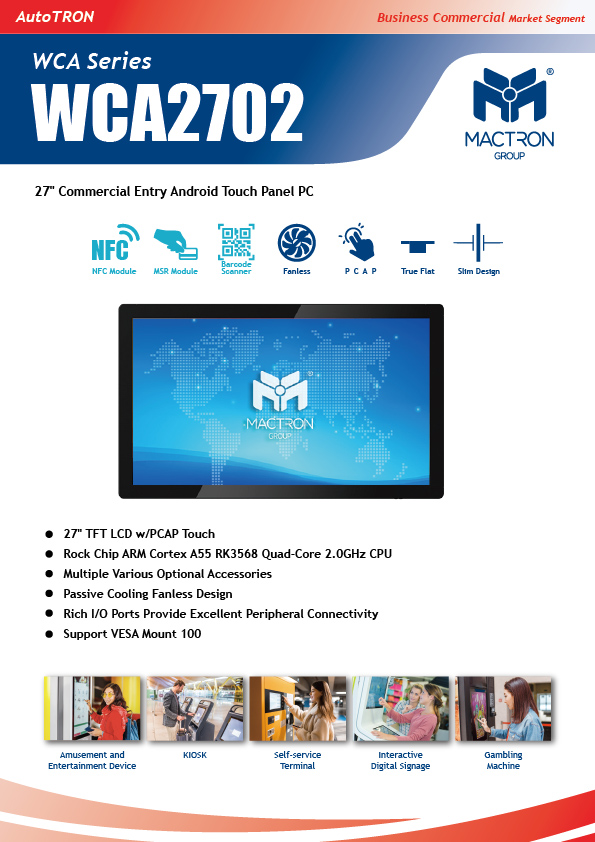

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine
| Display | |
|---|---|
| Display Type | 27" TFT LCD |
| Resolution | 1920x1080 |
| Brightness | 250 nits |
| Touch Panel | 10 points Projected Capacitive Touch Panel |
| Main System | |
| CPU | Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU (Optional: RK3399) |
| GPU | Mali-G52,1-Core-2EE, 3D+2D Graphics Engine |
| Memory | 4GB LPDDR4 SDRAM |
| Storage | 16GB/32GB (optional) eMMC |
| OS Support | Android 13 (Optional Android 14) |
| Wireless |
Wi-Fi：IEEE 802.11b/g/n/ac Bluetooth 5.2 |
| Function Key |
Exit Vol +/- Brightness +/- |
| IO Ports |
Micro SD Card Slot x 1 USB 2.0 x 2 USB 3.0 x 1 Micro USB (USB 2.0 OTG) x 1 LAN x 1 (10/100/1000Mbps) Mini HDMI x 1 Audio Combo Jack x1 DC Jack x 1 RS232 COM Port (RJ45) x 2 S/PDIF out x 1 Power Switch x 1 |
| Data Collection |
NFC Module (Optional) MSR Reader (Optional) 2D Barcode Reader Module (Optional) |
| Physical | |
| Internal Speaker | 2x 3W |
| Power Adapter | DC 12V/5A |
| Mounting | VESA100 x 100 |
| Housing | Metal with black color |
| Packing List | |
| Standard Accessory | Power Adapter |

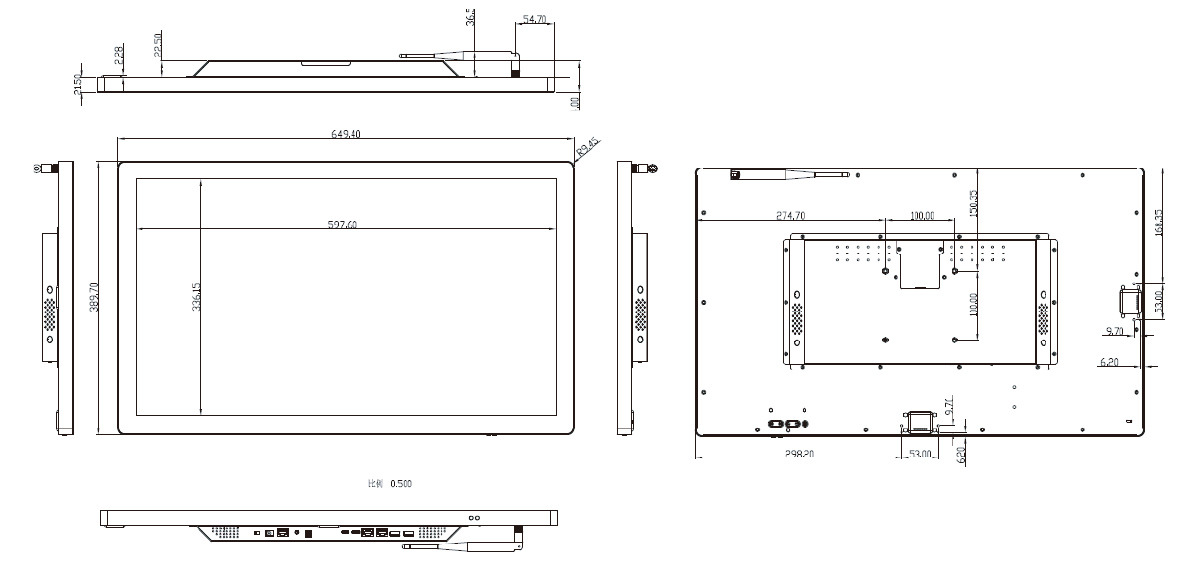

| Product Dimension | 649.5 x 389.7 x 44 mm |
| Product Weight | 10.35kg |
| Box Dimension | 782 x162 x530 mm |
| Box Weight | TBD |
| Environment | |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 40°C (32℉ ~ 104℉) |
| Storage Temperature | 0°C ~ 55°C (32℉ ~ 131℉) |
| Relative Humidity |
Operating: 85% relative humidity, non-condensing Storage: 85%relative humidity, non-condensing |
