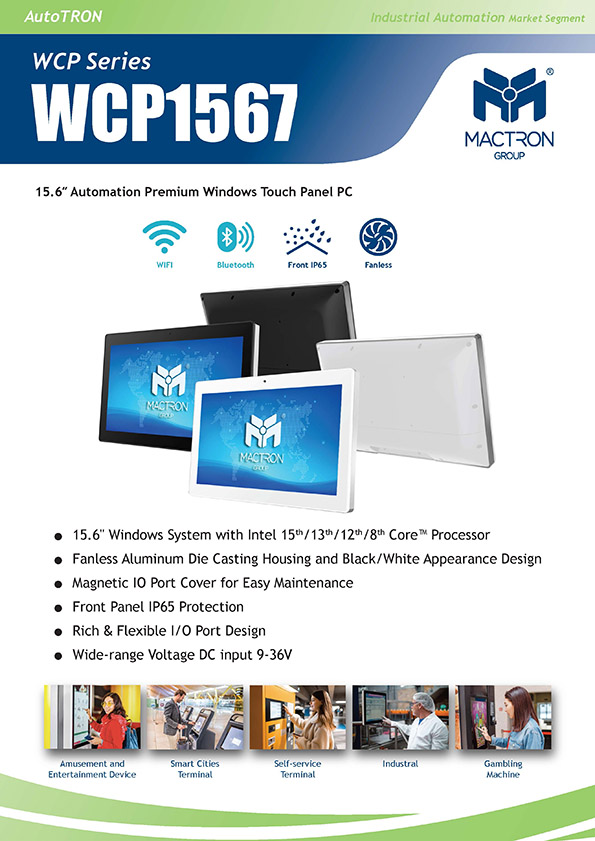

WCP1567

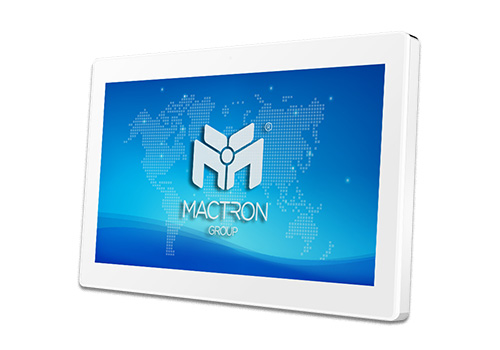

15.6″ Automation Premium Windows Touch Panel PC

  • Datasheet
    • Automation Premium Windows Touch Panel PC Automation Premium Windows Touch Panel PC Automation Premium Windows Touch Panel PC Automation Premium Windows Touch Panel PC Automation Premium Windows Touch Panel PC Automation Premium Windows Touch Panel PC

    • 15.6" Windows System with Intel 15th/13th/12th/8th Core™ Processor

    • Fanless Aluminum Die Casting Housing and Black / White
      Appearance Design

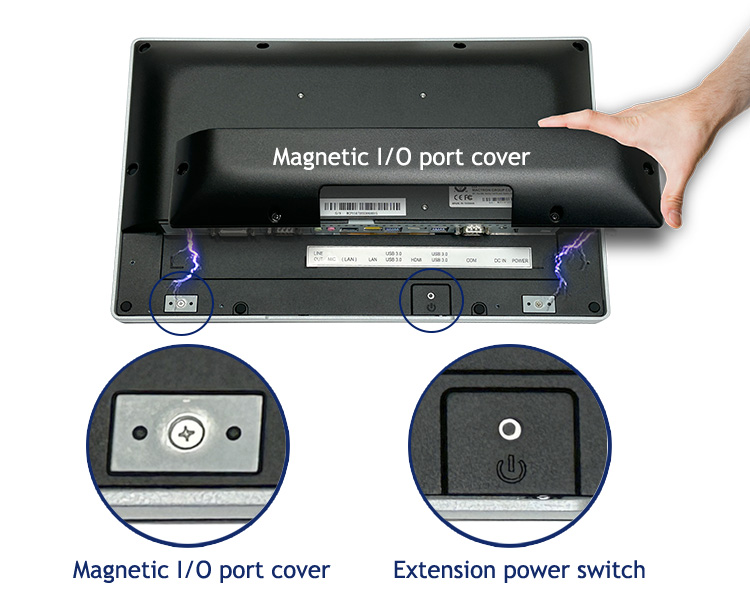

    • Magnetic IO Port Cover for Easy Maintenance

    • Front Panel IP65 Protection

    • Rich & Flexible I/O Port Design

    • Wide-range Voltage DC input 9-36V

    Applications:

    Amusement and Entertainment Device, KIOSK,Smart Cities Terminal, Industral, Gambling Machine

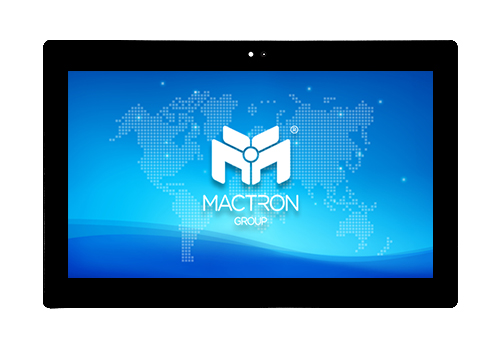

    WCP1567 15.6” Windows Touch All In One System Panel PC

    Intel® Arrow Lake Processor
    Intel® Raptor Lake Processor
    Intel® Alder Lake Processor
    Intel® Whiskey Lake Processor

    Next-Gen CPU Architecture,
    Next-Level Performance

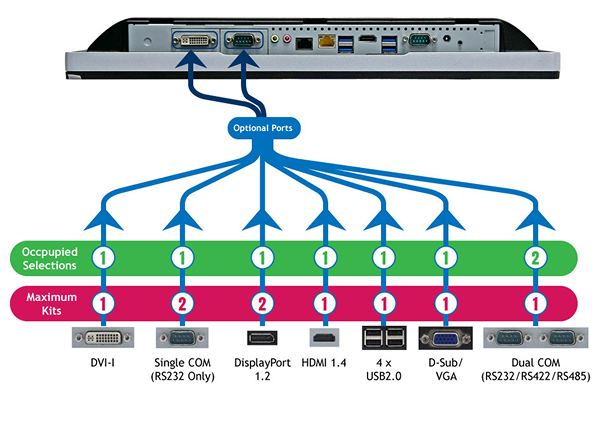

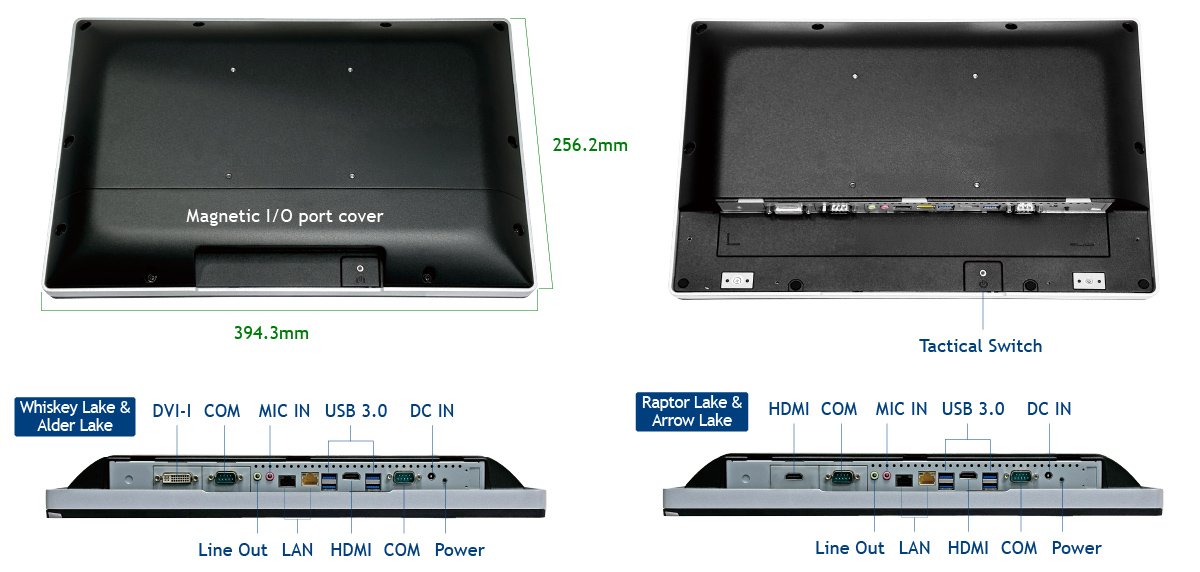

    Flexible I/O Port Design

    Three I/O ports, which can be assigned with other connections. This requires a modification of the metallic back panel shield.
    *** That will cause the NRE & MOQ

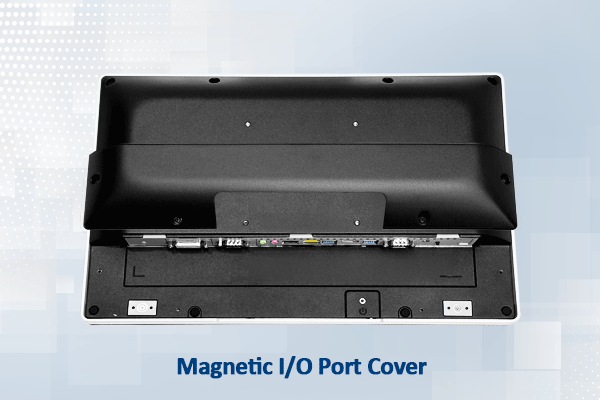

    Magnetic Cable Cover

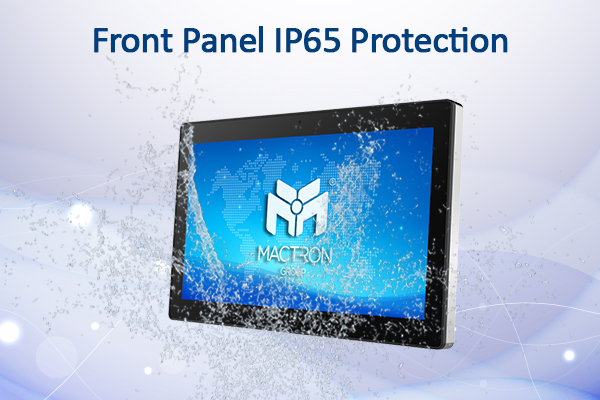

    Front Panel IP65 Protection

    表格可往左往右滑動

    Model Name WCP1567
    Whiskey Lake    		 WCP1567
    Alder Lake    		 WCP1567
    Raptor Lake    		 WCP1567
    Arrow Lake
    Display
    Display Type 15.6" TFT LCD
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Brightness 350 nits
    Touch Panel True-Flat 10-Points Projected Capacitive Touch
    Viewing Angle -89° ~ 89°(H) ; -89° ~ 89°(V)
    Contrast Ratio 1000
    Main System
    Processor Intel® Core™ i5-8365UE

    (Optional: i3-8145UE / Celeron® 4305UE, MOQ required)     		Intel® Core™ i5-1245UE

    (Optional: i7-1265UE / i3-1215UE / Celeron® 7305E, MOQ required)     		Intel® Core™ i5-1335U

    (Optional: i7-1355U / i3-1315U, MOQ required)     		Intel® Core™ Ultra 5 235U

    (Optional: Ultra 7 Processor 265U, MOQ required)
    GPU Intel® UHD Graphics 620 for Core-I Intel® Iris® Xe Graphics eligible for Core-i5 & Core-i7 Intel® Graphics Intel® Graphics
    Intel® UHD Graphics 610 for Celeron Intel® UHD Graphics for Core i3 & Celeron Intel® UHD Graphics for i3
    NPU No Support Intel® AI Boost (12 TOPS)
    Memory 1 x SO-DIMM, DDR4 8GB,
    2400 MHz (Max.32GB)     		1 x SO-DIMM, DDR5 8GB,
    4800 MHz (Max.32GB)     		1 x SO-DIMM, DDR5 8GB,
    Up to 5200 MHz (Max.32GB)     		1 x SO-DIMM, DDR5 8GB,
    Up to 6400MHz (Max.32GB)
    1 x SO-DIMM, DDR4,
    2400 MHz (Max.32GB)     		1 x SO-DIMM, DDR5,
    4800 MHz (Max.32GB)     		1 x SO-DIMM, DDR5,
    Up to 5200 MHz (Max.32GB)     		1 x SO-DIMM, DDR5,
    Up to 6400MHz (Max.32GB)
    Storage 1 x M.2 2280 Slot, 256GB (Max. 1TB)
    I/O Ports
    I/O Ports 4 x USB 3.0 (Type-A) 4x USB 3.2 Gen2 (Type A)
    2 x COM (RS232)
    2 x LAN (1 x Intel® I211
    1 x Intel® I219LM)    		 2 x 2.5GbE LAN (1 x Intel® I226-V, 1 x Intel® I226-LM(Support Wake On LAN))
    1 x HDMI 2.0, 4096x2160@60Hz 1 x HDMI 2.1
    7680 ×4320@60Hz
    1 x DVI-I 1 x HDMI 2.0
    1 x Mic-in
    1 x Line-out
    1 x Power Jack support 9~36V DC-in
    1 x Power On/Off Button
    1 x Tactical switch for Power On/Off
    Communication WLAN : IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz (Internal Antenna)
    Bluetooth 4.2
    Operating System Windows 10 IoT LTSC, Windows 11, Linux
    Physical
    Camera Front Camera : 2.0 MP
    Audio 2 x 2W Speaker
    Mounting VESA Mount 100 x 100 mm
    Color Black / White
    Enclosure Aluminum Die Casting
    Cooling System Fanless
    Power Adapter DC 19V/4.74A, 90W
    TPM TPM 2.0
    Packing List
    Dimensions (WxDxH) 394.3 x 256.2 x 54.4 mm
    Weight 4.6 Kg
    Box Dimension 50 x 16 x 42 cm
    Box Weight 6.1 Kg
    Standard Accessory 1 x 90W Power Adapter
    4 x Rubber Stopper
    Environment
    IP Rating Front IP65
    Certification CE, FCC Class A, EU RF
    Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
    Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
    Relative Humidity 20% ~ 80% (non-condensing)
    Warranty 2 Years
    Top

    Optional Accessory

    Stand
    AVESASB
    VESA Mount Stand Kit
    Black

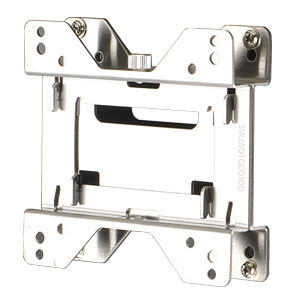

    AWCSWV1
