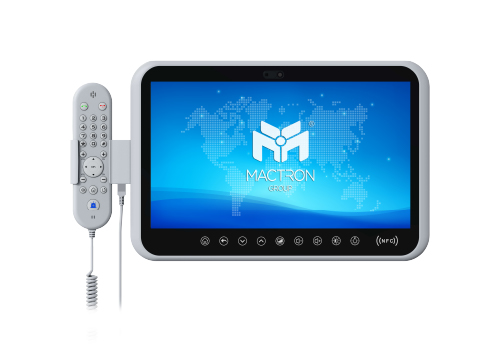

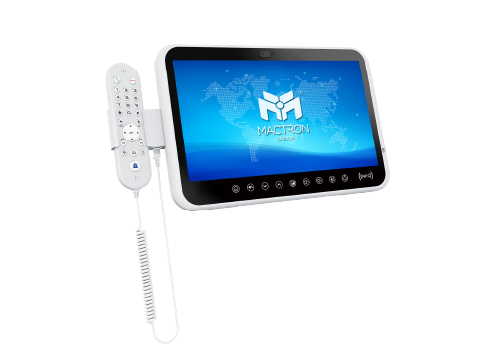

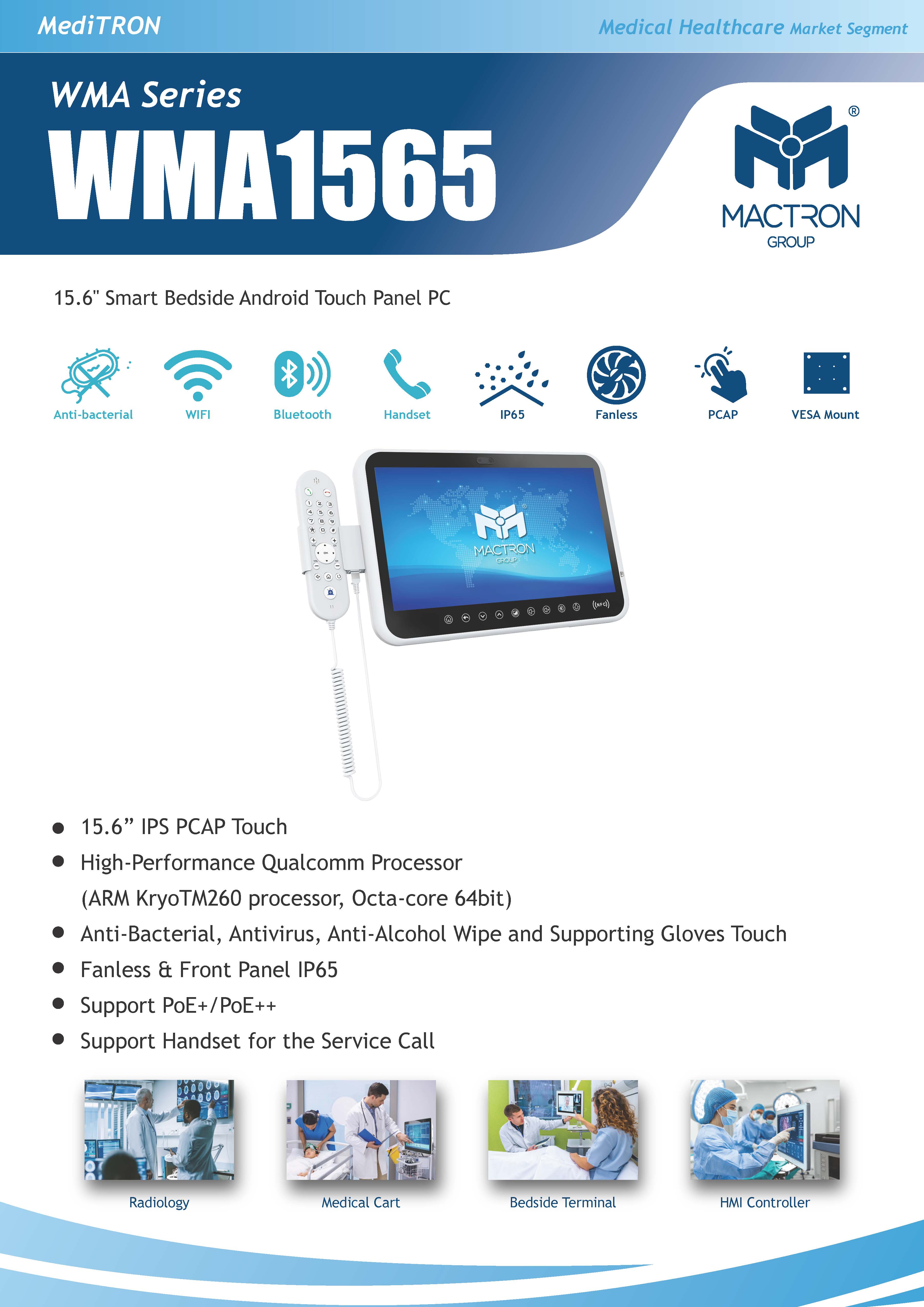

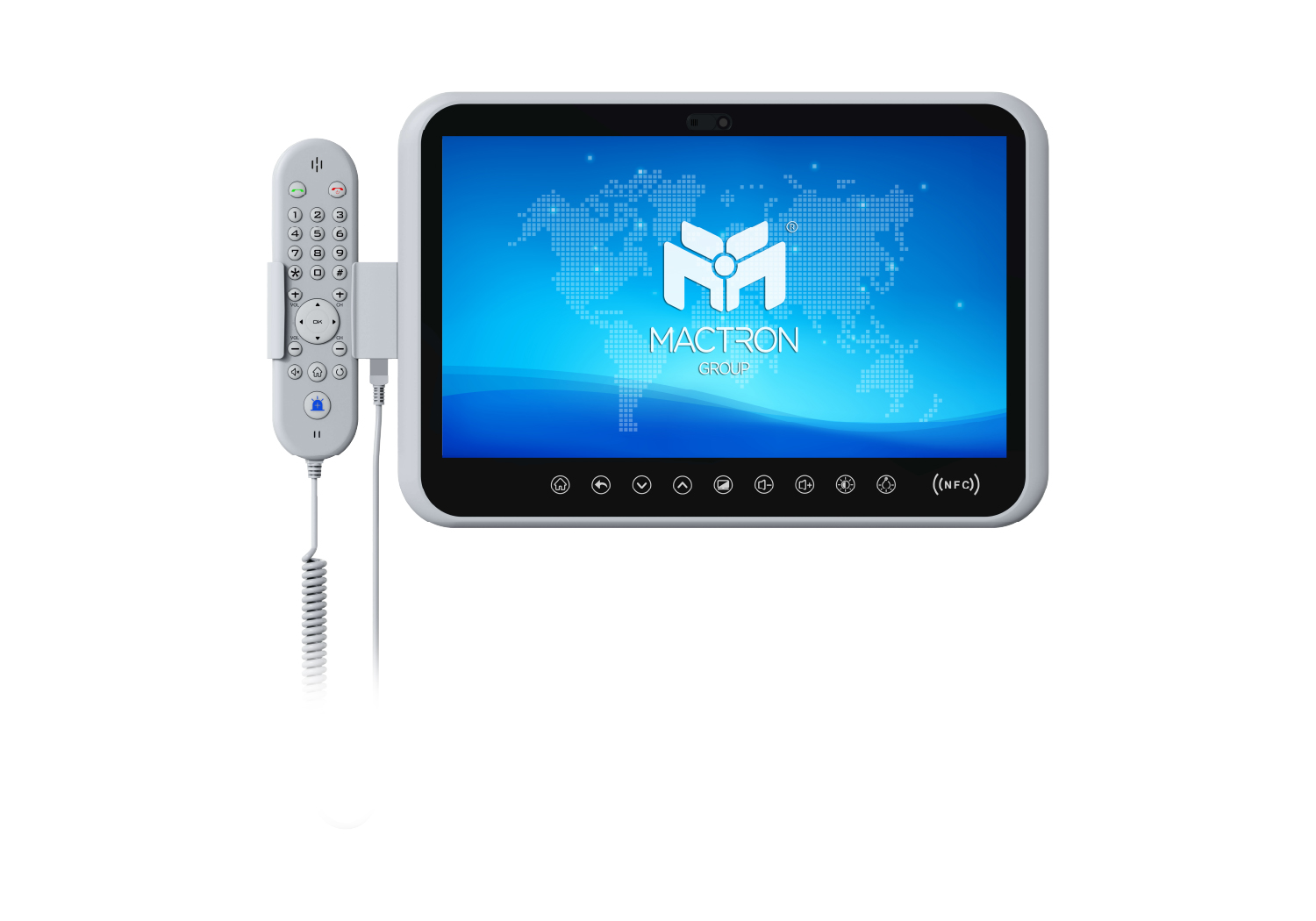

15.6” IPS PCAP Touch
High-Performance Qualcomm Processor
(ARM KryoTM260 processor, Octa-core 64bit)
Aanti-Bacterial, Antivirus, Anti-Alcohol Wipe and Supporting Gloves Touch
Fanless & Front Panel IP65

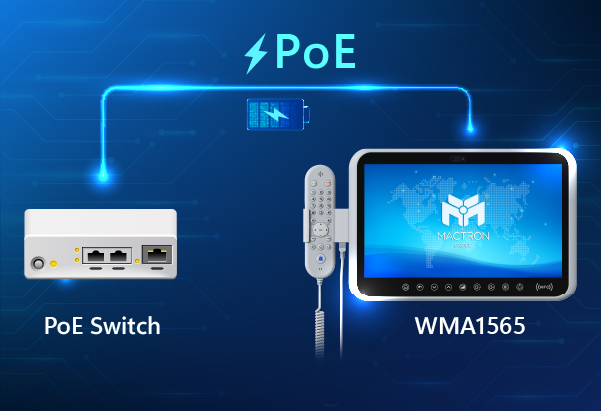

Support PoE+/PoE++
Support Handset for the Service Call

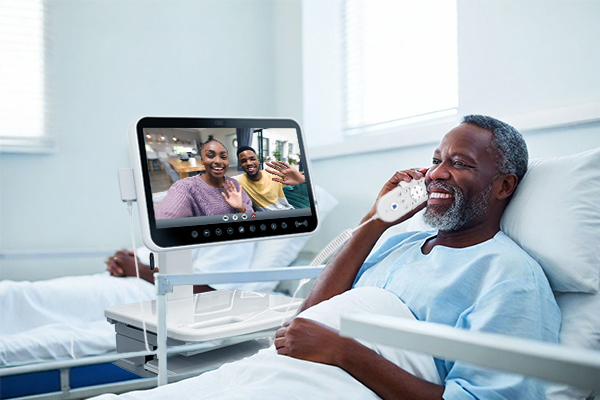

Radiology, Medical Cart, Bedside Terminal, HMI Controller.
| Display | |
|---|---|
| Display Type | 15.6” IPS LCD |
| Resolution | 1920 x 1080 |
| Brightness | 250 nits |
| Touch Panel | 10 Points Multiple PCAP touch |
| Contrast Ratio | 800:1 |
| View Angle(°) | 85/85(L/R), 85/85(U/D) |
| System | |
| CPU | Qualcomm ARM KryoTM260 processor, Octa-core 64bit |
| GPU | Adreno TM 610 |
| Memory | 4G DDR4 (default) / 8GB (optional) |
| Storage | 64G UFS (default) / 128GB (optional) |
| OS Support | Android 13 |
| Function Support | Support IEEE 802.11 a/b/g/n/ac 2.4/5GHz |
| Bluetooth 5.0 | |
| 4G (optional) | |
| Light Sensor | |
| Full-function Handset with remote control | |
| Combo smart card reader & Mifare RFID (optional) | |
| 1 x Reading Lamp | |
| Camera | Front: 16MP CMOS Camera |

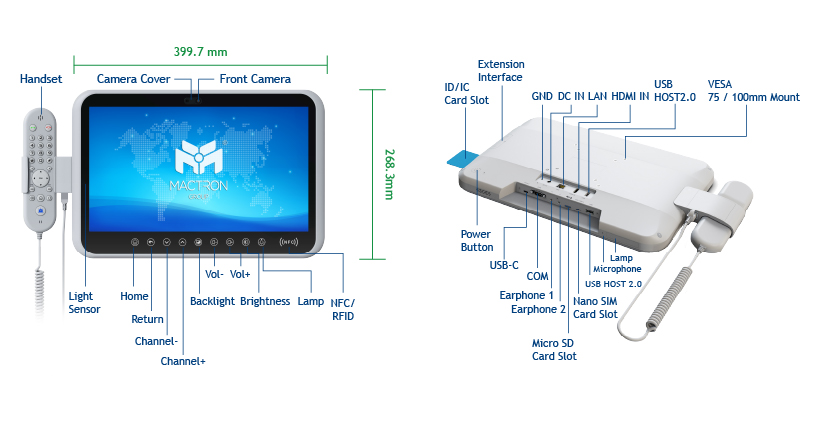

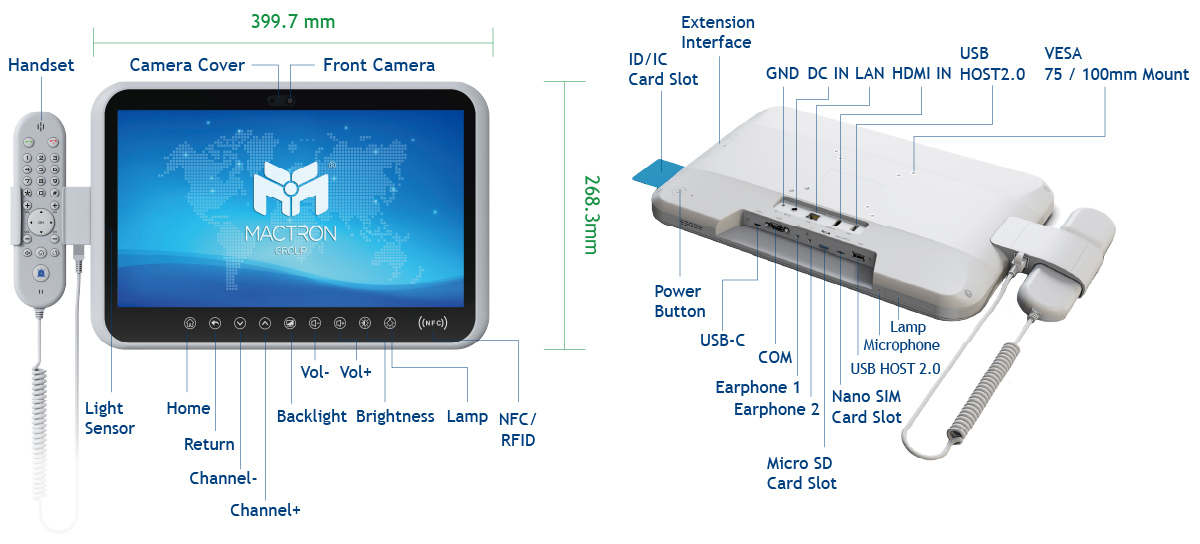

| I/O Ports | 2 x Earphone Jack |
| 1 x Handset Jack | |
| 2 x USB HOST 2.0 | |
| 1 x USB Type C | |
| 1 x Micro SD Card Slot | |
| 1 x Nano SIM Card Slot | |
| 1 x HDMI In | |
| 1 x RS232 | |
| 1 x Internal Microphone | |
| 1 x RJ45 100M(PoE++, 25W, optional) | |
| Function Key | Brightness, Home, Return, Channel-, Channel+, Backlight, Vol-, Vol+, Lamp |
| Physical | |
| Internal Speaker | 1 x 4Ω/3W |
| DC In | 9-36V DC |
| Power Adapter | 12V /3A |
| Mounting | VESA 75 x 75/100 x 100(mm) |
| Housing | Plastic |
| Packing List | |
| Standard Accessory | Power Adapter |
| Handset | |
| Product Dimension | 399.7 × 268.3 × 39 mm |
| Product Weight | 2.3 kg |
| Environment | |
| Rugged Feature | Front IP65 |
| Certification | IEC 60601-1,EN 60601-1,CE,FCC, ISO 22196 |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 80% RH non-condensing |
