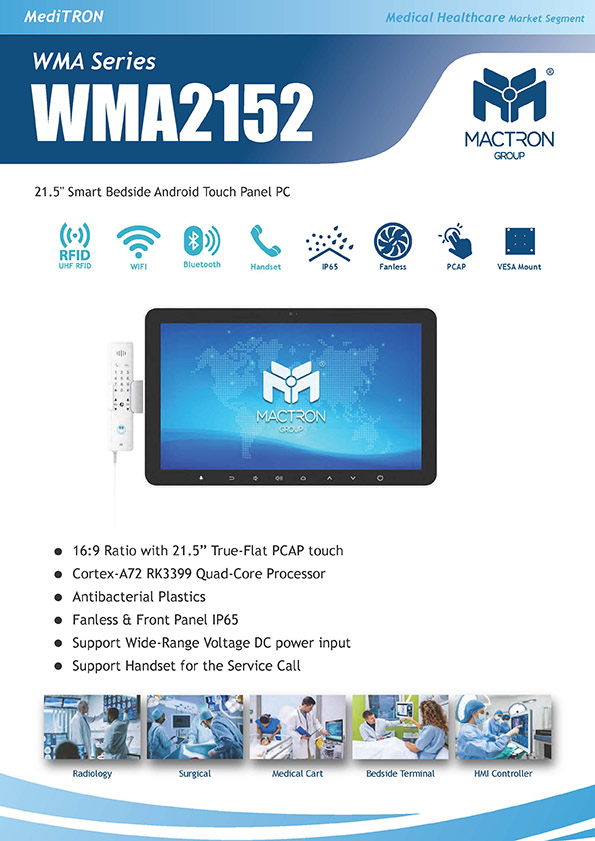

16:9 Ratio with 21.5” True-Flat PCAP touch
Cortex-A72 RK3399 Quad-Core Processor
Antibacterial Plastics

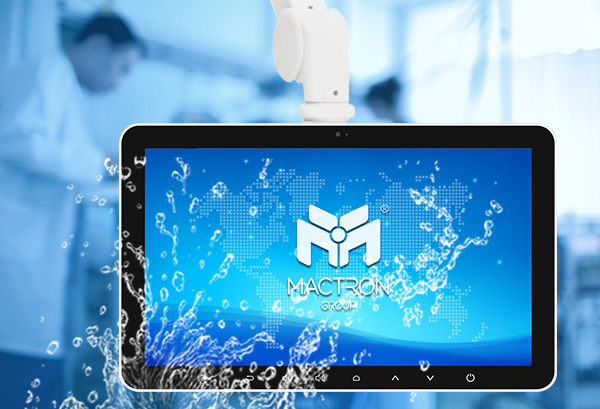

Fanless & Front Panel IP65
Support Wide-Range Voltage DC power input
Support Handset for the Service Call
Radiology, Medical Cart, Bedside Terminal, HMI Controller, etc.
| Display | |
|---|---|
| Display Type | 21.5” TFT LCD |
| Resolution | 1920 x 1080 |
| Brightness | 500 nits |
| Touch Panel | 10 Points Multiple PCAP touch |
| Aspect Ratio | 16:9 |
| System | |
| CPU | Rockchip3399, Quad-Core A53, up to 1.4GHz, Dual-Core A72, up to 1.8GHz |
| GPU | Mali-T860MP4 |
| Memory | 4GB LPDDR4 |
| Storage |
64GB eMMC (32GB, 128GB optional) Support SSD hard disk (optional) |
| OS Support | Android 12 |
| Terminal back I/O Ports |
1 x DC-in 2 x USB2.0 1 x RJ-45 (Support PoE Function) 1 x RJ11 |
| Terminal bottom I/O Ports |
2 x Earphone Jack 1 x Reset 1 x USB3.0 1 x HDMI IN 1 x TYPE-C 1 x SIM Card Slot |
| Function Support |
WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna) Bluetooth 5.0 RFID G-sensor 4G (Optional) |
| Physical | |
| Camera |
Front: 13MP CMOS Camera, Support ATSC, DVB-T2, ISDB-T (optional) 1 x Reading Lamp |
| Function Key | Power, Vol+, Vol-, Channel+, Channel-, Home, Return, Light |
| Internal Speaker | 2 x 8Ω/3W |
| Power Adapter | 12V DC (9-36V) |
| Mounting | VESA 75 x 75 / 100 x 100 (mm) |
| Housing | Plastic |
| Standard Accessory |
Power Adapter (ADA12D1) Handset (AHAND01) |

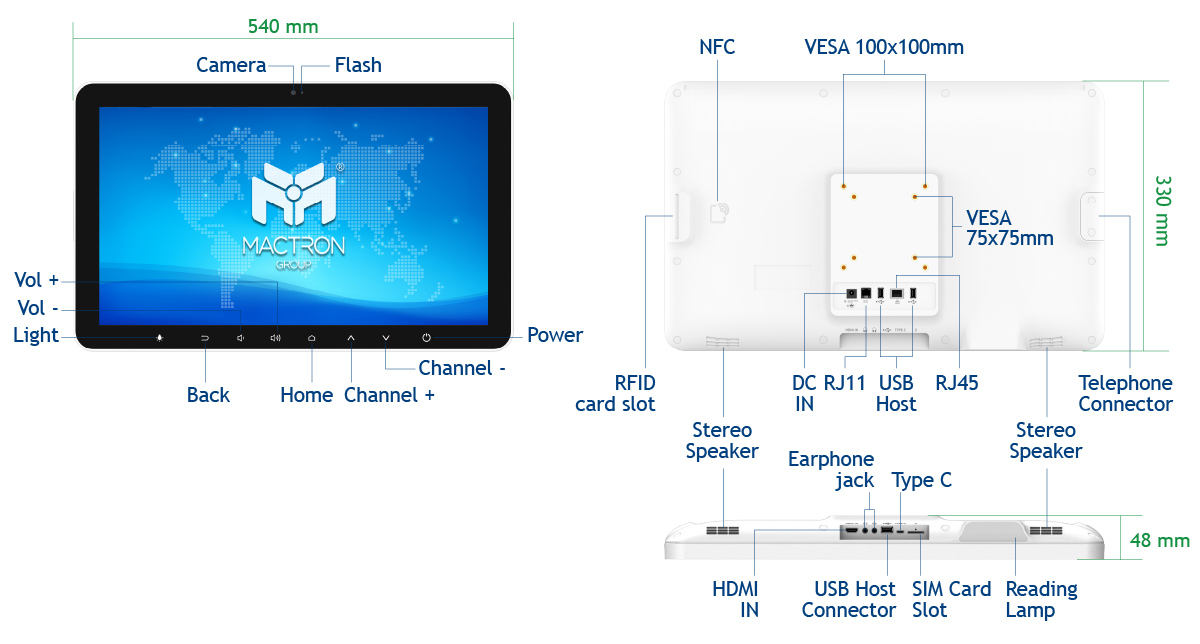

| Product Dimension | 540(L) x 330(W) x 48(H) mm |
| Product Weight | 4.8 kg |
| Environment | |
| Rugged Feature | Front IP65 |
| Certification | CE, FCC |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 80% RH non-condensing |
