MTG TSK

Transformer Software Kit

  • Datasheet

    • Microsoft modern style ribbon UI

    • Support wide-coverage communication protocols

    • Support VNC remote monitoring and FTP file transfer

    • Offers a variety of alarm tables, actions that alarms can be set to trigger

    • Support simple scripting language for data manipulation between HMI and PLC

    • Data extracted by data logger service can be further exported into .txt, .csv or .pdf file

    Applications:

    Data Center, CNC Machine, Factory Production, Cold Chain Logistic

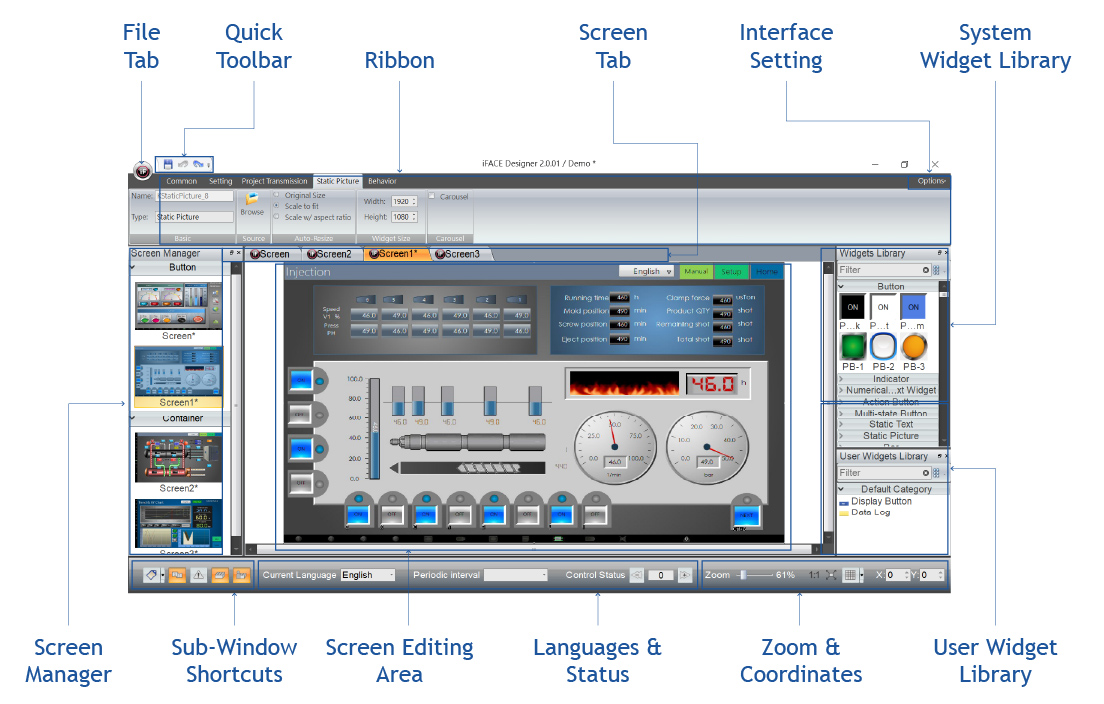

    The Uniquely Modern Screen Designer

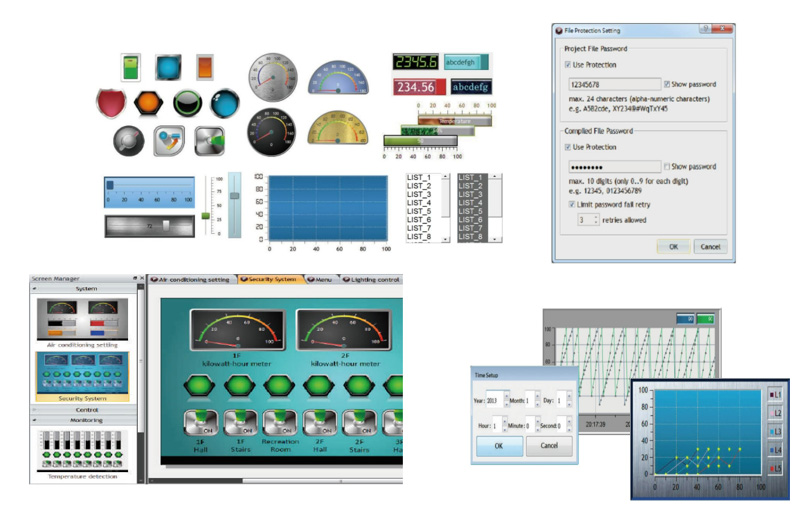

    Diversified MTG TSK Smart Functions

    It’s easy to get your application up and running with our MTG TSK Software. All the diversified smart functions you need are all included. Take advantage with built-in functionality that can be easily inserted into your screen.

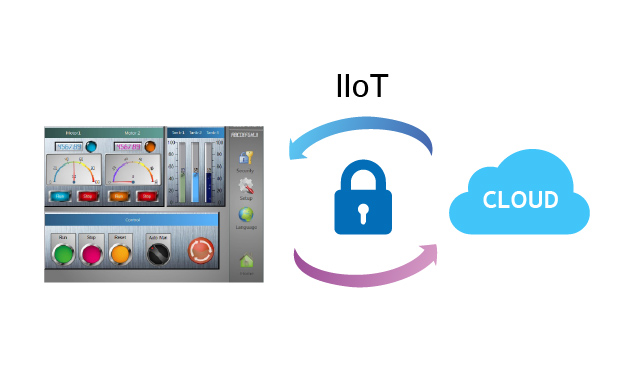

    IIOT HMI Solutions

    IIOT HMI with dual Ethernet ports, I/O channels, Wi-Fi station & AP. A multi-purpose device that included Gateway functionality, VNC remote monitoring, RESTful API service, MQTT service and Automation protocols.

    MQTT Service

    MQTT today is used in a wide variety of industries, such as automotive, manufacturing, telecommunications, oil and gas, etc. With simple settings, HMI can be set as Publisher or Subscriber. When the set condition is met, or periodic publishing is set, tag data of HMI publisher will be triggered to publish to MQTT server.

    RESTful API Service

    Via RESTful API Service, HMI sends requests and receives responses to and from the cloud in JSON format to fulfill the requirements of IoT applications while avoiding security breaches with HTTPS encryption algorithm.

    Automation Protocols

    Support various automation protocols, including Modbus (RTU/TCP/ASCII), CANopen for communications in different applications with PLCs, controllers, and I/O modules, etc. through physical serial (RS-232/422/485) or Ethernet ports.

    Dual Ethernet Ports

    With dual Ethernet ports, HMI functions as the gateway between internal industrial communications network and external wide area network (WAN).

    FTP File Transfer

    Supports FTP protocols, allowing users to easily obtain HMI data logs, historical alarm tables, recipes, Screen captures, and to upload or download projects from or to HMI.

    Various Compatible PLC Brands

    Support wide compatible PLC that enables communication with your PLC and other automation equipment from all major automation manufactures.
    Brand Series Support Models
    Allen-Bradley ControlLogix, CompactLogix Ethernet All models
    MicroLogix DF1 RS232 All models
    MicroLogix Ethernet All models
    Micro800 Ethernet All models
    PLC5 DF1 CRC All models
    CoDeSys CoDeSys V3 Ethernet over ARTI
    Delta DVP All models
    FATEK FBs/Fbe/B1/B1z All models
    FBs/Fbe/B1/B1z TCP All models
    Hitachi MICRO-EHV Ethernet MICRO-EHV Ethernet
    MICRO-EHV MICRO-EHV
    HUST H Series CNC Controller H4D Series/H6D Series
    A6 CNC Controller A6 Series
    KEYENCE KV-1000 All models
    KV-L20V Host Link/KV-nano All models
    KV-3000/5000/5500 Series All models
    KOYO SU/DL Series All models
    Lust LustBus ServoC/CDE Series All models
    Mitsubishi A Series/J71UC24 Computer Link All models
    A Series/J71 for AnA/AnU All models
    A Series/J71 Format4 All models
    FR Series/A700 All models
    FX Series All models
    FX/FX2N Series Computer Link All models
    FX2N Series All models
    FX3U Series All models
    FX3U Series Computer Link All models
    FX3U Series Ethernet All models
    Q Series All models
    Q Series Computer Link All models
    Q Series Ethernet All models
    FX5U Ethernet All models
    Servo MR-J4 All models
    MODBUS MODBUS ASCII Slave All models
    MODBUS ASCII Master All models
    MODBUS RTU Slave All models
    MODBUS ASCII Master All models
    MODBUS TCP Slave All models
    MODBUS TCP Master All models
    MOTRONA MKS MC700 Motion Controller All models
    Omron C Series TPM1A, CP1E, CP1L
    CS/CJ Series All models
    CS/CJ Series FINS TCP All models
    NX/NJ Series EtherNet/IP All models
    OPTEX CD33 Series Sensor All models
    CD5 Series Sensor All models
    Panasonic FP Series All models
    Siemens S7-200 All models
    S7-200/300/1200/1500 (ISO TCP) All models
    S5 PG Port All models
    TECO TP02/03 Series All model
    AC Servo TSDA Series All models
    Toshiba TMFCD91A All models
    Vigor VB/VH/M Series All models
    VS Series All models
    VS TCP All models
    VS UDP All models
    Yamatake DCP30 All models
    DMC50 All models
    SDC35/SDC45 All models
    NX-D15/25 All models
    Yokogawa FA-M3 Series TCP All models
    Accessories Lead Controller EV12048WI1JX
    Scale SKW-II
    Barcode Reader All models
    Barcode Printer All models

    Optional Accessory

    Datasheet

    Type Description File
    SOFTWARE HMI program editor for Win10 64bit Operating System MTG TSK Software 2.0.1
    SOFTWARE HMI program editor for WinXP, Win7, Win8 Operating System MTG TSK Software 1.6.71
    SOFTWARE MTG TSK 2.0.01 runtime for industrial Panel PC (X86 PC-based; Win10 64bit Operating System) application MTG TSK SCADA 2.0.01
    EDM MTG TSK Software EDM MTG TSK EDM
